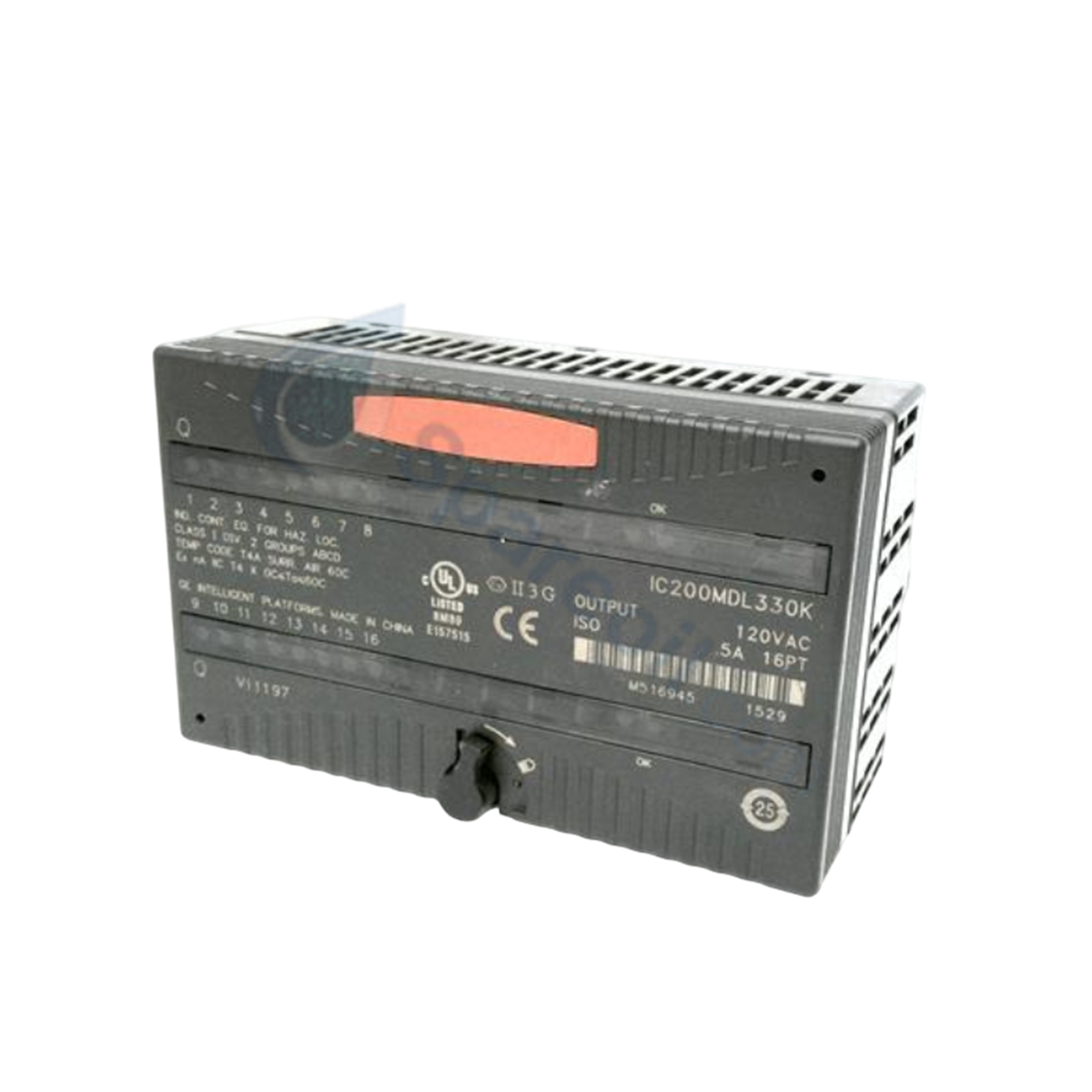

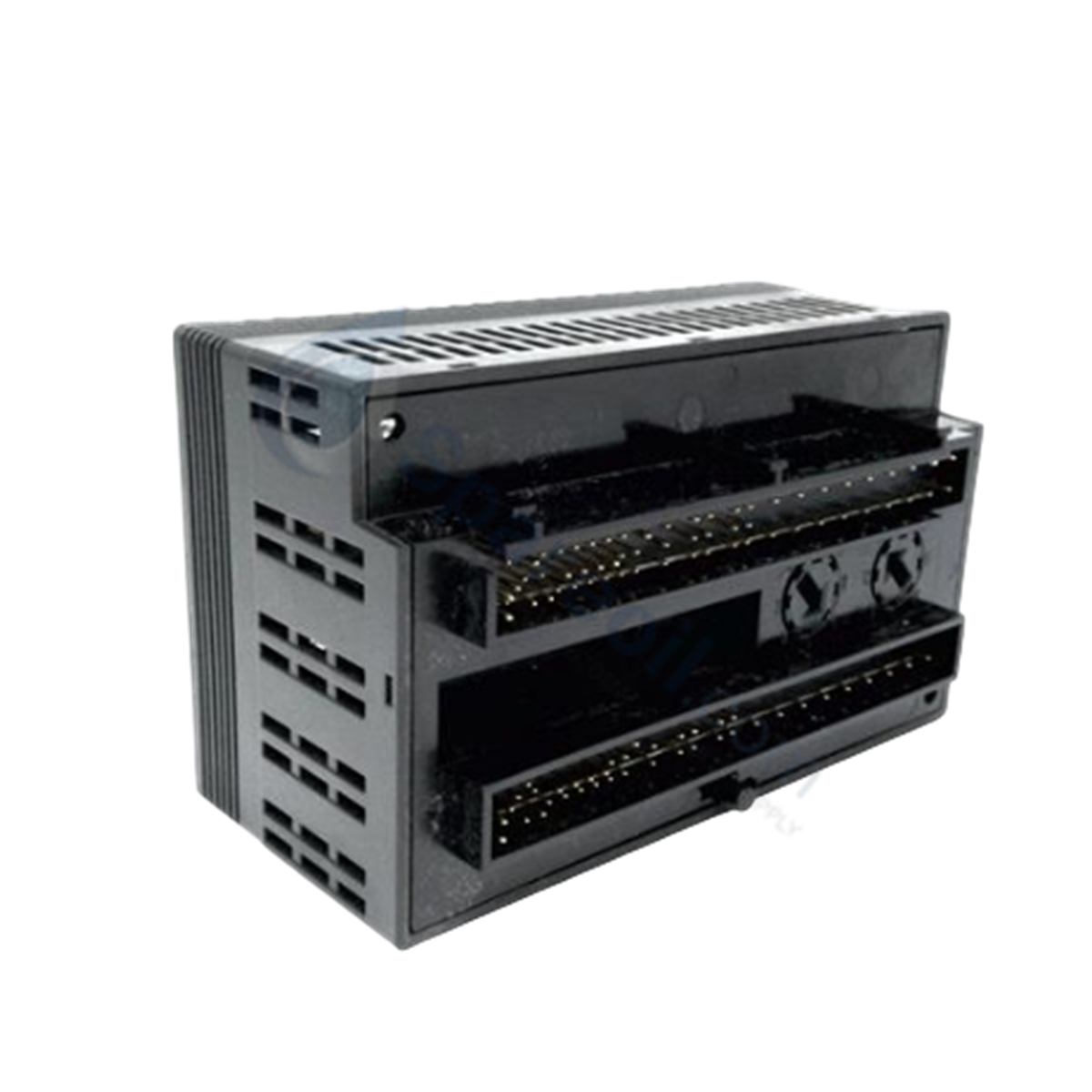

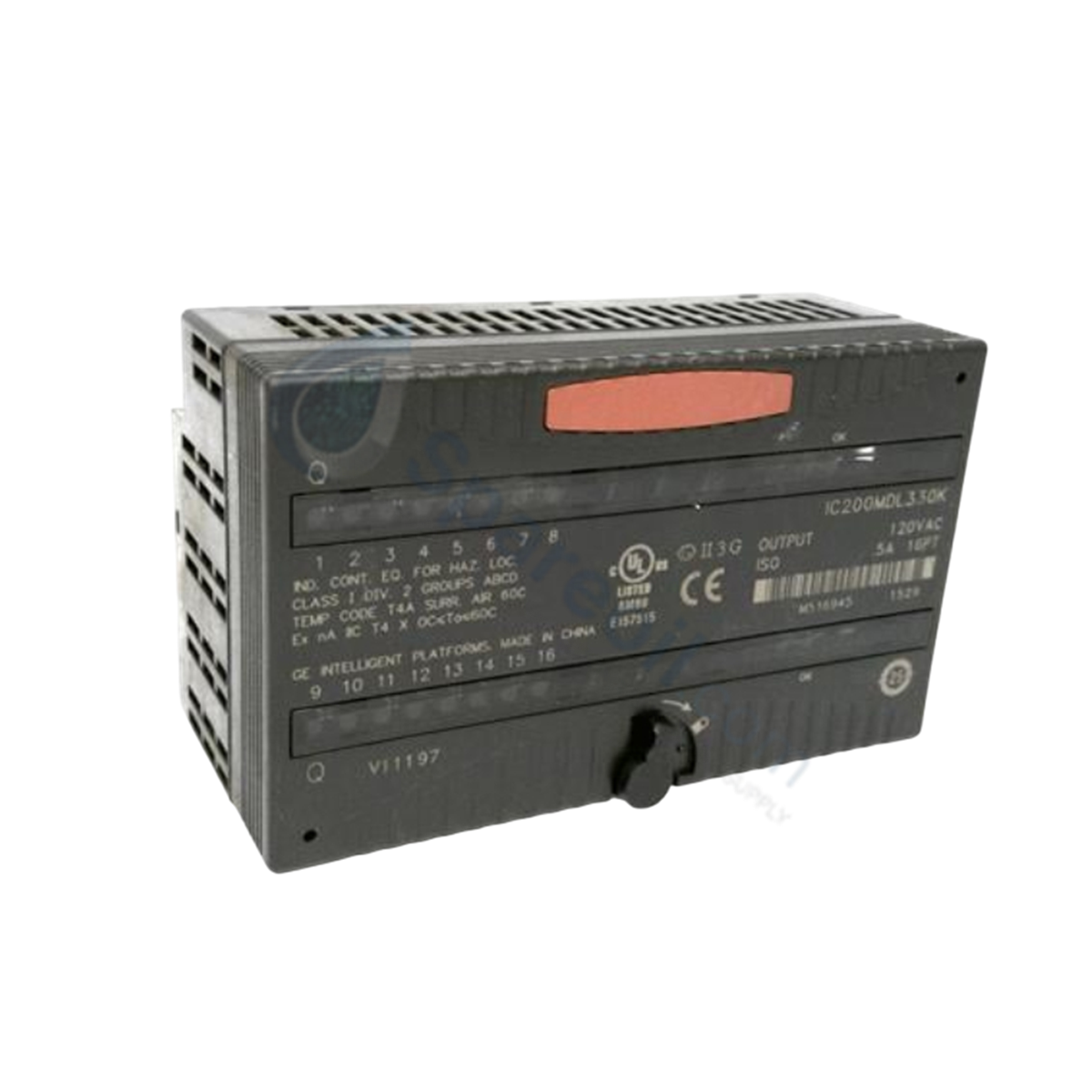

The GE Fanuc IC200MDL330, also cataloged as the IC200MDL330 Discrete Output Module, operates as a dedicated hardware component for 120 VAC discrete load actuation within VersaMax I/O and control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200MDL330 |
| Brand | GE Fanuc Emerson |
| Origin | USA / Various |
| Weight | 0.31 kg (0.69 lbs) |
| Dimensions | 110 mm x 66.8 mm x 50.0 mm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 140 mA maximum (backplane at 5 VDC) |
| Channel Count | 16 discrete output channels |
| Nominal Operating Voltage | 120 VAC (85 to 132 VAC, 47-63 Hz) |
| Output Current Rating | 0.5 A per point max (10 mA min load) |
| Max Inrush Current | 5.0 A for 20 ms (1 cycle) |
| On/Off Response Time | 1/2 cycle maximum |
| Channel Isolation | Channel-to-channel and user-to-logic optical isolation (250 VAC continuous / 1500 VAC for 1 minute) |
| Transient Protection | RC snubber network and MOV on each individual output point |
| Max Leakage Current | Less than 2 mA at 132 VAC |
| Max Voltage Drop | 2.0 V maximum |
Backplane Communication Velocity & Firmware Flash Compatibility
The module receives processed 16-bit discrete image updates across the VersaMax backplane bus, demanding a maximum logic current of 140 mA. Deterministic bus transfers enable synchronized state updates to all 16 individually isolated channels within 1/2 line cycle. Onboard optical isolation barriers separate field line voltages from backplane logic, while internal RC snubber circuits and MOVs absorb inductive transients at each channel interface. Firmware flash compatibility across VersaMax CPU models and network interface modules ensures direct register mapping without requiring dedicated interface scaling blocks.
Frequently Asked Questions
Q: How does the individual channel isolation on the IC200MDL330 affect field power wiring?
A: Because each of the 16 output points is individually isolated (grouping of 1 channel per point), each channel can be wired to distinct AC power phases or independent 120 VAC power sources up to 250 VAC continuous isolation limits.
Q: What protection is provided against inductive load turn-off voltage spikes?
A: Each individual output point includes an internal RC snubber network and a Metal Oxide Varistor (MOV) connected in parallel across the output switch. This built-in suppression limits transient voltages when driving inductive loads like contactors and interposing relays.
Q: What is the maximum backplane power draw required from the BIU or CPU power supply?
A: The module draws a maximum of 140 mA from the 5 VDC logic backplane supply. External 120 VAC field power must be supplied separately to drive attached field loads.
Field Installation Guidelines
- Carrier Mounting and Insertion: Align the module with the designated slot on the VersaMax I/O carrier (such as the IC200CHS series) and press firmly until the locking mechanisms fully snap into place on the 35 mm DIN rail.
- Field Wiring and Isolation: Wire each output channel through its dedicated isolated terminal points on the carrier base. Maintain physical separation between low-voltage DC communication wiring and 120 VAC field output cables inside wire ducts.
- Chassis Grounding: Ensure the carrier frame ground terminal connects directly to the panel protective earth bar using heavy-gauge wire to maintain the 1500 VAC isolation rating and preserve MOV surge suppression integrity.
