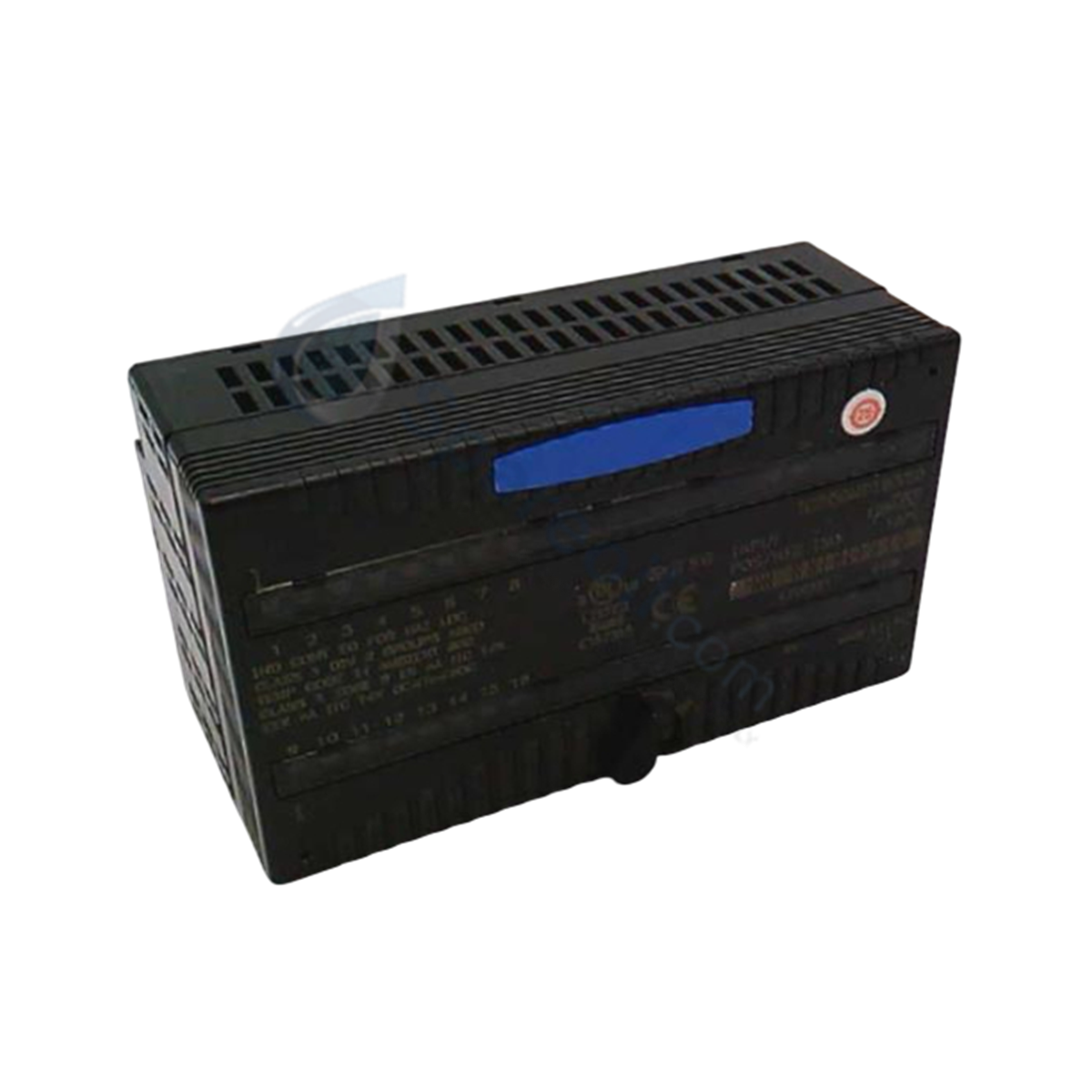

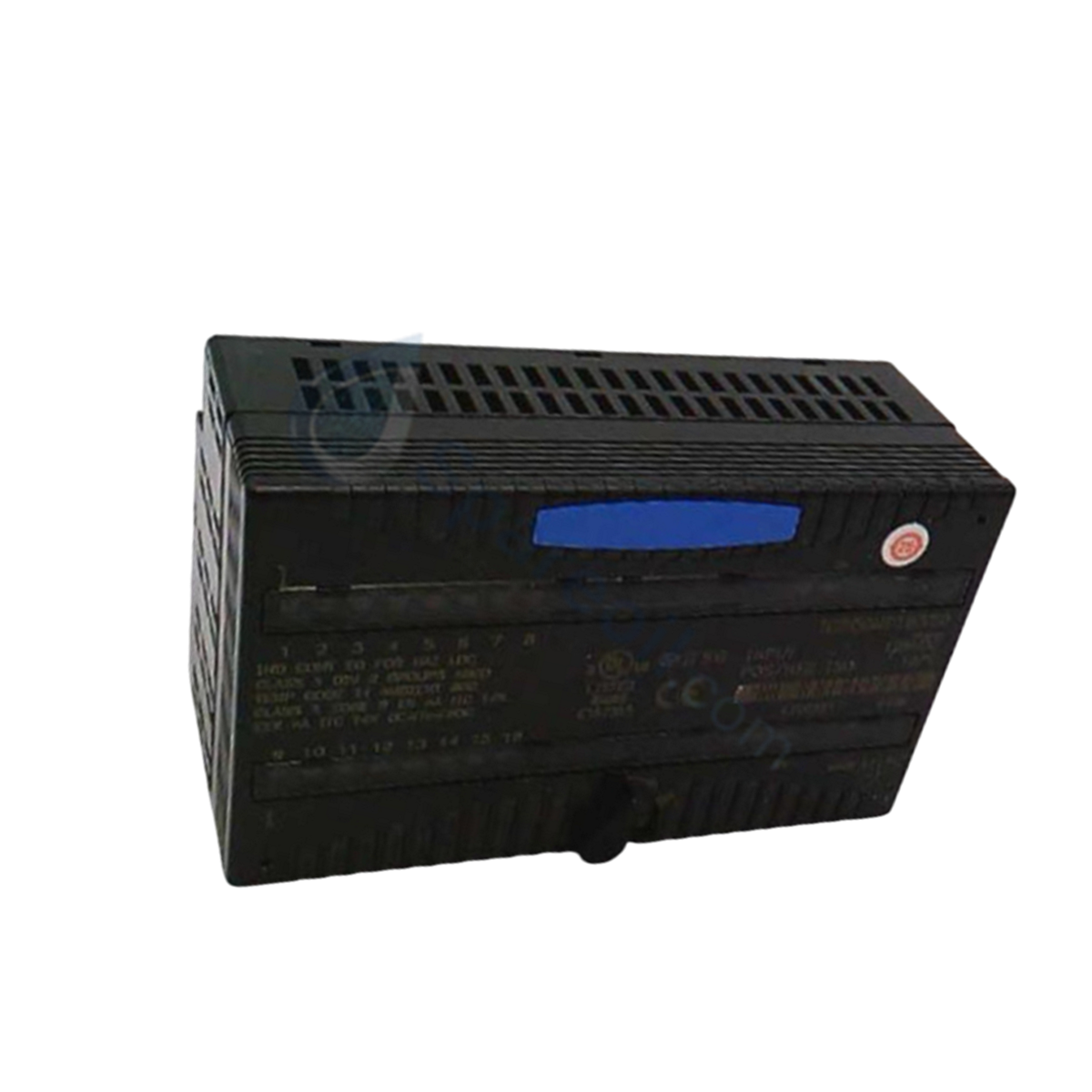

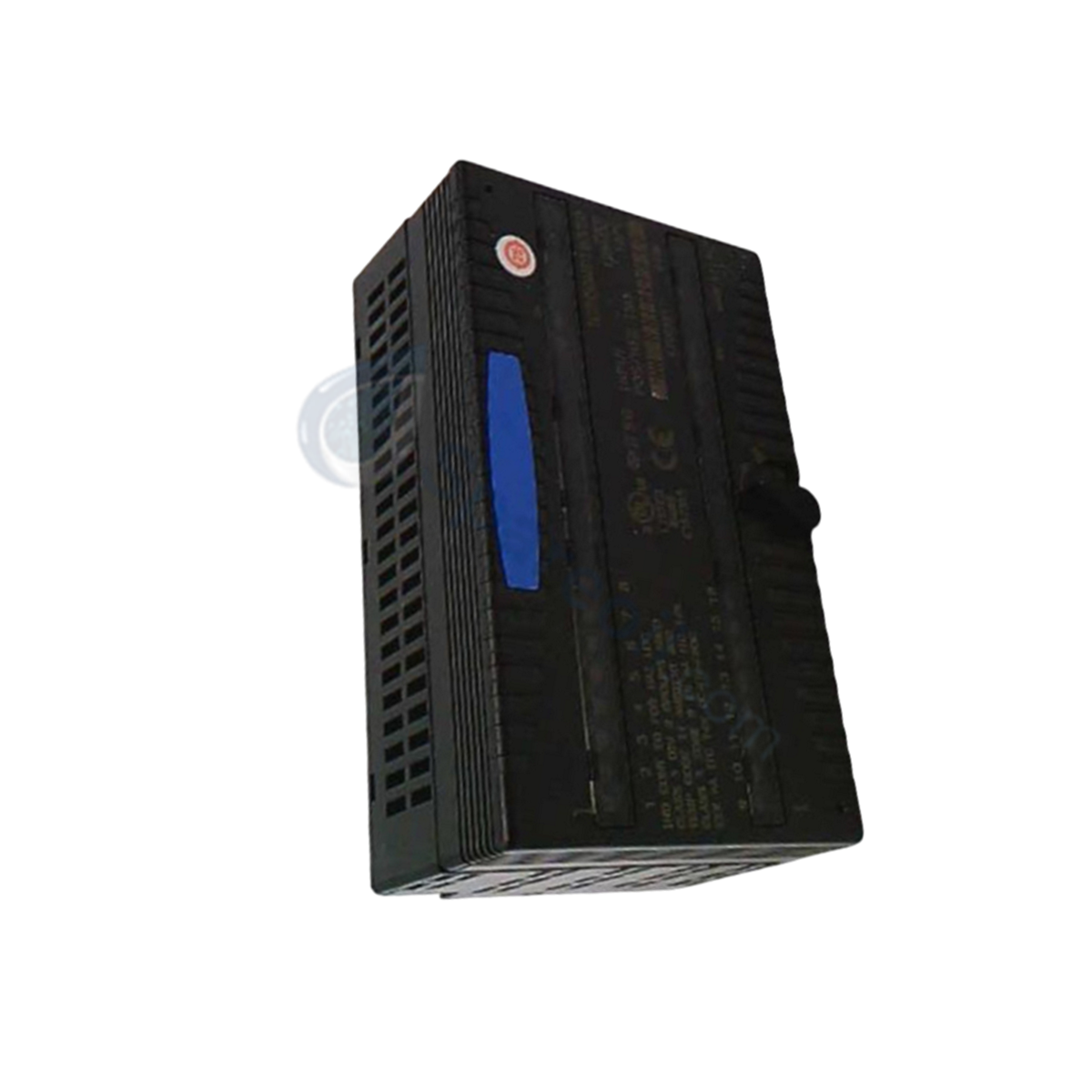

The GE Fanuc IC200MDL632, also cataloged as the IC200MDL632 Discrete Input Module, operates as a dedicated hardware component for high-voltage DC binary signal acquisition within VersaMax PLC platforms.

Hardware Specifications

Parameter Specification
Model IC200MDL632
Brand GE Fanuc Emerson
Origin USA / Various
Weight 0.14 kg (0.31 lbs)
Dimensions Standard VersaMax single-slot footprint
Operating Temp 0 to 60 deg C
Power Consumption 80 mA maximum backplane current draw
Input Channel Count 16 individually isolated channels
Nominal Input Signal 125 VDC
Input Voltage Range 0 to 150 VDC
Input Current 1.7 mA typical at 125 VDC; 2.2 mA typical at 150 VDC
Input Impedance 74 KΩ typical at 125 VDC
Logic Configuration Positive (sourcing) and Negative (sinking) logic
Configurable Filter Time 0 ms, 1.0 ms, 7.0 ms
Maximum Response Time 0.5 ms
Channel Isolation Rating 250 VAC continuous; 1500 VAC for 1 minute
External Power Supply None required

Backplane Bus Communication Velocity & I/O Density Scaling

The IC200MDL632 packs 16 individually isolated 125 VDC channels into a single module slot, expanding I/O density scaling across VersaMax backplane carrier assemblies. The internal bus interface transfers binary state updates at rapid backplane bus communication velocity during system scan execution. Optical isolation blocks prevent high-voltage field spikes from compromising internal backplane communications, while total hardware compliance ensures complete firmware flash compatibility across VersaMax CPU families.

Frequently Asked Questions

Q: Does the IC200MDL632 require an external power supply for internal logic operations?

A: No, the module receives operational power directly from the VersaMax PLC backplane bus, drawing a maximum of 80 mA. Field signals are powered by external field loops up to 150 VDC.

Q: How does individual channel isolation benefit overall system availability on the IC200MDL632?

A: Channel-to-channel isolation rated at 250 VAC continuous ensures that a fault or open circuit on a single input channel does not impact adjacent channels, allowing remaining field inputs to continue operating normally.

Field Installation Guidelines

  • Carrier Installation: Seat the module onto its matching VersaMax I/O carrier terminal structure and apply firm pressure until the locking tabs snap securely onto the backplane rail.
  • 125 VDC Field Wiring: Wire discrete input devices (such as auxiliary contacts or pushbuttons) to the carrier terminals. Positive and negative logic configurations are supported per channel; ensure high-voltage 125 VDC field wiring is routed away from low-voltage analog cables.
  • Shielding and Grounding Verification: Connect the carrier frame ground screw to protective earth to enable full 1500 VAC transient isolation between user inputs, backplane logic, and enclosure ground.
