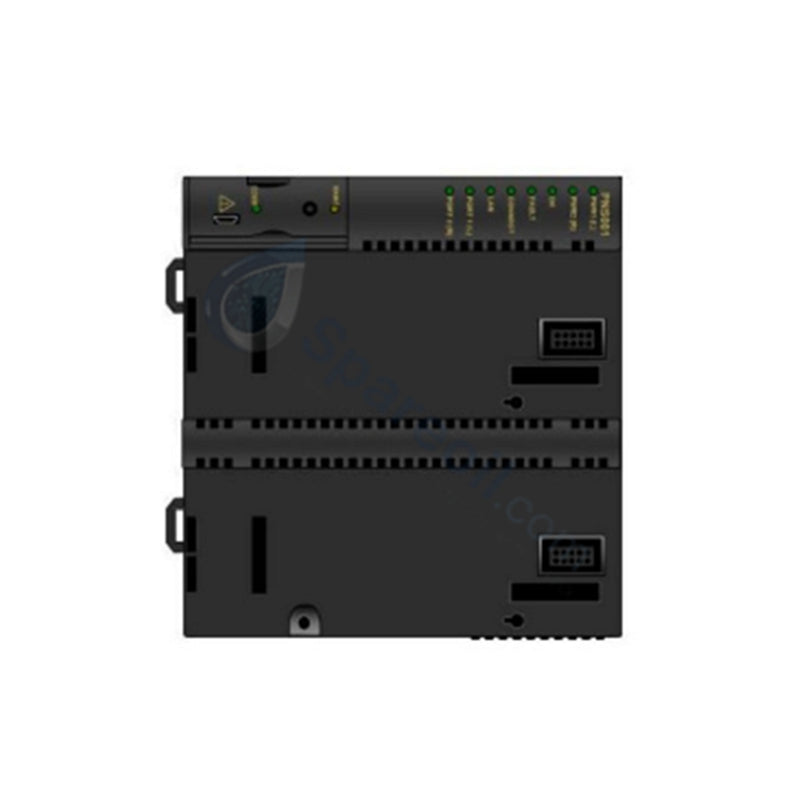

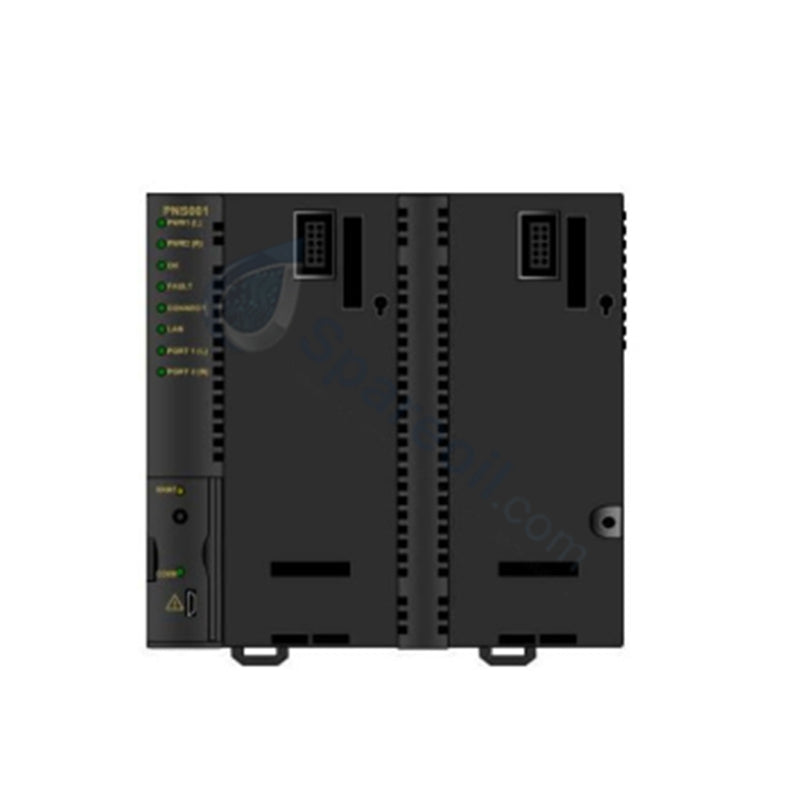

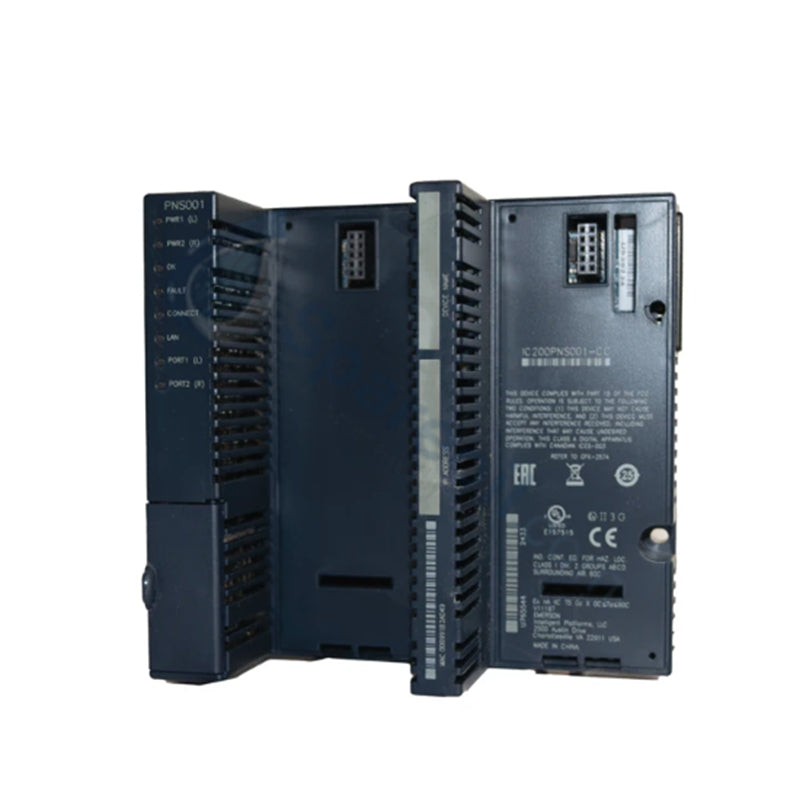

IC200PNS001 GE Fanuc PROFINET Scanner Module

GE Fanuc IC200PNS001 VersaMax PROFINET Scanner Network Interface Unit

GE Fanuc IC200PNS001 VersaMax PROFINET Scanner Network Interface Unit

Availability: 10 left in stock

Configured for high-speed distributed I/O integration in VersaMax platforms, the GE Fanuc IC200PNS001 (IC200PNS001 PROFINET Scanner Network Interface Unit) provides...

SKU: IC200PNS001

Manufacturer: GE Fanuc
Product No.: IC200PNS001
Product Type: Network Interface Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for high-speed distributed I/O integration in VersaMax platforms, the GE Fanuc IC200PNS001 (IC200PNS001 PROFINET Scanner Network Interface Unit) provides direct physical/electrical execution. The unit links up to 8 VersaMax I/O modules to a PROFINET controller, managing 1440 bytes of input data and 1440 bytes of output data over dual RJ45 Ethernet ports.

Hardware Specifications

Parameter	Specification
Model	IC200PNS001
Brand	GE Fanuc
Origin	USA
Weight	0.75 lbs (0.34 kg)
Dimensions	134 mm x 132 mm (5.28 in x 5.2 in)
Operating Temp	0 deg C to 60 deg C (surrounding air without fan)
Power Consumption	0.60 A at 5 VDC (3 W)
Protocol Support	PROFINET Slave Version 2.2 Class A IO-Device
Transmission Speed	10/100 Mbps auto-negotiation
Network Topology	Linear, Star, Ring (redundant)
Network Distance	100 m per copper segment
Data Capacity	1440 bytes input / 1440 bytes output (Discrete & Analog)
Update Rates	Configurable: 1 ms to 512 ms
Diagnostic Interface	32 input status bits and 32 output control bits
Mounting	Standard DIN Rail

Backplane Bus Communication Velocity & Firmware Flash Compatibility

The module executes PROFINET network integration on deterministic networks, delivering configurable data update rates from 1 ms to 512 ms. Dual integrated 10/100 Mbps RJ45 ports function under a single IP address, supporting linear, star, and ring media redundancy topologies. Full operation requires host controller integration via Proficy Machine Edition Version 7.0 or later, alongside PACSystems RX3i CPU firmware Version 7.0 or higher. System updates and field upgrades are executed through a dedicated USB service port.

Frequently Asked Questions

Q: What host controller software and CPU firmware versions are required to configure the IC200PNS001?

A: The scanner requires Proficy Machine Edition Version 7.0 or later and an RX3i controller running Firmware Version 7.0 or higher.

Q: How many VersaMax I/O modules can a single IC200PNS001 scanner interface support?

A: A single IC200PNS001 module manages up to 8 local VersaMax I/O modules and carriers.

Q: What is the function of the USB port located on the front panel?

A: The USB port is strictly dedicated to field firmware upgrade procedures and is not intended for permanent communication connections.

Field Installation Guidelines

Mount the IC200PNS001 module vertically on a standard 35 mm DIN rail, verifying solid mechanical seating prior to attaching expansion carriers.
Connect standard Category 5e or Category 6 shielded Ethernet cables to the RJ45 ports, observing the maximum 100-meter segment length limit.
Ground all Ethernet cable shielding and mounting rails to the main panel enclosure grounding point to prevent electromagnetic interference.
Ensure the USB service cable is disconnected during standard operational monitoring to maintain port integrity.
Verify power supply connections and observe status LED indicators upon system initialization to confirm valid PROFINET link establishment.
