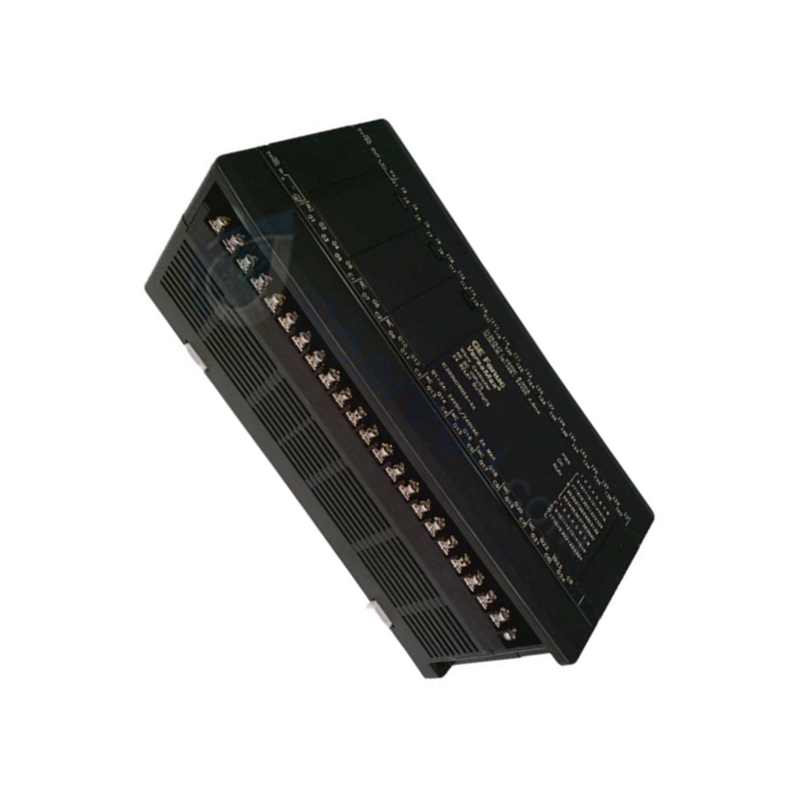

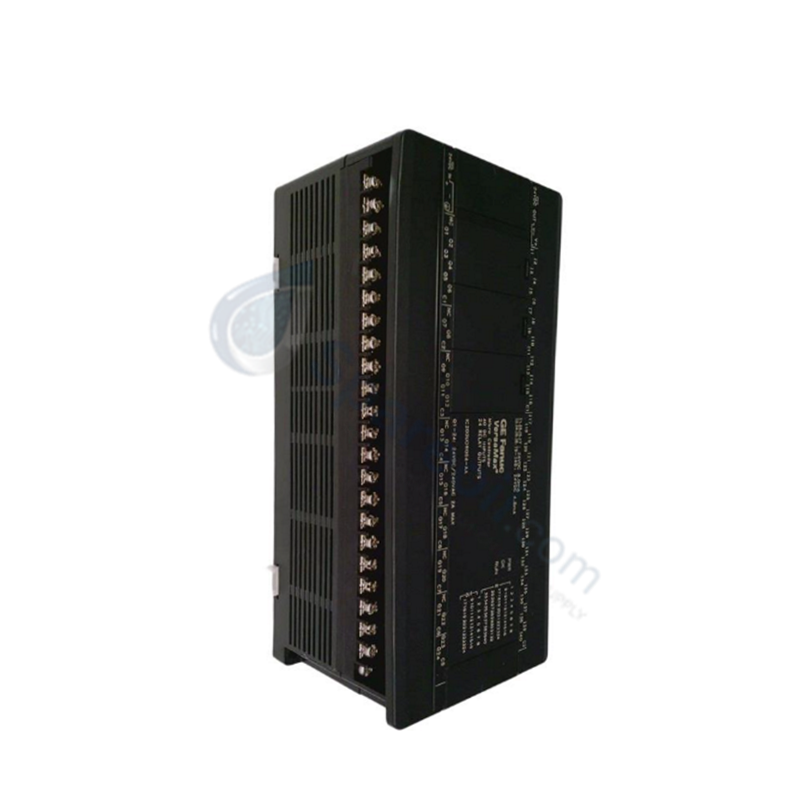

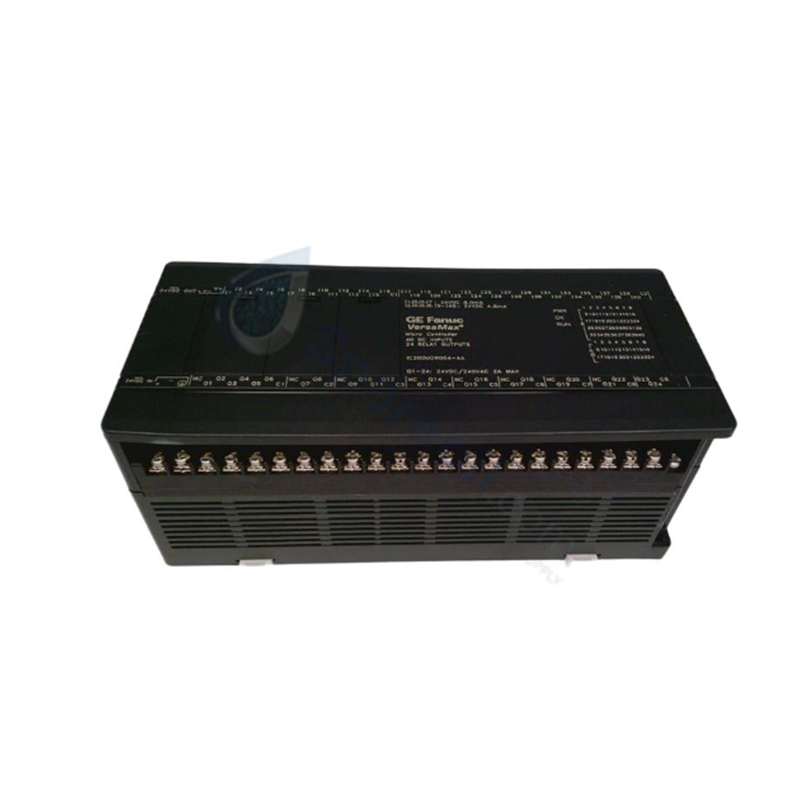

The GE Fanuc IC200UDR064, also cataloged as the IC200UDR064 Micro Controller, operates as a dedicated hardware component for high-density digital signal processing and discrete load control within VersaMax PLC networks.

Hardware Specifications

Parameter Specification
Model IC200UDR064
Brand GE Fanuc Emerson
Origin USA / Various
Weight 0.83 kg (1.83 lbs)
Dimensions Standard VersaMax Micro 64-point footprint
Operating Temp 0 to 60 deg C
Power Consumption Standard internal power supply rating
Input Voltage Supply 24 VDC nominal
Total I/O Capacity 64 discrete I/O points
Discrete Inputs 40 inputs at 24 VDC
Relay Outputs 24 electromechanical relay channels
Mounting Type 35 mm DIN rail or panel surface mount

Backplane Bus Communication Velocity & I/O Density Scaling

The IC200UDR064 integrates 64 discrete field I/O channels directly into a single compact housing, providing maximum I/O density scaling for local control loops. Operating across an integrated local logic architecture, the internal processor optimizes backplane bus communication velocity during task scan execution. Standard firmware flash compatibility ensures synchronized register mapping, deterministic scan timing, and seamless integration when interfaced with remote expansion racks or field communication adapters across VersaMax networks.

Frequently Asked Questions

Q: What power supply level is required to energize the IC200UDR064 base controller?

A: The main unit operates from a nominal 24 VDC external power supply source to feed the internal logic CPU and field input sensing circuitry.

Q: How are the 64 discrete channels divided between input and output functions on the IC200UDR064?

A: The controller features a fixed hardware architecture consisting of 40 discrete digital inputs rated for 24 VDC sensing and 24 dry-contact electromechanical relay outputs.

Field Installation Guidelines

  • Mechanical Panel/DIN Rail Mounting: Mount the controller vertically onto a standard 35 mm DIN rail or securely fasten it to an enclosure backpanel using screws. Maintain a minimum clearance of 50 mm above and below the unit for heat convection.
  • Discrete Field Wiring: Terminate 24 VDC input lines and relay load wiring to the removable terminal blocks. Keep high-voltage output switching lines separated from low-voltage digital input lines to prevent inductive coupling.
  • System Protective Earth Grounding: Connect the frame ground terminal directly to the central panel earth bus using heavy copper wire to ensure proper immunity against transient electrical noise.
