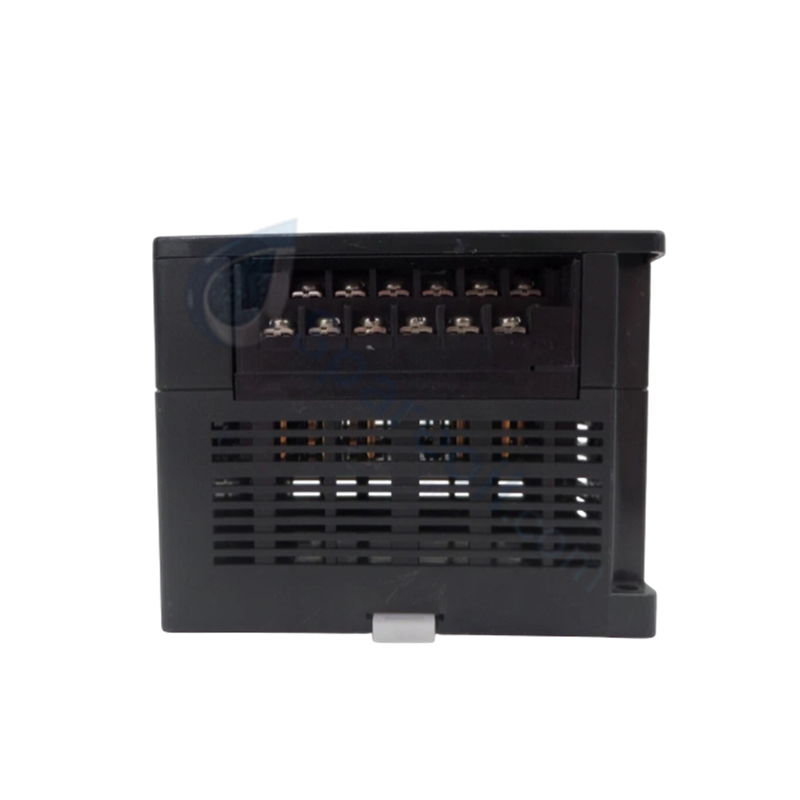

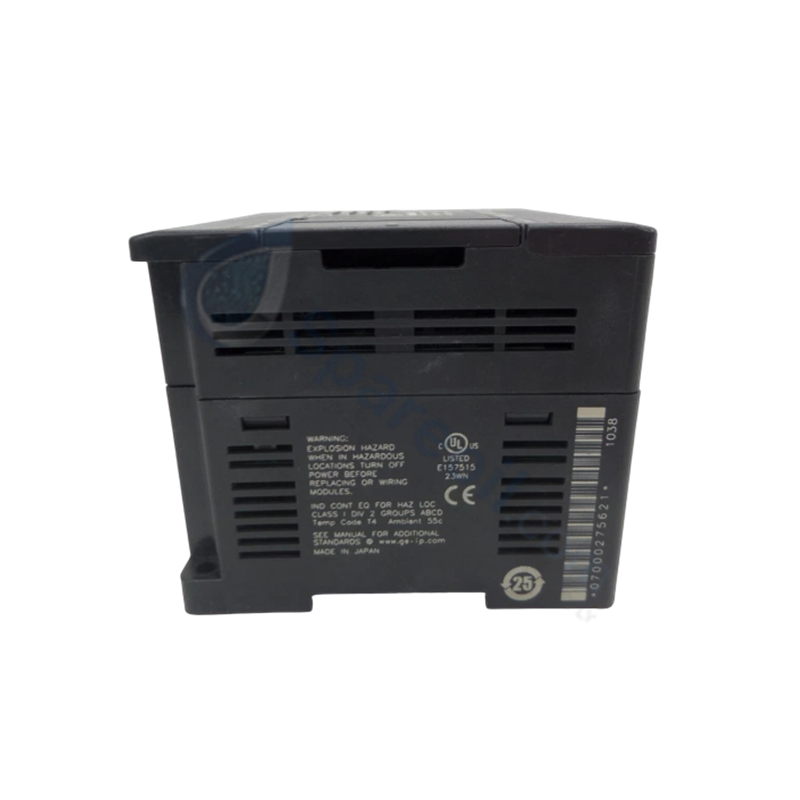

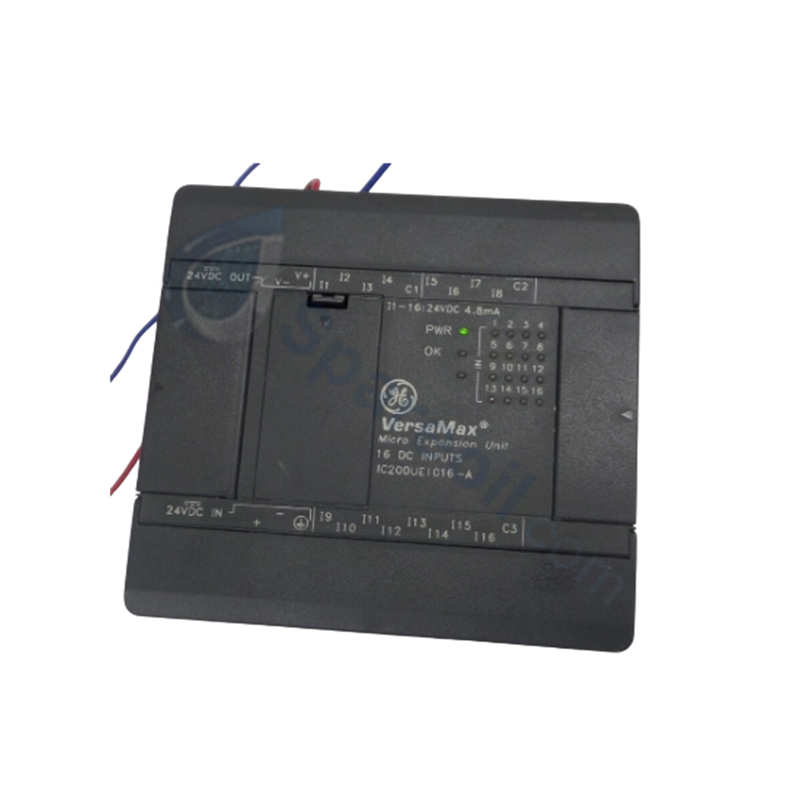

The GE Fanuc IC200UEI016, also cataloged as the IC200UEI016 Discrete Expansion Module, operates as a dedicated hardware component for discrete field signal processing within VersaMax Micro PLC networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200UEI016 |
| Brand | GE Fanuc Emerson |
| Origin | USA / Various |
| Weight | 0.91 kg (2.00 lbs) |
| Dimensions | 76 mm x 95 mm x 90 mm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 4 W maximum |
| Nominal Power Supply | 24 VDC |
| Input Signal Voltage | 24 VDC |
| Channel Capacity | 16 Discrete Inputs |
| Sensor Power Output | 200 mA at 24 VDC |
| Expansion Limit | Maximum 4 modules per VersaMax Micro PLC |
| System Compatibility | VersaMax Micro PLCs |
Backplane Bus Communication Velocity & I/O Density Scaling
The IC200UEI016 increases local system capacity via structured I/O density scaling, supporting up to four expansion modules attached to a single VersaMax Micro PLC base controller. The expansion interface maintains high backplane bus communication velocity across all 16 discrete input channels, ensuring deterministic scan execution. Internal logic circuitry ensures full firmware flash compatibility across the VersaMax Micro hardware family for synchronized I/O image updates and signal filtering.
Frequently Asked Questions
Q: How many IC200UEI016 discrete expansion modules can be connected to a single VersaMax Micro controller base?
A: A maximum of four expansion modules can be attached to a single VersaMax Micro PLC, expanding the digital input channel count while maintaining unified system scan timing.
Q: Does the IC200UEI016 supply power for connected field sensors?
A: Yes, the module provides an auxiliary sensor power source capable of delivering up to 200 mA at 24 VDC to directly power external input sensors.
Field Installation Guidelines
- DIN-Rail Fastening: Secure the module onto a standard 35 mm DIN rail or panel surface using mounting hardware. Ensure the side expansion connector locks fully into the base CPU or preceding expansion module interface.
- Discrete Signal Wiring: Wire field inputs and sensor power lines using designated terminal blocks. Maintain physical isolation between 24 VDC input wiring and high-voltage AC cables to eliminate electromagnetic cross-talk.
- Grounding Verification: Ensure the mounting panel or DIN rail grounding clip makes clean metallic contact with protective earth to bypass high-frequency electrical transients away from internal logic components.
