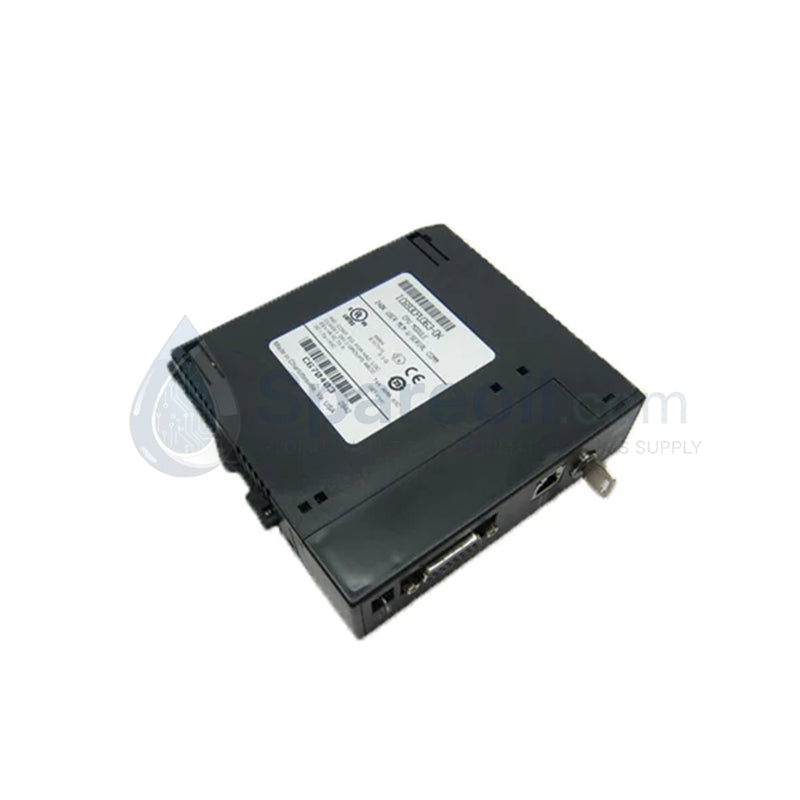

GE Fanuc IC693CPU372AE Series 90-30 133MHz Processor

Availability: 10 left in stock

Product Overview The GE Fanuc IC693CPU372-AE represents the high-performance tier of the Series 90-30 PLC family. This single-slot CPU module integrates a...

SKU: IC693CPU372AE

Manufacturer: GE Fanuc
Product No.: IC693CPU372AE
Product Type: Industrial Ethernet Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 560g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE Fanuc IC693CPU372-AE represents the high-performance tier of the Series 90-30 PLC family. This single-slot CPU module integrates a powerful 133 MHz processor with native Ethernet connectivity, eliminating the need for separate communication co-processors. We supply this unit as 100% Brand New, ensuring factory-sealed reliability for your most demanding control applications. With 120 Kbytes of user memory and support for up to 2048 I/O points, the IC693CPU372-AE provides the computational speed and network bandwidth required for modern, data-intensive industrial environments.

Technical Specifications

The IC693CPU372-AE combines advanced floating-point math capabilities with high-speed Boolean execution.

Feature	Specification
Processor Type	AMD SC520 (80386EX Architecture)
Processor Speed	133 MHz
User Memory	120 Kbytes
Register Memory	240 Kbytes
Scan Rate	0.15 ms per 1K Boolean logic
Ethernet Ports	2 x RJ-45 (10/100 Mbps, Auto-sensing)
Discrete I/O Points	2048 Inputs (%I) / 2048 Outputs (%Q)
Analog I/O Points	32,640 Inputs (%AI) / 32,640 Outputs (%AQ)
Expansion Capacity	Supports up to 7 Expansion/Remote Baseplates
Floating Point Math	Built-in hardware support

Engineering Advantages

Integrated Communication Backbone: The dual auto-sensing 10/100 Mbps Ethernet ports support TCP/IP protocols natively. This allows direct integration into factory LANs for HMI/SCADA data exchange and remote programming without occupying additional I/O slots.
Rapid Logic Execution: Utilizing a 133 MHz processor, this CPU achieves a typical scan rate of 0.15 ms per 1K of logic. This deterministic performance ensures high-speed response times for complex motion control and synchronization tasks.
Vast Analog Scaling: The module handles a maximum of 32,640 analog inputs and outputs. This makes the IC693CPU372-AE ideal for process control industries where extensive PID loops and sensor monitoring are required.
Modular Scalability: Engineers can expand the system using up to seven expansion or remote baseplates. This flexibility allows the CPU to manage centralized or distributed I/O architectures across large machinery or plant sections.
Native Floating-Point Support: Hardware-based floating-point math enables the CPU to perform complex engineering calculations and scaling without taxing the primary logic scan, maintaining high stability during intensive processing.

FAQs

What is the difference between the IC693CPU372 and the -AE version?

The "-AE" suffix indicates a specific hardware and firmware revision level. While functionally identical in core logic, the -AE version often includes updated components and firmware enhancements to ensure compatibility with the latest Series 90-30 and PACSystems accessories.
Does this CPU module require a specific baseplate?

Yes. The IC693CPU372-AE must be installed in Slot 1 of a Series 90-30 Universal Baseplate. It consumes a single slot and draws its power directly from the backplane power supply module.
Can I use the dual Ethernet ports as a switch?

The dual RJ-45 ports facilitate easy daisy-chaining or multi-network connections. They support auto-sensing 10BaseT and 100BaseTX, allowing the CPU to adapt to existing network speeds automatically.
What software is used to program the IC693CPU372-AE?

You can configure and program this CPU using GE’s Proficy Machine Edition (PME) or legacy Logicmaster 90-30 software. The module supports remote programming via the integrated Ethernet ports for simplified maintenance.
