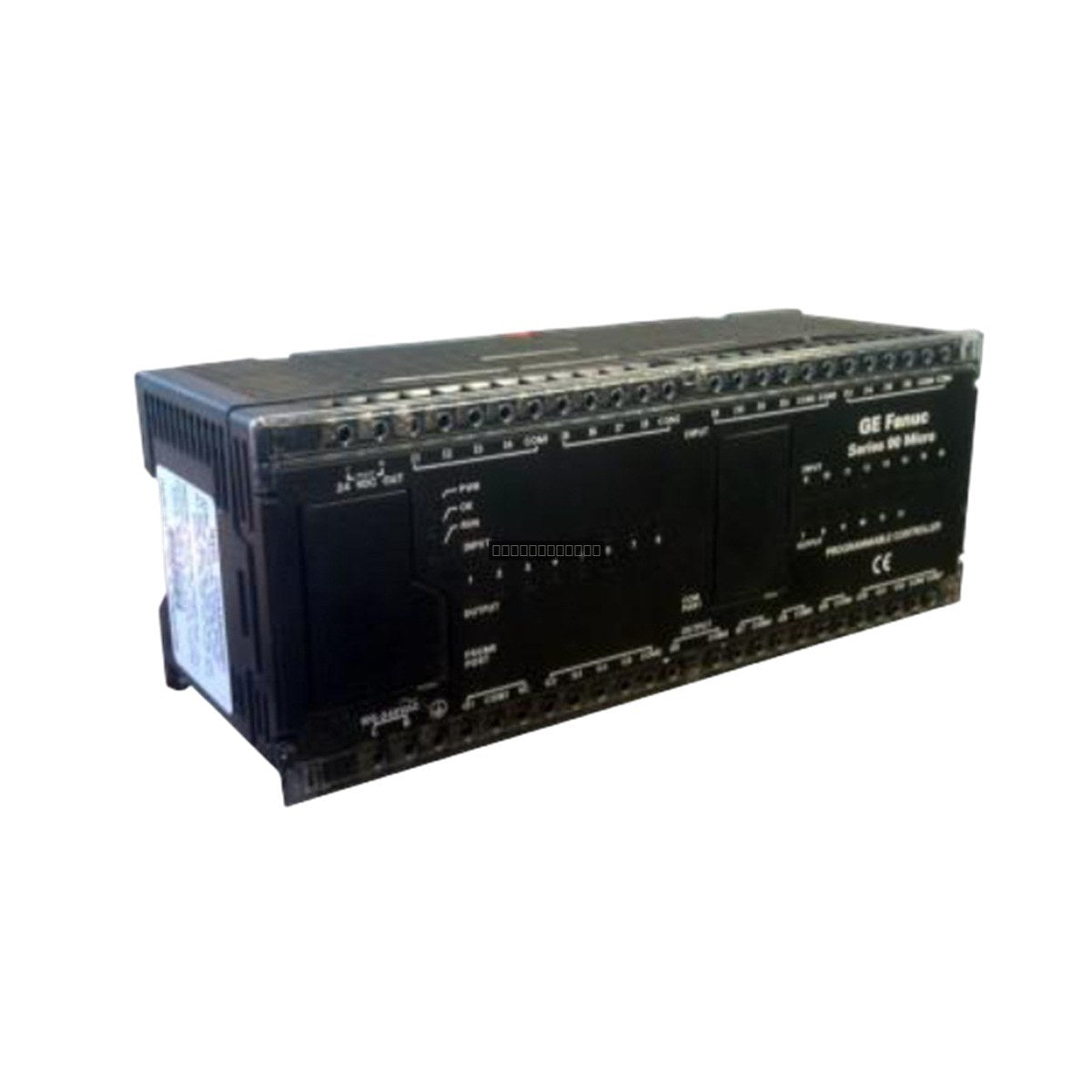

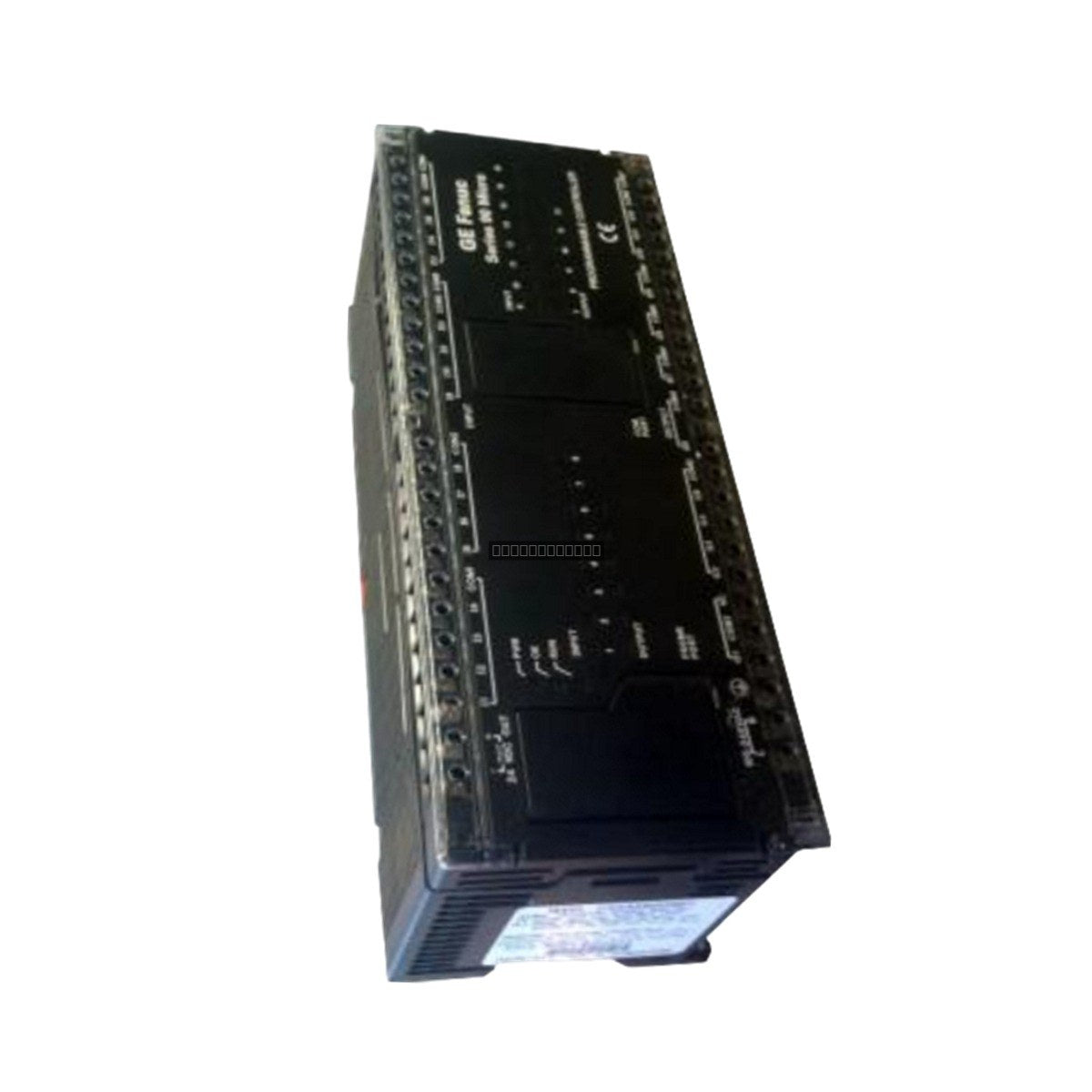

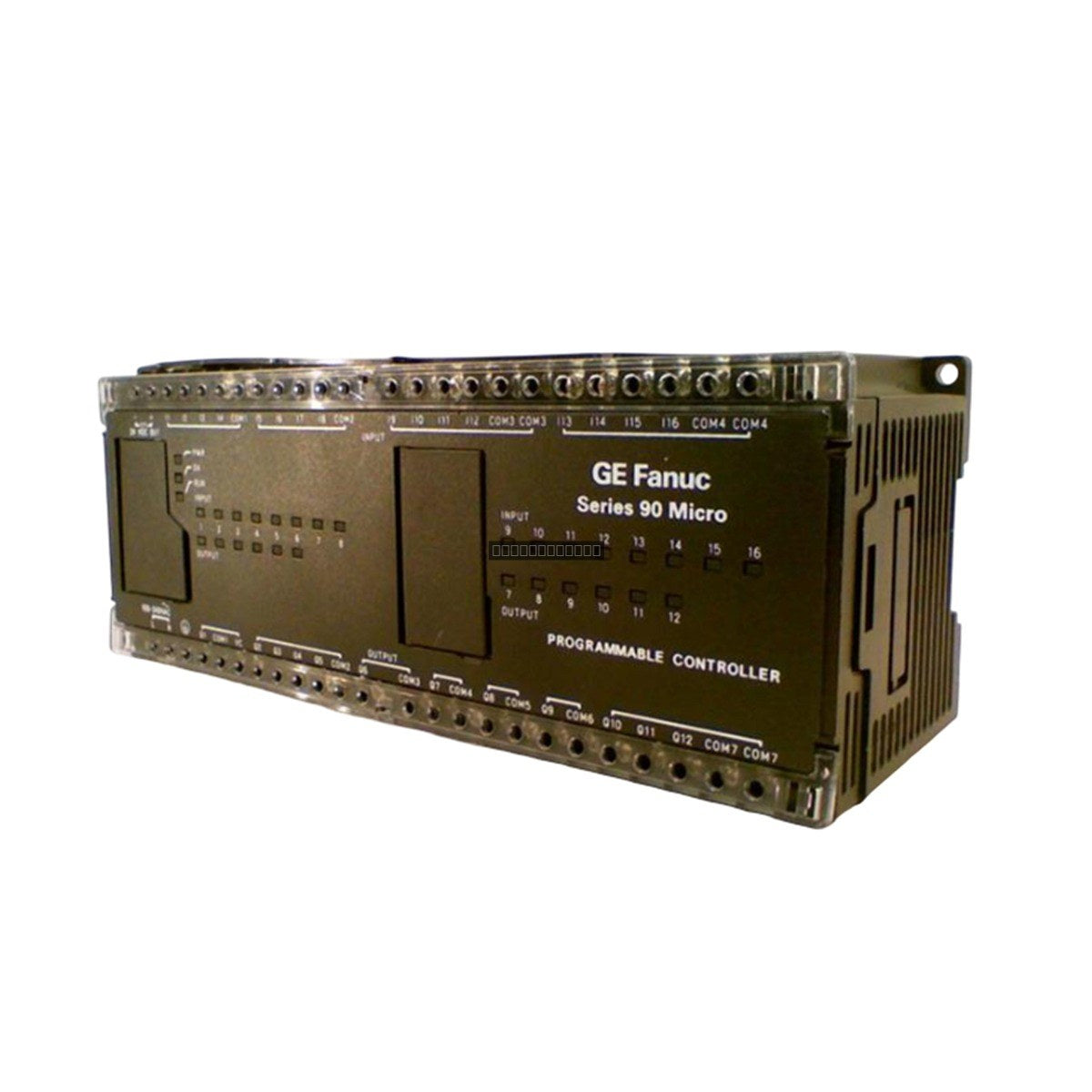

GE Fanuc IC693UDR005 Series 90 Micro Programmable Controller

Availability: 2 left in stock

DescriptionThe IC693UDR005 is a compact programmable controller within the GE Fanuc Series 90 Micro product line, specifically engineered for low...

SKU: IC693UDR005

Manufacturer: GE FANUC
Product No.: IC693UDR005
Product Type: Programmable Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The IC693UDR005 is a compact programmable controller within the GE Fanuc Series 90 Micro product line, specifically engineered for low I/O count industrial applications. This controller is designed for software configuration and high-precision execution in environments such as small-scale assembly machines, packaging lines, and process control stations. Featuring a dual-microprocessor architecture—utilizing the 80188 for primary execution and the H8 for diagnostic and I/O scanning—the device ensures reliable, deterministic performance. By providing a cost-effective platform for localized automation, this unit helps engineers streamline control logic and improve system responsiveness.

Hardware Architecture

The IC693UDR005 relies on a sophisticated internal architecture to manage task prioritization and execution. The 80188 microprocessor handles memory management and application logic, while the integrated Instruction Sequencer Coprocessor (ISCP) maintains the integrity of the end process. The controller supports multiple operating modes, including standard program sweep, Stop with I/O Disabled, Stop with I/O Enabled, and Constant Sweep mode, allowing users to tailor execution based on specific safety and performance requirements.

Features

Dual-microprocessor architecture for separation of application logic and I/O scanning.
Supports multiple operating modes: Standard Sweep, Constant Sweep, and Stop modes.
Integrated 23-point I/O configuration for compact automation tasks.
Robust black plastic housing designed for industrial environments.
Compatible with Series 90-30 PLC ecosystem integration.

Applications

This controller is suitable for small-scale industrial automation tasks, including:

Small-scale assembly machine control.
Packaging line automation.
Localized process control stations.
Distributed node control within larger PLC networks.

Technical Specifications

Model	IC693UDR005
Series	Series 90 Micro
Total I/O Points	23
Input Specifications	16 Points, 24 VDC, 8 mA max (Pos/Neg)
Power Supply	100 to 240 VAC
Microprocessors	80188 (Application), H8 (Diagnostics/IO)
Operating Modes	Sweep, Stop (I/O Enabled/Disabled), Constant Sweep
Casing Material	Black Hard Plastic

Installation Guidelines

Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
Always disconnect power before installing or removing wiring to prevent electrical damage or injury.
Use shielded cables for I/O signals to minimize electromagnetic interference (EMI) in industrial settings.
Ensure proper grounding of the controller chassis to a common earth ground point.
Verify input voltage compatibility (100-240 VAC) before applying power to the unit.

FAQ

What is the primary function of the dual-microprocessor architecture?
The 80188 microprocessor manages the application logic and memory, while the H8 processor is dedicated to diagnostic routines and I/O scanning, ensuring deterministic performance.

Can this unit be used in a larger PLC system?
Yes, the IC693UDR005 is designed to function as a versatile node within the broader Series 90-30 PLC ecosystem.
