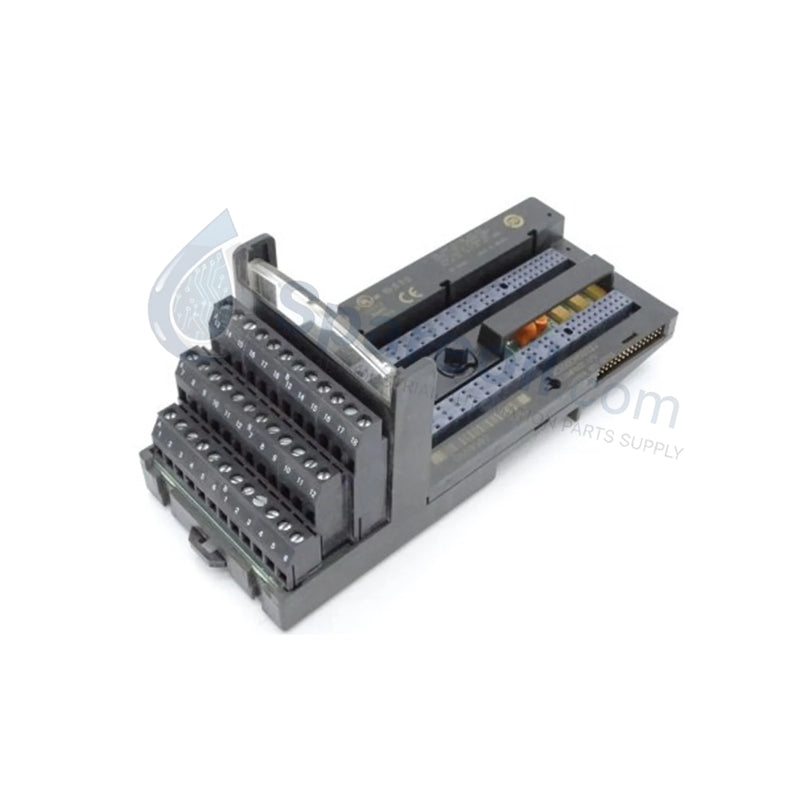

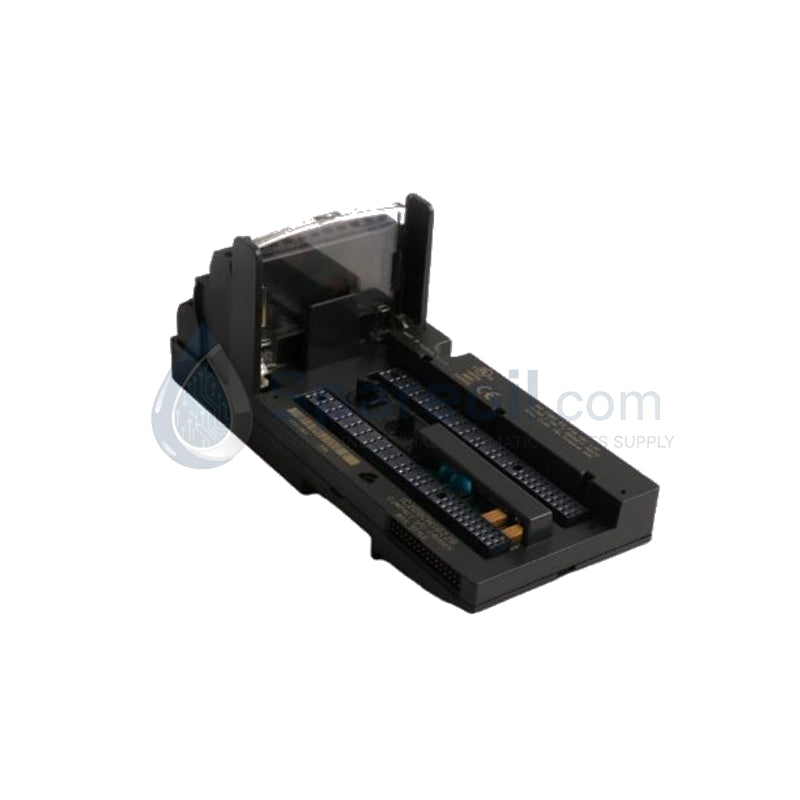

GE IC200CHS022 36-Terminal Compact I/O Base Module

Availability: 10 left in stock

Product Overview The IC200CHS022 acts as the primary mounting and wiring interface for the GE VersaMax modular system. Unlike standard horizontal units,...

SKU: IC200CHS022

Manufacturer: GE Fanuc
Product No.: IC200CHS022
Product Type: PLC I/O Carriers
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200CHS022 acts as the primary mounting and wiring interface for the GE VersaMax modular system. Unlike standard horizontal units, this carrier utilizes a Vertical Orientation, mounting perpendicular to the DIN rail to maximize rail density and accommodate tall enclosure profiles. We supply this unit as 100% Brand New and Original in factory packaging, ensuring seamless integration into your distributed control systems (DCS) or OEM machinery.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Line	VersaMax Compact
Mounting Style	Vertical (Perpendicular to DIN rail)
Termination Type	Integrated IEC Box-Style
Total Terminals	36 (Supports 32 I/O + 4 Common/Power)
Supply Voltage	5 VDC (Internal Backplane)
Dimensions	66.8 mm x 163.5 mm x 70 mm
Standard Mounting	35mm x 7.5mm DIN Rail
Shipping Weight	2.0 Kg

Engineering Advantages

Vertical Space Optimization: The vertical design reduces the horizontal footprint on the DIN rail. This allows engineers to pack more I/O points into narrow control cabinets where width is at a premium.
Tool-less Expansion: Integrated carrier-to-carrier connectors link the backplane signals automatically as you slide the units together. This eliminates the need for external ribbon cables or complex bus jumpers.
Integrated Keying Mechanism: Each carrier includes a module keying system. This prevents the insertion of the wrong I/O module type into a wired base, protecting field sensors and internal circuitry from voltage mismatches.
Superior Vibration Resistance: The IEC-style box terminals provide high-pressure contact points. These terminals grip field wires securely, preventing intermittent signals in high-vibration applications like reciprocating machinery or mobile industrial platforms.
Simplified EMC Grounding: The carrier grounds directly through the DIN rail interface. This ensures robust electromagnetic compatibility (EMC) without requiring additional manual grounding straps for every module.

FAQs

Can I mix IC200CHS022 vertical carriers with horizontal carriers in the same rack?

No. The physical dimensions and bus connector alignments differ. You must maintain a consistent mounting orientation (all vertical or all horizontal) within a single I/O station to ensure proper backplane communication.
What is the maximum wire gauge supported by the box terminals?

The IC200CHS022 typically accommodates solid or stranded copper wire between AWG #14 and AWG #22. Always refer to your specific I/O module manual for the recommended current-carrying capacity of the wire.
Does this carrier require a separate power supply connection?

The carrier receives its 5V logic power via the VersaMax backplane from the Power Supply/NIU. However, you must connect field power and commons to the designated terminals (usually 4 of the 36) to power your field devices.
How do I ensure the carrier is properly grounded?

The carrier establishes a ground connection through its DIN rail clip. You must use a zinc-plated yellow chromate steel DIN rail and ensure the rail itself connects to the cabinet's functional earth.
