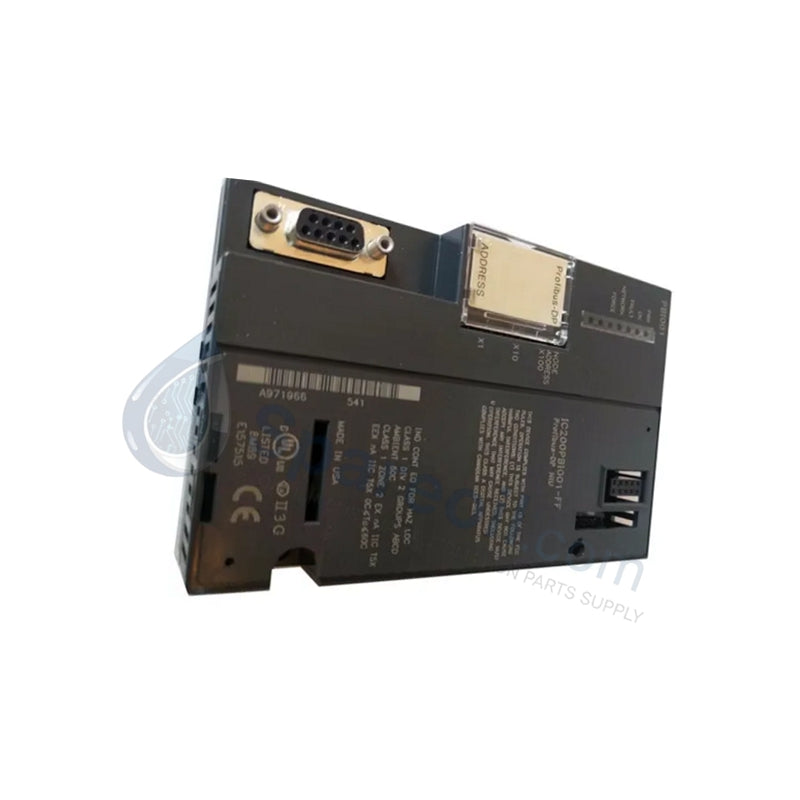

GE IC200PBI001 PROFIBUS Network Interface 12Mbps Original

Availability: 10 left in stock

Product Overview The IC200PBI001 acts as the high-speed communication gateway for the VersaMax I/O station within a PROFIBUS-DP network. This Network Interface Unit (NIU)...

SKU: IC200PBI001

Manufacturer: GE Fanuc
Product No.: IC200PBI001
Product Type: Distributed I/O Systems
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200PBI001 acts as the high-speed communication gateway for the VersaMax I/O station within a PROFIBUS-DP network. This Network Interface Unit (NIU) enables a PROFIBUS Master to control remote VersaMax I/O modules as a distributed slave station. It handles all data exchange between the PROFIBUS bus and the local I/O modules, supporting up to 375 bytes of total data. We supply this unit as 100% Brand New and Original in Factory Packing, ensuring immediate integration and long-term network stability for your automation architecture.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Protocol	PROFIBUS-DP (IEC 61158)
Data Rates	9.6 Kbaud to 12 Mbaud (Auto-Detected)
Network Address	1 to 125 (Configurable)
Total I/O Data	375 Bytes Maximum
Input/Output Limits	Up to 244 Bytes Input or 244 Bytes Output
Module Support	Up to 8 modules per station (Up to 64 total via racks)
Connector Type	9-pin D-sub (Female)
Network Topology	Linear bus, terminated at both ends
Diagnostic Data	5 Bytes Standard PROFIBUS Diagnostics
Backplane Current	5V @ 250 mA; 3.3V @ 10 mA
Status Indicators	PWR, OK, FAULT, NETWORK, FORCE

Engineering Advantages

High-Speed Determinism: The IC200PBI001 supports the full PROFIBUS-DP speed range up to 12 Mbps. The auto-detection feature ensures the module synchronizes instantly with the master’s baud rate, reducing commissioning time and guaranteeing deterministic data exchange for time-critical processes.
Large-Scale I/O Expansion: A single NIU station supports up to 8 I/O modules locally and can expand to manage 64 modules across 8 racks using expansion cables. This scalability allows for high-density I/O clusters at a single PROFIBUS node, optimizing network address usage.
Rugged Linear Topology: Designed for industrial environments, the module utilizes shielded twisted-pair cabling. It supports transmission distances from 100 to 1200 meters (depending on baud rate), allowing you to distribute I/O across vast factory floor areas without signal degradation.
Instant Visual Troubleshooting: Five dedicated LEDs provide real-time feedback. The Network LED specifically monitors PROFIBUS communication health, while the Fault and OK LEDs allow technicians to distinguish between internal hardware issues and external network wiring faults.
Robust Diagnostic Support: The module transmits 5 bytes of standard PROFIBUS diagnostic data. This feature enables the master controller to monitor the health of individual I/O modules within the slave station, facilitating proactive maintenance and reducing Mean Time to Repair (MTTR).

FAQs

How do I set the PROFIBUS address on the IC200PBI001?

You set the station address (1–125) using the hardware rotary switches located on the module or through the PROFIBUS configuration software (GSD file). Ensure the address is unique on the segment to avoid network conflicts.
Can this module function as a PROFIBUS Master?

No. The IC200PBI001 is a Slave-only device. It requires a PROFIBUS Master, such as a PLC with a PROFIBUS Master module or a dedicated PC interface card, to initiate data exchange.
Does the 12Mbps speed require specific cabling?

Yes. To achieve 12 Mbps, you must use PROFIBUS-certified Type A shielded twisted-pair cable and ensure proper active termination at both physical ends of the linear bus.
Does this unit support PROFIBUS-DPV1 acyclic communications?

The IC200PBI001 primarily supports standard PROFIBUS-DP (V0) for cyclic data exchange. For applications requiring DPV1 (acyclic parameters), verify your specific GSD file version and firmware compatibility.
