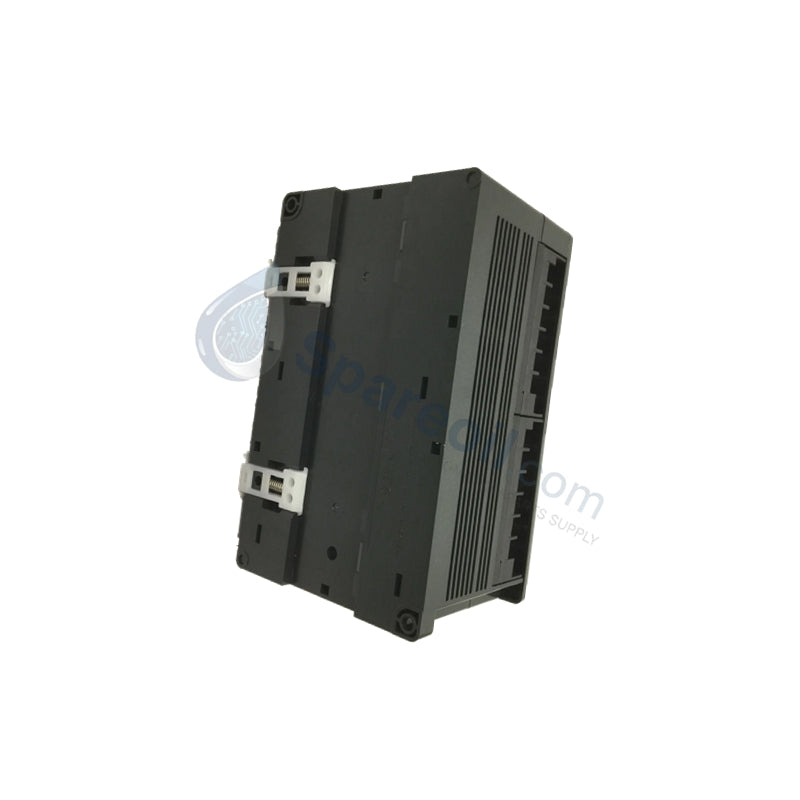

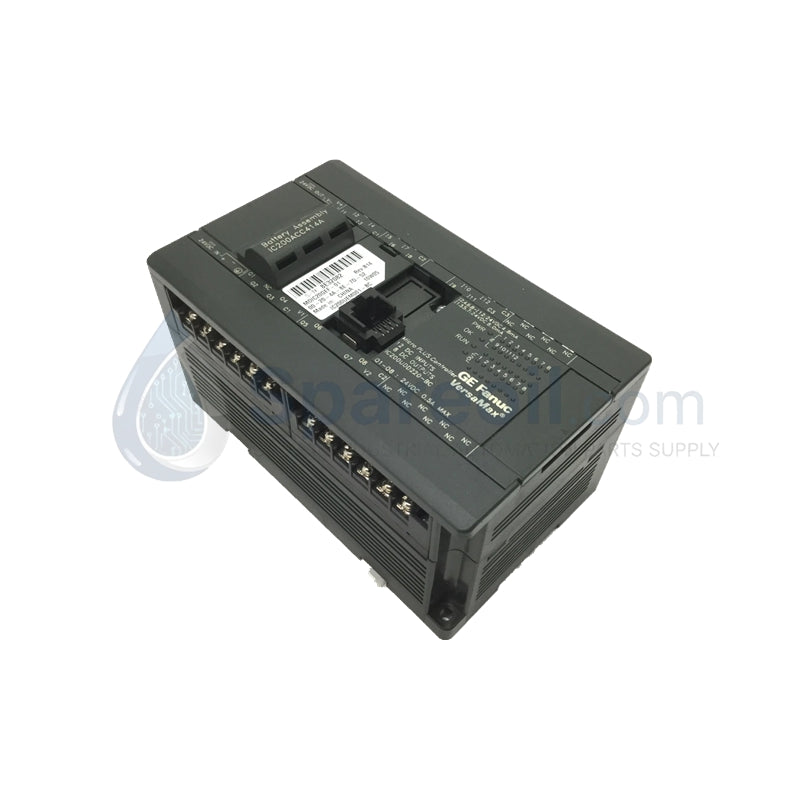

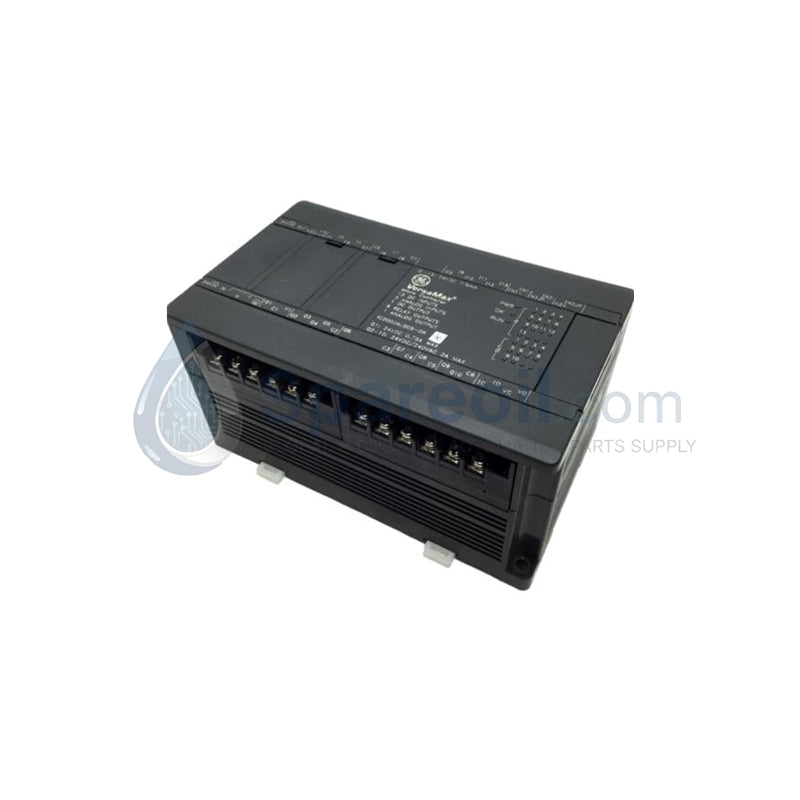

GE IC200UDD164 24VDC 40-Input 24-Output Controller

Availability: 10 left in stock

Product Overview The IC200UDD164 represents the high-density pinnacle of the GE VersaMax Micro PLC family. This all-in-one controller integrates a powerful CPU...

SKU: IC200UDD164

Manufacturer: GE Fanuc
Product No.: IC200UDD164
Product Type: Discrete I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200UDD164 represents the high-density pinnacle of the GE VersaMax Micro PLC family. This all-in-one controller integrates a powerful CPU with a massive onboard I/O count, featuring 40 digital inputs and 24 DC source transistor outputs. Designed for complex OEM machinery and standalone factory automation, it eliminates the need for multiple expansion racks in mid-sized applications. We supply this unit as 100% Brand New and Original, ensuring your critical control loops run on factory-certified hardware with maximum mean time between failures (MTBF).

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Series	VersaMax Micro
Total I/O Points	64 Points
Discrete Inputs	40 Inputs (24 VDC, Sink/Source Configurable)
Discrete Outputs	24 Outputs (24 VDC Transistor Source)
Power Supply	24 VDC
Input Current	7.5 mA per input
Communications	RS-232 / RS-485 Ports
Expansion	Supports VersaMax Micro Expansion Modules
Mounting	35mm DIN Rail or Panel Mount
Execution Speed	Optimized for real-time logic and high-speed counting

Engineering Advantages

Unrivaled I/O Density: The IC200UDD164 provides 64 onboard I/O points within a single compact chassis. This high density significantly reduces DIN rail requirements and allows engineers to manage complex machines with dozens of sensors and actuators using a single controller.
Source-Type Transistor Outputs: The 24 DC source outputs simplify wiring for positive-logic industrial environments. These transistor outputs provide high-speed switching and eliminate the mechanical wear associated with relay-based controllers, making them ideal for high-frequency solenoid and pilot light control.
Flexible Input Circuitry: The 40 digital inputs accommodate both positive and negative logic. This flexibility allows the PLC to interface seamlessly with a mix of NPN and PNP sensors, reducing the need for interposing relays or signal converters.
Advanced Communication Ports: Integrated RS-232 and RS-485 ports support multiple protocols for HMI interfacing and multi-drop networking. This enables the IC200UDD164 to serve as a central hub in a distributed control architecture.
Simplified Scaling: While the 64-point capacity handles most mid-range tasks, the unit remains fully compatible with the VersaMax Micro expansion line. You can easily add analog or additional digital modules via the expansion port to meet evolving machine specifications.

FAQs

What is the difference between "Source" and "Sink" outputs in the IC200UDD164?

The IC200UDD164 features Source outputs, meaning the PLC provides the positive (+) 24VDC signal to the load. This is the industry standard for European and North American machinery to ensure safety and simplify troubleshooting.
Can I program the IC200UDD164 using modern software?

Yes. This controller supports programming via Proficy Machine Edition (PME). It maintains full compatibility with existing VersaMax Micro logic, allowing for easy migration from older Micro series controllers.
How do I protect the transistor outputs from damage?

Transistor outputs are sensitive to overcurrent and short circuits. We strongly recommend installing external fast-acting fuses for each output group. For inductive loads like solenoids, always use suppression diodes to prevent back-EMF spikes.
Does the unit require a specific power supply?

The IC200UDD164 requires a stable 24VDC power source. Ensure your power supply has sufficient wattage to handle the CPU logic plus the total current draw of the 24 transistor outputs and any attached expansion modules.
