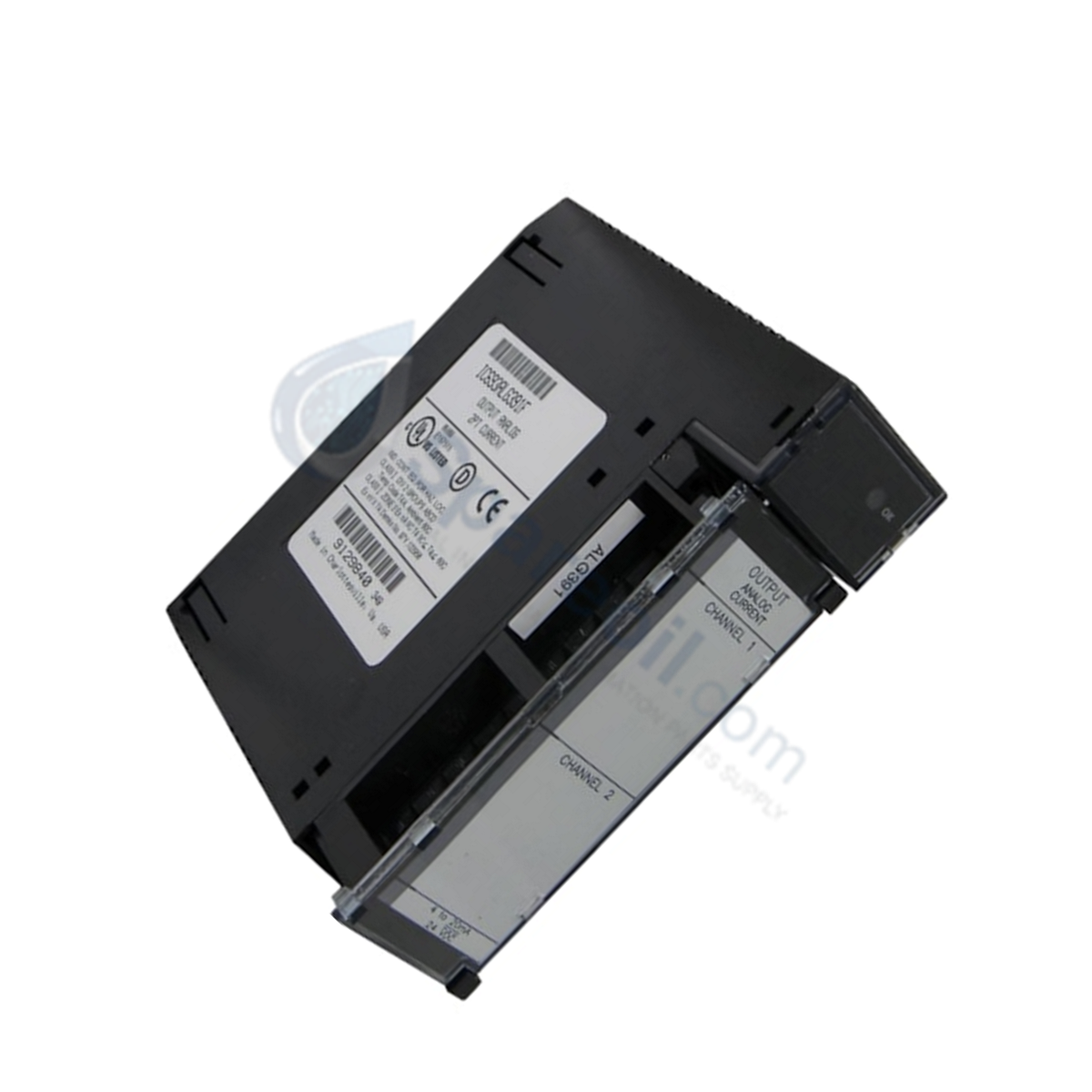

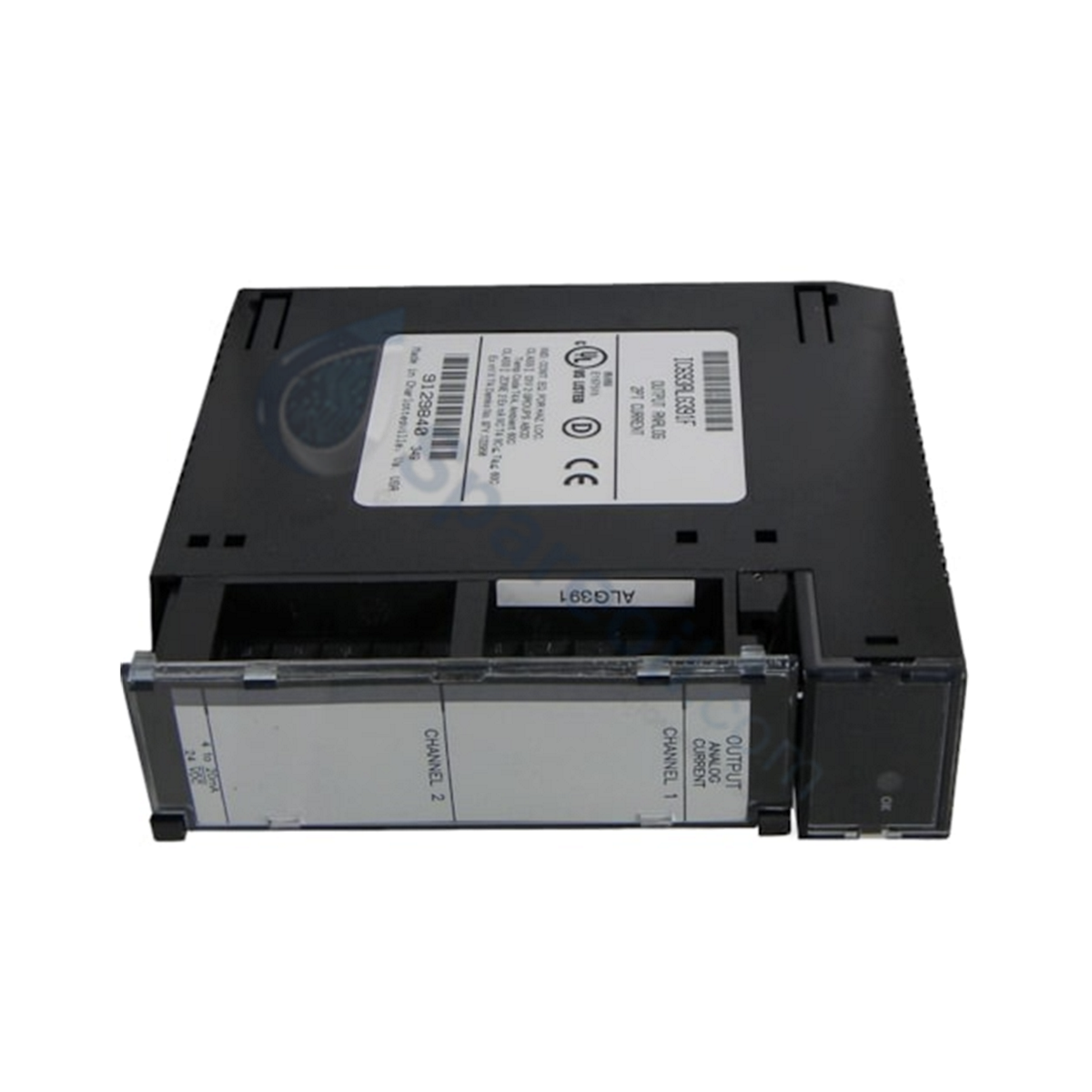

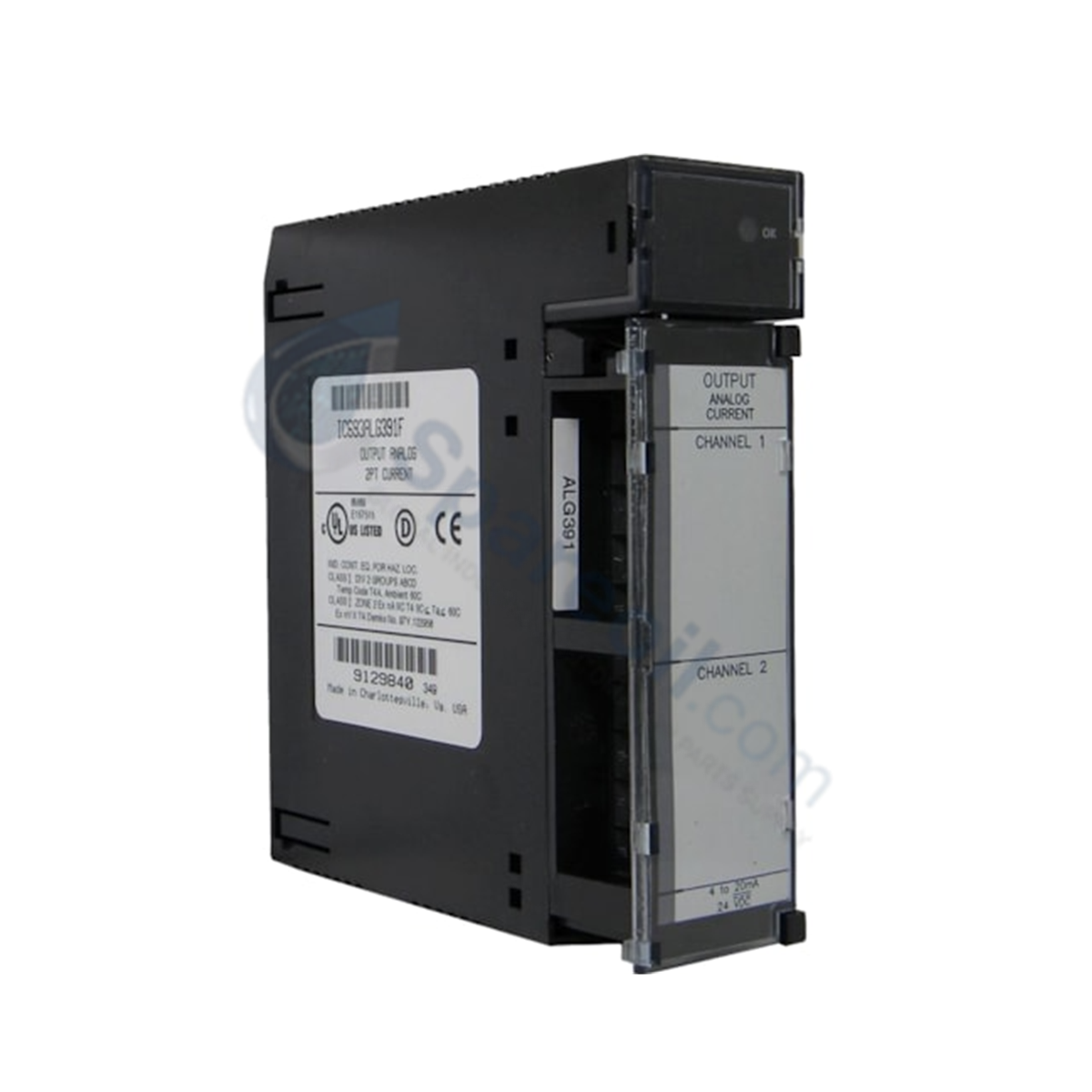

Configured for analog voltage and current loop signal generation in Series 90-30 platforms, the GE IC693ALG391 (IC693ALG391 Analog Output Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model IC693ALG391
Brand GE Fanuc Emerson
Origin USA / Global Manufacturing
Weight 0.37 kg (0.81 lbs)
Dimensions Single-Slot Series 90-30 Module Form Factor
Operating Temp 0 to 60 deg C
Power Consumption 30 mA at 5 VDC (backplane bus); 215 mA at 24 VDC (isolated backplane or user supply)
Series Series 90-30
Product Type Analog Output Modules
Output Channels 2 channels
Signal Output Ranges 0 to 20 mA, 4 to 20 mA, 0 to 5 VDC, 1 to 5 VDC
Digital Resolution 12 bits typical
Channel Update Rate 5 ms
Resolution (Current) 4 uA/LSB (4 to 20 mA); 5 uA/LSB (0 to 20 mA)
Resolution (Voltage) 1 mV/LSB (1 to 5 VDC); 1.25 mV/LSB (0 to 5 VDC)
Absolute Accuracy (Current) +/- 8 uA (4 to 20 mA) at 25 deg C; +/- 10 uA (0 to 20 mA) at 25 deg C
Absolute Accuracy (Voltage) +/- 50 mV (0 to 5 VDC / 1 to 5 VDC) at 25 deg C
Field-to-Logic Isolation 1500 VAC for 1 minute
External Supply Voltage Range 20 to 30 VDC (24 VDC nominal)
Maximum Compliance Voltage 25 VDC

Backplane Bus Communication Velocity and System Integration

The IC693ALG391 converts 12-bit digital output data from the CPU memory table into analog voltage or current drive signals across 2 independent channels. High-speed backplane bus communication velocity allows updated digital counts to be processed into physical field outputs within a 5 ms channel update cycle.

Firmware flash compatibility across Series 90-30 baseplate configurations supports installation in any standard 5-slot or 10-slot baseplate. The module incorporates 1500 VAC field-to-logic galvanic isolation to suppress ground loops and maintain deterministic execution across high-density I/O configurations.

Frequently Asked Questions

Q: What are the dual backplane power supply requirements for operating the IC693ALG391?

A: The module draws 30 mA from the +5 VDC backplane supply and 215 mA from the isolated +24 VDC backplane bus or an external 20 to 30 VDC user supply.

Q: What level of electrical isolation exists between the field terminal wiring and system logic?

A: The field-to-logic side circuits are isolated to withstand up to 1500 VAC for a duration of 1 minute.

Q: What resolution values correspond to 1 LSB in the 4 to 20 mA and 0 to 5 VDC operating modes?

A: In 4 to 20 mA mode, 1 LSB equals 4 uA; in 0 to 5 VDC mode, 1 LSB equals 1.25 mV.

Field Installation Guidelines

  • Ensure baseplate power is completely isolated before inserting or removing the module from the chassis slot.
  • Wire current loop and voltage field output devices using twisted, shielded conductors to minimize external high-frequency noise.
  • Connect the cable shield to a single earth point near the panel entry to prevent circulating ground currents.
  • Verify that the external loop power supply falls strictly within the specified 20 to 30 VDC limits when not using isolated backplane 24 VDC power.
