IC693ALG442 GE Series 90-30 Analog Module

GE IC693ALG442 Series 90-30 Analog Combination Module

GE IC693ALG442 Series 90-30 Analog Combination Module

Availability: 10 left in stock

Configured for analog current and voltage signal processing in GE Series 90-30 PLC platforms, the GE IC693ALG442 (IC693ALG442 Analog Combination...

SKU: IC693ALG442

Manufacturer: GE Fanuc
Product No.: IC693ALG442
Product Type: Analog I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 430g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

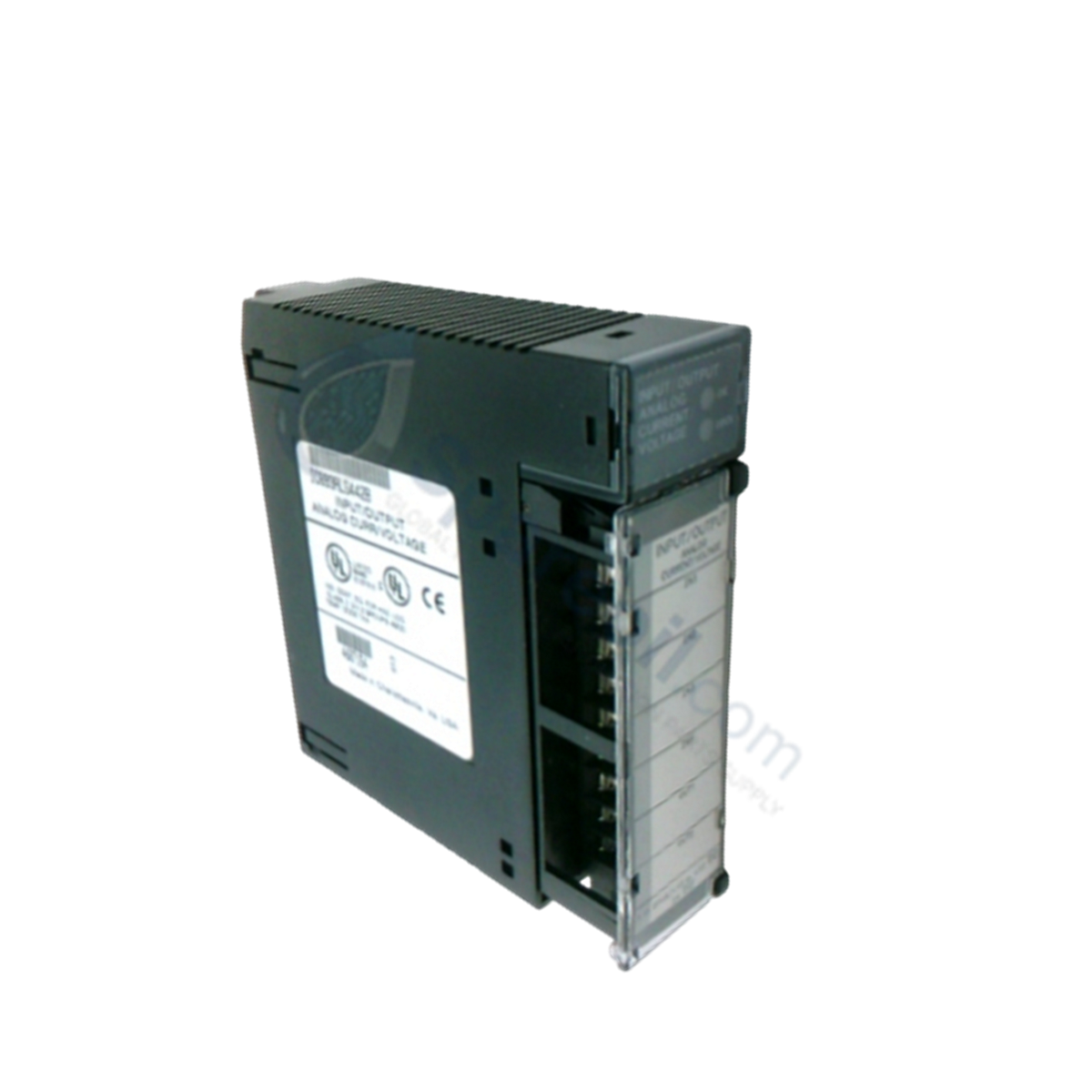

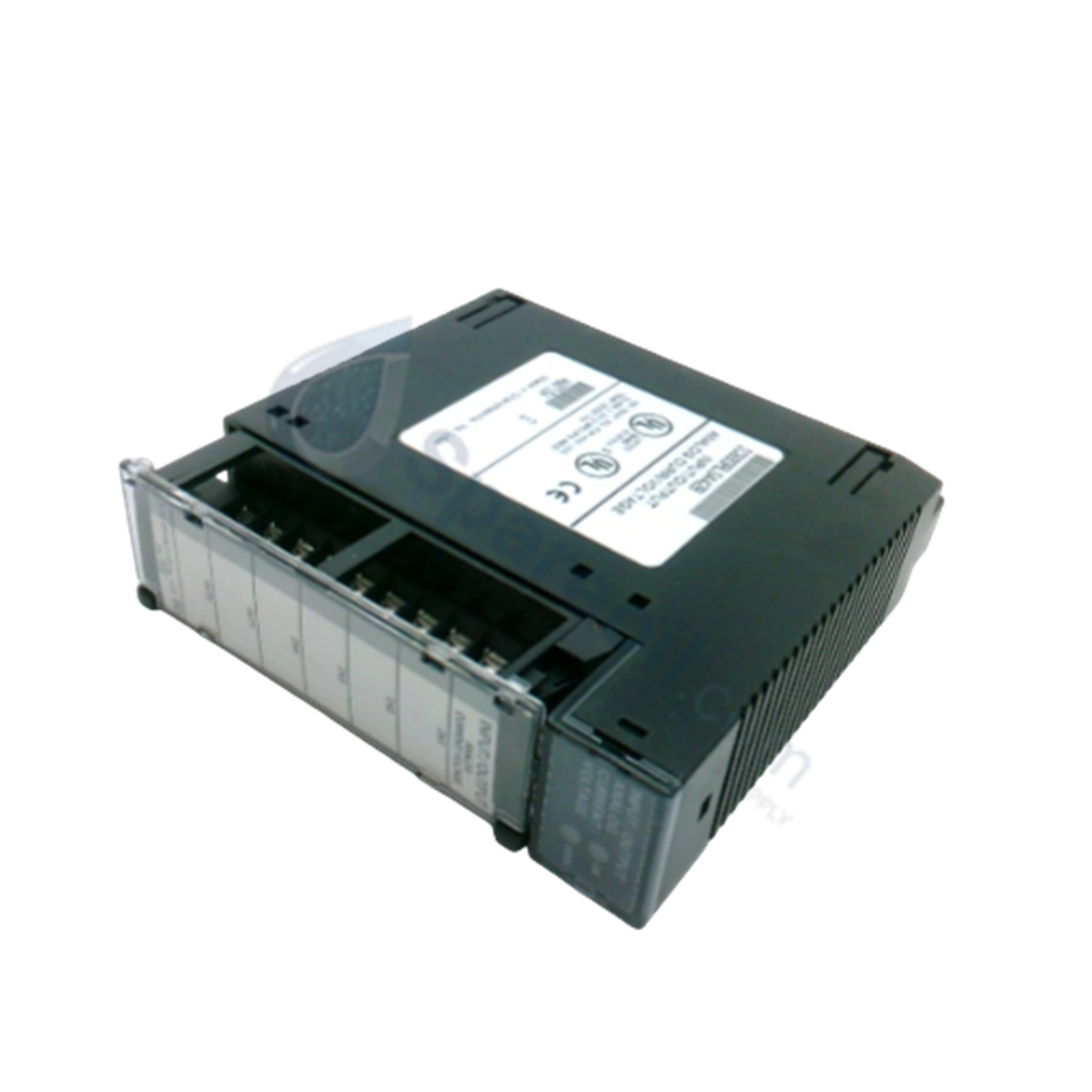

Configured for analog current and voltage signal processing in GE Series 90-30 PLC platforms, the GE IC693ALG442 (IC693ALG442 Analog Combination Module) provides direct physical/electrical execution. The unit processes 4 differential input channels and 2 single-ended output channels, supporting voltage and current ranges with internal diagnostic feedback.

Hardware Specifications

Parameter	Specification
Model	IC693ALG442
Brand	GE Fanuc Emerson
Series	Series 90-30
Product Type	Analog I/O Modules
Input Channels	4 differential
Output Channels	2 single-ended
Input Signal Ranges	0 to 10 VDC, -10 to +10 VDC, 0-20 mA, 4-20 mA, 4-20 mA Enhanced
Output Signal Ranges	0 to 10 VDC, -10 to +10 VDC, 0-20 mA, 4-20 mA
Input Resolution	2.5 mV (0 to 10 V), 5 mV (-10 to +10 V), 5 uA (0-20 mA / 4-20 mA)
Output Resolution	0.625 uA (0-20 mA), 0.5 uA (4-20 mA)
Absolute Accuracy	+/- 0.25% at 25 deg C full scale (+/- 0.5% over operating temperature range)
Channel Update Rates	Input: 8 ms per channel; Output: 4 ms per channel
Input Impedance	800 K Ohms
Power Consumption	95 mA at +5 VDC internal backplane; 129 mA at external 24 VDC
External Power Supply	20 to 30 VDC (24 VDC nominal, 10% maximum ripple)

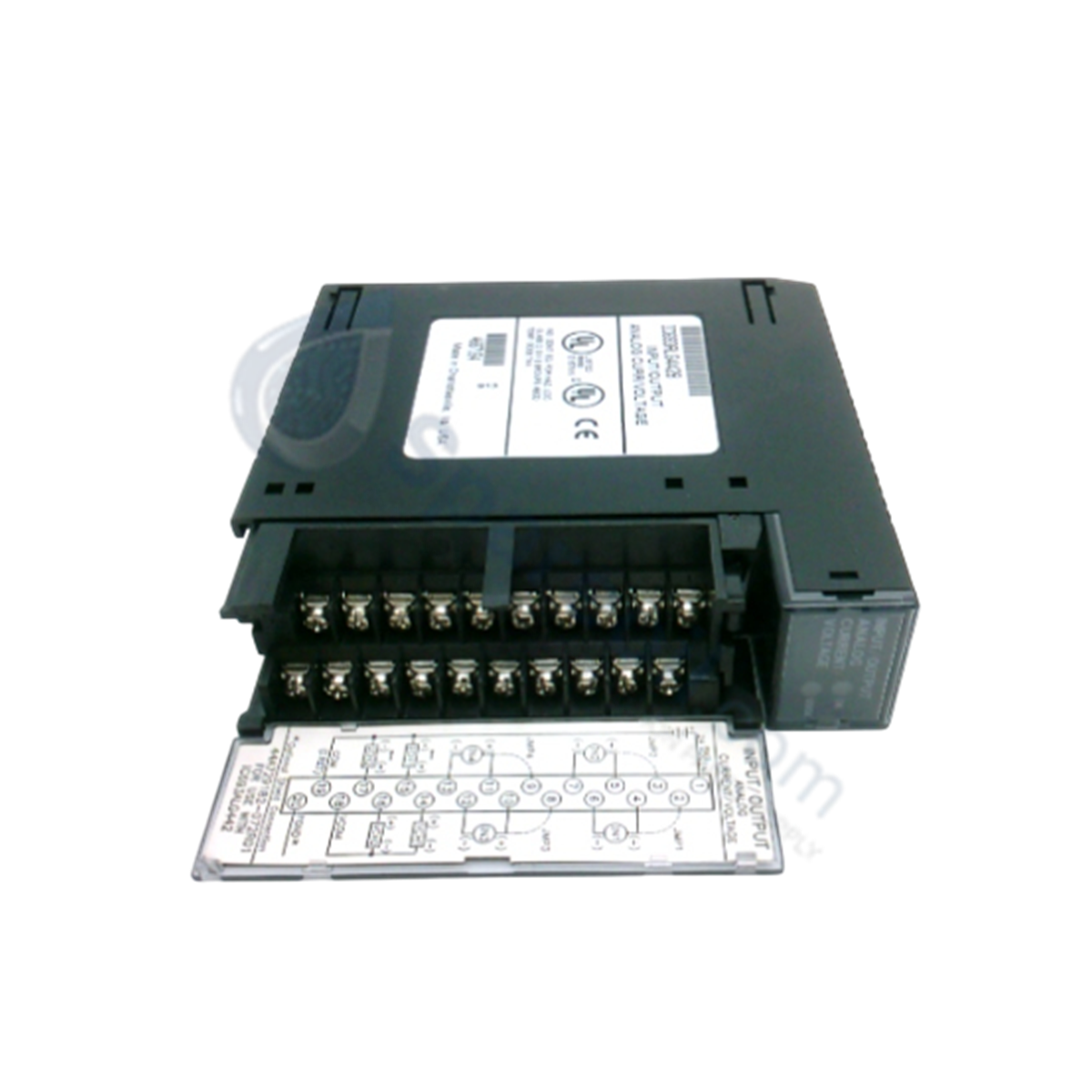

Field Termination	Front-mounted 20-terminal removable connector block
Operating Temp	0 to +60 deg C
Dimensions	Standard Series 90-30 single-slot footprint
Weight	0.43 kg (0.94 lbs)
Origin	USA

Backplane Bus Interfacing and Deterministic Networks

The IC693ALG442 module transmits digitized field data across the backplane bus while receiving user-configured scaling parameters from the central processor. Backplane bus communication velocity guarantees dynamic update speeds of 8 ms for input scanning and 4 ms for output command execution. The module transmits performance data, power status, overload open-wire conditions, and out-of-range signal conversions directly to the PLC processor to maintain firmware flash compatibility and scan synchronization.

Frequently Asked Questions

Q: What power sources are required to operate the IC693ALG442 module?

A: The module draws 95 mA from the internal +5 VDC backplane bus and requires an external user supply of 20 to 30 VDC (24 VDC nominal) drawing 129 mA.

Q: How does the module handle signal inputs that exceed the defined measurement range?

A: If an input signal exceeds its configured operating range, the module converts the value to the nearest valid limit before passing the digitized count to the controller.

Q: What diagnostic monitoring features are available for current loop wiring?

A: The IC693ALG442 includes open-loop fault detection and open-wire detection when configured in current output modes.

Field Installation Guidelines

Disconnect all primary rack power and field external 24 VDC power before inserting or removing the IC693ALG442 module.
Wear a grounded ESD wrist strap bonded to the enclosure framework before touching internal components.
Insert the module into the desired Series 90-30 baseplate slot, ensuring the top and bottom chassis hooks seat properly.
Wire field instrumentation to the removable 20-terminal block on the front face, keeping signal wiring separated from high-voltage AC cables.
Verify that external 24 VDC user supply polarity and voltage limits (20 to 30 VDC) are within limits prior to system power-up.
