IC693CPU323 GE Series 90-30 Datasheet & Technical Manual

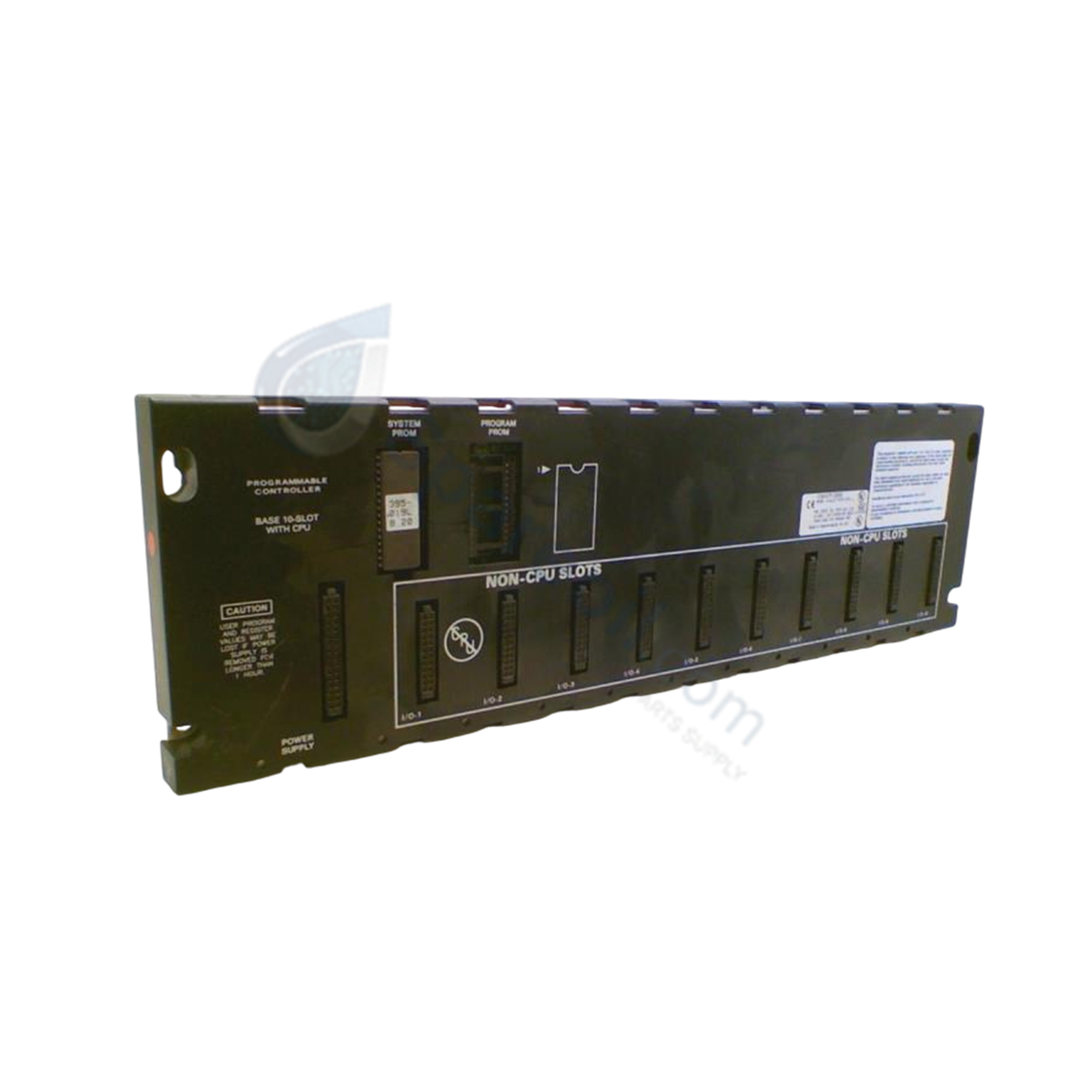

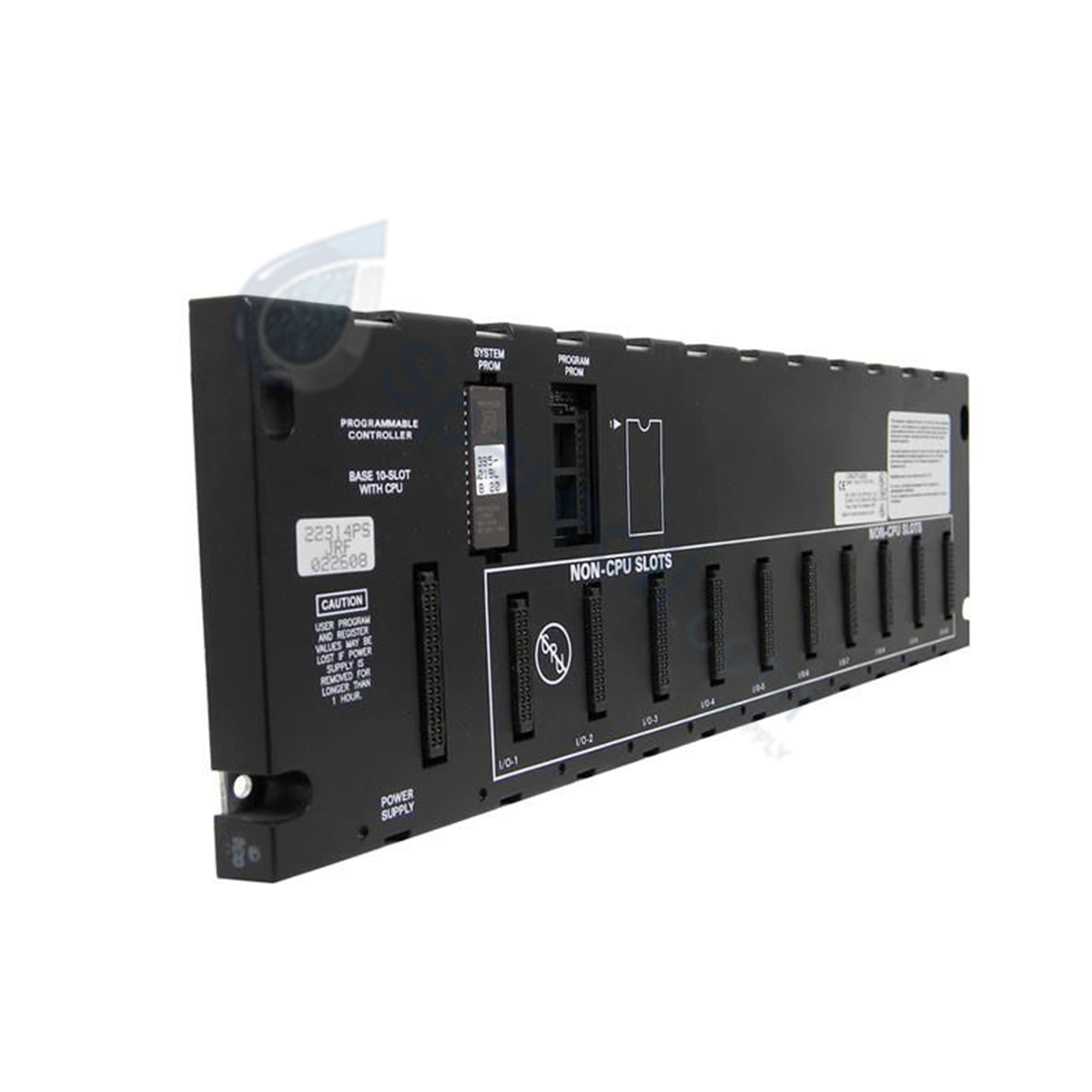

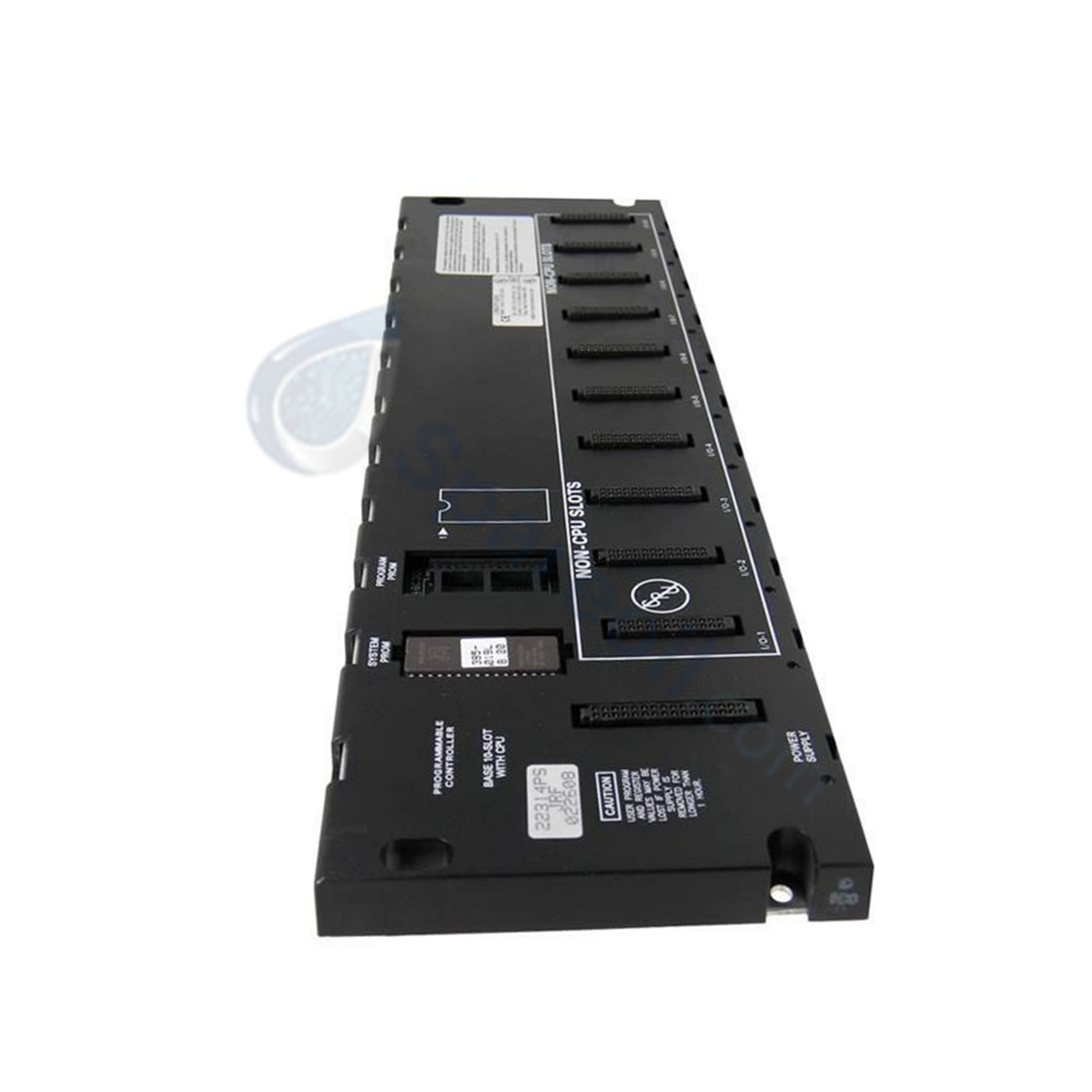

GE IC693CPU323 Series 90-30 CPU Baseplate

GE IC693CPU323 Series 90-30 CPU Baseplate

Availability: 10 left in stock

The GE IC693CPU323, also cataloged as the IC693CPU323 CPU Baseplate, operates as a dedicated hardware component for embedded real-time program...

SKU: IC693CPU323

Manufacturer: GE Fanuc
Product No.: IC693CPU323
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 940g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The GE IC693CPU323, also cataloged as the IC693CPU323 CPU Baseplate, operates as a dedicated hardware component for embedded real-time program execution within Series 90-30 platforms.

Hardware Specifications

Parameter	Specification
Model	IC693CPU323
Brand	GE Fanuc / Emerson Automation
Origin	USA
Weight	0.96 kg (2.13 lbs)
Dimensions	10-slot Series 90-70/90-30 baseplate format
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	2.15 W maximum (430 mA @ +5 VDC bus voltage)
Processor Type	80188 microprocessor @ 10 MHz clock speed
Execution Speed	0.6 ms per 1K Boolean logic
User Memory	12 Kbytes maximum (6 Kbytes for firmware releases prior to v7.0)
Discrete I/O Capacity	320 discrete I/O points (160 %I inputs / 320 %Q outputs maximum combined)
Analog I/O Capacity	64 words %AI inputs, 32 words %AQ outputs
Built-in Serial Interface	1 serial port on power supply connector (SNP slave and SNP-X slave protocols)
Baseplate Slots	1 Power Supply slot, 10 I/O slots (non-expandable)
Supported Memory Modules	Battery-backed RAM (battery hosted in power supply module), optional EPROM / EEPROM
Expansion Capabilities	None (expansion baseplates, PCM, and CCM modules are not supported)

Backplane Bus Communication Velocity & Firmware Execution

The onboard 10 MHz 80188 processor manages local I/O update cycles across the 10-slot backplane architecture, maintaining optimal backplane bus communication velocity during continuous scan execution. Internal bus routing supports firmware flash compatibility alongside optional communication modules including Ethernet, FIP, PROFIBUS, GBC, GCM, and GCM+ modules.

Frequently Asked Questions

Q: How is the backup battery housed on the IC693CPU323 CPU baseplate?

A: The RAM backup battery is hosted directly inside the attached Series 90-30 power supply module rather than on the baseplate board.

Q: What is the backplane bus current load for the IC693CPU323?

A: The embedded CPU baseplate draws 430 mA from the +5 VDC supply rail.

Q: Can the IC693CPU323 be expanded using expansion baseplates?

A: No, the IC693CPU323 is a non-expandable embedded baseplate unit and does not support expansion baseplate connections or PCM/CCM modules.

Field Installation Guidelines

Panel Mounting: Secure the baseplate to a grounded metallic enclosure backpanel using screws through the pre-drilled baseplate mounting holes.
Power Supply Installation: Seat a compatible Series 90-30 power supply module into the leftmost power supply slot to feed the +5 VDC backplane power bus and provide the battery backup connection.
I/O Module Placement: Insert Series 90-30 discrete and analog I/O cards into slots 1 through 10, verifying that edge connectors lock into the backplane receptacles.
Grounding: Connect the protective ground terminal of the baseplate chassis directly to the main enclosure ground bar via a low-impedance copper conductor.
