IC698CPE020 GE RX7i CPU Processor Module

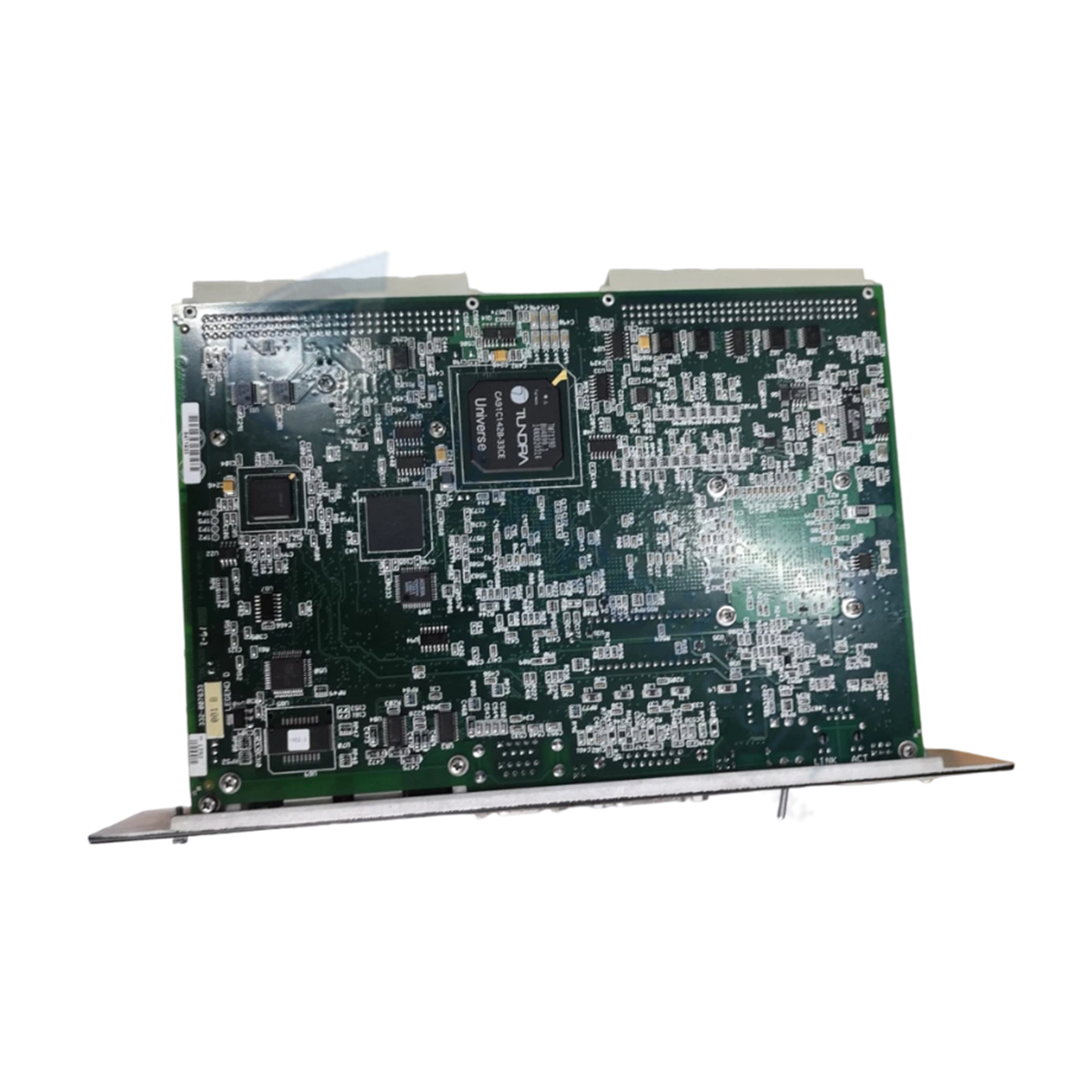

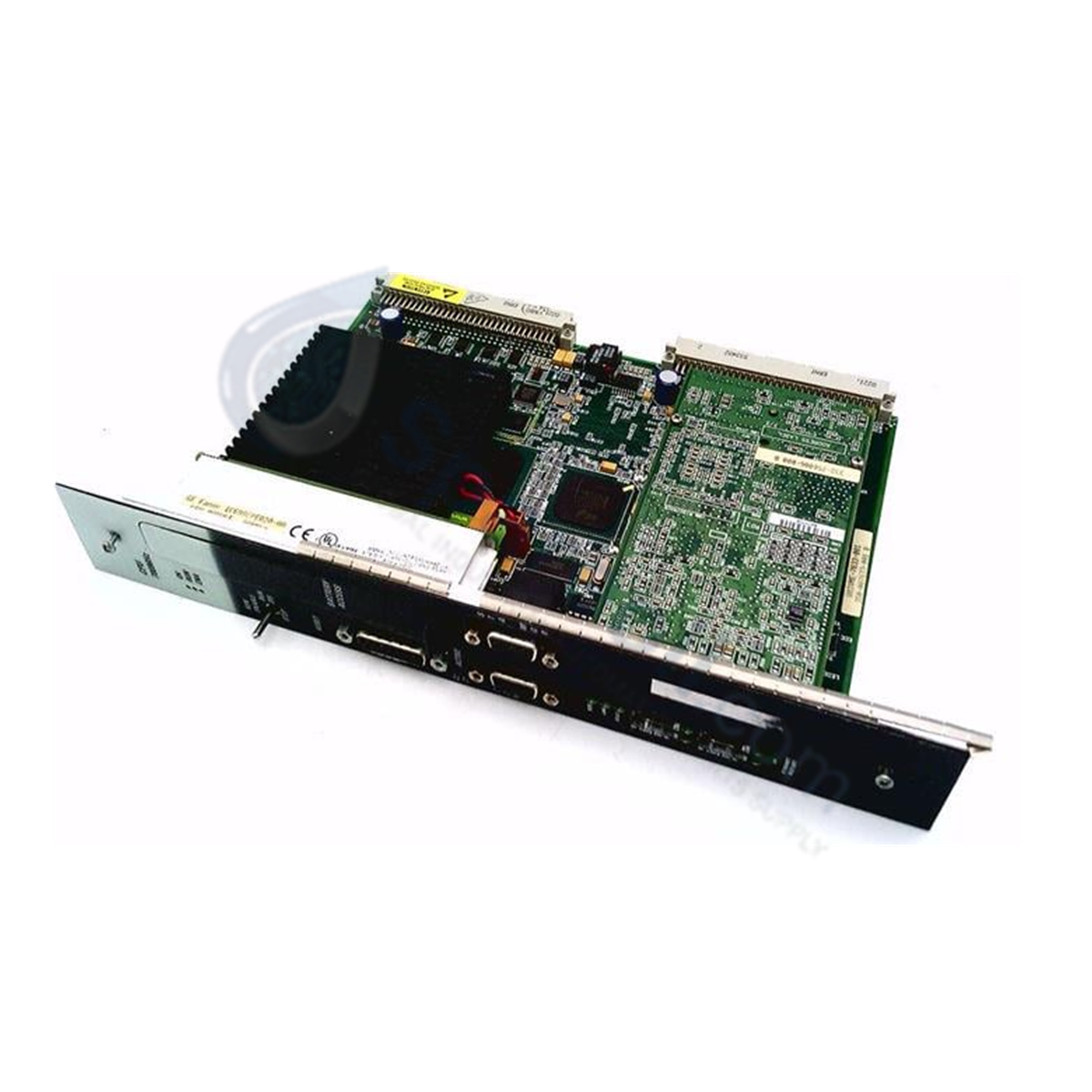

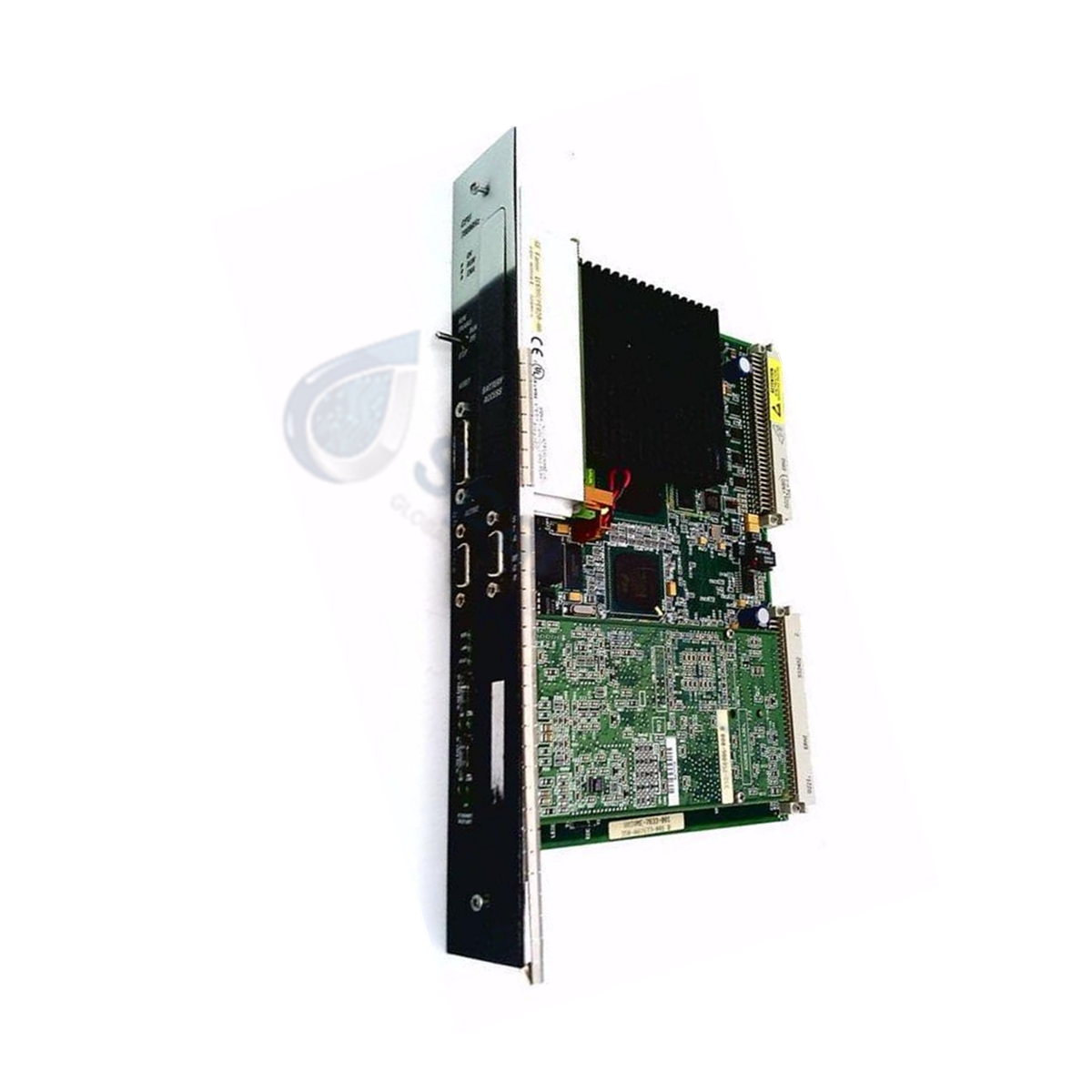

GE IC698CPE020 RX7i PACsystem Central Processing Module

GE IC698CPE020 RX7i PACsystem Central Processing Module

Availability: 10 left in stock

The GE IC698CPE020 serves as the primary IC698CPE020 CPU Processor utilized to execute real-time control logic and user program actuation...

SKU: IC698CPE020

Manufacturer: GE Fanuc
Product No.: IC698CPE020
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The GE IC698CPE020 serves as the primary IC698CPE020 CPU Processor utilized to execute real-time control logic and user program actuation across PACSystem RX7i platforms. The rack-mounted processor acts as the primary controller node over the VME64 backplane, coordinating signal execution and routing digitized data across physical I/O grids.

Hardware Specifications

Parameter	Specification
Model	IC698CPE020
Brand	GE Fanuc Emerson
Origin	USA
Weight	0.91 kg (2.00 lbs)
Dimensions	Multi-slot rack module profile
Operating Temp	0 to 60 deg C
Power Consumption	+5 VDC: 4.5 A nominal (3.2 A baseline draw); +12 VDC: 0.042 A nominal; -12 VDC: 0.008 A nominal
Microprocessor	Pentium III (700 MHz clock velocity)
User Memory	10 MB RAM (User Logic)
Non-Volatile Memory	10 MB Flash
Discrete I/O Capacity	32 Kbits (%I and %Q)
Analog I/O Capacity	32 Kwords (%AI and %AQ)
Max Program Blocks	512 blocks (Maximum block size: 128 KB)
Ethernet Connectivity	2x 10/100 Mbps auto-sensing switched ports (Single IP mapping)
Serial Interface	3x isolated ports (1x RS-232, 1x RS-485, 1x RS-232 Station Manager)
Execution Speed	0.14 ms per 1000 Boolean contacts/coils

Industrial Control and Network Determinism

The IC698CPE020 is engineered around a high-speed VME64 architecture that maintains fast data throughput and prevents localized register bottlenecking during comprehensive I/O density scaling routines. Network communication integrates directly into Profinet / EtherNet/IP deterministic networks via integrated Modbus TCP, EGD, and SRTP protocol channel stacks. Firmware flash compatibility ensures unified processing blocks for floating-point calculations and multi-language compiling, enabling seamless execution of concurrent runtime instructions without clock jitter.

Frequently Asked Questions

Q: What are the backplane location constraints when installing this processor into an RX7i rack?

A: The IC698CPE020 must be permanently keyed and installed into Slot 1 of the primary RX7i master chassis to properly govern the VME64 parallel bus allocation and line arbitration vectors.

Q: How are network time protocols and media redundancy managed across the integrated dual Ethernet ports?

A: The dual embedded interfaces act as switched ports under a single IP address assignment. Media redundancy is executed over LAN 2 pathways, while firmware releases 5.0 or later enable native SNTP network synchronization routines.

Field Installation Guidelines

Chassis Thermal Mitigation: Ensure that the rack enclosure maintains clear ventilation channels. The 700 MHz Pentium III architecture requires stable convection flow to remain within the 0 to 60 deg C operating baseline under maximum load.
Serial Diagnostic Isolation: When using the dedicated RS-232 Station Manager port for system queries, execute shield continuity termination to avoid high-frequency noise injection into the neighboring CPU logic circuits.
Firmware and Configuration Matching: Utilize Proficy Machine Edition Logic Developer PLC software version 4.0 or newer to define the memory partitioning and download application logic blocks securely to the 10 MB RAM partition.
