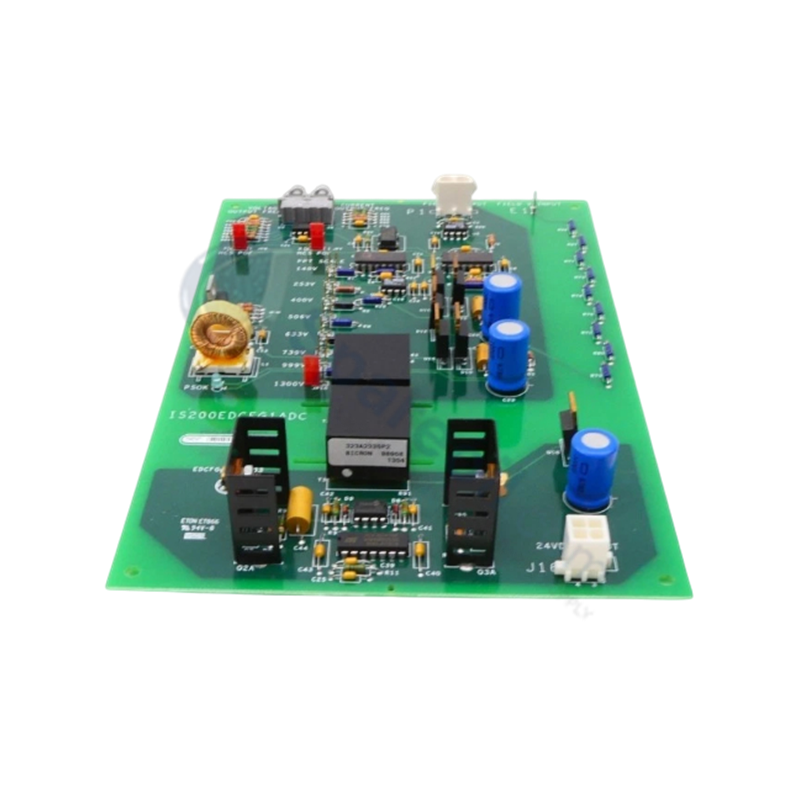

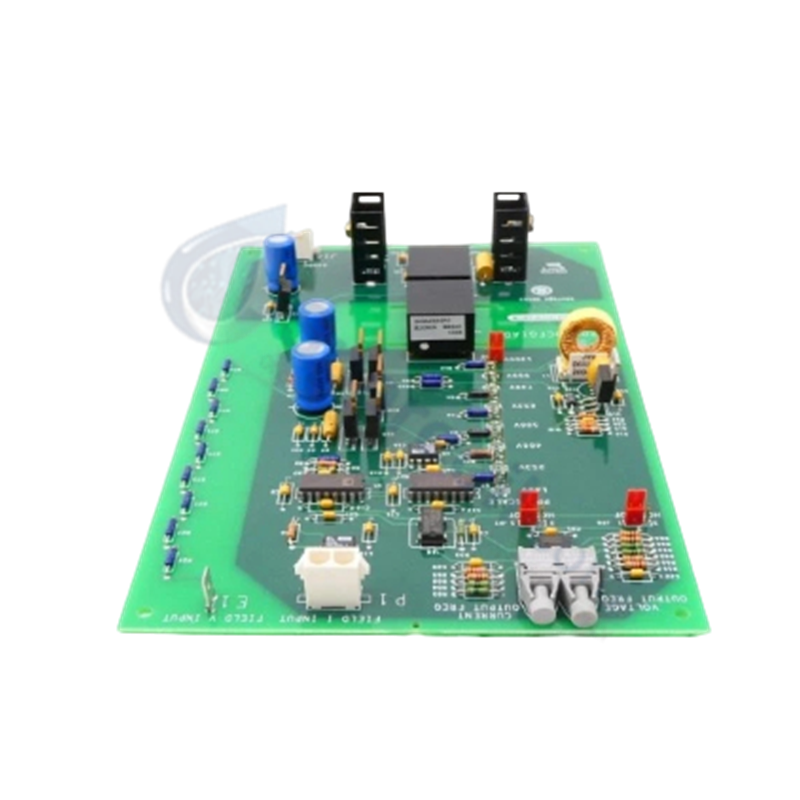

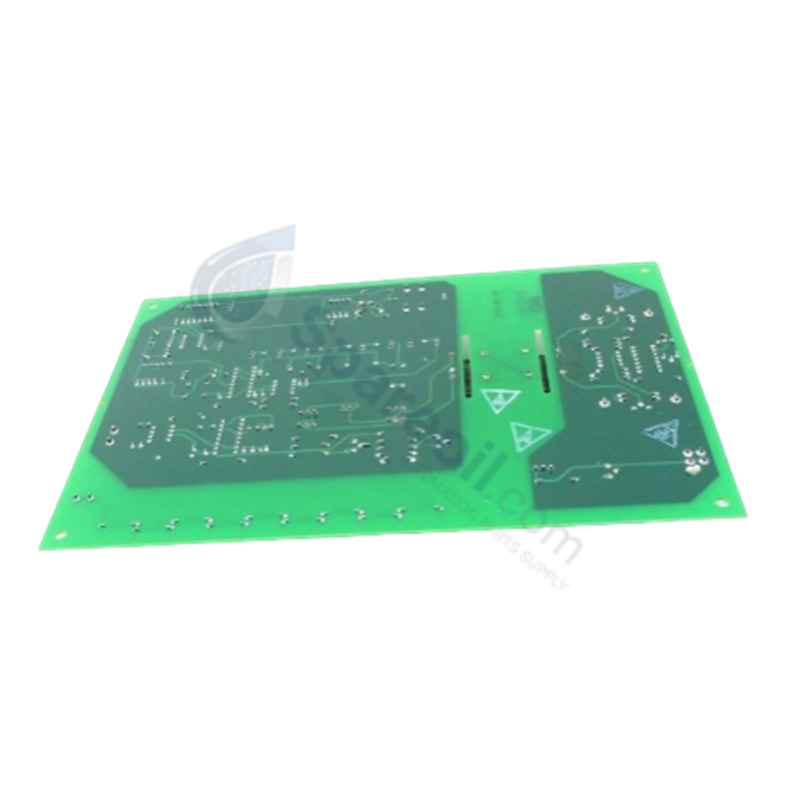

The GE IS200EDCFG1ADC, also cataloged as the IS200EDCFG1 Exciter DC Feedback Board, operates as a dedicated hardware component for field current and field voltage acquisition at the Silicon-Controlled Rectifier (SCR) bridge within EX2100e excitation system platforms. The unit processes bridge measurements and transmits discrete data channels to the Exciter Interface Board (EISB) inside the control panel over dedicated high-speed fiber-optic links.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200EDCFG1ADC |
| Brand | GE (General Electric) |
| Origin | United States of America (USA) |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | System backplane / bus powered |
| Series | EX2100e |
| Product Type | Exciter DC Feedback Board |
| Circuit Technology | Surface-mount technology |
| PCB Protection | Conformal coating |
| Optical Interface | Dual fiber-optic channel configuration (1 current / 1 voltage) |
Backplane and Fiber-Optic Communication Architecture
The IS200EDCFG1ADC utilizes a dual-fiber communication link designed to interface directly with the control panel EISB board. Each physical optical strand handles dedicated signal routing—one fiber assigned to field current telemetry and the second fiber assigned to field voltage telemetry. This dual-path design bypasses backplane bus communication velocity constraints while isolating control panel logic from SCR bridge high-voltage transients. The integrated optical transceivers maintain electromagnetic interference (EMI) noise immunity and galvanic isolation between power electronics and lower-level digital processors.
Frequently Asked Questions
Q: How does the module handle high-voltage isolation between the SCR bridge and control electronics?
A: Physical voltage isolation is maintained by converting measured SCR bridge signals into optical pulses transmitted across independent fiber-optic cables to the EISB board.
Q: Are field current and field voltage signals multiplexed over a single optical channel?
A: No, the hardware uses a two-fiber configuration where field current and field voltage are transmitted independently over separate optical fibers.
Field Installation Guidelines
- Fiber-Optic Handling: Maintain minimum bend radii when routing the dual optical fibers. Inspect transceiver ports and fiber end-faces for dust or debris prior to insertion.
- ESD Mitigation: Apply standard anti-static procedures, including grounded wrist straps, when installing or removing conformal-coated surface-mount boards.
- Environmental Clearance: Verify ambient operating temperatures within the EX2100e enclosure stay between -30 deg C and 65 deg C. Ensure free air flow around the board surface.
