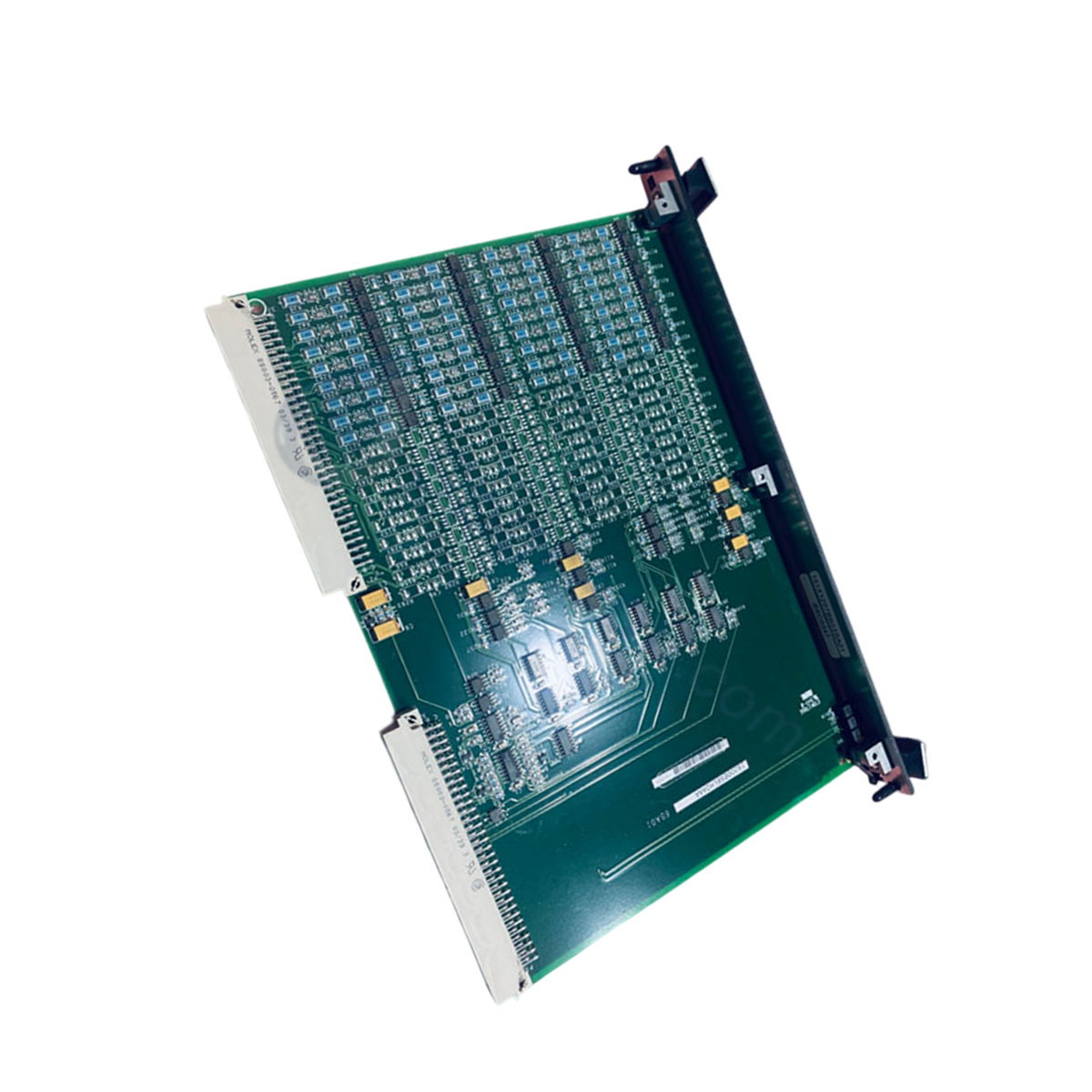

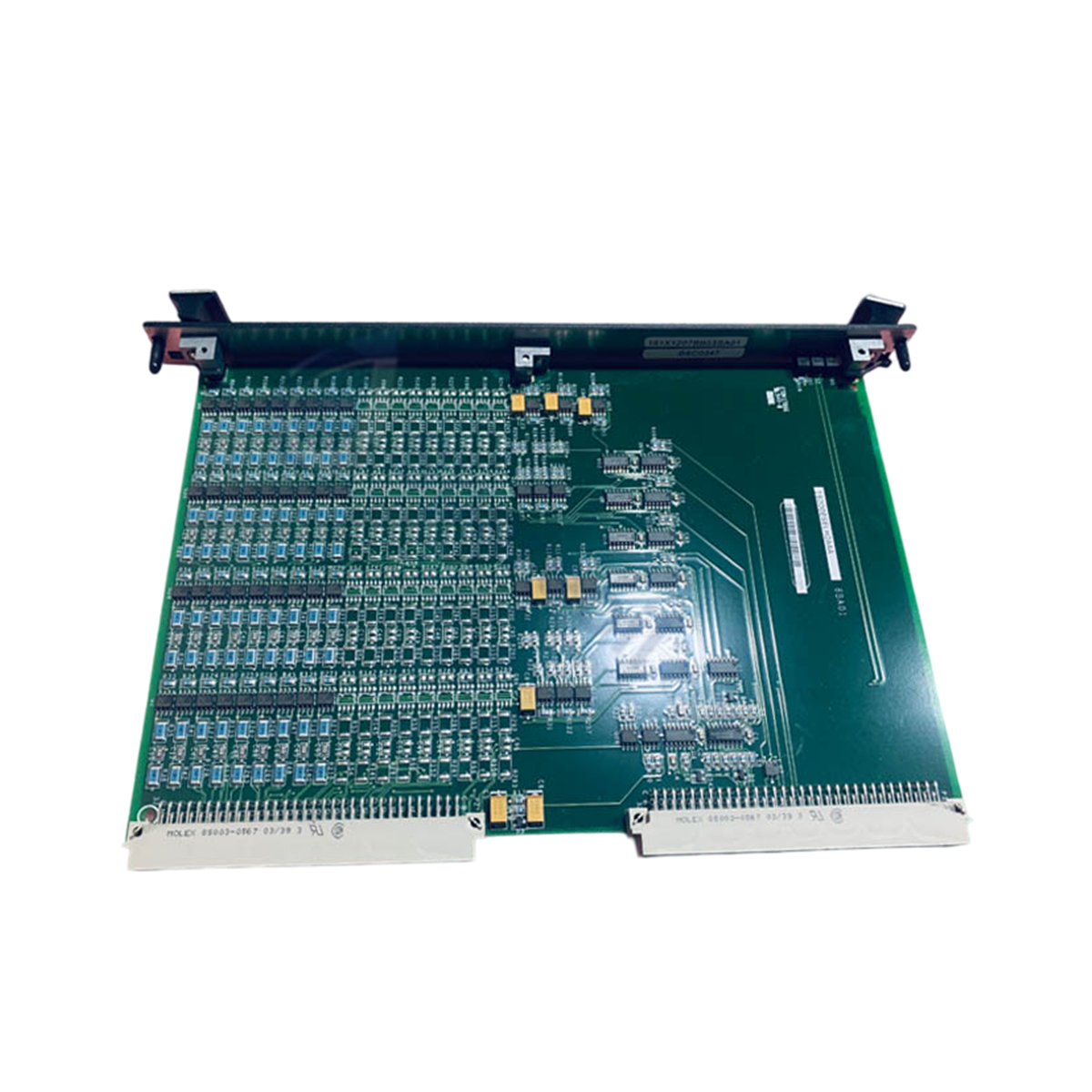

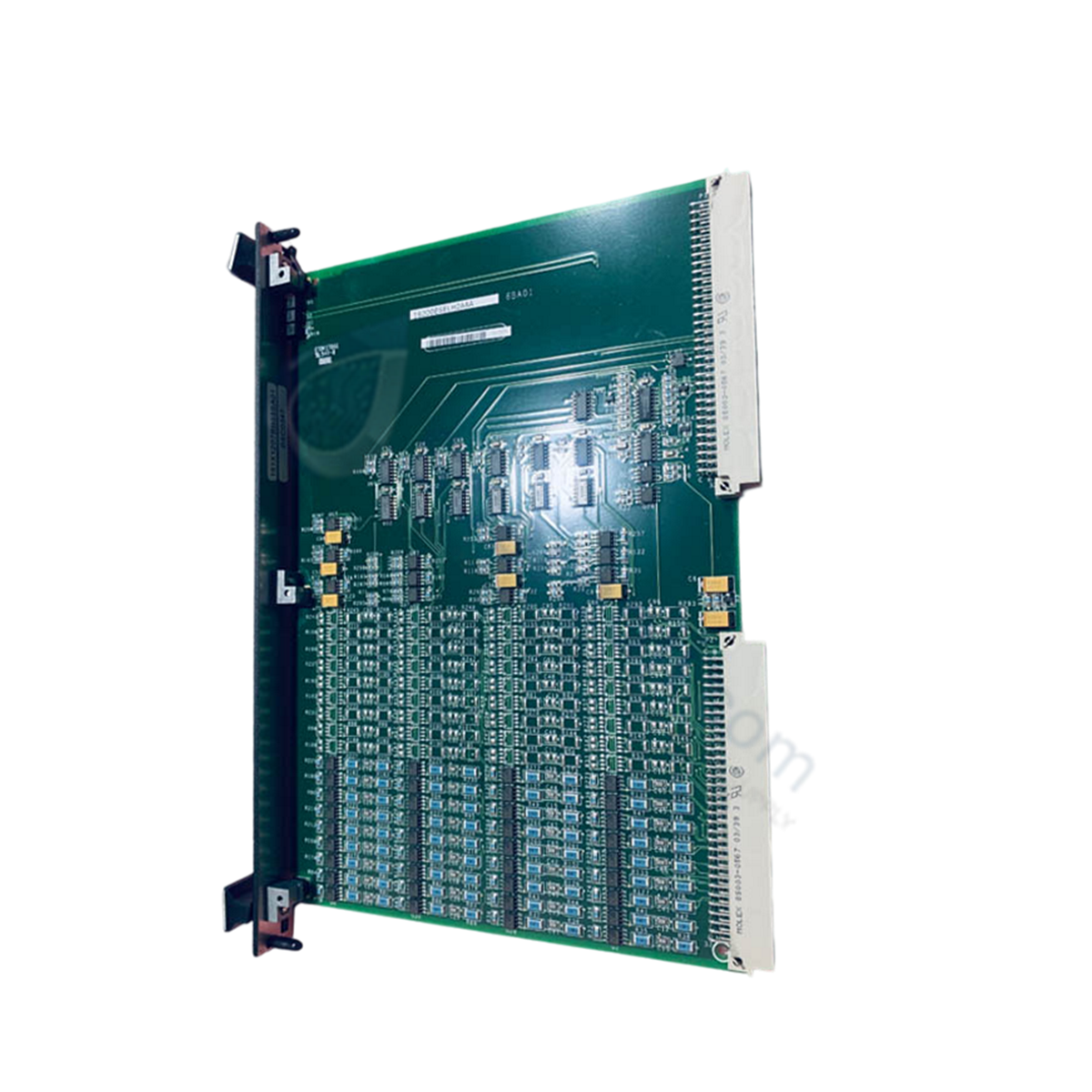

The GE IS200ESELH2AAA, also cataloged as the IS200ESEL Exciter Selector Board, operates as a dedicated hardware component for receiving and distributing gate pulse logic signals within GE EX2100 Excitation Control System platforms. It receives six logic-level gate pulse signals from a primary EMIO board and routes them through up to six output cables to corresponding Exciter Gate Pulse Amplifier (EGPA) boards mounted in the power conversion cabinet. In redundant control topologies, two IS200ESELH2AAA boards operate under M1 and M2 control drives, selected by the C controller.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200ESELH2AAA |
| Brand | GE Industrial Systems (General Electric) |
| Origin | United States |
| Series | EX2100 |
| Product Type | Exciter Selector Board (ESEL) |
| Functional Acronym | ESEL |
| PCB Coating | Conformal Coating |
| Input Signals | 6 logic-level gate pulse signals (from EMIO board) |
| Output Capacity | Up to 6 cable outputs (to EGPA boards) |
| Bridge Drivers | 3 integrated bridge drivers |
| System Topology | Simplex (1 board) or Redundant (2 boards: M1 and M2) |
| Hardware Revisions | Functional Rev A, Functional Rev A, Artwork Rev A |
I/O Density Scaling and Deterministic Signal Routing
The IS200ESELH2AAA supports high-density signal distribution within EX2100 power conversion cabinets by multiplexing and routing gate drive logic from a central EMIO board to multiple downstream EGPA modules. In redundant control topologies, dual ESEL boards scale system availability by executing deterministic hardware handoffs between M1 and M2 control paths under supervision of the C controller, ensuring uninterrupted gate pulse delivery during primary channel transitions.
Frequently Asked Questions
Q: How many IS200ESELH2AAA boards are required for a redundant EX2100 control system?
A: Redundant configurations require two IS200ESELH2AAA boards—one driven by the M1 controller and the second driven by the M2 controller—with active signal transmission determined by the C controller.
Q: What downstream components receive signals from the IS200ESELH2AAA board?
A: The board distributes up to six logic-level gate pulse signals through dedicated interconnect cables to corresponding Exciter Gate Pulse Amplifier (EGPA) boards located in the power conversion cabinet.
Q: What hardware characteristics are indicated by the H2 designation in the part number?
A: The H2 series grouping tag identifies the printed circuit board as featuring conformal coating protection and incorporating three integrated bridge drivers within its assembly.
Field Installation Guidelines
- Isolate all electrical power feeds to the EX2100 excitation cabinet prior to board installation or removal.
- Put on an electrostatic discharge (ESD) grounding wrist strap connected to bare cabinet metal before handling the circuit board.
- Inspect the board to confirm the conformal coating is intact and verify that hardware revisions match system specifications.
- Mount the board securely in its designated slot within the EX2100 drive assembly and tighten all mechanical retaining hardware.
- Connect the six logic-level gate pulse input cables from the EMIO board and secure the output cables to their designated EGPA amplifier channels per wiring diagrams.
