Description

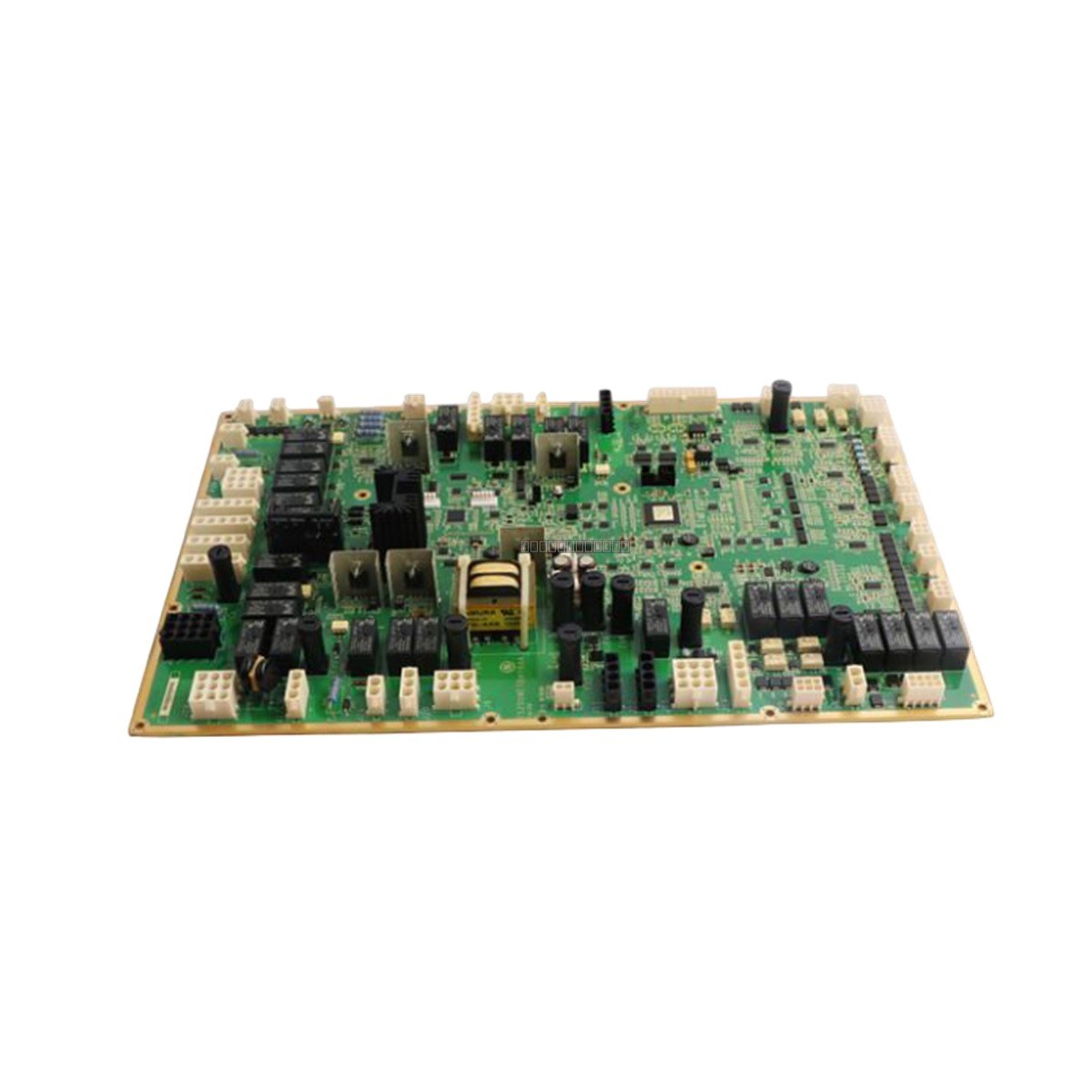

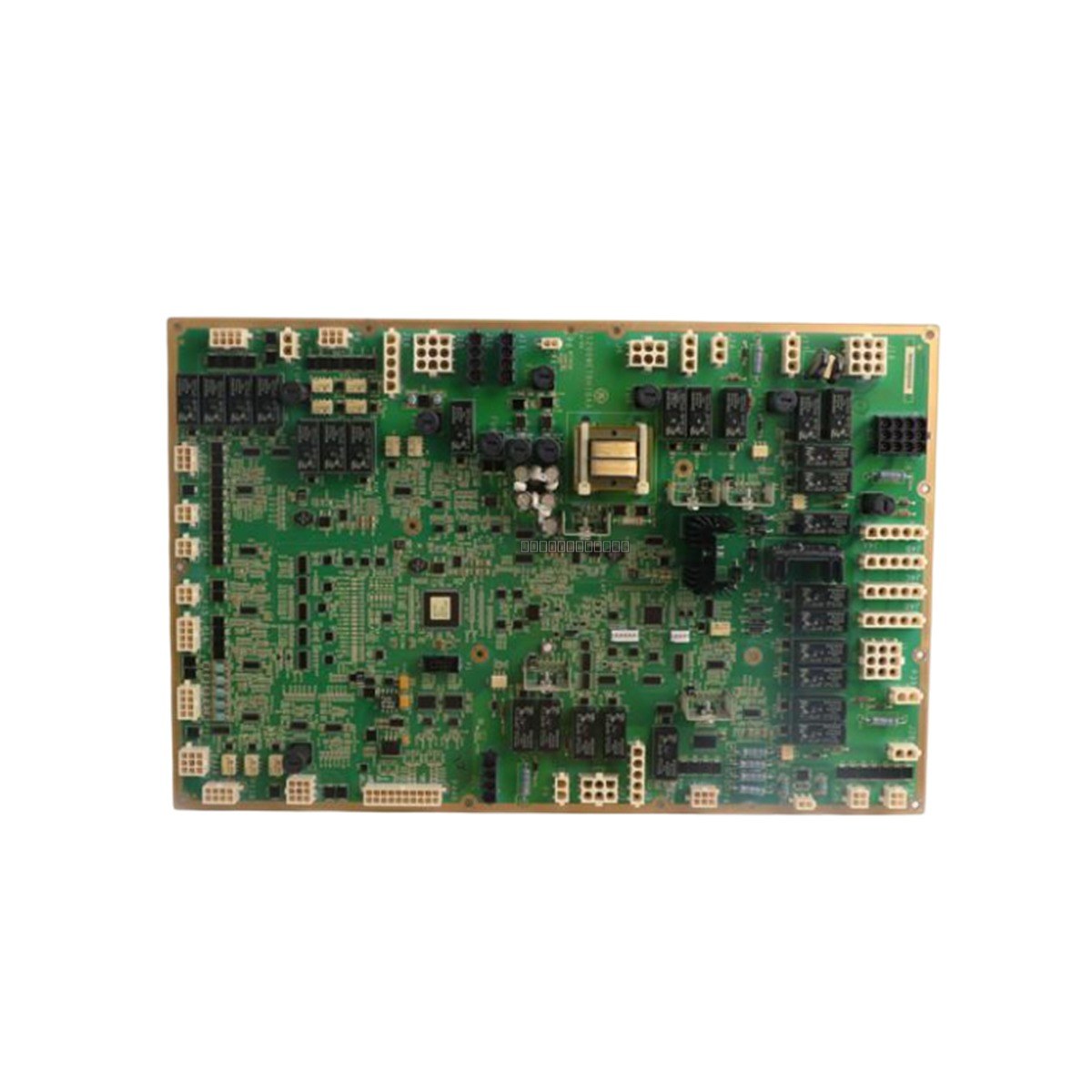

The IS200WETBH1BAA is a high-density, application-specific I/O board engineered by General Electric for the Speedtronic Mark VI turbine management system. This module is designed for the sophisticated control and monitoring of gas and steam turbines, providing critical feedback on parameters such as flame detection, mechanical vibration, shaft voltage accumulation, and grid synchronization. By consolidating complex monitoring circuits into a single hardware interface, the IS200WETBH1BAA enhances operational reliability in power generation, oil and gas, and heavy industrial applications, helping to prevent mechanical failure and minimize unplanned downtime.
Features
- High-density I/O architecture designed for Mark VI turbine control cabinets.
- Extensive connectivity with over 65 integrated plugs and jacks for field wiring.
- Dedicated internal header configuration (P1, P2, P3) for system-level communication.
- Integrated grounding and mounting interface via a factory-drilled copper edge strip for improved electromagnetic compatibility (EMC).
- Supports critical turbine health monitoring including vibration and flame detection.
Applications
- Gas and steam turbine control systems.
- Power generation plant management.
- Oil refinery turbine monitoring.
- Large-scale industrial grid synchronization.
Technical Specifications
| Model | IS200WETBH1BAA |
| Series | Mark VI Speedtronic |
| Brand | General Electric (GE) |
| Total Connectors | 65+ plugs and jacks |
| Operating Temperature | 0 to 60 deg Celsius |
| Humidity | 5% to 95% non-condensing |
| Power Supply | Mark VI backplane (+5 VDC / +/-15 VDC typical) |
Installation Guidelines
- Ensure the Mark VI cabinet is powered down before inserting or removing the module.
- Use ESD-safe handling procedures when touching the board to prevent damage to sensitive internal components.
- Secure the board using the factory-drilled mounting strip to ensure proper chassis grounding and EMC performance.
- Verify that all cable connections (2-position to 20-position plugs) are firmly seated and routed to avoid strain on the connectors.
- Maintain adequate ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg Celsius operating range.
FAQ
What is the primary function of the IS200WETBH1BAA?
This board acts as a high-density I/O interface for the GE Mark VI Speedtronic system, specifically tasked with monitoring turbine health parameters like vibration, flame detection, and shaft voltage.
How should this board be grounded?
The board features a factory-drilled exposed copper strip along the edge, which must be properly secured to the cabinet chassis to ensure correct grounding and electromagnetic compatibility.
Is this board compatible with other Mark series systems?
The IS200WETBH1BAA is specifically engineered for the Mark VI Speedtronic series. It is not designed for cross-compatibility with older Mark V or newer Mark VIe systems.
