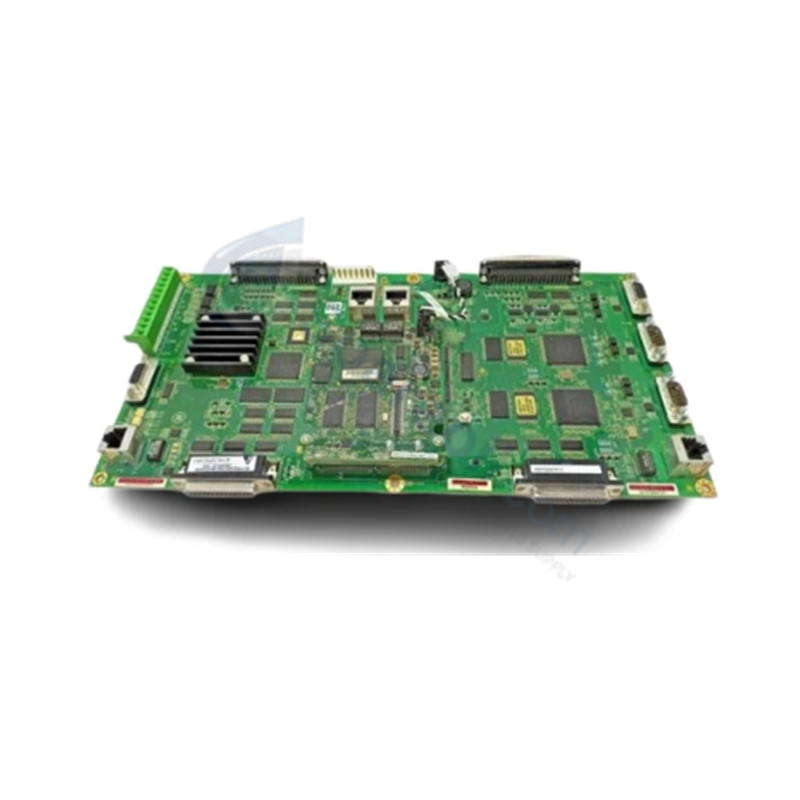

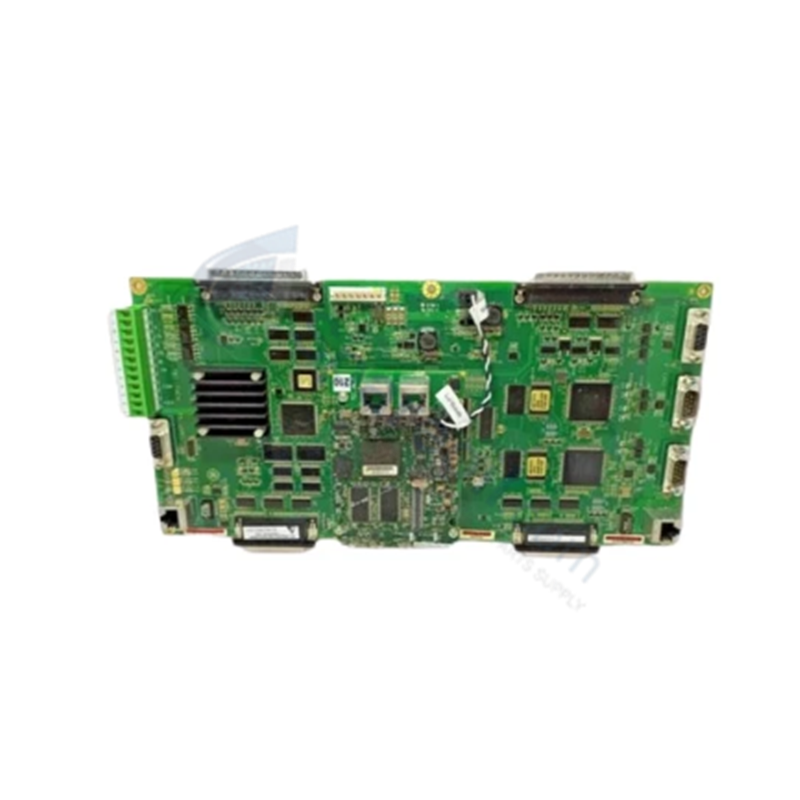

Configured for high-speed network packet processing in Mark VIe platform control networks, the GE IS210MACCH2AGG (IS210MACC Network Interface Card) provides direct physical/electrical execution. The module manages deterministic packet flow over 10 Gigabit Ethernet interfaces using PCI Express 3.0 x16 host interconnectivity. Onboard protocol processing handles real-time data streaming over TCP/IP, UDP, and IPsec networks while maintaining strict hardware isolation from standard PCI host transactions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210MACCH2AGG |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.4 kg (0.88 lbs) |
| Dimensions | 15.2 cm x 10.2 cm x 2.5 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 425 mA @ 5 VDC |
| Series | Mark VIe |
| Product Type | Network Interface Cards |
| Form Factor | PCI Express (PCIe) 3.0 x16 |
| Network Interface | 10 Gigabit Ethernet (10GbE) |
| Network Protocols | TCP/IP, UDP, IPsec |
| Data Transfer Rate | Up to 10 Gbps |
| Storage Temp | -40 to 85 deg C |
Backplane Bus Communication and Deterministic Networks
The IS210MACCH2AGG integrates directly into the Mark VIe control infrastructure, leveraging PCI Express 3.0 x16 bus velocity to ensure high-throughput communication across deterministic control loops. By managing 10 Gbps network data transfers via onboard hardware offload engines, the card minimizes backplane communication latencies while optimizing firmware flash compatibility across varying controller revisions. This deterministic network interface allows high-density I/O packet scaling without inducing CPU scan-time degradation during intense system events.
Frequently Asked Questions
Q: What host bus slot interface is required to install the IS210MACCH2AGG card?
A: The card requires a standard physical PCI Express (PCIe) 3.0 x16 slot capable of supplying 5 VDC auxiliary power to the board edge connectors.
Q: How does the module handle high-throughput control communication without introducing network delay?
A: The board utilizes native 10 Gigabit Ethernet MAC/PHY hardware engines supporting hardware-accelerated TCP/IP, UDP, and IPsec packet framing directly at full 10 Gbps wire speeds.
Q: Can the card operate in extreme cold industrial field environments below freezing?
A: No, the operating temperature specification for this module is rated strictly from 0 to 60 deg C (32 to 140 deg F).
Field Installation Guidelines
- ESD Protection Protocols: Wear an ESD wrist strap connected to cabinet chassis ground before opening static-shielded packaging or inserting the PCIe card into the backplane slot.
- PCIe Slot Seat and Lock Validation: Insert the card vertically into an unpowered PCIe 3.0 x16 slot until the edge connector snaps fully into the retention latch, and secure the bracket screw.
- Network Cable Radius & Strain Relief: Ensure 10GbE optical or copper cabling maintains a minimum bend radius of at least 10 times the cable diameter to prevent high-speed signal attenuation.
- Thermal Management: Maintain clear vertical airflow through the card retention slots to prevent thermal throttling within the 0 to 60 deg C operational envelope.
