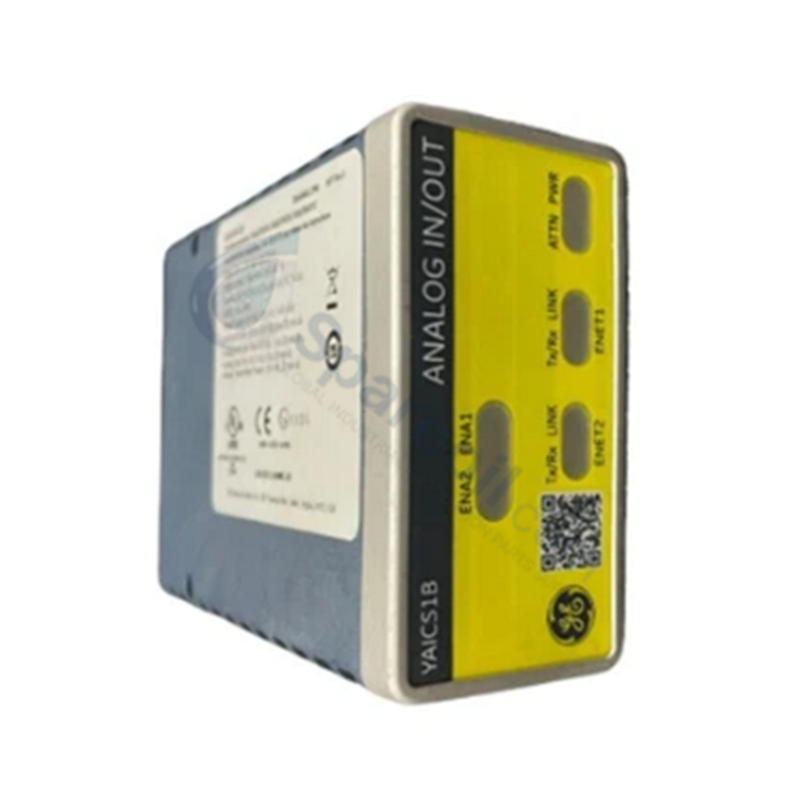

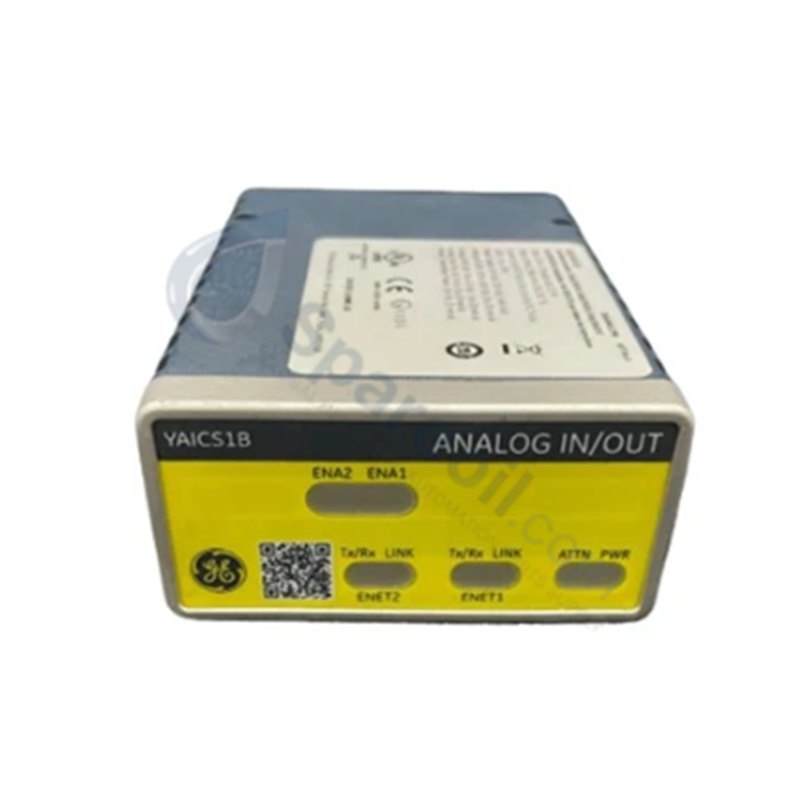

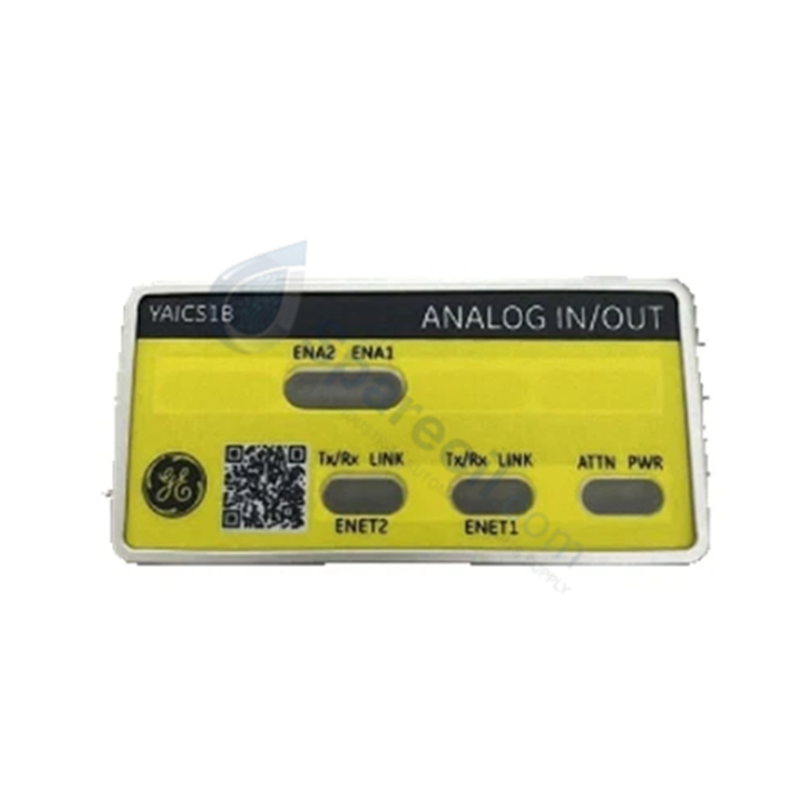

Configured for analog signal acquisition and signal processing in GE Mark VIe Turbine Control Systems, the GE IS420YAICS1B (IS420YAICS1B Analog I/O Pack) provides direct physical/electrical execution. The pack digitizes analog inputs from field sensors and converts control commands to analog outputs for precise turbine speed, valve positioning, and pressure regulation circuits without intermediate conversion delays.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS420YAICS1B |
| Brand | GE (General Electric) |
| Origin | USA |
| Weight | 0.5 kg (1.1 lbs) |
| Dimensions | 4.78 x 1.65 x 3.25 in (12.14 x 4.19 x 8.26 cm) |
| Operating Temp | -40 to 70 deg C (-40 to 158 deg F) |
| Power Consumption | 5.3 W (Typical) |
| Input Converter Resolution | 16-bit Analog-to-Digital Converter (ADC) |
| System Compatibility | Mark VIe Turbine Control System Series |
| Application Scope | Gas, steam, and wind turbine control loops |
Backplane Bus Communication Velocity and Density Scaling
The IS420YAICS1B features high-speed backplane bus communication velocity designed for deterministic industrial Ethernet protocols across the Mark VIe control network architecture. Utilizing a high-resolution 16-bit Analog-to-Digital Converter (ADC), the module ensures fine-grained I/O density scaling across complex multi-channel sensor layouts. Built-in firmware flash compatibility allows seamless dynamic configuration and automated synchronization during module initialization, minimizing backplane latency and ensuring precise time-stamped telemetry across turbine speed regulation and fuel valve feedback loops.
Frequently Asked Questions
Q: What are the primary grounding requirements for the IS420YAICS1B analog input signal lines?
A: Field wiring shields must be grounded at a single point on the terminal block base to prevent ground loops. Do not connect sensor cable shields at both the field device and the terminal board unless galvanic isolation barriers are implemented.
Q: Can the IS420YAICS1B pack be hot-swapped during live system operation?
A: Yes, the pack supports online replacement provided proper safety procedures are followed. When unseating the module from its terminal board, verify that redundant controller channels are active to prevent interruption of real-time control loops.
Q: How is thermal heat dissipation handled when installing multiple IS420YAICS1B modules?
A: The module operates efficiently at 5.3 W typical power consumption across an operating range of -40 to 70 deg C. Ensure a minimum vertical clearance of 2 inches above and below adjacent module racks to maintain proper convection airflow within the enclosure.
Field Installation Guidelines
- Mount the terminal board securely to the cabinet DIN-rail before seating the IS420YAICS1B pack.
- Align the mounting screws on the pack with the mating connectors on the terminal board, ensuring straight insertion to avoid bending interface pins.
- Tighten retention screws to a maximum torque of 0.8 Nm (7 in-lbs) to maintain mechanical connection stability against continuous industrial vibration.
- Route analog input/output cables through dedicated low-voltage wireways, maintaining a minimum physical separation of 300 mm from high-voltage AC power lines.
- Verify that field wiring shield drain wires are tied firmly to the designated chassis earth ground point before applying system DC bus power.
