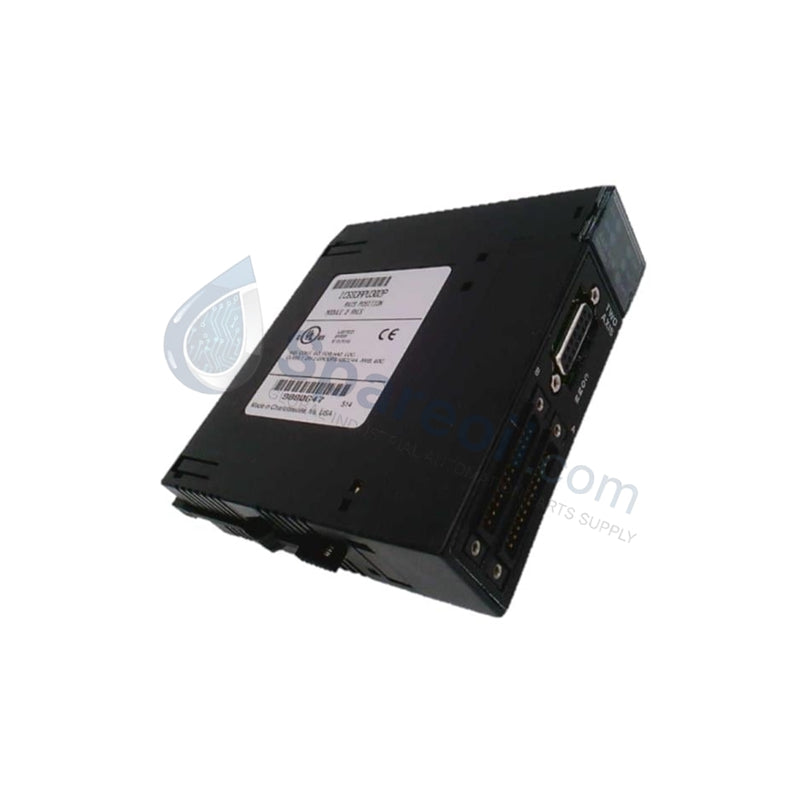

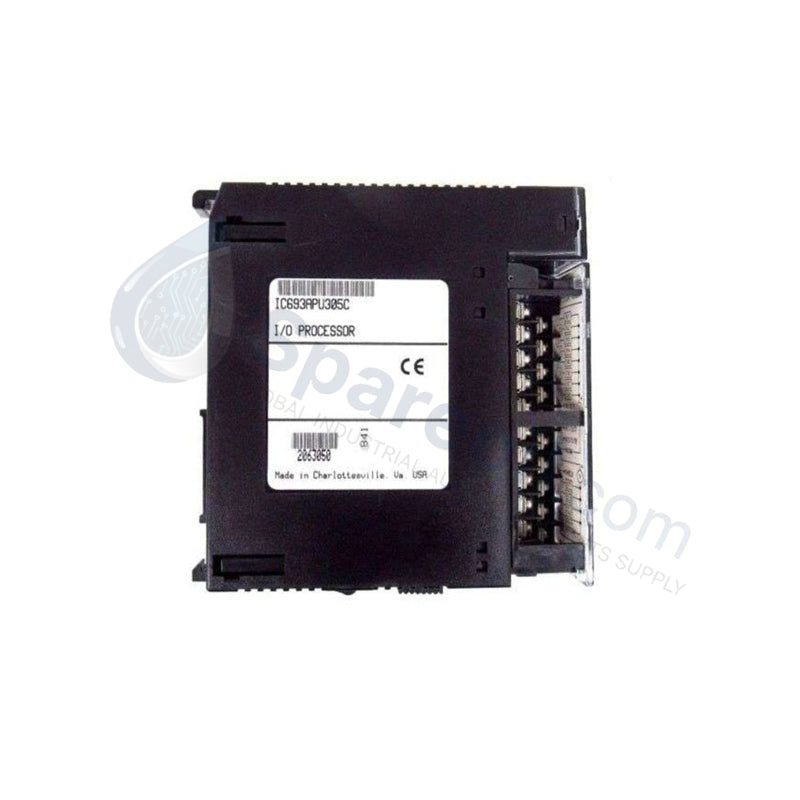

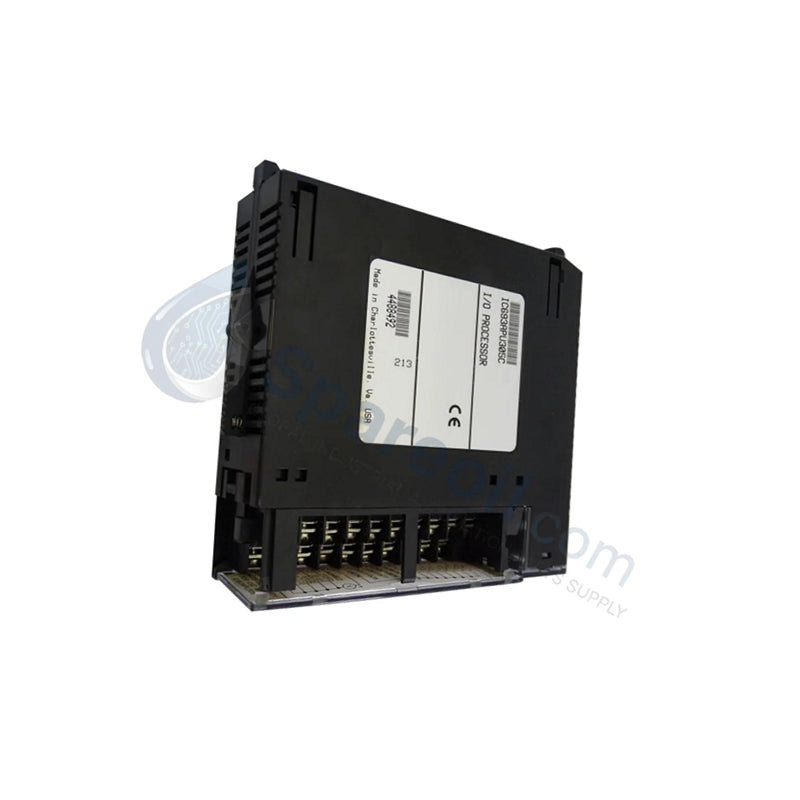

High-Speed Velocity Measurement Module

High-Speed Velocity Measurement Module | IC693APU305 GE

Availability: 99 left in stock

Product Overview The GE Fanuc IC693APU305 is a high-speed, intelligent I/O Processor Module designed specifically for the Series 90-30 PLC platform. This module excels...

SKU: IC693APU305

Manufacturer: GE Fanuc
Product No.: IC693APU305
Product Type: I/O Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE Fanuc IC693APU305 is a high-speed, intelligent I/O Processor Module designed specifically for the Series 90-30 PLC platform. This module excels in motion-centric applications, providing dedicated velocity measurement and high-speed signal processing independent of the main CPU scan time. We supply this unit as 100% Brand New and Original, providing a factory-clean solution for high-precision counting and timing tasks in automated manufacturing environments.

Technical Specifications

Feature	Specification Details
Manufacturer	GE Fanuc (Emerson)
Model Number	IC693APU305
Product Line	Series 90-30
Module Type	Input/Output Processor (APU)
Update Speed	500 Microseconds (0.5 ms)
Input Count	12 Positive Logic Inputs
Output Count	8 Positive Logic Outputs
Input Voltage Range	5V DC (TTL) or 10-30V DC (Non-TTL)
Output Current Rating	4 x 1A; 4 x 0.5A (Configurable)
Total Counts Register	32-bit
Input Frequency	50 to 60 Hz
Operating Temp	0 to 60°C (32°F to 140°F)

Engineering Advantages

Ultra-Fast Deterministic Updates: The IC693APU305 boasts an update speed of 500 microseconds. By decoupling high-speed input processing from the PLC's backplane scan, the module ensures that critical velocity and position data remain accurate even when the main program logic becomes complex.
Specialized Velocity Measurement: Unlike standard discrete input cards, the APU305 features specialized hardware for frequency and velocity sensing. It calculates real-time speeds for turbines, conveyors, and rotating machinery, feeding 32-bit data directly to the controller for precise motion monitoring.
Hybrid Voltage Compatibility: The module accepts both 5V DC Transistor-Transistor-Logic (TTL) and standard 10V to 30V DC signals. This flexibility allows engineers to interface directly with high-speed encoders or standard 24V industrial sensors without adding external signal conditioners.
High-Capacity Power Output: The module provides 8 positive logic outputs, four of which support up to 1 Ampere current. This allows the IC693APU305 to directly drive solenoids or small actuators, reducing the need for interposing relays and saving valuable panel space.
Integrated Visual Diagnostics: Six front-panel LED indicators provide real-time signaling for module health and channel status. This enables maintenance teams to verify signal continuity and power supply integrity at a glance, significantly reducing Mean Time to Repair (MTTR).

FAQs

Can the IC693APU305 be used for high-speed counting?

Yes. While specifically designed for velocity measurement, the 32-bit register and high-speed processing make it highly effective for applications requiring rapid pulse counting and frequency detection.
Does this module occupy a specific slot in the 90-30 rack?

The IC693APU305 is a standard 90-30 module and fits into any available I/O slot. However, for maximum performance, engineers often place APU modules in the main CPU rack to minimize communication latency across the bus.
What is the difference between the 1A and 0.5A outputs?

The module features two output banks. Four outputs are rated for 1A to handle heavier loads, while the remaining four are configurable for 0.5A. This allows you to tailor the module to a mix of high-power actuators and low-power signaling devices.
Why should I insist on a "Brand New" module for a discontinued series?

The Series 90-30 is a legacy workhorse. Used modules often carry "hidden" damage, such as dried-out electrolytic capacitors or degraded transistor outputs from years of high-cycle operation. A 100% Brand New IC693APU305 guarantees that the high-speed timing circuits and 32-bit registers operate within factory tolerances, preventing erratic velocity readings and protecting your system’s reliability.
