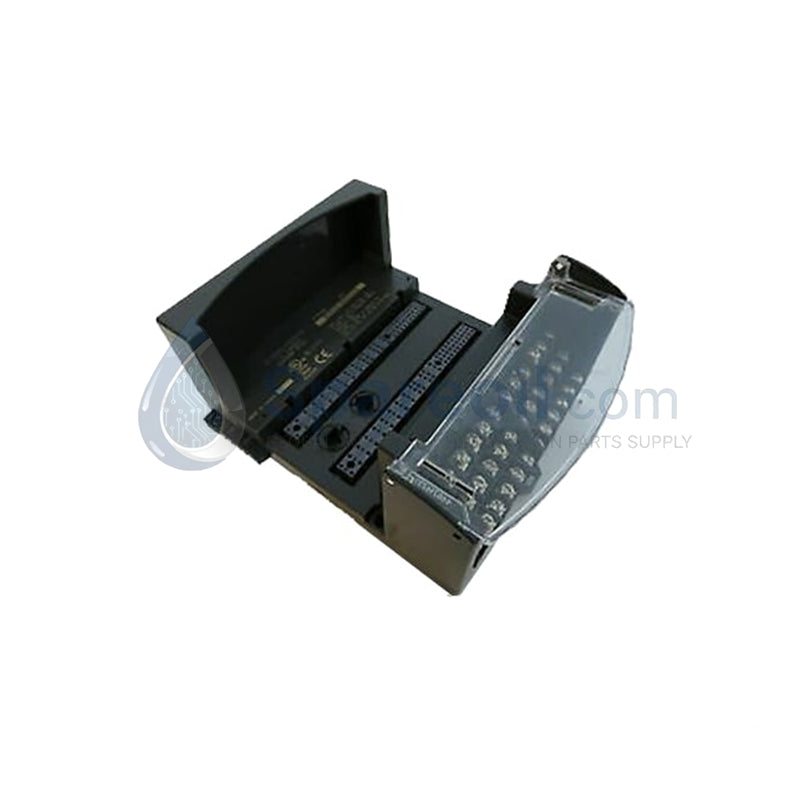

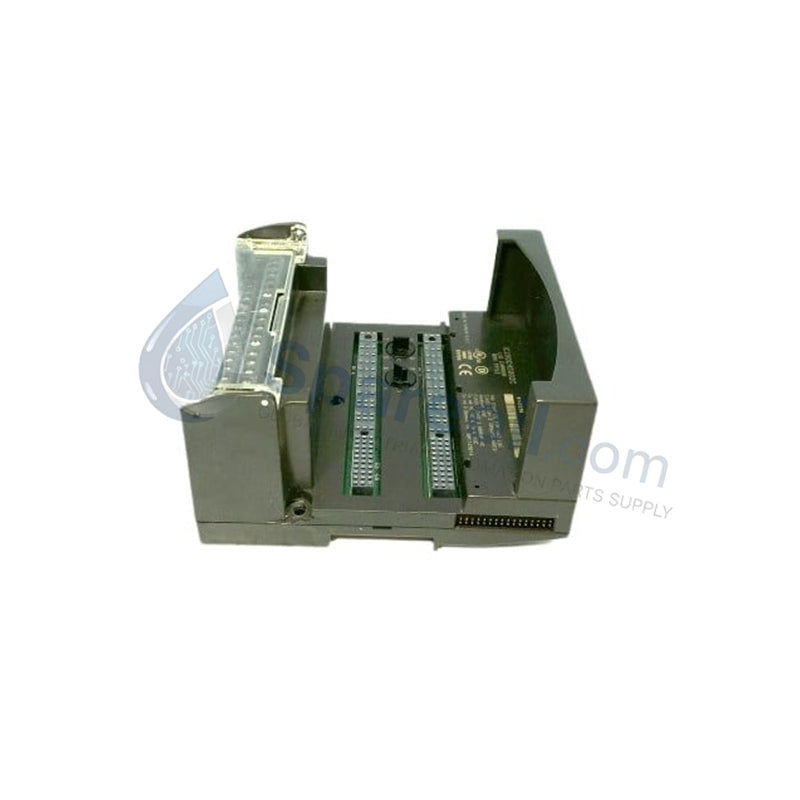

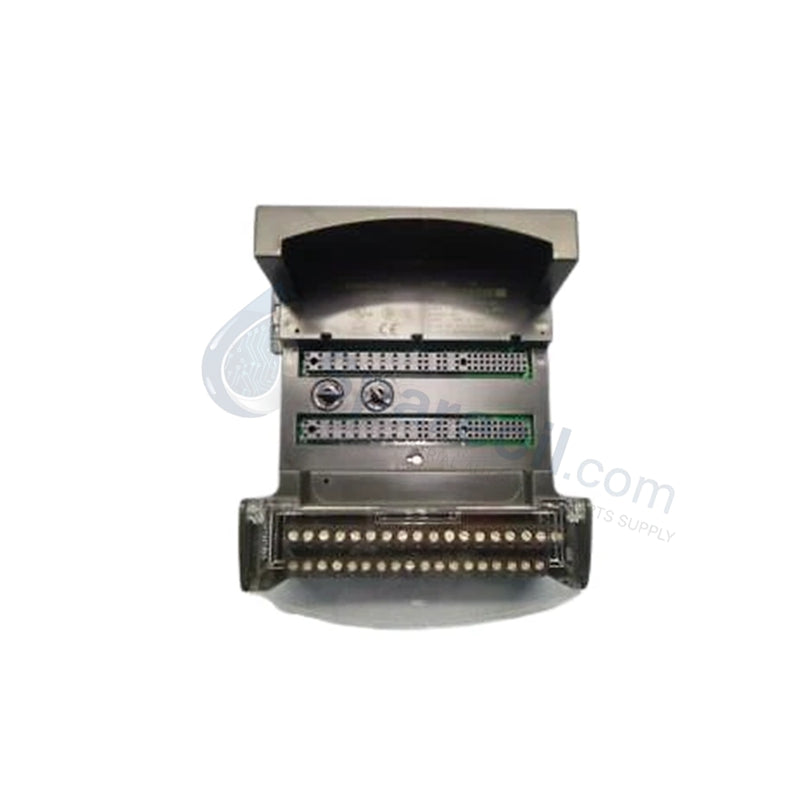

IC200CHS002 VersaMax Industrial Terminal Block Carrier

Availability: 10 left in stock

Product Overview The IC200CHS002 functions as the essential mechanical and electrical foundation for the GE VersaMax modular I/O system. This box-style carrier...

SKU: IC200CHS002

Manufacturer: GE Fanuc
Product No.: IC200CHS002
Product Type: PLC I/O Carriers
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200CHS002 functions as the essential mechanical and electrical foundation for the GE VersaMax modular I/O system. This box-style carrier provides the interface between a single I/O module and the field wiring. Its integrated design eliminates the need for separate terminal blocks, streamlining panel space in high-density distributed control applications. We provide this unit as 100% Brand New and Original, ensuring maximum lifecycle reliability for your automation architecture.

Technical Specifications

Feature	Specification
Manufacturer	GE Fanuc (Emerson)
Product Series	VersaMax
Carrier Style	Box-Style Terminal
Total Terminals	36 (A1–A18, B1–B18)
Voltage Rating	0 to 264 VAC
Current Per Point	2 Amperes
Total Power/Ground Current	8 Amperes
Wire Size (Single)	AWG #14 to AWG #22
Wire Size (Dual)	AWG #18 (shorting)
Mounting Orientation	Horizontal
Termination Type	Integrated Screw-clamp

Engineering Advantages

Vibration-Resistant Connectivity: The integrated box-style terminals utilize secure screw-clamp mechanisms. These connections prevent signal loss in high-vibration environments typical of OEM machinery and heavy industrial floors.
Rapid Modular Assembly: The carrier snaps directly onto a standard 35mm DIN rail. The design allows users to replace I/O modules without disturbing the field wiring, significantly reducing Mean Time to Repair (MTTR).
High-Voltage Versatility: With a rating up to 264 VAC, this carrier accommodates both high-voltage discrete signals and low-voltage analog inputs, providing a universal platform for diverse sensor types.
Optimized Thermal Management: The horizontal mounting profile maintains critical clearance (2 inches top/bottom) to ensure natural convection cooling, protecting the internal electronics of the docked I/O module.

FAQs

Does the IC200CHS002 support hot-swapping of I/O modules?

While the carrier provides the physical interface, hot-swapping depends on the specific VersaMax CPU or Network Interface Unit (NIU) capabilities. Always verify system power requirements before removing modules to prevent data corruption.
What is the primary difference between the IC200CHS002 and a "barrier-style" carrier?

The IC200CHS002 (Box-Style) features recessed terminals which offer better finger safety and a more compact footprint. Barrier-style carriers use exposed screw terminals which are often preferred for ring-lug connections.
Can I mount this carrier vertically?

GE Fanuc specifies horizontal mounting for the IC200CHS002. Vertical mounting alters the thermal dissipation profile and may derate the current capacity of the attached I/O module.
Is this unit compatible with Emerson-branded VersaMax modules?

Yes. Since Emerson acquired GE Fanuc’s automation division, all IC200 series components remain fully interchangeable between GE Fanuc and Emerson branding.
