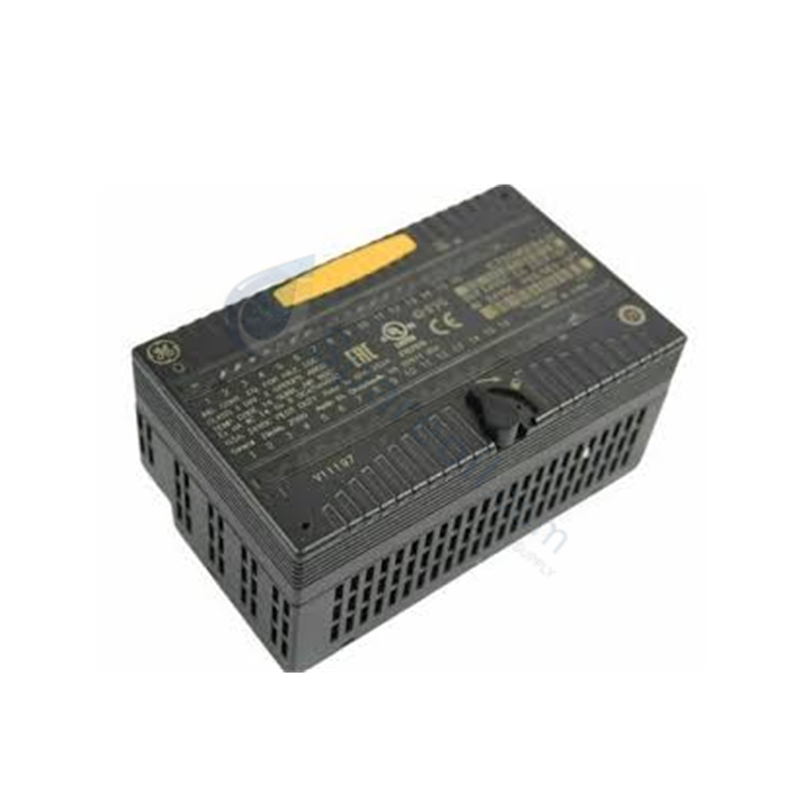

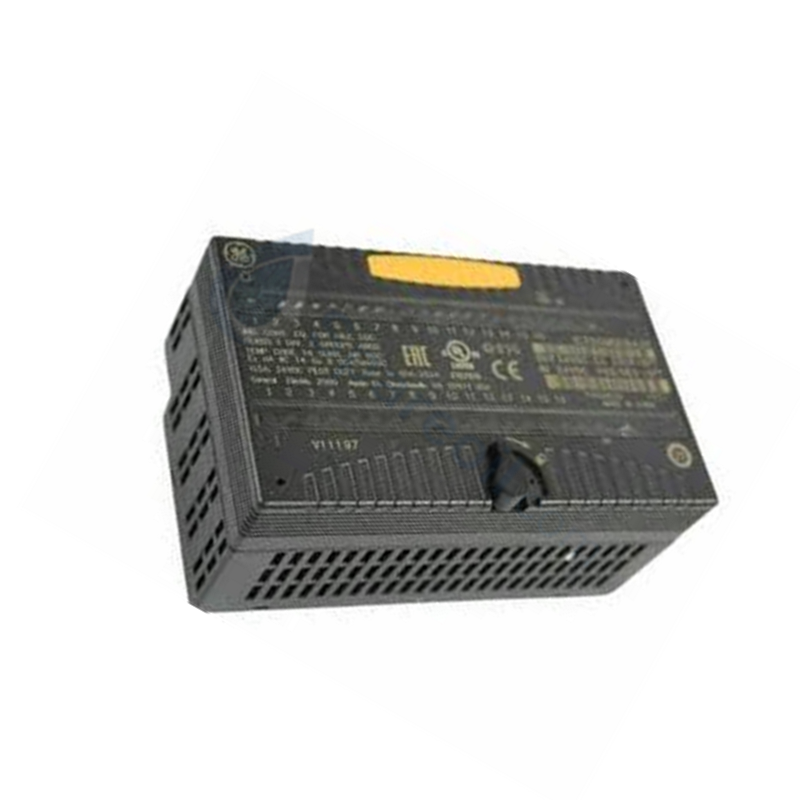

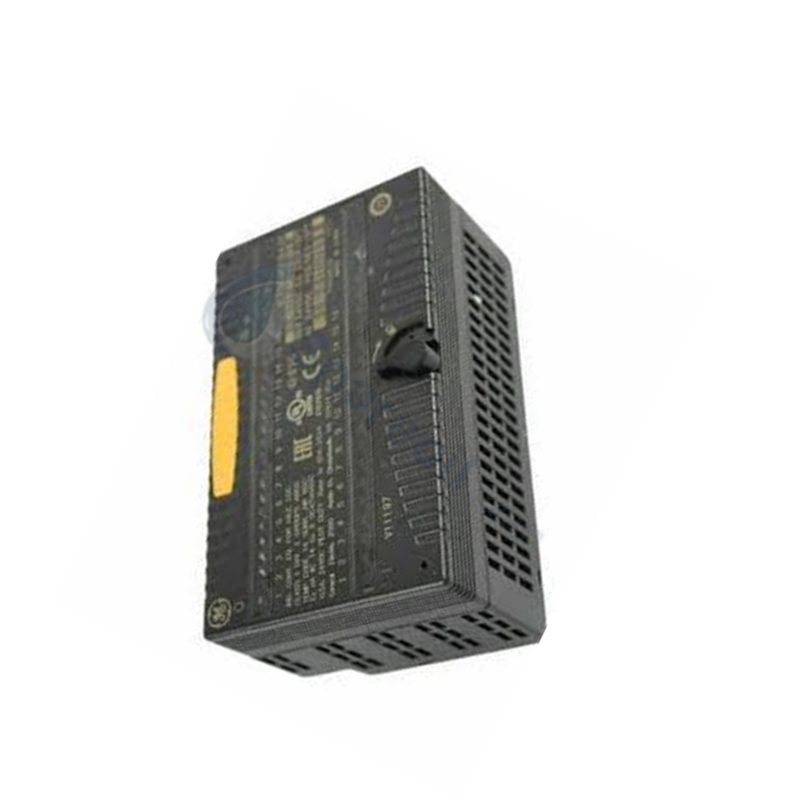

The GE IC200MDD845, also cataloged as the IC200MDD845 Combination Discrete Input and Output Module, operates as a dedicated hardware component for discrete signal conditioning and load switching within VersaMax I/O platforms.

Hardware Specifications

Parameter Specification
Model IC200MDD845
Brand GE / Fanuc (Emerson)
Origin USA
Weight 0.63 lbs (0.28 kg)
Dimensions Standard VersaMax Carrier Module Dimensions
Operating Temp Industrial Enclosure Operating Limits
Power Consumption 270 mA maximum from Backplane
Product Line VersaMax I/O
Total Channel Count 24 Points (16 Discrete Inputs / 8 Relay Outputs)
Input Nominal Voltage 24 VDC (18 to 30 VDC range)
Input Signal Current 2.0 to 5.5 mA (On-state), 0 to 0.5 mA (Off-state)
Output Contact Type 8 Form A (Normally Open) Contacts
Output Voltage Range 0 to 125 VDC, 0 to 265 VAC (47 to 63 Hz)
Output Rating (Resistive) 2.0 A at 5-265 VAC, 2.0 A at 5-30 VDC, 0.2 A at 31-125 VDC
Isolation Channel-to-channel isolation on outputs
Carrier Base Required IC200CHS Series Carrier Base

Backplane Bus Communication Velocity and Firmware Flash Compatibility

The IC200MDD845 manages high-speed discrete data exchange across the VersaMax carrier backplane, preserving deterministic backplane bus communication velocity during concurrent 24-point update cycles. Onboard memory registers maintain parameter synchronization with the primary VersaMax CPU or network interface unit, validating module firmware flash compatibility to execute real-time discrete input scanning and relay actuation without bus degradation.

Frequently Asked Questions

Q: What are the backplane current drawing limits for the IC200MDD845?

A: The module draws a maximum current of 270 mA from the backplane 5 VDC supply rail, depending on the total number of concurrently active input and output points.

Q: Are the Form A relay output channels on the IC200MDD845 fused internally?

A: No, the output channels are individually isolated Form A relay contacts but do not include internal fusing or snubber circuits; external circuit protection must be provided.

Q: What carrier base is required to mount the IC200MDD845 in a VersaMax I/O rack?

A: The module requires an IC200CHS series carrier base to establish backplane connection and facilitate field wiring terminations.

Field Installation Guidelines

  1. Disconnect backplane power to the I/O carrier base and isolate external field voltage sources prior to installing or removing the module.
  2. Put on an ESD grounding wrist strap connected to an unpainted metal surface on the enclosure frame to prevent static damage.
  3. Align the module card edge connectors with the IC200CHS carrier base guide slots and push firmly until the module latches securely.
  4. Ensure 24 VDC positive logic input wiring and high-voltage output load connections maintain separate conduit pathways to prevent inductive cross-talk.
  5. Apply external fusing or surge suppression devices on each isolated Form A relay output channel to protect field contacts against inductive load transients.
