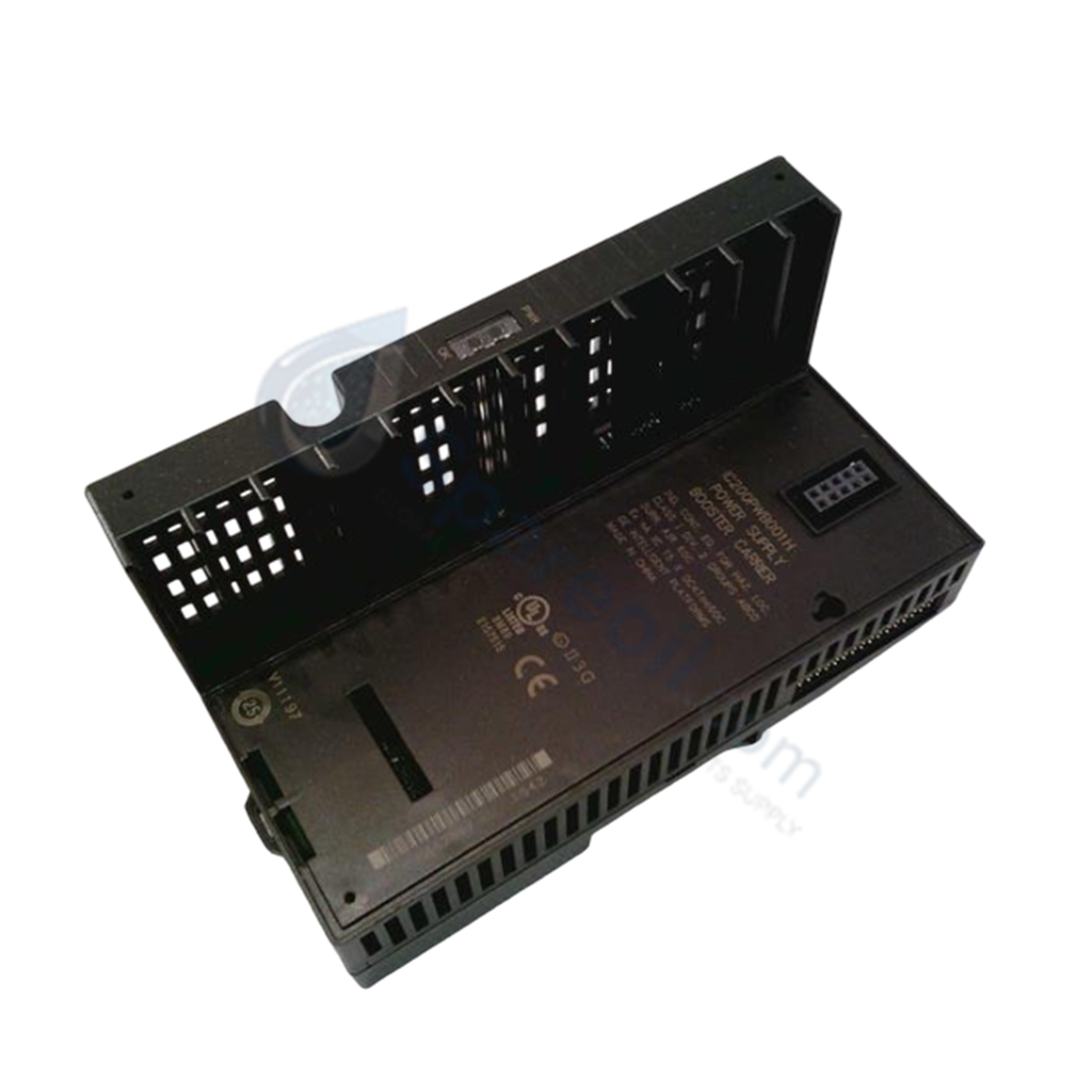

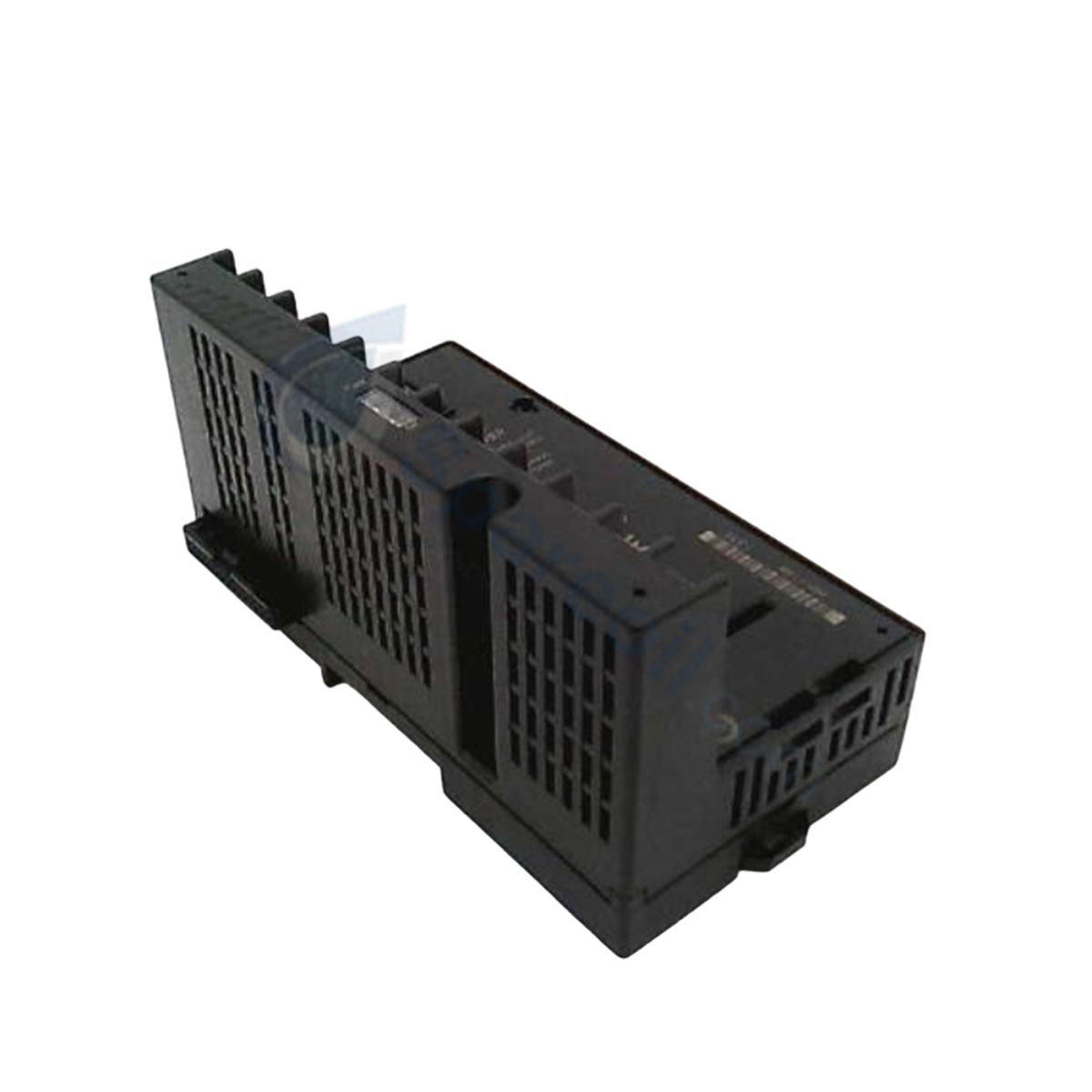

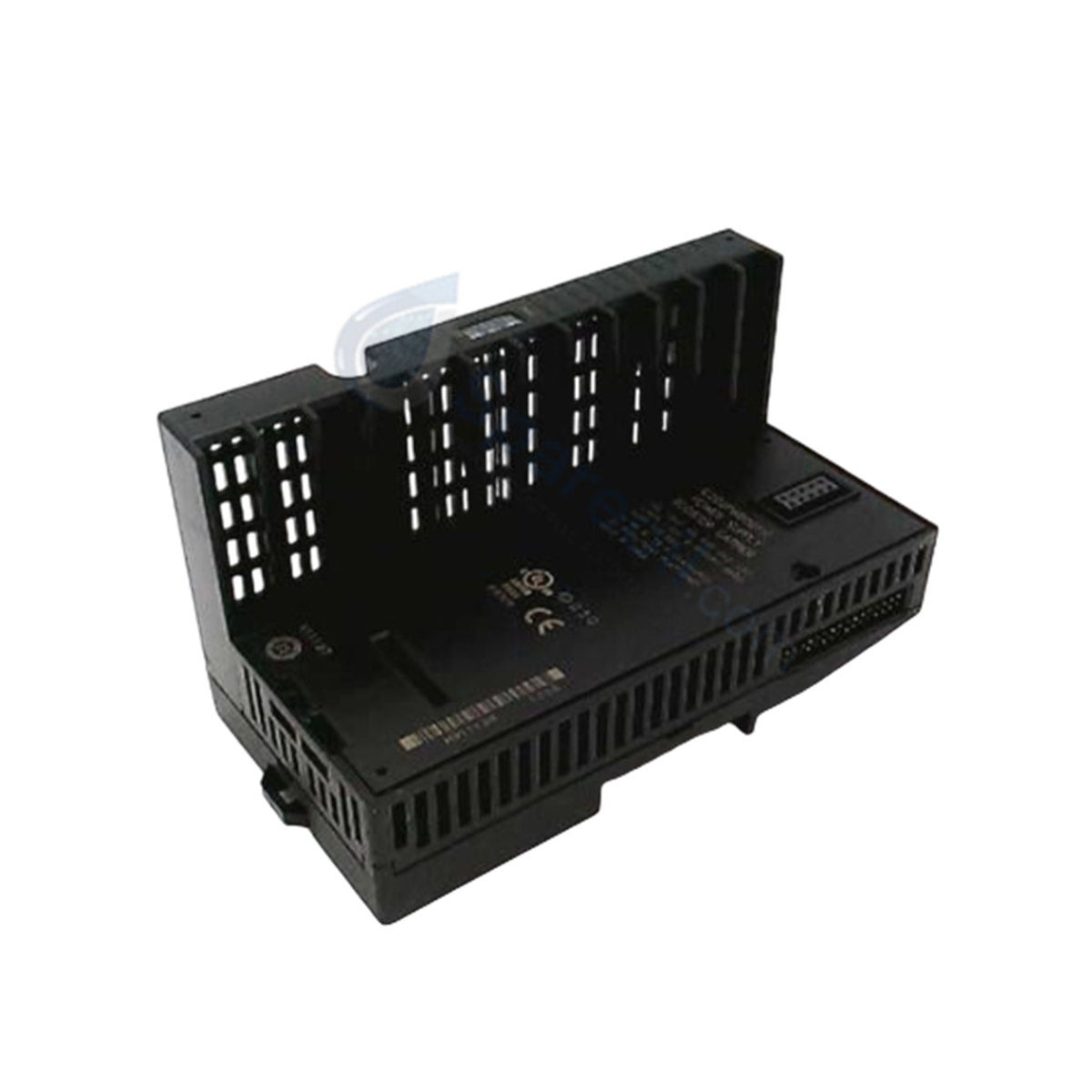

Configured for 24 VDC auxiliary backplane power expansion in VersaMax I/O stations, the GE IC200PWB001 (IC200PWB001 Power Supply Booster Carrier) provides direct physical/electrical execution. The module interfaces via a 10-terminal spring clamp block, routing external 24 VDC supply voltage to reinforce logic and field power distribution across extended VersaMax backplane racks. Operating with a power dissipation of 2.5 W and providing 1500 VAC continuous electrical isolation, the unit ensures stable power integrity for adjacent I/O modules operating across an extended temperature envelope of -20 to 70 deg C.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200PWB001 |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.14 kg (0.31 lbs) |
| Dimensions | Standard VersaMax Carrier Profile |
| Operating Temp | -20 to 70 deg C |
| Power Consumption | 2.5 W (Power dissipation) |
| Input Voltage | 24 VDC |
| Terminal Type | Spring clamp (10 terminals) |
| Terminal Torque Rating | 1.1 to 1.4 Nm |
| Isolation Rating | 1500 VAC |
| Enclosure Protection | IP20 |
| Reliability (MTBF) | 50,000 hours |
| Mounting Style | 35 mm DIN rail |
| Storage Temperature | -40 to 85 deg C |
Deterministic Network Backplane Power Integrity & I/O Scaling
The IC200PWB001 prevents voltage drops on long VersaMax rack assemblies by boosting local backplane bus voltage levels to maintain deterministic I/O scan speeds over Profinet or EtherNet/IP drops. By reinforcing logic supply rails, the booster carrier supports high I/O density scaling across expanded carrier lines without inducing communication frame drops or backplane bus instability. Full hardware-level compatibility ensures seamless operation alongside standard VersaMax CPU modules, Network Interface Units (NIUs), and field expansion units.
Frequently Asked Questions
Q: What is the primary functional role of the IC200PWB001 carrier in a VersaMax system?
A: The IC200PWB001 acts as a power booster carrier to inject supplemental 24 VDC power directly into the local backplane bus, preventing power starvations when expanding high-density I/O configurations.
Q: What insulation isolation rating is provided by the IC200PWB001?
A: The carrier provides an isolation rating of 1500 VAC, safeguarding internal logic circuits and adjacent backplane communications from field voltage surges.
Q: Can the IC200PWB001 be mounted on standard industrial mounting rails?
A: Yes. The carrier is engineered for snap-on mounting on standard 35 mm DIN rails and features an IP20 rated enclosure for industrial panel enclosures.
Field Installation Guidelines
-
Power Isolation: Disconnect primary cabinet and field power sources prior to installing, removing, or wiring the booster carrier assembly.
-
DIN Rail Mounting: Securely snap the carrier onto an unpainted, grounded 35 mm DIN rail, ensuring the mounting clips lock firmly in place.
-
Wiring Terminations: Strip 24 VDC power supply leads to the recommended length and insert them firmly into the spring clamp terminals. If screw-type torque specifications apply to auxiliary carrier hardware, tighten within 1.1 to 1.4 Nm.
-
Thermal Spacing: Maintain adequate vertical clearance above and below the module to facilitate natural convection cooling within the operating range of -20 to 70 deg C.
- Ground Bonding: Connect the carrier grounding reference to protective earth (PE) to ensure proper functioning of the 1500 VAC galvanic isolation barrier.
