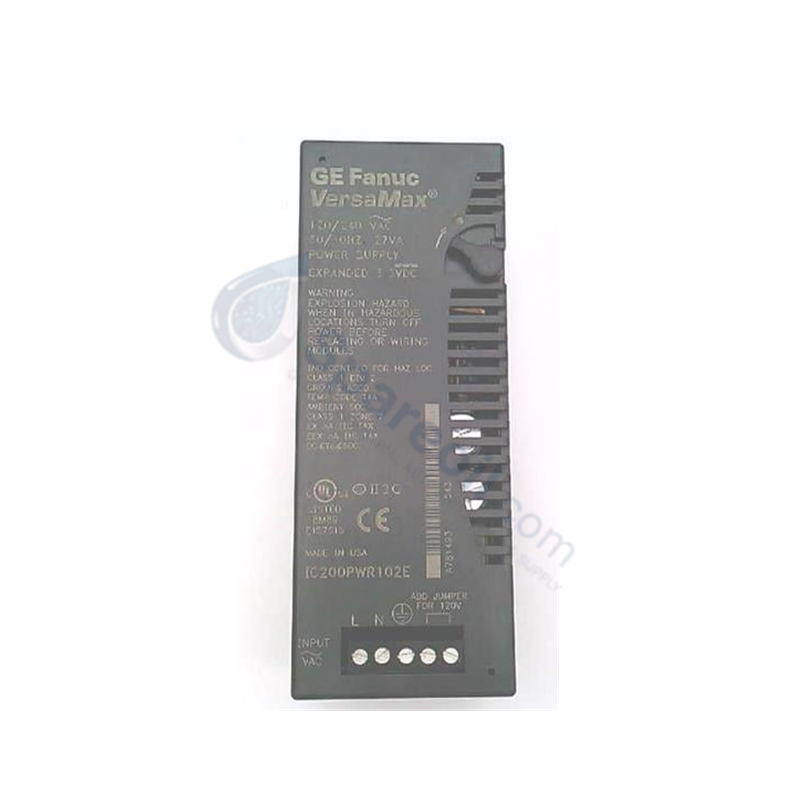

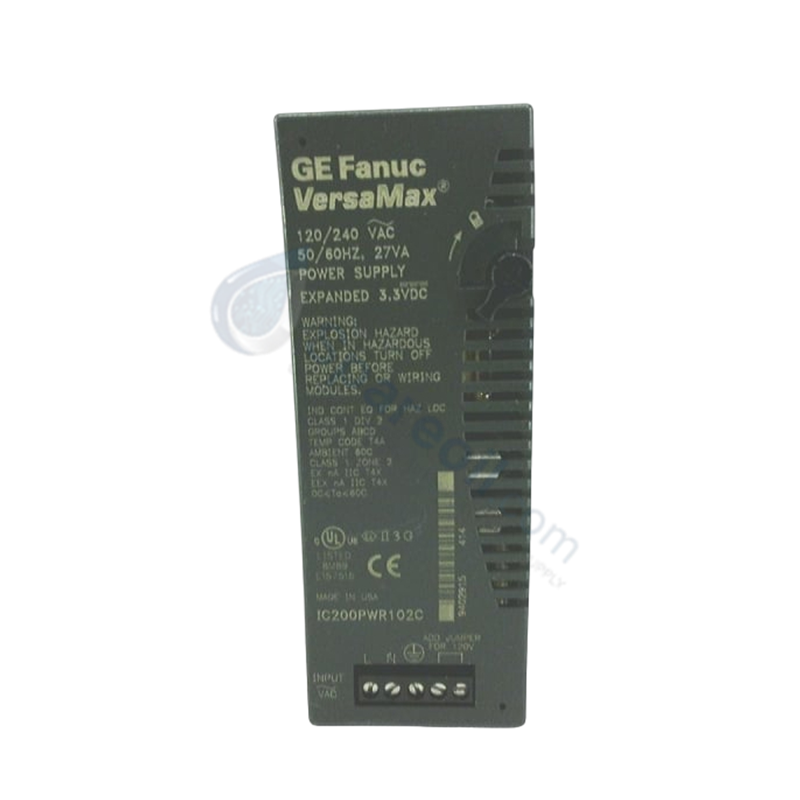

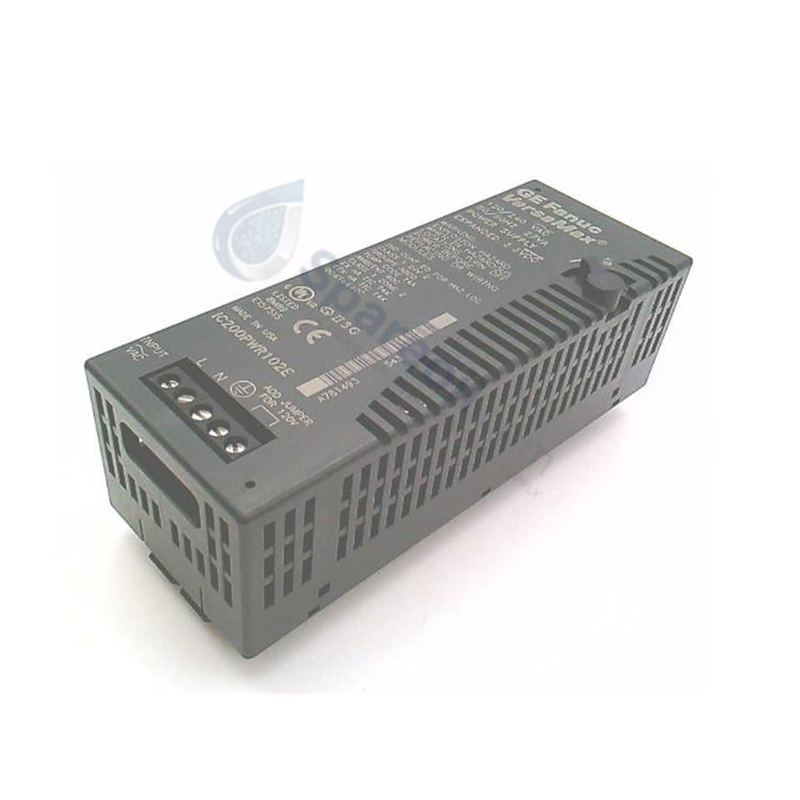

Configured for backplane power distribution in VersaMax system platforms, the GE Fanuc IC200PWR102 (IC200PWR102 Power Supply Module) provides direct physical/electrical execution. The module converts AC mains input power into regulated 5 VDC and 3.3 VDC system buses to power attached CPUs, Network Interface Units (NIUs), and expansion I/O modules.

Hardware Specifications

Parameter Specification
Model IC200PWR102
Brand GE Fanuc
Origin USA
Weight 0.31 lbs (0.14 kg)
Dimensions Single-slot VersaMax module footprint
Operating Temp 0 deg C to 60 deg C
Power Consumption 27 VA input power
Input Voltage Ranges 85-132 VAC (120 VAC nominal) / 176-264 VAC (240 VAC nominal)
Input Frequency 47 to 63 Hz
Voltage Selection Jumper installed: 120 VAC; Jumper uninstalled: 240 VAC
Output Voltages 5 VDC and 3.3 VDC
Maximum Output Current 1.5 A total (up to 1.5 A @ 5 VDC, up to 1.0 A @ 3.3 VDC)
Holdup Time 20 ms
Built-in Protection Short circuit and overload protection

Backplane Bus Communication Velocity & Firmware Flash Compatibility

The module executes direct power injection to the VersaMax system backplane, supplying up to 1.5 A combined current across the internal 5 VDC and 3.3 VDC buses. It operates either as the primary system power supply or as a supplemental booster supply mounted on a Power Supply Booster carrier. The unit maintains voltage regulation during momentary power losses with a 20 ms holdup time. Overload and short-circuit protection circuits continuously monitor output parameters to preserve backplane voltage integrity.

Frequently Asked Questions

Q: How is the input voltage selection set between 120 VAC and 240 VAC on the IC200PWR102?

A: A hardware terminal jumper on the unit controls the range: installing the jumper selects 120 VAC nominal (85-132 VAC), while omitting the jumper selects 240 VAC nominal (176-264 VAC).

Q: What is the total maximum combined output current supplied to the backplane?

A: The combined total output current across both 5 VDC and 3.3 VDC rails cannot exceed 1.5 A maximum.

Q: Can the IC200PWR102 be used in expansion configurations?

A: Yes, it can serve as a primary power module or as a secondary supply when attached to a VersaMax Power Supply Booster carrier.

Field Installation Guidelines

  1. Confirm that AC input power is de-energized before mounting or wiring the module carrier.
  2. Verify hardware jumper configuration prior to applying voltage: install the jumper for 120 VAC mains or remove it completely for 240 VAC operation.
  3. Wire incoming AC line, neutral, and protective earth conductors securely to the designated terminals.
  4. Mount the module chassis firmly onto the VersaMax base carrier until the retaining mechanisms snap into place.
  5. Apply input power and verify proper backplane startup and status indicators.
