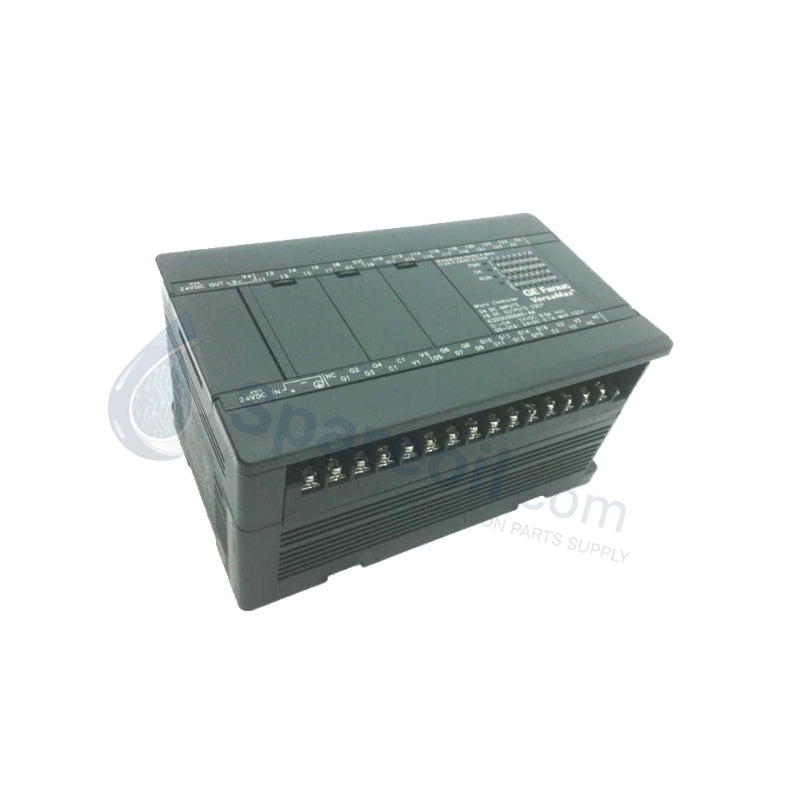

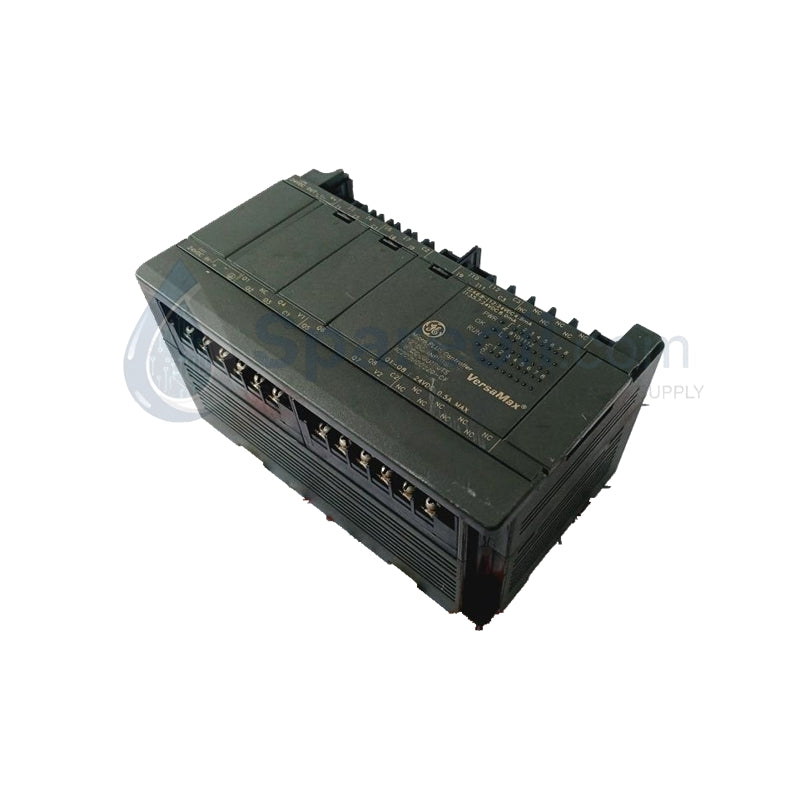

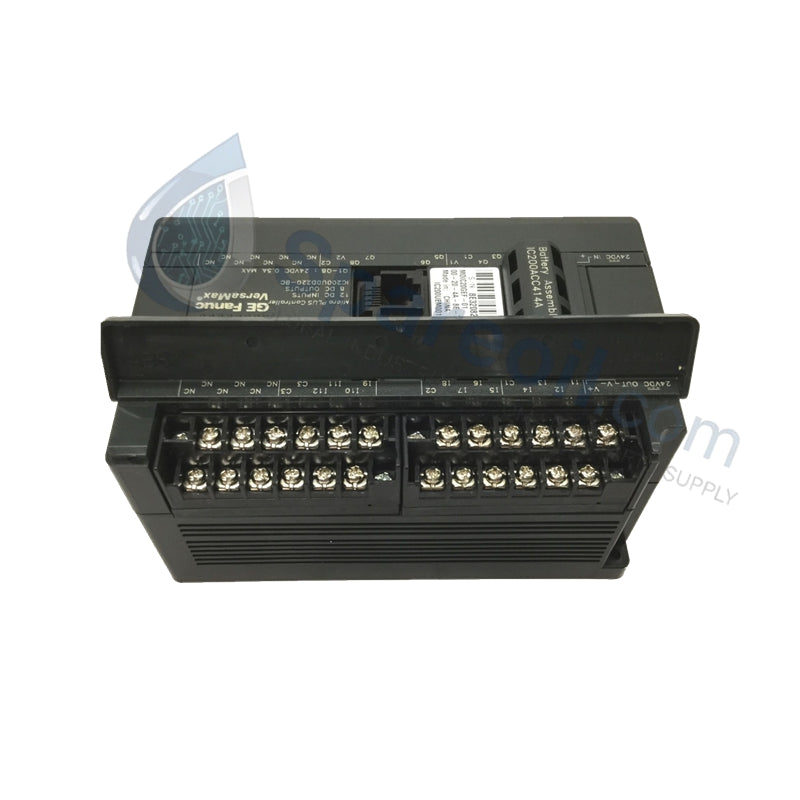

IC200UDD220 VersaMax Micro PLUS Ethernet Communication Set

Availability: 10 left in stock

Product Overview The IC200UDD220 functions as a high-performance, compact Central Processing Unit within the VersaMax Micro PLUS lineup. This controller integrates 20...

SKU: IC200UDD220

Manufacturer: GE Fanuc
Product No.: IC200UDD220
Product Type: Micro PLC Controllers
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200UDD220 functions as a high-performance, compact Central Processing Unit within the VersaMax Micro PLUS lineup. This controller integrates 20 local I/O points (12 DC inputs and 8 DC sink outputs) into a single, space-saving chassis. By pairing this unit with the IC200UEM001 Ethernet Module, users gain high-speed networking capabilities alongside robust discrete control. We supply this unit as 100% Brand New and Original, providing a factory-fresh solution for demanding OEM machinery and distributed automation architectures.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc / Emerson Automation
Product Line	VersaMax Micro PLUS
Total Onboard I/O	20 Points
Input Configuration	12 Inputs (24 VDC, Positive/Negative Logic)
Output Configuration	8 Outputs (24 VDC Transistor Sink)
Power Supply	24 VDC
Communication Module	IC200UEM001 (Ethernet) included
Execution Speed	Fast cycle time for real-time applications
Expansion Support	Supports additional VersaMax Micro expansion modules
Mounting	35mm DIN rail or Panel Mount

Engineering Advantages

Network-Ready Integration: The included IC200UEM001 Ethernet module elevates the controller's connectivity. It enables seamless integration into factory-wide networks, allowing for remote diagnostics, SCADA interfacing, and peer-to-peer PLC communication via Modbus TCP or SRTP.
Logic Flexibility: The 12 digital inputs support both positive and negative logic (Sink/Source). This adaptability allows engineers to interface the controller with a diverse range of field sensors—such as proximity switches and encoders—without requiring additional signal conditioning hardware.
High-Speed Transistor Switching: The 8 transistor sink outputs handle rapid, repetitive switching cycles that would prematurely wear out mechanical relays. These outputs drive 24VDC solenoids, actuators, and pilot lights with high precision and zero contact bounce.
Space-Efficient Scaling: The "Micro" footprint minimizes required panel depth and width. Even with the Ethernet module attached, the system maintains a compact profile, while the expansion port allows for the addition of further I/O modules as system complexity grows.
Robust Hardware Protection: The design incorporates industrial-grade shielding to resist electromagnetic interference (EMI). To ensure long-term field stability, we recommend external fusing for the transistor outputs to protect against accidental overcurrent or short-circuit events.

FAQs

What is the difference between the "Micro" and "Micro PLUS" models like the IC200UDD220?

The Micro PLUS series offers enhanced execution speeds, larger memory capacity, and superior communication options compared to the standard Micro series. It specifically supports advanced expansion modules like the IC200UEM001 Ethernet module.
Does this unit require a separate power supply for the Ethernet module?

The IC200UEM001 module draws its operating power directly from the PLC controller's expansion port. However, ensure your 24VDC system power supply provides sufficient current to cover both the controller logic and the Ethernet communication circuitry.
Can I configure the 8 outputs for Source logic instead of Sink?

The IC200UDD220 features hardware-defined Sink transistor outputs. If your application specifically requires Source logic (PNP), you must use an interposing relay or select a different VersaMax model, such as one with relay or source-type outputs.
Is this controller compatible with older GE Fanuc expansion modules?

Yes. The IC200UDD220 maintains backward compatibility with the standard VersaMax Micro expansion family, allowing you to mix and match digital, analog, and specialty modules to fit your specific I/O requirements.
