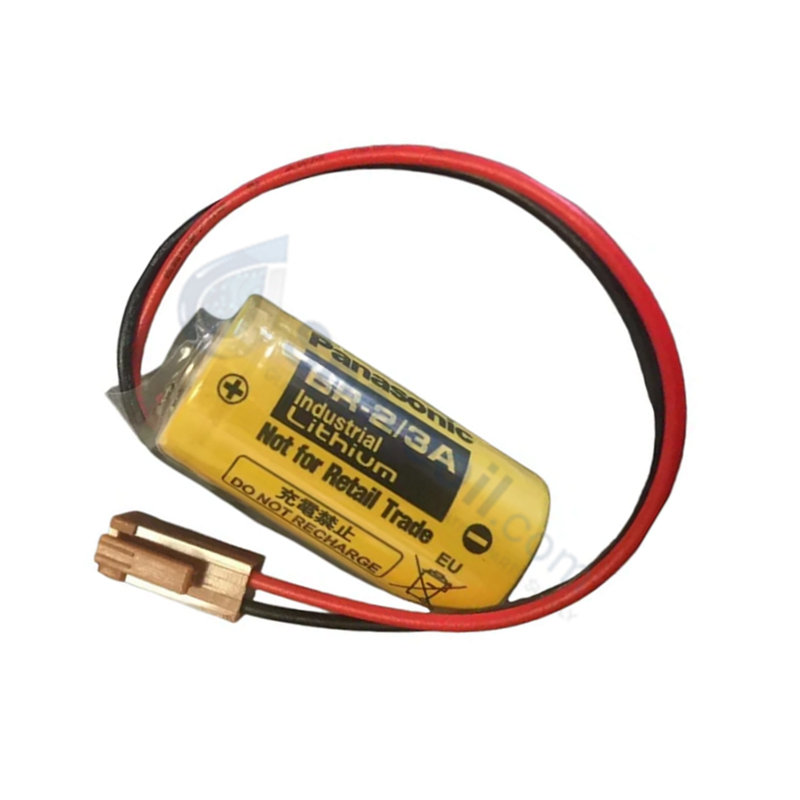

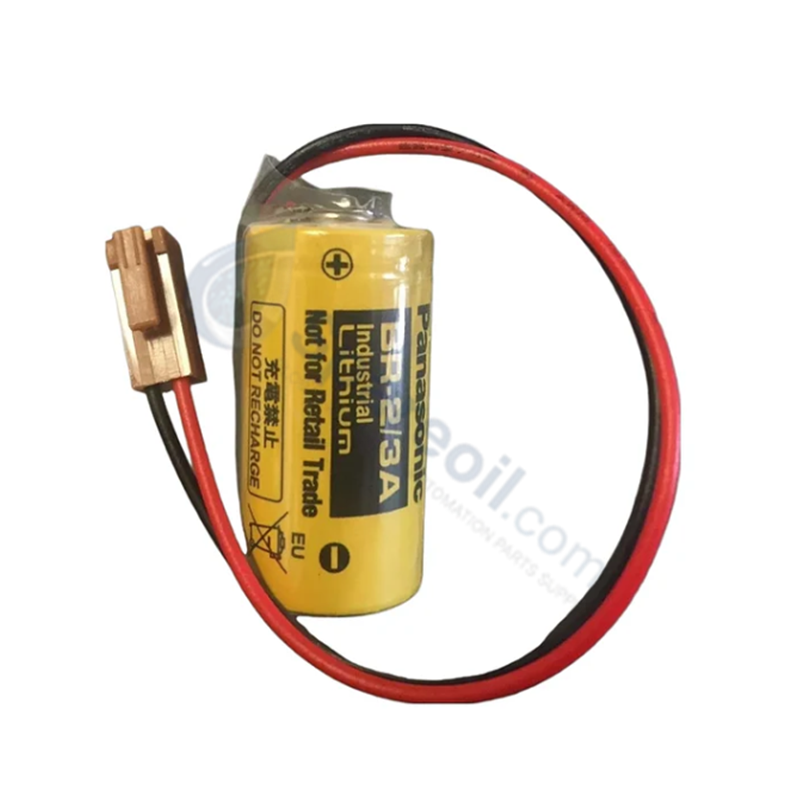

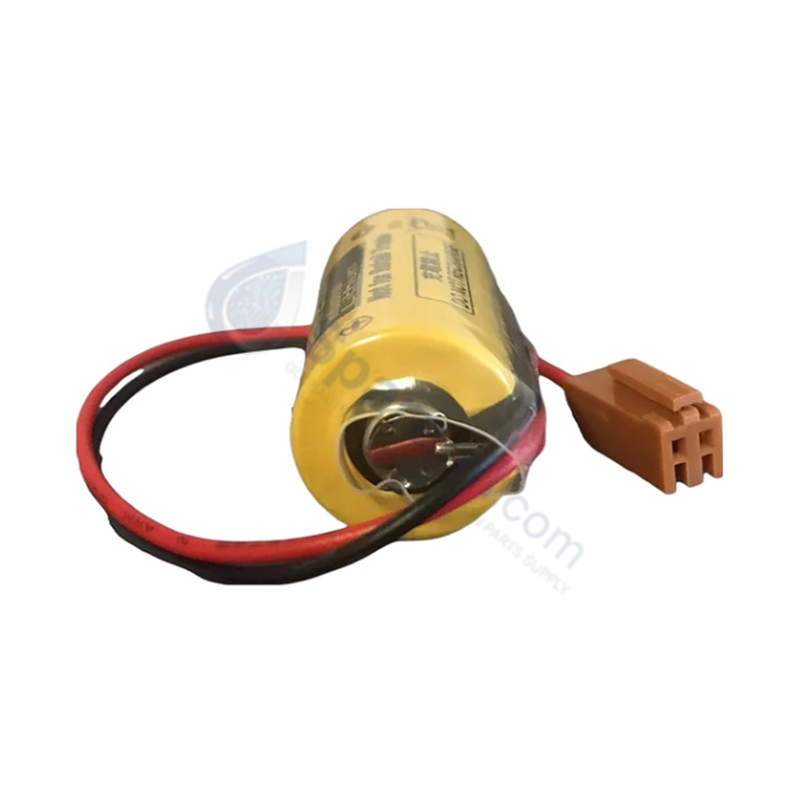

The GE IC693ACC301, also cataloged as the IC693ACC301 Lithium Backup Battery, operates as a dedicated hardware component for volatile memory retention within Series 90-70 PLC platforms. The cell delivers continuous electrical biasing to the internal CMOS RAM layout to maintain runtime configurations and user application code during periods of primary rack power isolation.

Hardware Specifications

Parameter Specification
Model IC693ACC301
Brand General Electric Fanuc
Origin USA
Weight Standard sub-module cell weight
Dimensions Enclosed form factor for internal power supply cavity mounting
Operating Temp 0 to 25 deg C (32 to 77 deg F)
Power Consumption Passive cell discharge (nominal chemistry current rating)
Battery Chemistry Lithium
Connection Type 2-wire lead with Berg female connector
Mounting Type Internal plastic clip mechanism
Target System Memory CMOS RAM within base power supply assembly
Storage Temperature -40 to 85 deg C (-40 to 185 deg F)

Industrial Control and Network Determinism

The IC693ACC301 prevents code loss across Series 90-70 hardware structures, mitigating memory state errors that could interrupt backplane bus communication velocity parameters upon system reboot. By maintaining the raw configuration registers during unpowered states, the component assists in direct I/O density scaling recovery when the primary controller platform initialises. Firmware flash compatibility checks depend on the seamless preservation of system variables, ensuring that step configurations and operational parameters pass cleanly to the processor without data corruption or execution jitter.

Frequently Asked Questions

Q: Can the IC693ACC301 battery be exchanged while the PLC remains energized?

A: Yes, the cell supports live exchange while primary power is applied to preserve the CMOS RAM data. However, qualified personnel must execute this operation due to exposed high voltages inside the power supply enclosure.

Q: What is the physical connection interface for this backup cell?

A: The battery features a 2-wire lead assembly terminated in a small Berg female connector, which seats directly into the mating pin header on the power supply printed circuit board (PCB).

Field Installation Guidelines

  • Enclosure Safety Compliance: Disconnect or isolate high-voltage power paths prior to opening the cover plate if personnel are not certified for live electrical line operations.
  • Mechanical Securing Protocol: Snap the cell body completely into the integrated internal plastic clip located on the inside of the power supply plate to prevent physical movement or vibration-induced lead separation.
  • Storage Thermal Thresholds: Maintain standby inventory in a controlled location within the -40 to 85 deg C range. Avoid high temperature zones to prevent accelerated passivating layer growth and internal cell degradation.
