IC693CHS392 Series 90-30 PLC Modular Expansion Backplane

Availability: 10 left in stock

Product Overview The IC693CHS392 is a fundamental component of the GE Fanuc Series 90-30 PLC family, functioning as a 10-slot...

SKU: IC693CHS392

Manufacturer: GE Fanuc
Product No.: IC693CHS392
Product Type: Automation Rack Systems
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

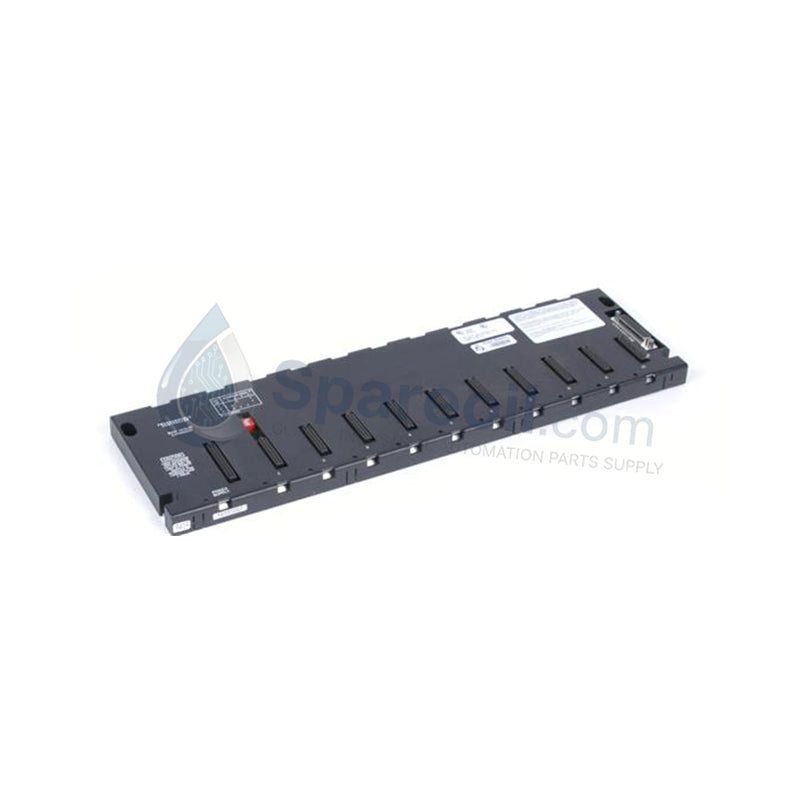

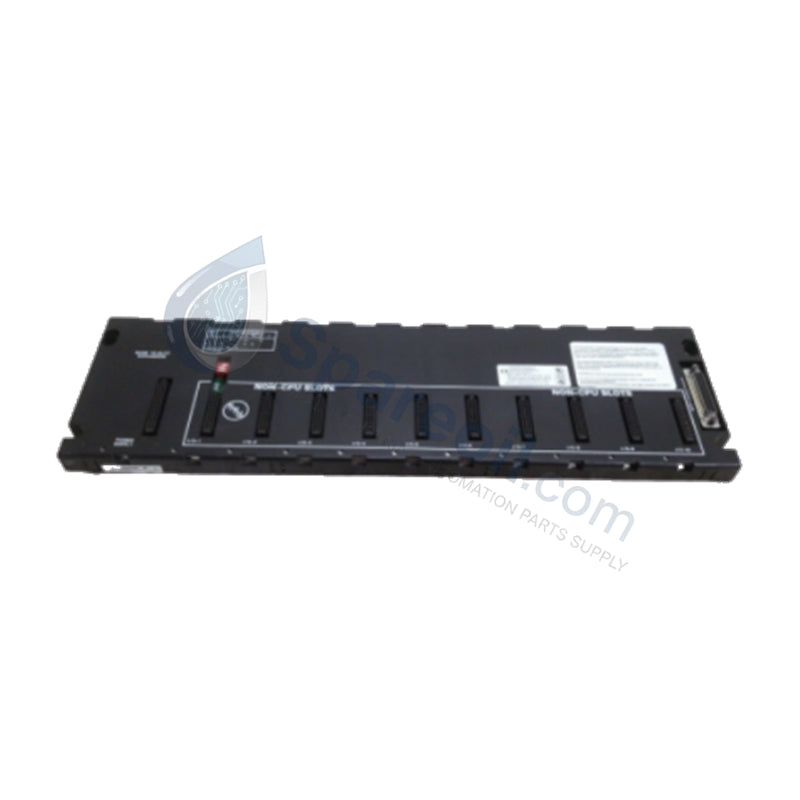

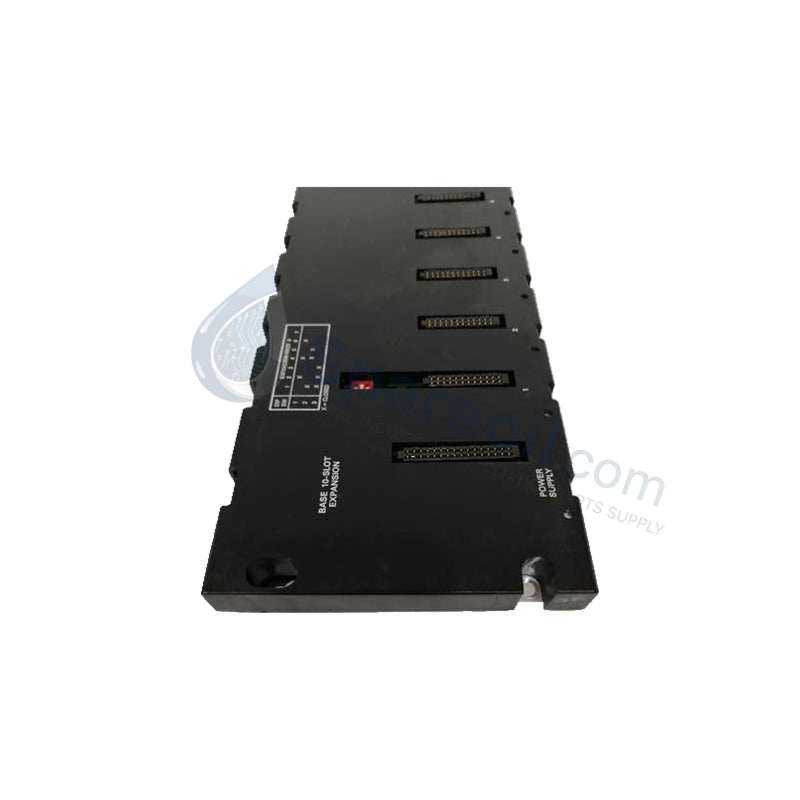

The IC693CHS392 is a fundamental component of the GE Fanuc Series 90-30 PLC family, functioning as a 10-slot expansion base unit. It provides the mechanical framework and the high-speed parallel bus required for multi-module synchronization. While the first slot specifically accommodates the system power supply, the remaining nine slots support a flexible mix of I/O modules, communication interfaces, and specialty processors. This chassis allows for significant system scaling in medium-to-large control applications.

Technical Specifications

The IC693CHS392 employs a ruggedized backplane design to maintain signal integrity in demanding industrial environments.

Feature	Specification
Rack Type	Expansion Base (10-Slot Total)
Module Capacity	1 Power Supply Slot, 9 I/O or Option Slots
Backplane Bus	High-speed parallel communication bus
Mounting Options	Panel Mount or 19-inch Rack Mount
Material	Industrial-grade corrosion-resistant chassis
Internal Power Distribution	Regulated 5 VDC and 24 VDC Relay Power via Backplane
Operating Temperature	0°C to +60°C (32°F to 140°F)
Dimensions	17.44 x 5.12 x 5.59 inches (Standard 10-slot footprint)
Shipping Weight	2.0 kg
Compliance	UL, CSA, CE Certified

Engineering Advantages

The IC693CHS392 addresses complex integration challenges through several high-performance design choices:

High-Speed Data Throughput: The parallel backplane bus architecture minimizes communication latency between the CPU and remote I/O modules, which is critical for high-speed motion control and safety interlocking.
Structural Rigidity: The chassis utilizes a reinforced frame that resists mechanical vibration. This prevents intermittent pin contact issues often found in cheaper, plastic-heavy alternatives, ensuring 24/7 operational stability.
Thermal Management: The physical slot spacing optimizes passive airflow around installed modules. This design prevents localized hotspots, extending the lifespan of sensitive electronic components within the rack.
Simplified Expansion: Standardized mounting holes and a plug-and-play backplane allow for rapid system scaling. Technicians can add or swap I/O modules without re-wiring the entire backplane, reducing downtime during system upgrades.

100% Brand New Original Hardware

We supply this GE IC693CHS392 in 100% Brand New condition, preserved in its original factory packaging. This ensures the gold-plated backplane connectors remain free from oxidation and environmental contaminants. Installing new-in-box hardware eliminates the unpredictable failure risks associated with "refurbished" or used racks, guaranteeing full electrical compliance with GE Fanuc Series 90-30 specifications.

FAQs

What is the difference between a Base Plate and an Expansion Base like the IC693CHS392?

The IC693CHS392 is an expansion base, meaning it connects to a CPU base via an expansion cable. It does not house the CPU itself but extends the I/O capacity of the primary processor.
Does this unit include the power supply?

No, the IC693CHS392 provides the slot for the power supply, but the power supply module (such as the IC693PWR321) must be purchased separately.
Can I mount the IC693CHS392 in a standard 19-inch server rack?

Yes, this base unit supports standard rack mounting using an optional 19-inch rack-mount kit, though panel mounting is the most common installation method in industrial control cabinets.
Does it support all Series 90-30 I/O modules?

Yes, the backplane is fully compatible with the entire range of 90-30 digital, analog, and specialty modules, including high-speed counters and communication interfaces.
