IC693CHS399 GE Series 90-30 Baseplate

IC693CHS399 GE Series 90-30 Remote Expansion Baseplate

IC693CHS399 GE Series 90-30 Remote Expansion Baseplate

Availability: 10 left in stock

Configured for distributed I/O chassis extension in Series 90-30 systems, the GE IC693CHS399 (IC693CHS399 Remote Expansion Baseplate) provides direct physical/electrical...

SKU: IC693CHS399

Manufacturer: GE Fanuc
Product No.: IC693CHS399
Product Type: Remote Expansion Baseplates
Product Origin: USA
Payment:T/T, Western Union
Weight: 570g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

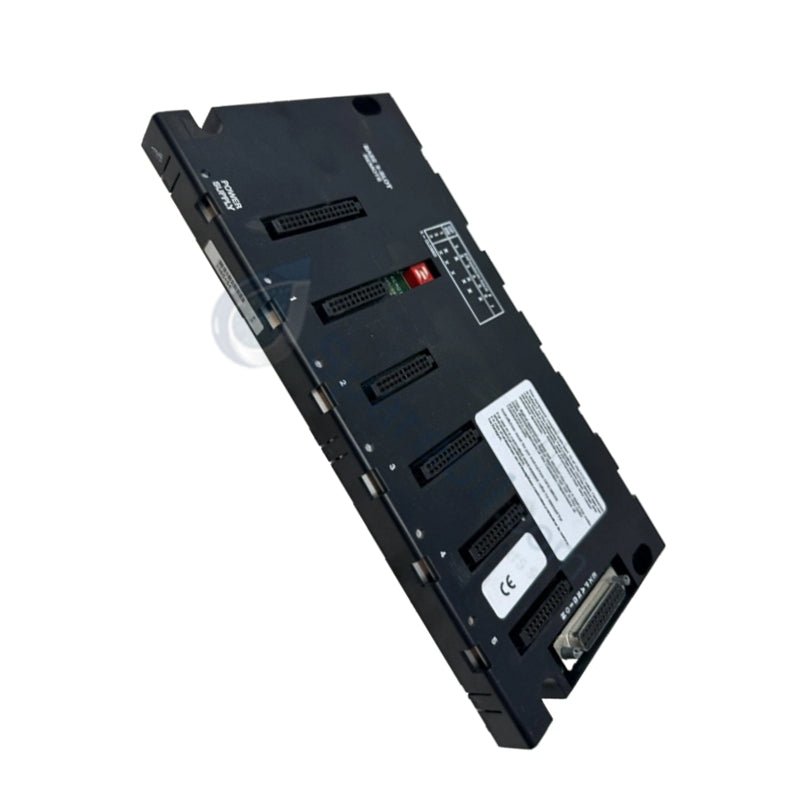

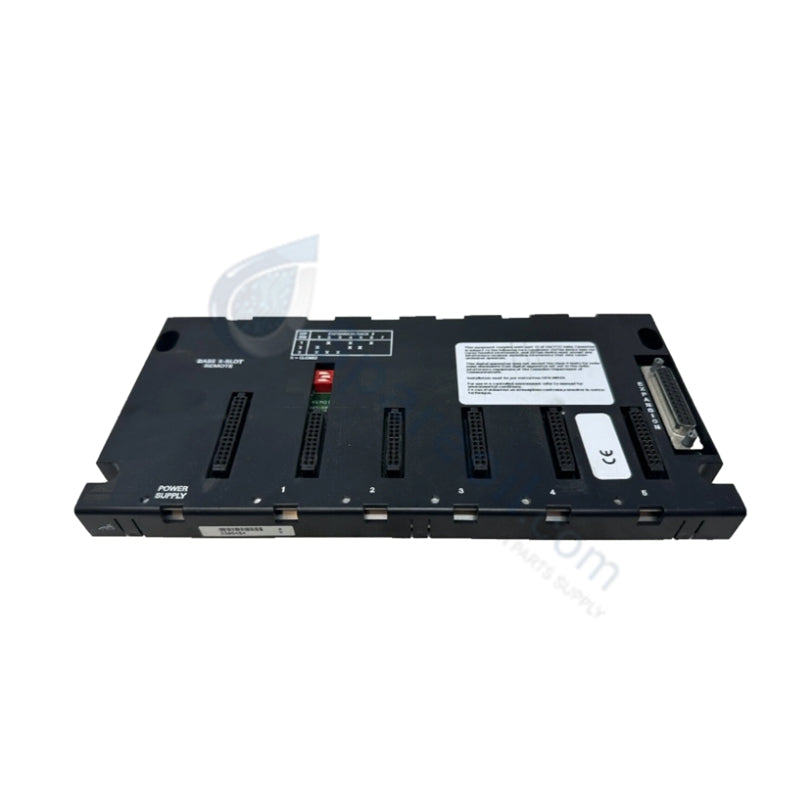

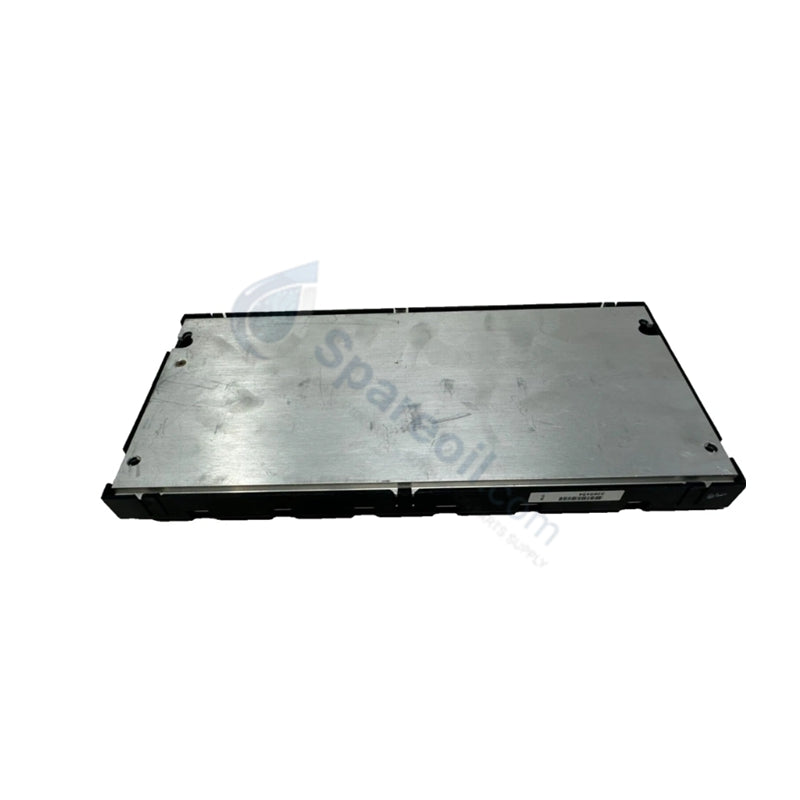

Configured for distributed I/O chassis extension in Series 90-30 systems, the GE IC693CHS399 (IC693CHS399 Remote Expansion Baseplate) provides direct physical/electrical execution. The module delivers a 5-slot physical structure and a 25-pin female D-type expansion connector to link remote I/O options across the backplane network.

Hardware Specifications

Parameter	Specification
Model	IC693CHS393 / IC693CHS399
Brand	GE Fanuc Emerson
Series	Series 90-30
Product Type	Remote Expansion Baseplates
Number of Slots	5 slots
Expansion Connector	25-pin female D-type connector
Power Consumption	480 mA at 5 VDC
IP Rating	IP20
Mounting Options	Metal wall mount or panel mount
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Relative Humidity	5 to 95% (non-condensing)
Installation Altitude	1000 m
Dimensions	Standard Series 90-30 5-slot baseplate footprint
Weight	0.57 kg (1.25 lbs)
Origin	USA

Backplane Bus Interfacing and Deterministic Networks

The IC693CHS399 routes logic signals across its 5 backplane slots and forwards parallel data through the 25-pin female D-type expansion interface. High backplane bus communication velocity guarantees deterministic scan execution between local I/O modules and the main CPU baseplate. Standardized bus lines maintain full firmware flash compatibility across installed digital and analog modules within extended rack architectures.

Frequently Asked Questions

Q: What is the backplane current draw for the IC693CHS399 remote baseplate?

A: The baseplate consumes 480 mA from the internal 5 VDC backplane power supply.

Q: How is the IC693CHS399 connected to the main controller chassis?

A: Interconnection is established via a dedicated expansion cable attached to the 25-pin female D-type connector located on the right edge of the unit.

Q: What mounting configurations are supported for this baseplate?

A: The chassis supports both panel mounting and metal wall mounting within an IP20 industrial enclosure.

Field Installation Guidelines

Ensure main system power and power supply sources are completely de-energized before mounting the baseplate.
Wear an ESD grounding strap bonded to an unpainted enclosure ground point during installation.
Secure the metal backplate to the mounting panel using appropriate hardware through all provided mounting holes.
Connect the 25-pin expansion cable between the baseplate D-shell connector and the preceding rack in the chain, ensuring tight screw-lock engagement.
Verify proper rack address switch settings before restoring power to the system power supply module.
