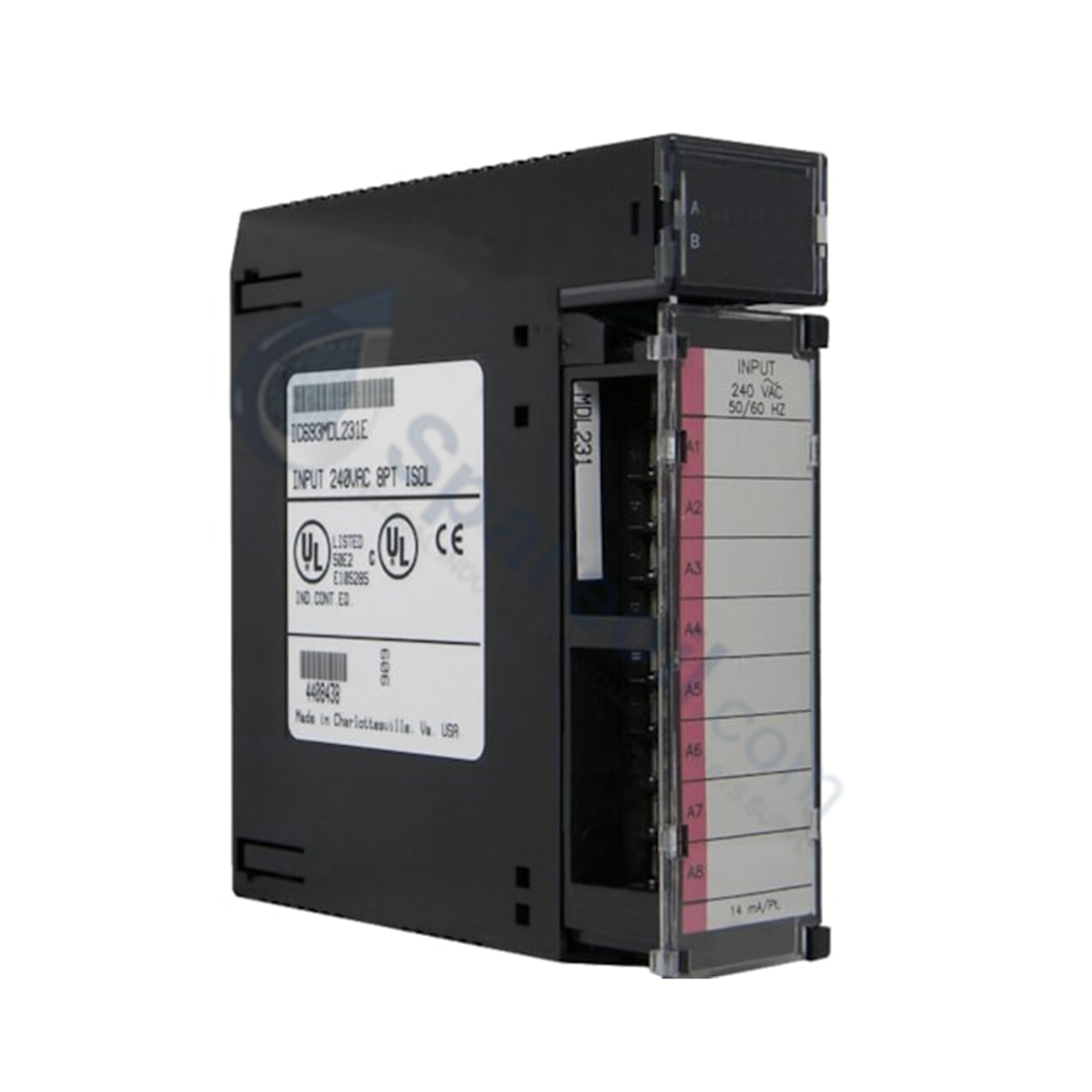

IC693MDL231 GE Series 90-30 Isolated Input

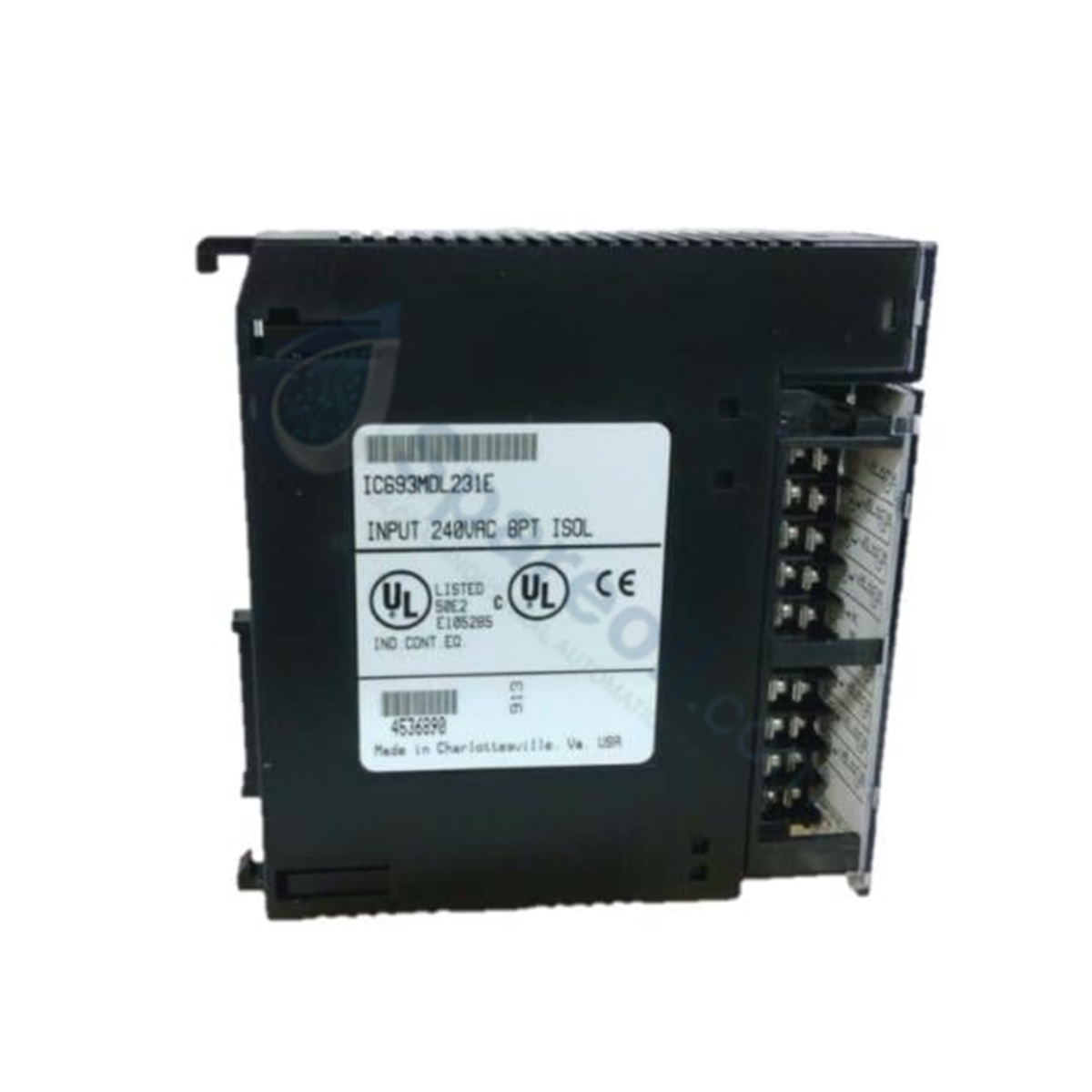

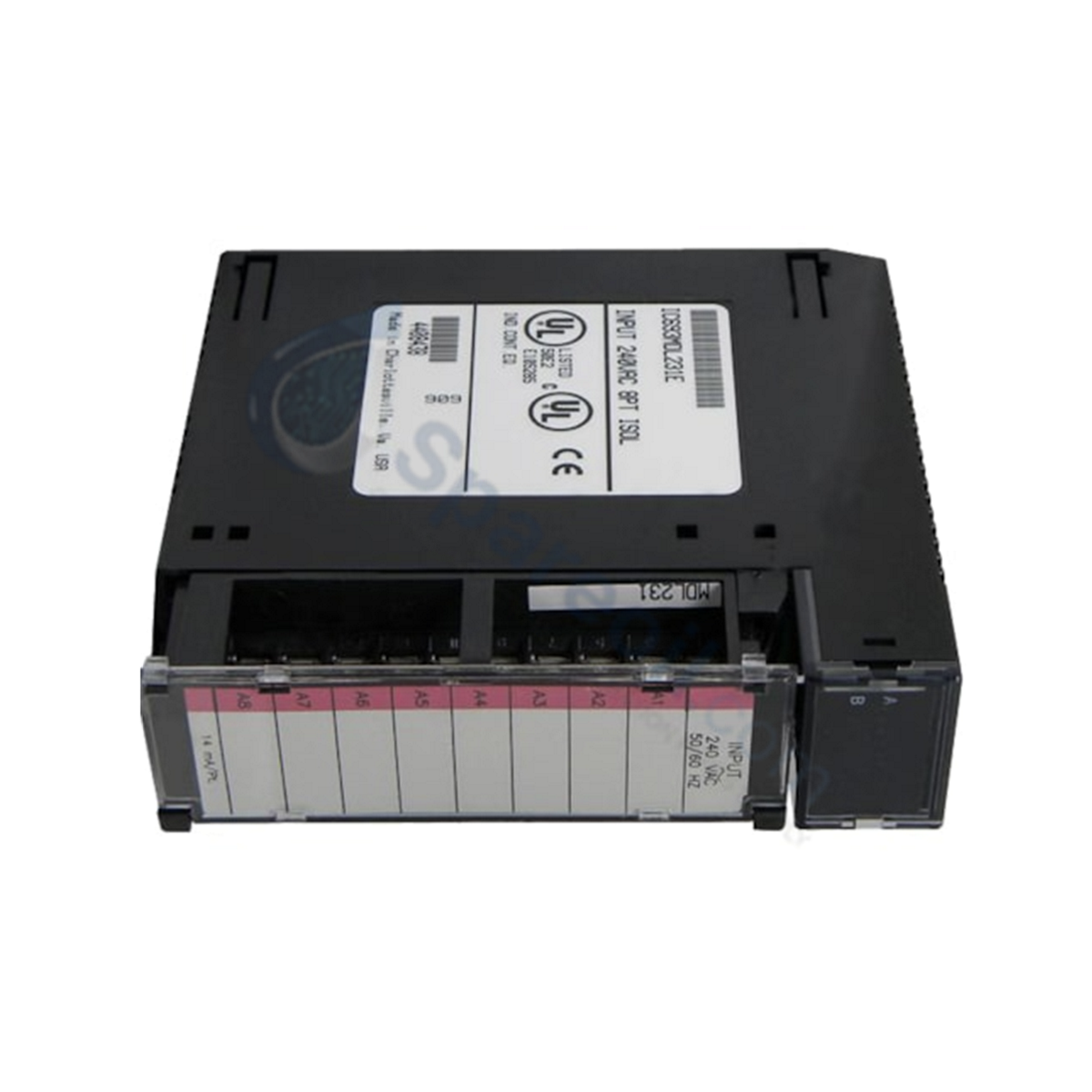

IC693MDL231 GE Series 90-30 Isolated Input Module

Availability: 10 left in stock

Configured for high-voltage discrete signal acquisition in GE Series 90-30 PLC platforms, the GE IC693MDL231 (IC693MDL231 Isolated Input Module) provides...

SKU: IC693MDL231

Manufacturer: GE Fanuc
Product No.: IC693MDL231
Product Type: Isolated Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 290g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for high-voltage discrete signal acquisition in GE Series 90-30 PLC platforms, the GE IC693MDL231 (IC693MDL231 Isolated Input Module) provides direct physical/electrical execution. The hardware interface processes 8 individually isolated 240 VAC input channels to convert field AC voltage levels into system logic signals.

Hardware Specifications

Parameter	Specification
Model	IC693MDL231
Brand	GE Fanuc Emerson
Series	Series 90-30
Product Type	Isolated Input Modules
Input Channels	8 individually isolated points
Operating Voltage Rating	240 VAC
Input Type	AC Discrete Input
Weight	0.29 kg (0.64 lbs)
Dimensions	Standard Series 90-30 module slot footprint
Operating Temp	0 to +60 deg C
Power Consumption	Sub-rack backplane powered
Origin	USA

Backplane Bus Interfacing and Deterministic Communications

The IC693MDL231 module interfaces directly with the Series 90-30 baseplate backplane to maintain constant backplane bus communication velocity during CPU scan sweeps. Optoisolators on each input channel provide point-to-point isolation to prevent high-voltage transient spikes from reaching the backplane logic components. Internal logic decoding ensures firmware flash compatibility and real-time execution across local and expansion racks.

Frequently Asked Questions

Q: Does each input point on the IC693MDL231 module share a single common line?

A: No. The IC693MDL231 module features 8 individually isolated points, providing complete electrical isolation between channels.

Q: What operating voltage level is required for input signal activation?

A: The input channels are designed to accept nominal 240 VAC discrete signals from field devices.

Q: What precautions should be taken regarding thermal dissipation in the enclosure?

A: Modules operating at 240 VAC generate localized heat; maintain recommended cabinet ventilation clearances above and below the rack baseplate.

Field Installation Guidelines

Disconnect and lock out main system power and field circuit voltage sources before inserting the module into the baseplate slot.
Wear a static grounding wrist strap attached to cabinet metalwork prior to handling the module.
Slide the IC693MDL231 module card straight into the baseplate slot until the top and bottom latch levers snap into place.
Route 240 VAC input wiring through dedicated wire ducts, ensuring high-voltage field lines remain separated from low-voltage DC communication lines.
Secure the removable terminal block screw connections and ensure protective earth ground wiring to the baseplate chassis is verified before applying power.
