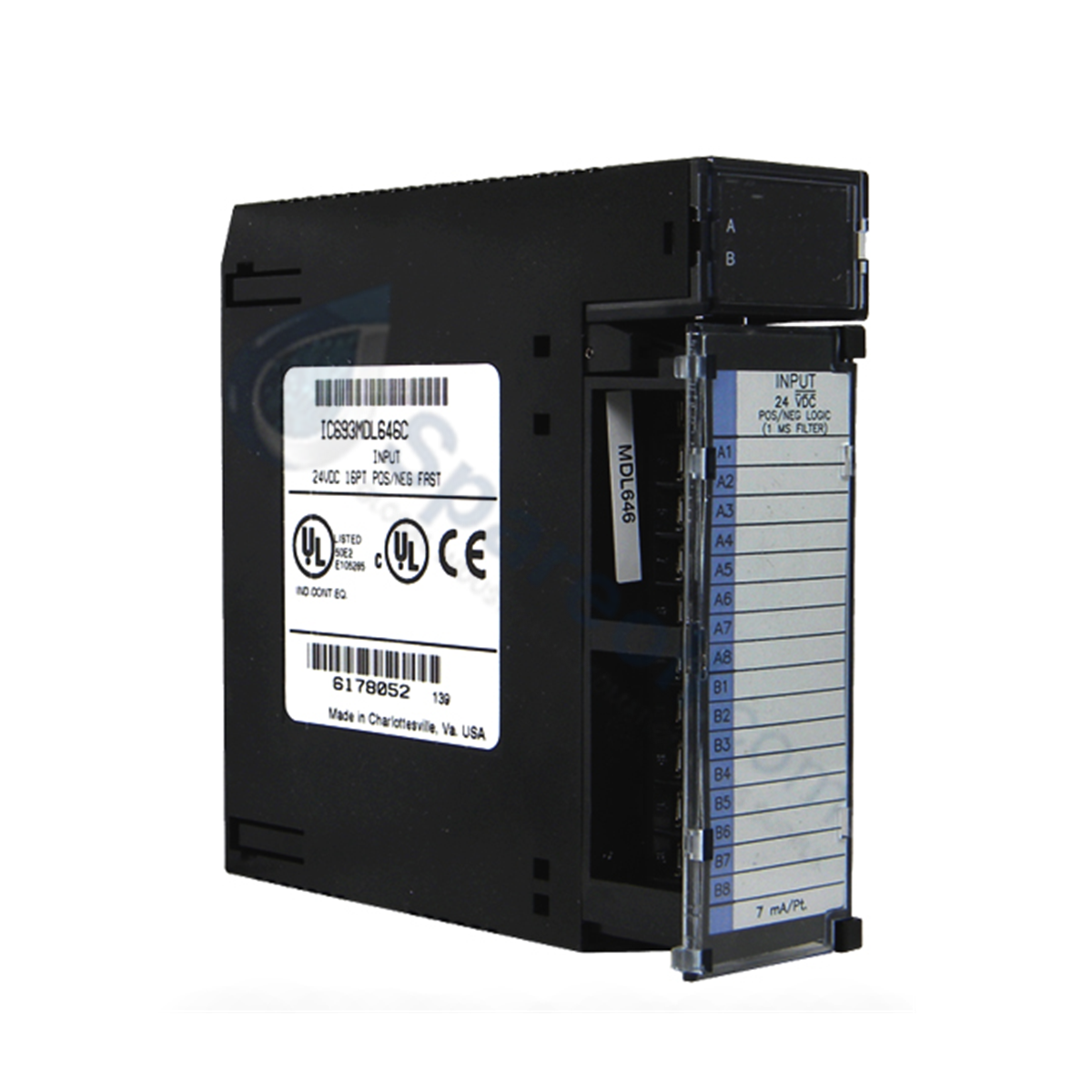

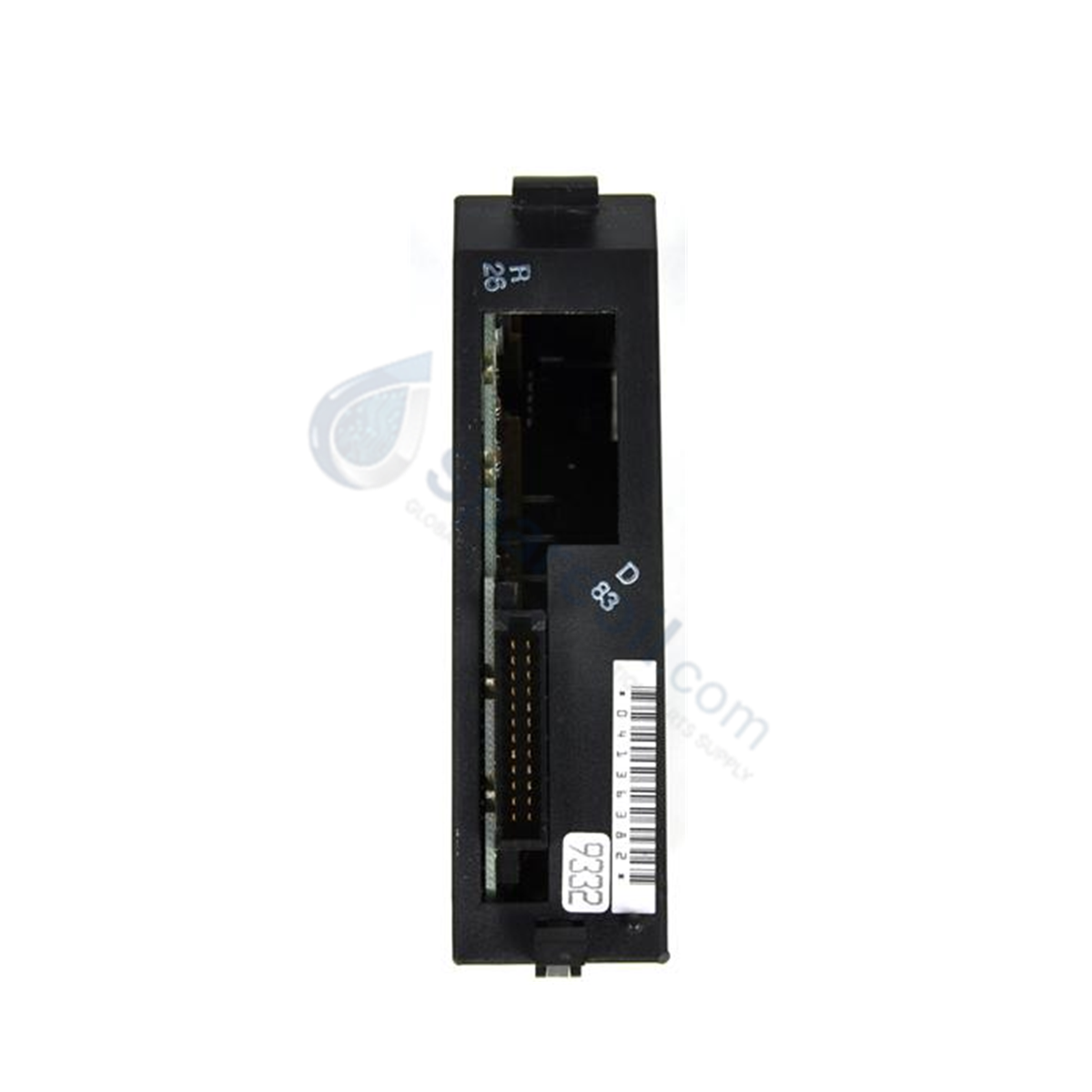

The GE IC693MDL646, also cataloged as the IC693MDL646 Discrete Input Module, operates as a dedicated hardware component for sensing discrete binary field device states within Series 90-30 PLC platforms.

Hardware Specifications

Parameter Specification
Model IC693MDL646
Brand GE Fanuc / Emerson
Origin Factory standard
Weight 0.34 kg (0.75 lbs)
Dimensions Single-slot chassis occupancy
Operating Temp 0 to 60 deg C (Standard industrial environment)
Power Consumption 80 mA at 5 VDC (backplane bus), 125 mA at 24 VDC (backplane bus)
Channel Density 16 input points
Circuit Grouping 1 group of 16 channels with a single common
Wiring Configuration Positive / Negative logic (Sinking / Sourcing)
Nominal Input Voltage 24 VDC
Input Voltage Range 0 to +30 VDC
Input Current 7 mA per channel at rated voltage
On-State Voltage 11.5 to 30 VDC
Off-State Voltage 0 to +5 VDC
Minimum On-State Current 3.2 mA
Maximum Off-State Current 1.1 mA
Response Time (On / Off) 1 ms typical
Galvanic Isolation 1500 VDC (between field side and logic side)
Terminal Termination 20 connection points

Backplane Bus Communication Velocity and I/O Density Scaling

The module handles discrete signal capture by mapping 16 binary points to the parallel internal backplane bus structure. To manage local I/O density scaling without inducing bus voltage drop, the electronic layout draws 80 mA from the 5 VDC logiic bus and 125 mA from the 24 VDC bus. Optical components establish a 1500 VDC galvanic isolation barrier between the physical field connections and the backplane register plane. This setup maintains bus communication velocity, filtering out electronic noise and high-voltage transients from external push buttons or proximity switches before data frames reach the host processor registers.

Frequently Asked Questions

Q: Can positive logic and negative logic sensors be wired simultaneously to different channels on this module?

A: No. The 16 input channels are arranged in a single group sharing one internal common power input terminal. Consequently, all channels on the module must be wired uniformly to match either all positive logic or all negative logic configurations.

Q: Does the hardware support removal or insertion under power (hot-swapping)?

A: No. The Series 90-30 backplane bus does not support dynamic hot-swapping. Main rack power and field loop supplies must be entirely disconnected before extracting or inserting the module to prevent electrical damage or unexpected state execution.

Q: What is the function of the front-panel LED matrix?

A: The front panel includes individual status LEDs numbered to map channel logic states (On/Off) and a Module OK LED that reflects the internal functional health status verified during backplane initialization.

Field Installation Guidelines

  • Disconnect the primary power supply to the PLC chassis and isolate all external field loops prior to handling the module.
  • Align the mechanical housing with the top and bottom card guides of any available I/O slot on the Series 90-30 baseplate.
  • Push the module straight into the slot until the top and bottom plastic retention latches firmly engage the chassis tabs.

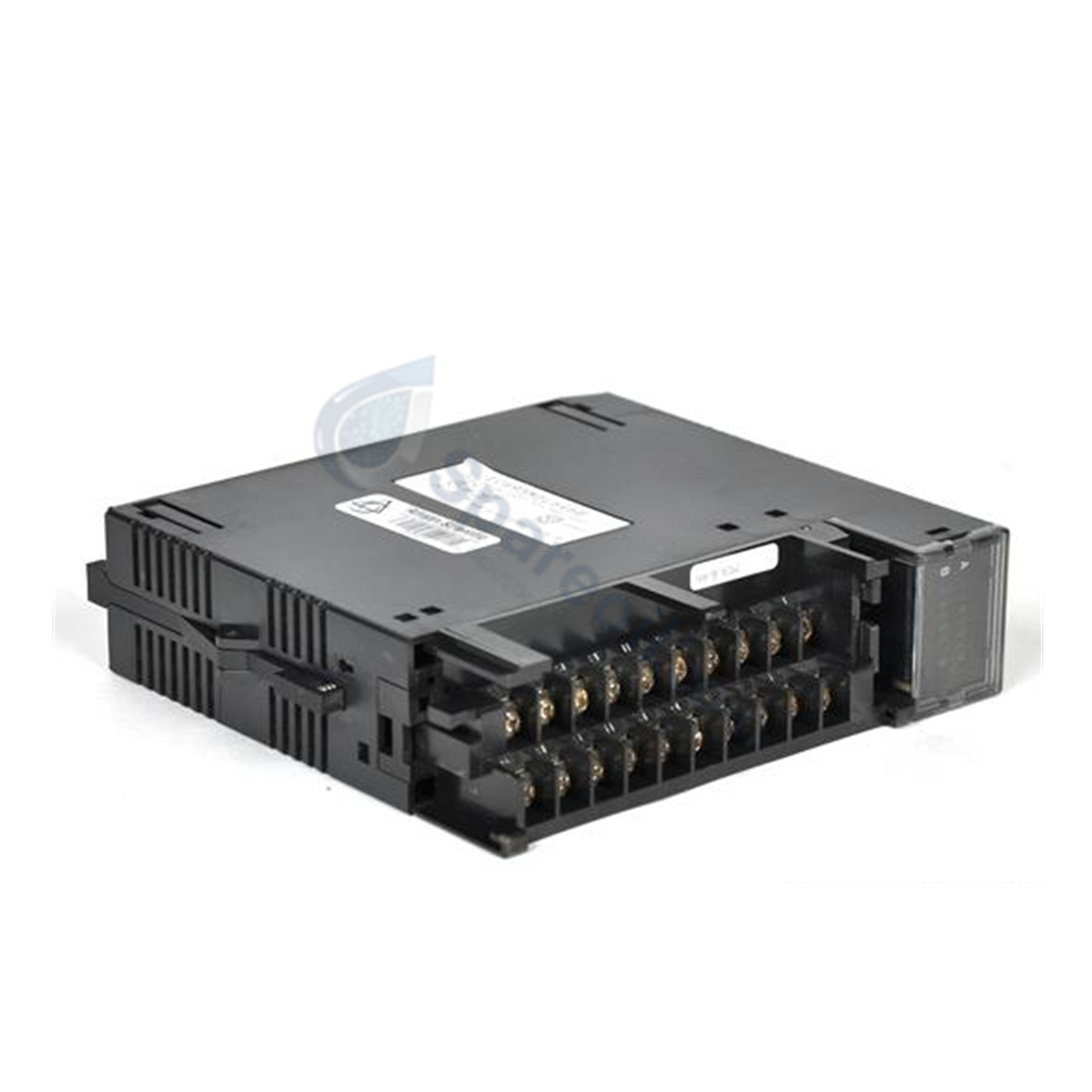

  • Open the protective swing door to access the 20-point terminal block and terminate the field wires using the printed wiring insert for reference.
  • Maintain a minimum physical separation of 30 cm between the low-voltage DC input wiring and high-voltage AC or motor drive cables to mitigate electromagnetic cross-talk.
