IC695ALG106 GE PACSystems RX3i Analog Input

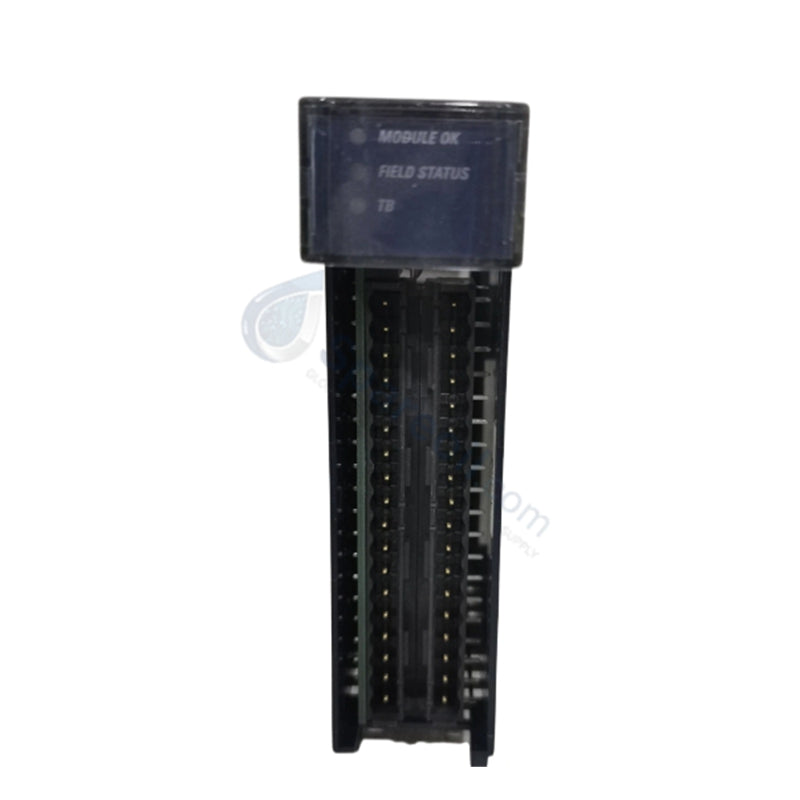

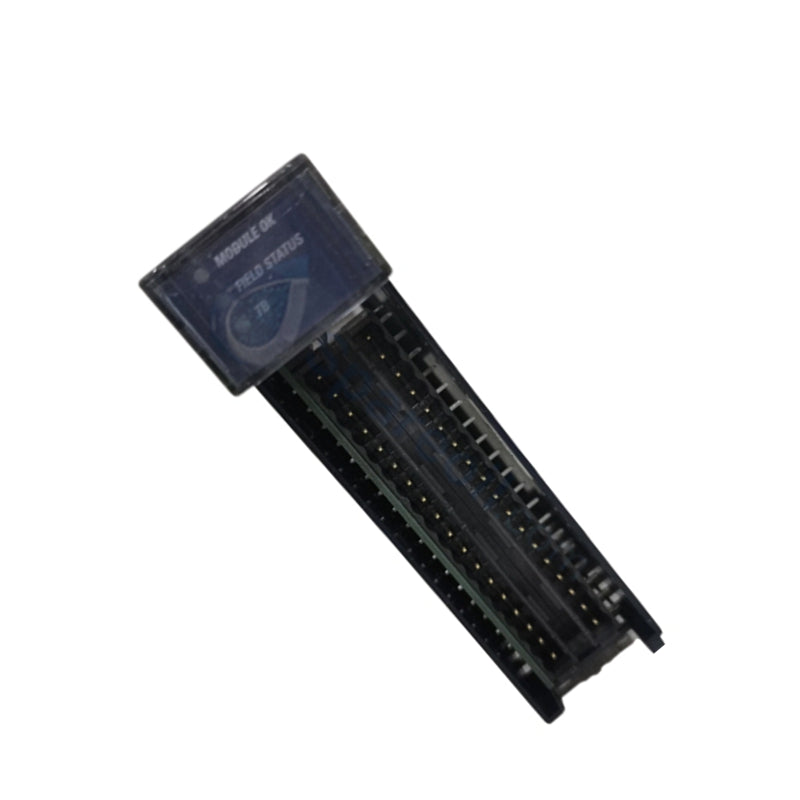

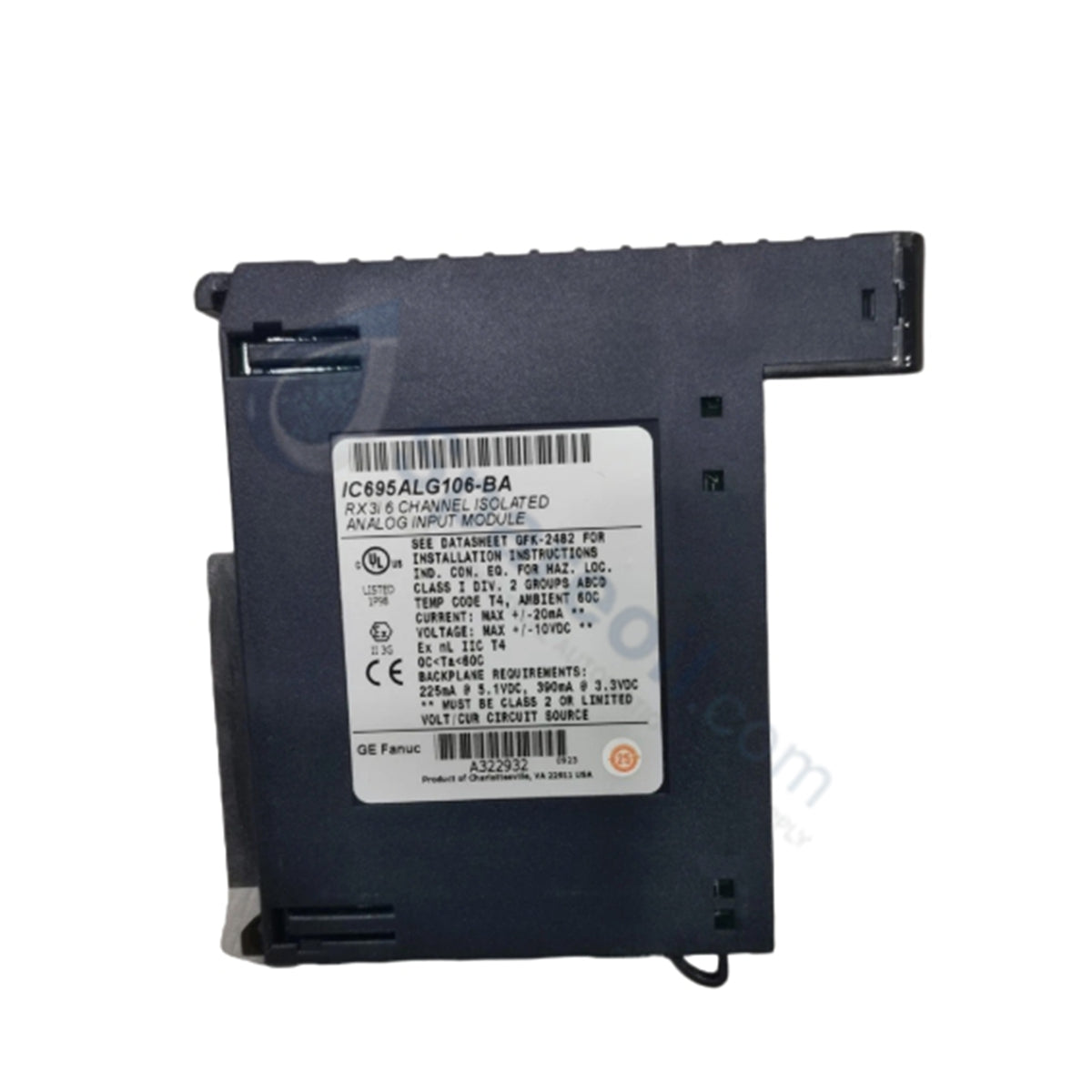

IC695ALG106 GE PACSystems RX3i Isolated Analog Input Module

IC695ALG106 GE PACSystems RX3i Isolated Analog Input Module

Availability: 10 left in stock

The GE IC695ALG106, also cataloged as the IC695ALG106 Isolated Analog Input Module, operates as a dedicated hardware component for multi-channel...

SKU: IC695ALG106

Manufacturer: GE Fanuc
Product No.: IC695ALG106
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The GE IC695ALG106, also cataloged as the IC695ALG106 Isolated Analog Input Module, operates as a dedicated hardware component for multi-channel analog signal acquisition and digital conversion within GE PACSystems RX3i platforms. Configured with 6 individually isolated channels, this unit provides direct physical/electrical execution to convert current (0-20 mA, 4-20 mA, +-20 mA) and voltage (+-10 V, 0-10 V, +5 V, 0-5 V, 1-5 V) inputs using a 16-bit ADC architecture.

Hardware Specifications

Parameter	Specification
Model	IC695ALG106
Brand	GE Fanuc Emerson
Series	PACSystems RX3i
Product Type	Isolated Analog Input Modules
Number of Channels	6 individually isolated channels
Input Signal Types	Current: 0-20 mA, 4-20 mA, +-20 mA; Voltage: +-10 V, 0-10 V, +5 V, 0-5 V, 1-5 V
ADC Resolution	16-bit
Input Impedance	Voltage: 500 kOhm; Current: 250 Ohm +-1%
Data Format	Configurable 32-bit floating point or 16-bit integer
Filter Options	8 Hz, 12 Hz, 16 Hz, 40 Hz, 250 Hz, 1000 Hz
Power Requirements	230 mA @ 5 VDC, 320 mA @ 3.3 VDC
Power Dissipation	2.97 W maximum (with 20 mA on all channels)
Mounting Type	RX3i Universal Backplane
Compatible Terminal Blocks	IC694TBB032, IC694TBB132, IC694TBS032, IC694TBS132
Operating Temp	-40 to +70 deg C
Origin	USA

Backplane Bus Interfacing and Deterministic Communications

The IC695ALG106 module mounts directly into an RX3i Universal Backplane slot to interface with the central processing unit over high-speed PCI backplane paths. Backplane bus communication velocity allows rapid transfer of 32-bit floating point or 16-bit integer data frames during every backplane scan cycle. Firmware flash compatibility across the RX3i platform ensures synchronized signal timing and deterministic networks execution across local and expansion racks. Channel-to-channel isolation eliminates cross-talk noise and ground loop currents across all six field signal loops.

Frequently Asked Questions

Q: How does the IC695ALG106 module protect field signal lines from electrical noise across channels?

A: Each of the 6 input channels features individual electrical channel-to-channel isolation, preventing ground loops and cross-talk interference between field devices.

Q: What power draw does the IC695ALG106 module exert on the RX3i backplane supply?

A: The module draws 230 mA from the 5 VDC bus line and 320 mA from the 3.3 VDC bus line, with a maximum power dissipation of 2.97 W.

Q: Which terminal block options are compatible with this module?

A: Field wiring connects via compatible RX3i terminal blocks including models IC694TBB032, IC694TBB132, IC694TBS032, and IC694TBS132.

Field Installation Guidelines

De-energize the host RX3i Universal Backplane rack before installing or removing the IC695ALG106 module.
Put on an anti-static wrist strap anchored to cabinet ground to prevent ESD damage during module insertion.
Align the module circuit card with the chosen backplane slot track and press firmly until the module latches securely into the backplane.
Wire field instrumentation to the compatible terminal block (IC694TBB/TBS series), taking care to maintain polarity for voltage and 4-20 mA current loops.
Secure the terminal block assembly onto the module front housing and ground all cable shield braidings at the designated rack grounding bar.
