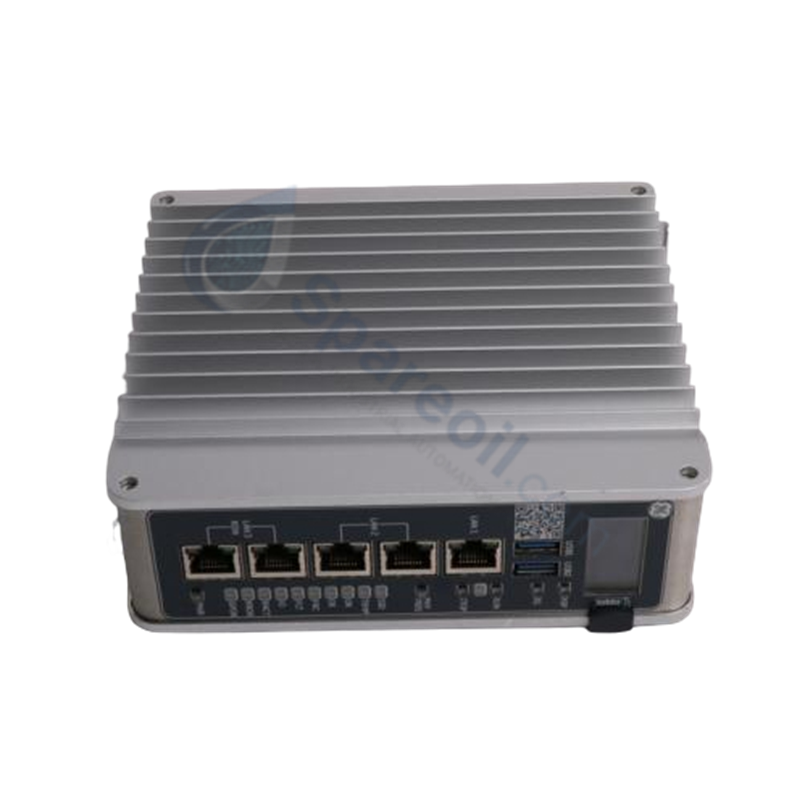

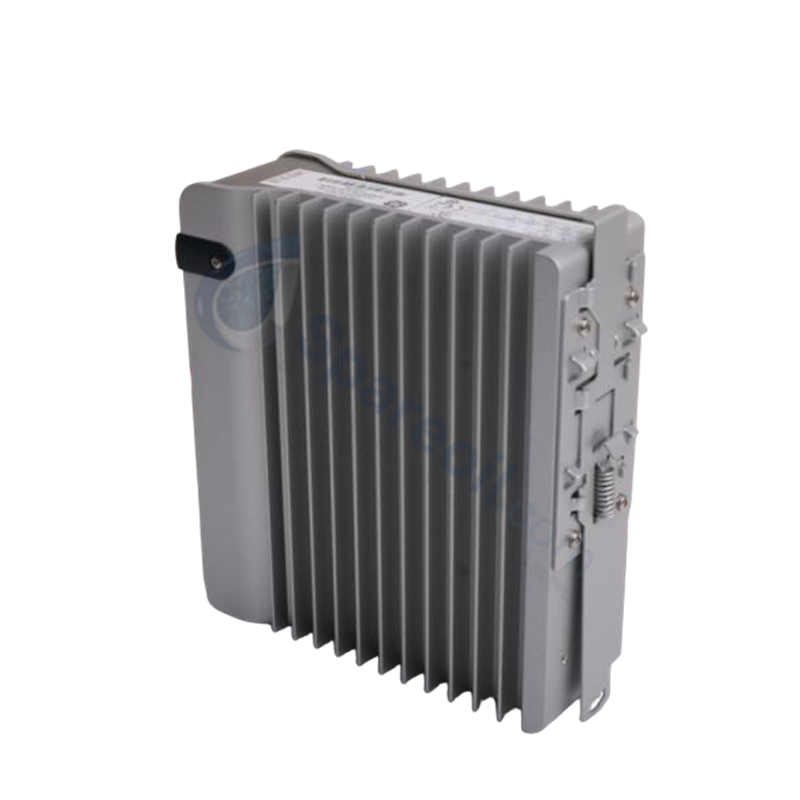

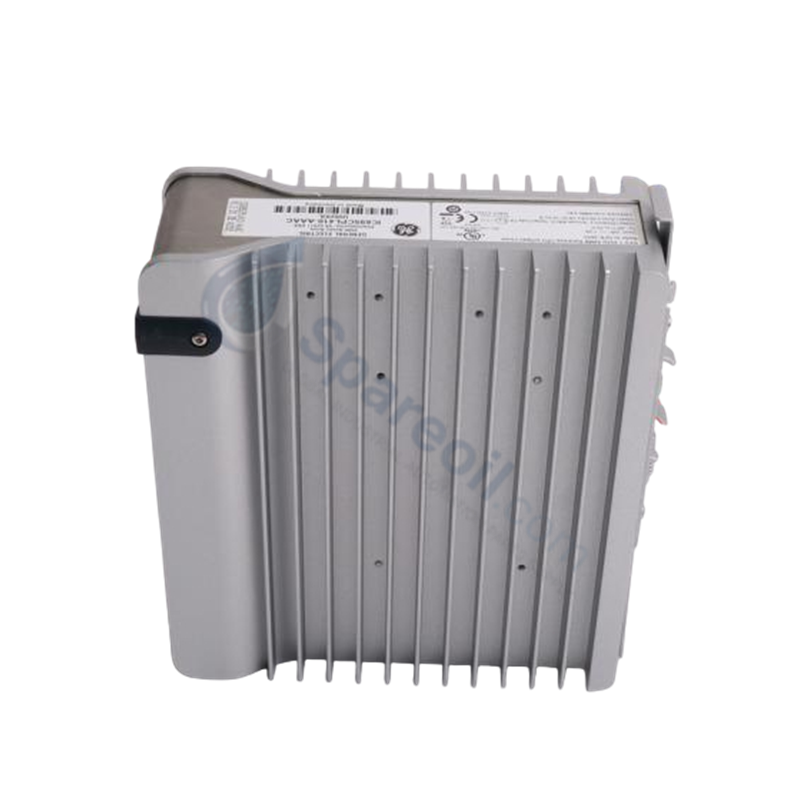

The GE Fanuc IC695CPL410, also cataloged as the IC695CPL410 Rackless CPU, operates as a dedicated hardware component for high-speed logic execution and communication processing within RX3i PACSystems networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC695CPL410 |
| Brand | GE Fanuc / Emerson |
| Origin | USA |
| Weight | 0.91 kg (2.00 lbs) |
| Dimensions | Standalone rackless enclosure |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Standard panel/rail supply requirements |
| Memory Capacity | 64 MB configurable data and program memory |
| Program Block Capacity | 768 blocks (128 KB maximum block size) |
| Programming Languages | Ladder Diagram, Function Block Diagram, Structured Text |
| Ethernet Interface | 3 front-panel Ethernet ports (up to 4 Ethernet LANs) |
| USB Interface | 2 USB 3.0 ports |
| Serial Interface | 1 RJ45 serial COM port |
| Mounting Options | DIN Rail or Panel Mount |
Deterministic Ethernet Communication & Firmware Flash Compatibility
The IC695CPL410 rackless processing engine coordinates real-time data flow across up to 4 independent Ethernet LANs via 3 front-panel network interfaces. Direct firmware flash compatibility enables continuous controller updates and background diagnostics without interrupting stored logic. Dedicated on-board memory partitioning allocates 64 MB dynamically between user program structures and data tables, maintaining deterministic system update intervals across distributed I/O nodes.
Frequently Asked Questions
Q: What programming languages and block structures are supported by the IC695CPL410 processor?
A: The processor executes Ladder Diagram, Function Block Diagram, and Structured Text across up to 768 program blocks, with a maximum size limit of 128 KB per block.
Q: How are network connections physically routed on the front interface of the controller?
A: The front panel features 3 embedded Ethernet ports for network connectivity, 1 RJ45 serial COM port for serial protocols, and 2 USB 3.0 ports for peripheral access.
Q: Can the IC695CPL410 be installed without a standard RX3i backplane rack?
A: Yes, as a standalone rackless controller unit, it installs directly via standard DIN rail or panel mounting configurations.
Field Installation Guidelines
- Mount the IC695CPL410 vertically on a flat panel or standard 35 mm DIN rail inside an IP54-rated industrial enclosure.
- Maintain a minimum clearance of 100 mm above and below the module chassis to facilitate proper convection cooling.
- Use industrial-grade shielded Ethernet cables (Cat 5e or higher) and ground all cable shields at a single panel entry location to minimize electromagnetic interference.
- Ensure the RJ45 serial COM port and Ethernet interface lines are routed separately from high-voltage motor supply conductors and inductive relay switching leads.
