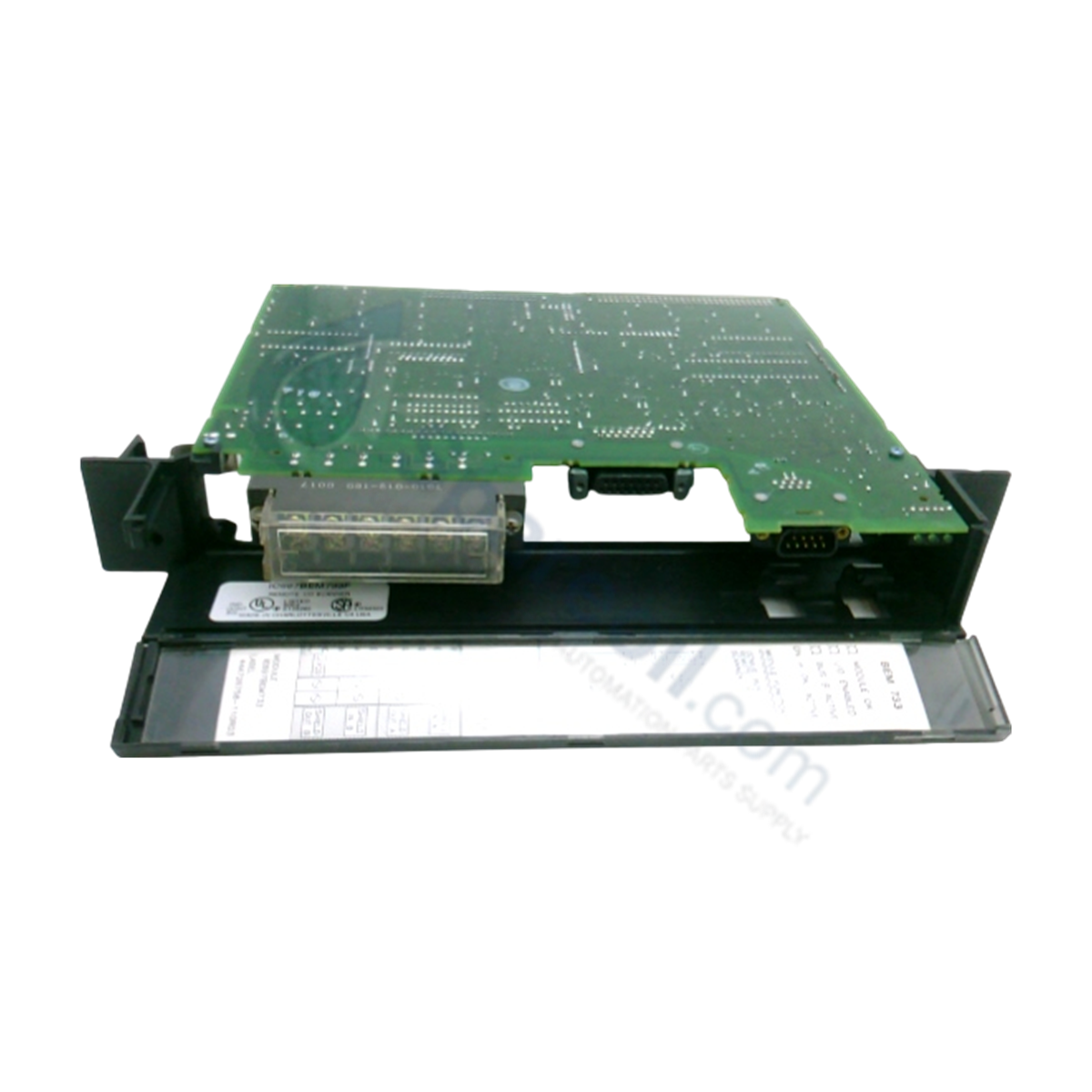

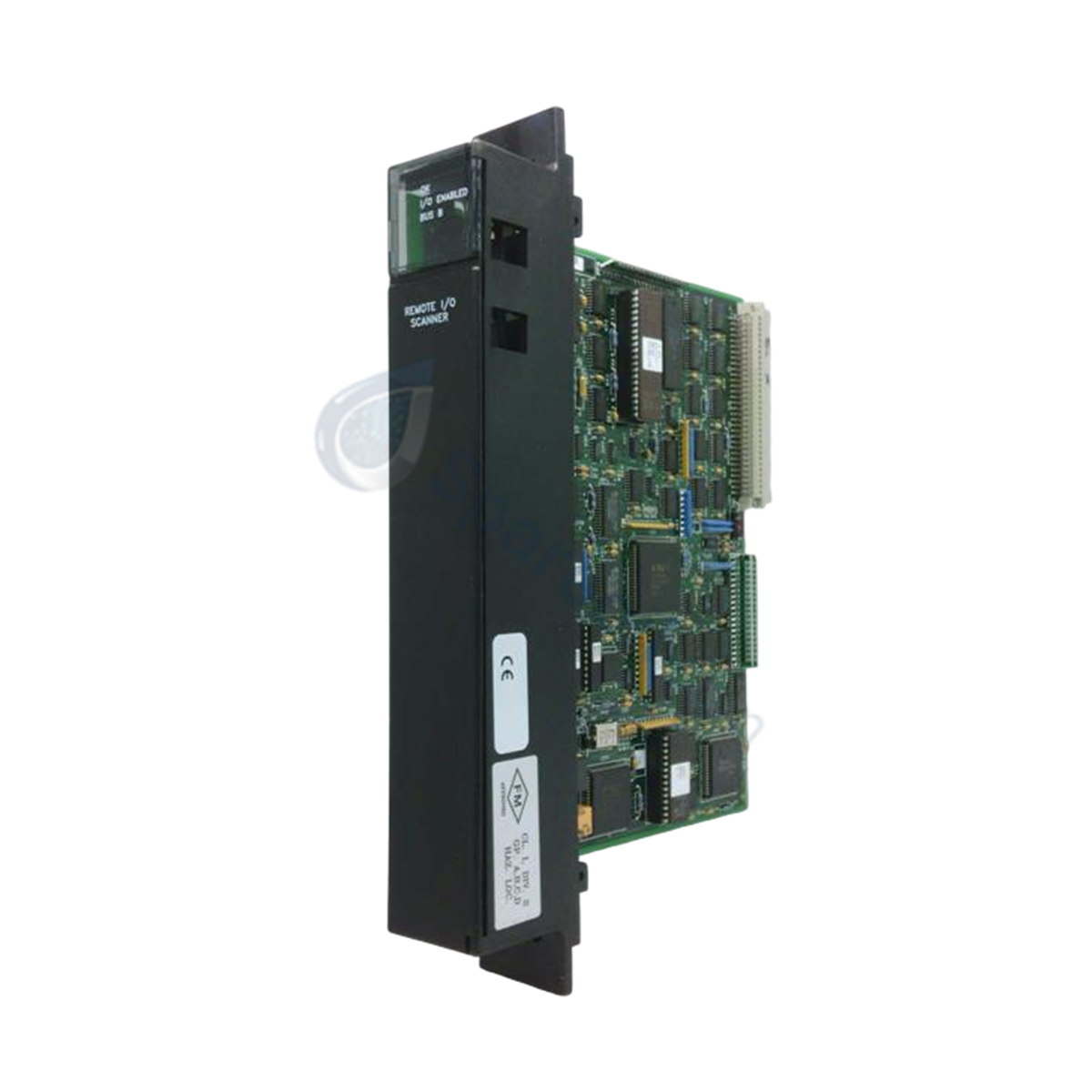

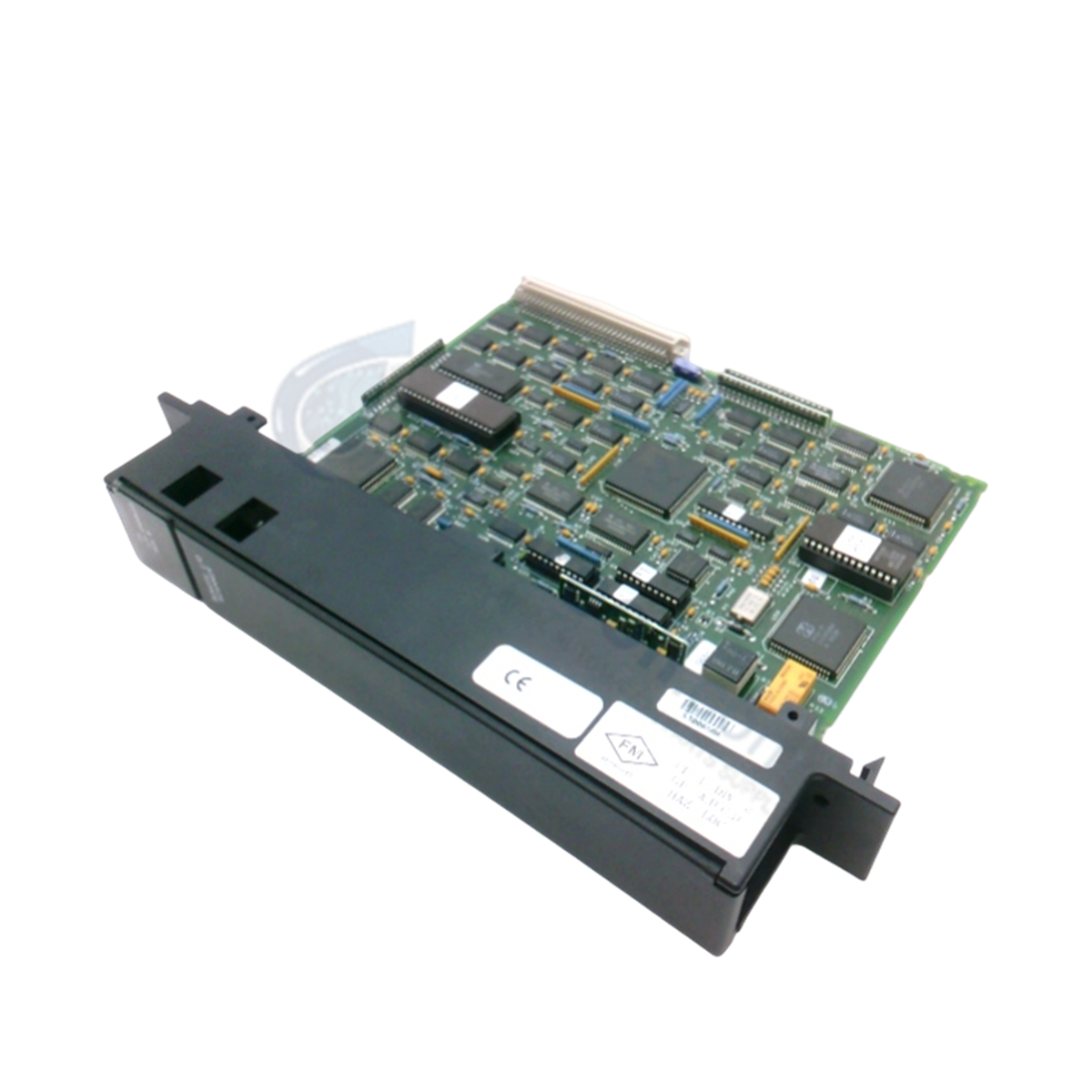

IC697BEM733 GE Series 90-70 Remote I/O Scanner

IC697BEM733 Series 90-70 Genius Remote I/O Scanner Module | GE

IC697BEM733 Series 90-70 Genius Remote I/O Scanner Module | GE

Availability: 10 left in stock

Configured for remote station communication and field network control in Series 90-70 systems, the GE IC697BEM733 (IC697BEM733 Remote I/O Scanner...

SKU: IC697BEM733

Manufacturer: GE Fanuc
Product No.: IC697BEM733
Product Type: Remote I/O Scanner Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 480g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for remote station communication and field network control in Series 90-70 systems, the GE IC697BEM733 (IC697BEM733 Remote I/O Scanner Module) provides direct physical/electrical execution. The module interfaces remote IC697 rack I/O drops to an IC66/Genius bus, supporting up to 1024 discrete I/O points or 64 analog I/O words over a daisy-chained serial line.

Hardware Specifications

Parameter	Specification
Model	IC697BEM733
Brand	GE Fanuc Emerson
Series	Series 90-70
Product Type	Remote I/O Scanner Modules
Slot Width	Single slot
Operating Voltage	5.0 VDC
Backplane Current Draw	800 mA at 5 VDC (1.3 A maximum rating)
Field Bus Network	Genius / IC66 Bus
Transmission Speeds	153.6 Kbaud (standard/extended), 76.8 Kbaud, 38.4 Kbaud
Max Bus Distance	7500 feet (2275 m) at 38.4 Kbaud; 2000 feet (605 m) at 153.6 Kbaud standard
Bus Topology	Daisy-chained cable (shielded twisted pair or Twinax)
Line Termination	75, 100, 120, or 150 Ohm resistors at both cable ends
Max Devices Per Bus	32 devices (at 76.8/153.6 Kbaud); 16 devices (at 38.4 Kbaud)
Max I/O Capacity	1024 Discrete I/O or 64 Analog I/O words per drop
Ports	1 RS-422/485 serial port, 1 9-pin Handheld Monitor port, IC66 bus terminals
Status Indicators	3 LEDs (Module OK, I/O Enabled, Bus B Active)
Operating Temp	0 to +60 deg C
Dimensions	Standard Series 90-70 single-slot format
Weight	0.48 kg (1.06 lbs)
Origin	USA

Backplane Bus Interfacing and Deterministic Networks

The IC697BEM733 transfers scan data across the Series 90-70 backplane while executing Genius bus protocol handling for the remote drop chassis. High backplane bus communication velocity allows local rack expansion modules to update CPU tables with deterministic timing profiles. Configurable baud rates (38.4 Kbaud to 153.6 Kbaud) adapt execution cycles to line lengths up to 7500 feet (2275 meters). Built-in firmware flash compatibility preserves system messaging integrity across CPU platforms, Handheld Monitors (IC660HHM501G), and PCIM/QBIM computer interface cards.

Frequently Asked Questions

Q: What are the backplane current requirements for the IC697BEM733 module?

A: The module draws a typical operating current of 800 mA at 5 VDC from the backplane bus, with a maximum rating of 1.3 A.

Q: What physical cable types and termination values are specified for the IC66 serial bus?

A: The bus utilizes a daisy-chained single shielded twisted-pair or Twinax cable, terminated at both physical ends with 75, 100, 120, or 150 Ohm resistors matching the cable impedance.

Q: How many remote racks can be managed within a single drop station under the scanner?

A: A single remote drop can link up to 8 IC697 PLC racks (5-slot or 9-slot) interconnected via bus transmitter and bus receiver modules over a maximum rack-to-rack distance of 15 meters (50 feet).

Field Installation Guidelines

Shut off main rack supply power before inserting the IC697BEM733 module into the remote Series 90-70 baseplate slot.
Fasten an ESD grounding strap to an unpainted metal surface of the enclosure frame before handling the circuit board.
Align the card with the card guide rails and slide it fully into the backplane connector until properly seated.
Connect the IC66 bus signal wires to the terminal connector, ensuring proper polarity and landing shield drain wires at the designated ground terminal.
Install matching termination resistors (75 to 150 Ohms based on cable type) at both physical endpoints of the Genius bus network.
