IC697CPU731 GE Fanuc Series 90-70 CPU Module

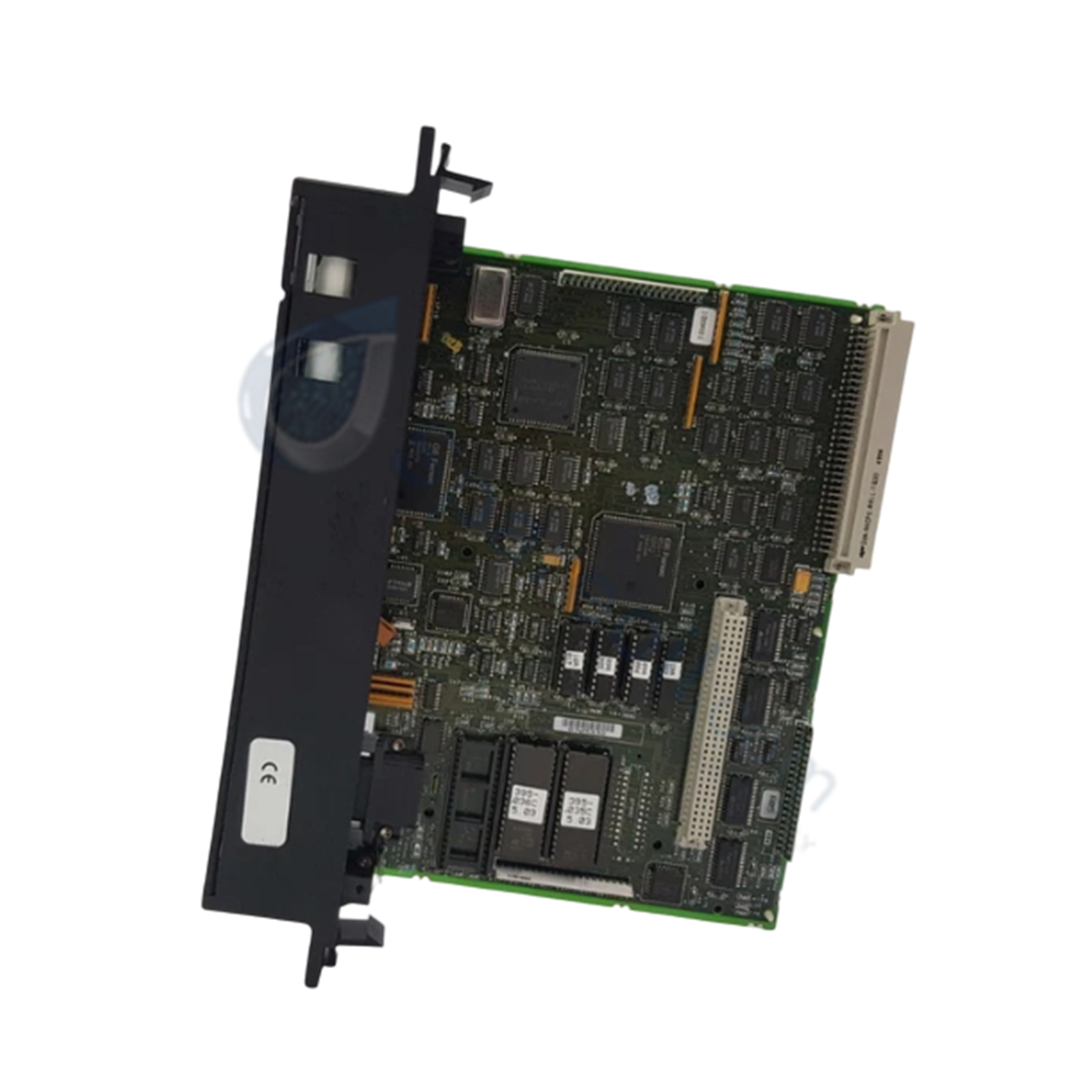

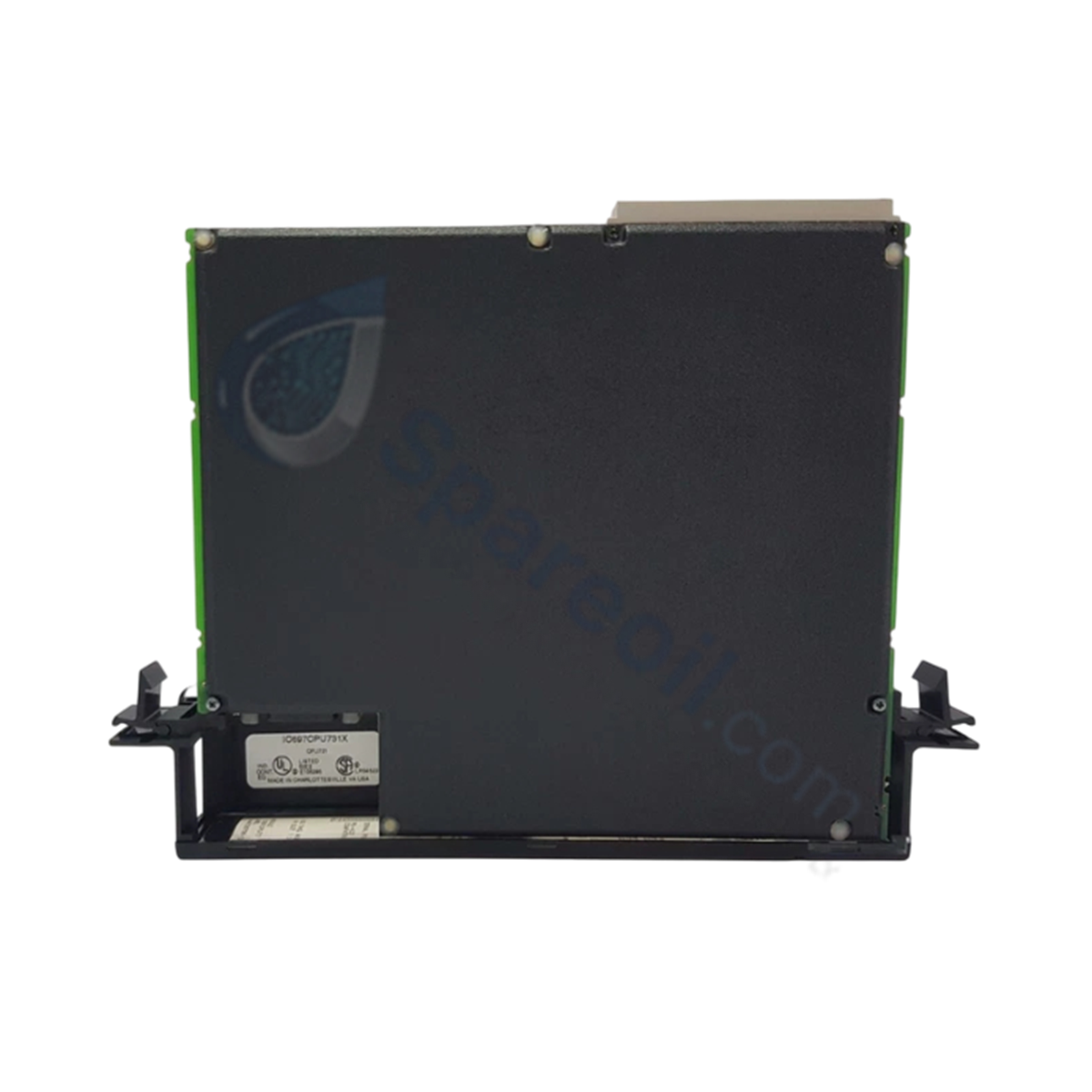

IC697CPU731 GE Fanuc Series 90-70 Central Processing Unit

IC697CPU731 GE Fanuc Series 90-70 Central Processing Unit

Availability: 10 left in stock

The GE Fanuc IC697CPU731, also cataloged as the IC697CPU731 Central Processing Unit, operates as a dedicated hardware component for industrial...

SKU: IC697CPU731

Manufacturer: GE Fanuc
Product No.: IC697CPU731
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 480g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The GE Fanuc IC697CPU731, also cataloged as the IC697CPU731 Central Processing Unit, operates as a dedicated hardware component for industrial control execution within Series 90-70 platforms. Configured for single-slot deployment, the module processes logic commands at a fixed clock speed of 12 megahertz and drives field-level interface subsystems via integrated backplane routing.

Hardware Specifications

Parameter	Specification
Model	IC697CPU731
Brand	GE Fanuc Emerson
Origin	United States
Weight	0.48 kg (1.06 lbs)
Dimensions	Standard single-slot Series 90-70 chassis layout
Operating Temp	0 to 60 deg C
Power Consumption	1 Ampere required current @ 5 VDC
Memory Capacity	32 kilobytes fixed-size CMOS RAM
Discrete I/O Capacity	Up to 512 modules
Analog I/O Capacity	Up to 8,000 modules
Serial Communication	One RS422/RS485 serial port
Internal Clock Accuracy	+/- 3.5 seconds per day
User Interface	Three-position operation mode switch, 3 green LED indicators

Deterministic Network Performance & I/O Density Scaling

The execution engine manages vast I/O density scaling profiles by addressing up to 8,000 analog modules and 512 discrete modules simultaneously through the rack backplane. To maintain continuous synchronization over deterministic networks without local execution jitter, the internal clock circuit utilizes optimized hardware timing loops. System integrity and variable states are preserved using a 32-kilobyte CMOS RAM map sustained by a dedicated lithium battery assembly. This combination guarantees firmware flash compatibility limits and maintains vital process parameters across unexpected power disruptions.

Frequently Asked Questions

Q: What is the operational duration of the memory backup system when main power is lost?

A: The internal lithium battery provides nominal memory retention for up to 6 months without external power applied to the chassis backplane. The battery element itself maintains a shelf life of up to 10 years when stored at a baseline ambient temperature of 20 deg C.

Q: How does the hardware communicate status diagnostics directly to field technicians?

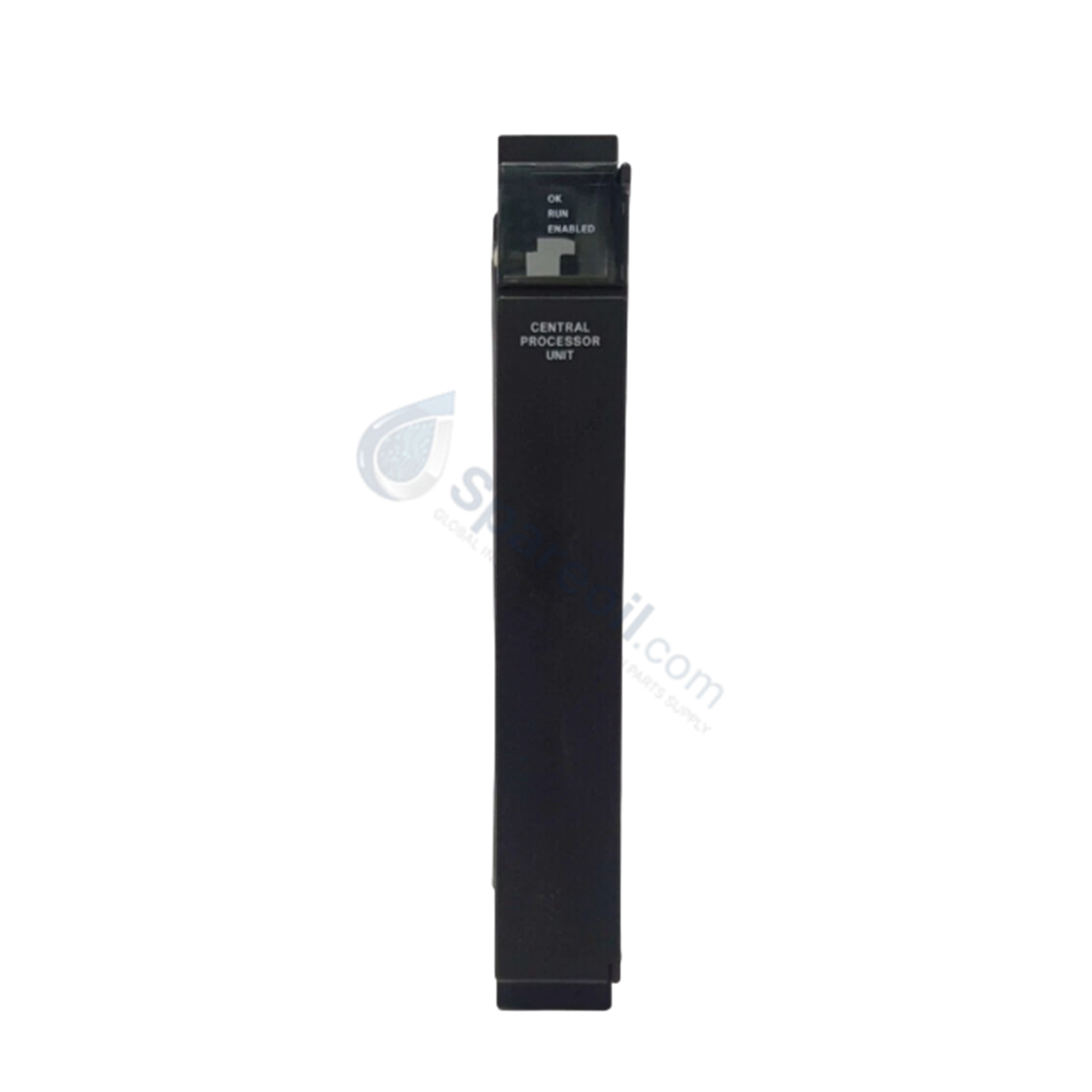

A: Real-time operational monitoring is managed through 3 green LED indicators located on the front faceplate. These indicators provide instantaneous visual verification of the processing state and internal fault conditions.

Q: Can the CPU operating mode be altered manually from the module body?

A: Yes. The module is engineered with a physical three-position operation mode switch. This switch allows direct manual configuration of the execution state without requiring software override commands.

Field Installation Guidelines

Chassis Positioning: Insert the processing unit into the designated single slot of the Series 90-70 rack housing, ensuring the backplane connector pin array seats squarely.
Serial Port Termination: When using the built-in RS422/RS485 serial port for peripheral data links, install appropriate line-termination resistors to mitigate data reflection loops across long cable runs.
Battery Activation: Verify the lithium battery connection is fully engaged during the physical installation cycle to enable immediate memory protection circuits.
Grounding Continuity: Confirm that the rack frame meets industrial grounding parameters to ensure common-mode isolation limits are fully realized across the entire backplane assembly.
