Intelligent Platforms PLC Processor

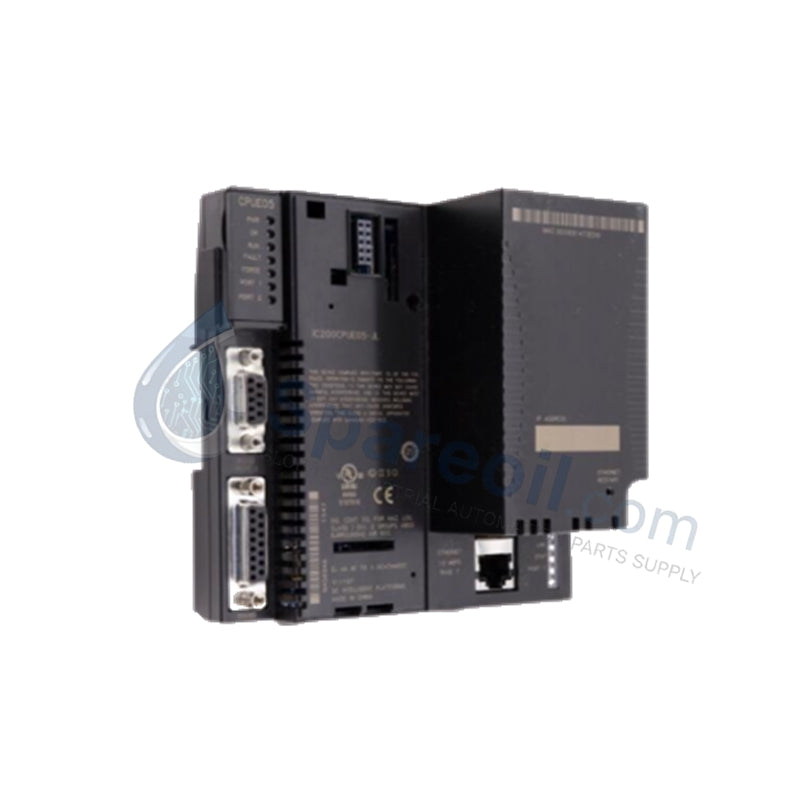

Intelligent Platforms PLC Processor | IC200CPUE05-FH GE

Availability: 10 left in stock

Product Overview The GE IC200CPUE05-FH functions as the high-performance "brain" of the VersaMax PLC platform. This module integrates powerful 32-bit processing with...

SKU: IC200CPUE05-FH

Manufacturer: GE Fanuc
Product No.: IC200CPUE05-FH
Product Type: GE VersaMax Series
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE IC200CPUE05-FH functions as the high-performance "brain" of the VersaMax PLC platform. This module integrates powerful 32-bit processing with embedded Ethernet connectivity, allowing it to manage complex logic, extensive I/O mapping, and high-speed network communication simultaneously. We provide this unit as 100% Brand New and Original, ensuring total system integrity for critical infrastructure in energy management and manufacturing automation.

Technical Specifications

Parameter	Specification
Processor	32-Bit Embedded CPU
User Memory	64 KB Program Memory / 64 KB Data Memory
I/O Capacity	Supports up to 2048 I/O Points
Ethernet Port	Integrated 10/100 Mbps (RJ-45)
Serial Ports	RS-232 and RS-485
Protocols	Modbus TCP/IP, Modbus RTU, SNP, SRTP
Scan Rate	1 ms per 1K of logic
Timers/Counters	512 / 512
Current Draw	350 mA @ 5 VDC (from backplane)
Operating Temp	0°C to 60°C

Engineering Advantages

Native Ethernet Integration: The IC200CPUE05-FH features a built-in 10/100 Mbps Ethernet port. This eliminates the need for separate communication co-processors, simplifying your network architecture and enabling direct data exchange with SCADA systems and HMIs via Modbus TCP/IP.
High-Density Logic Execution: With 64KB of dedicated program memory and a rapid scan rate of 1ms per 1K of logic, this CPU handles complex PID loops and motion control sequences without latency, ensuring precise process synchronization.
Scalable Architecture: The module supports up to 2048 I/O points. This scalability allows engineers to expand local and remote I/O racks as facility requirements grow, protecting your initial hardware investment.
Robust Diagnostics Suite: An internal watchdog timer and self-diagnostic firmware constantly monitor the CPU's health. The module immediately reports hardware faults or memory parity errors via LED indicators and system registers, preventing erratic machine behavior.
Space-Saving Form Factor: By combining the CPU and network interface into a single 50mm-wide module, the IC200CPUE05-FH reduces the overall PLC footprint. This allows for smaller control cabinets and lower cooling requirements.

FAQs

Q: Does the IC200CPUE05-FH support Modbus TCP communication out of the box?

A: Yes. The integrated Ethernet port supports both Modbus TCP/IP and GE's native SRTP protocol. This allows for seamless integration with third-party devices like VFDs, power meters, and other PLCs without additional gateways.

Q: How do I store the program in the event of a power failure?

A: The module utilizes non-volatile flash memory for long-term program storage. For retentive data (registers and variables), we recommend using a standard battery to maintain the internal CMOS RAM during extended power-down periods.

Q: Can I upgrade a system using an older IC200CPU001/002 to this Ethernet-enabled model?

A: Generally, yes. The IC200CPUE05-FH fits the same VersaMax carriers. You will need to update your hardware configuration in Proficy Machine Edition and ensure your logic resides within the 64KB memory limit.

Q: What is the significance of the "-FH" suffix?

A: The "-FH" suffix typically denotes specific firmware revisions or hardware manufacturing batches under GE Intelligent Platforms (now Emerson). It remains fully compatible with standard VersaMax I/O modules and carriers.
