GE Fanuc IS200BPVCG1BR1 Mark VI Backplane ASM Board

Availability: 3 left in stock

DescriptionThe IS200BPVCG1BR1 is a specialized Backplane ASM Board designed for the GE Speedtronic Mark VI gas turbine control system. This...

SKU: IS200BPVCG1BR1

Manufacturer: GE FANUC
Product No.: IS200BPVCG1BR1
Product Type: Backplane Assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

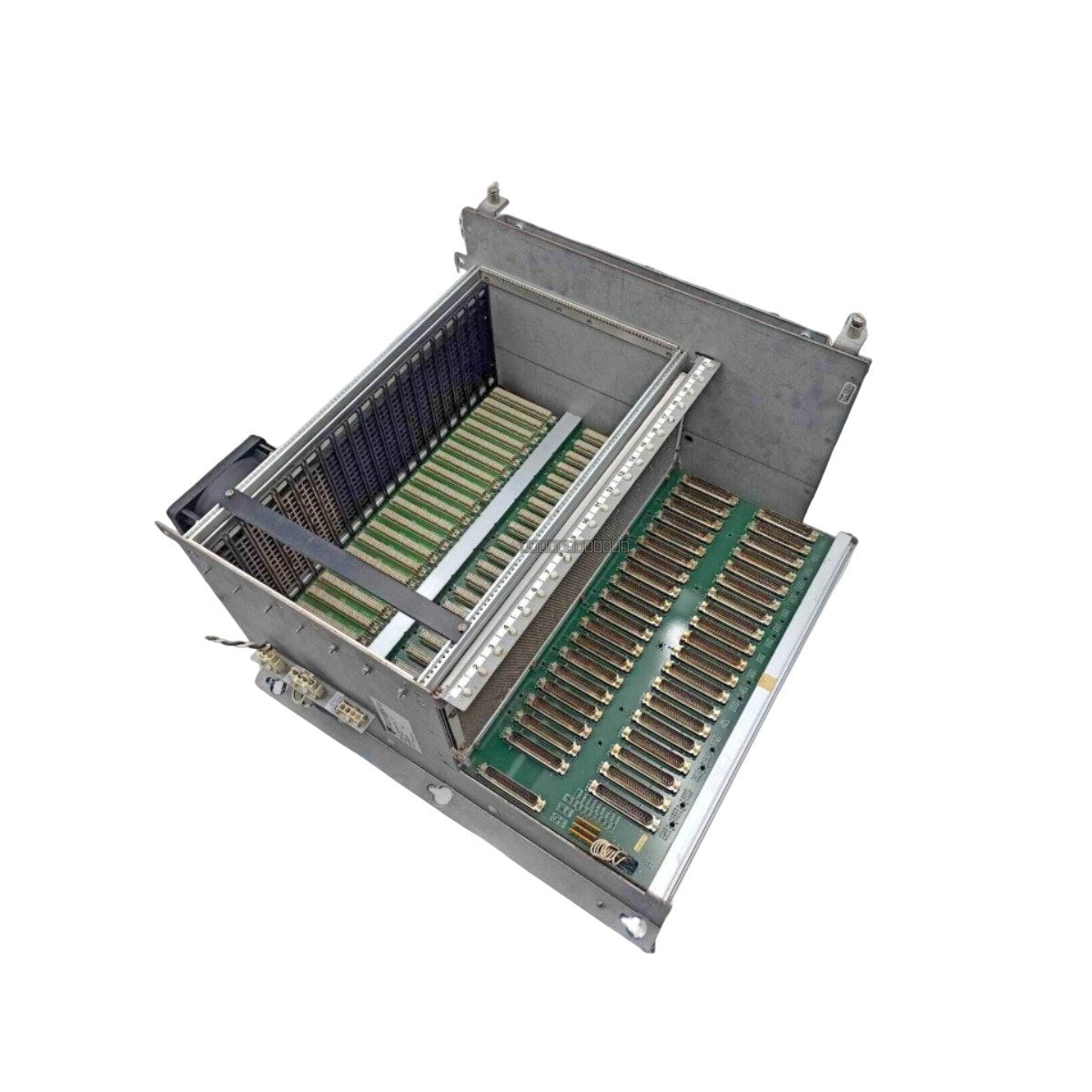

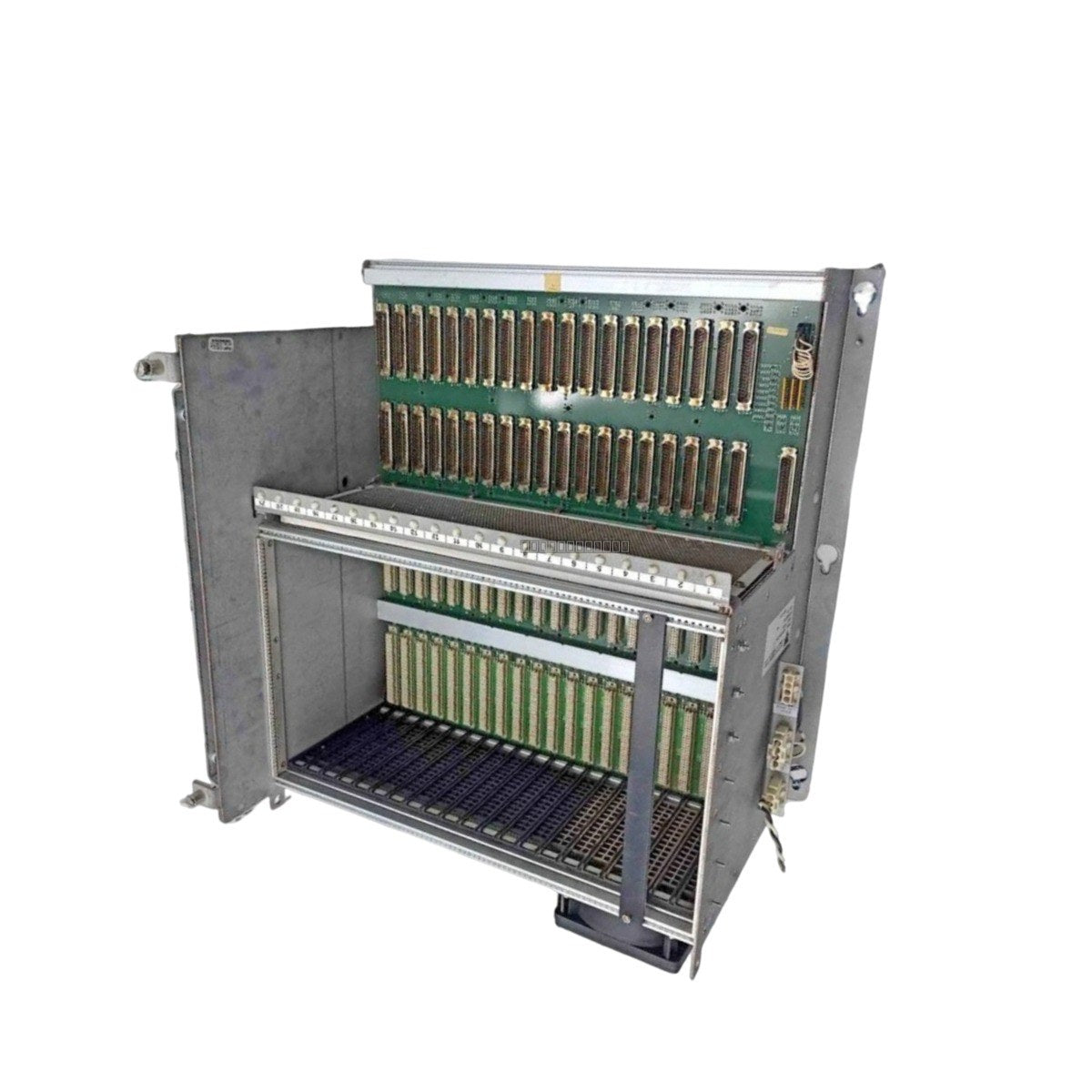

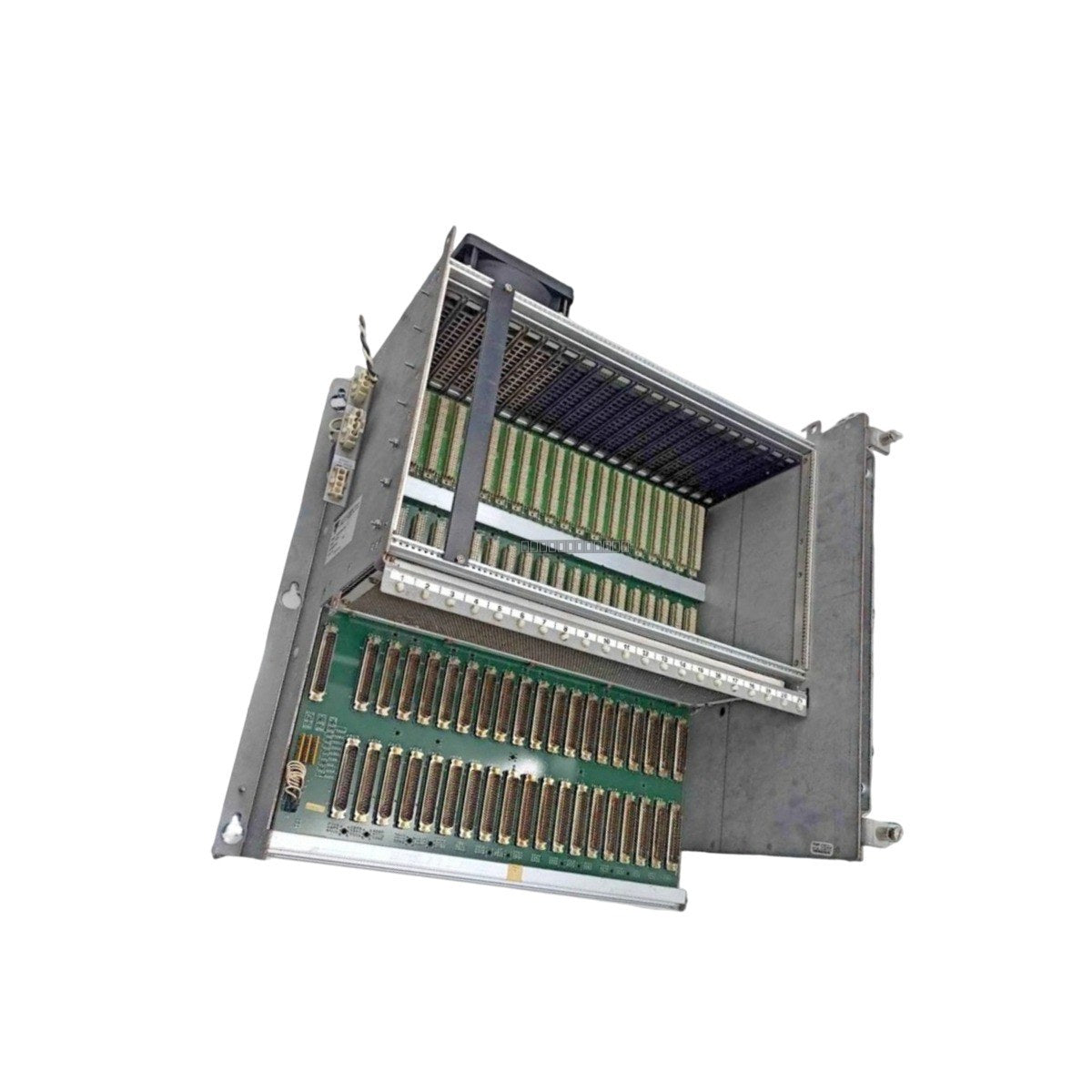

The IS200BPVCG1BR1 is a specialized Backplane ASM Board designed for the GE Speedtronic Mark VI gas turbine control system. This critical infrastructure component serves as the communication backbone for multi-board rack systems in high-demand industrial sectors such as oil and gas refineries, thermal power plants, and large-scale mining operations. By centralizing data distribution between processing modules and field I/O, it ensures consistent signal integrity and rapid hardware integration. The dual-sided design optimizes cabinet space while facilitating direct operator access to external ribbon cable connections, effectively reducing mean time to repair (MTTR) during hardware upgrades or maintenance cycles.

Features

Serves as the primary communication bus for Mark VI rack-mounted control modules.
Features a high-density dual-sided architecture for efficient signal routing.
Equipped with 21 female backplane connectors for secure module seating.
Includes 39 external I/O connectors for ribbon cable and field wiring integration.
Designed for high-vibration environments typical of gas turbine control cabinets.

Applications

This backplane assembly is intended for use within GE Speedtronic Mark VI control systems. It is primarily utilized in power generation, turbine management, and heavy industrial automation environments where reliable, high-speed data communication between I/O modules and processors is required.

Technical Specifications

Model	IS200BPVCG1BR1
Brand	General Electric (GE)
Series	Mark VI Speedtronic
Backplane Connectors	21 Female Ports
External I/O Connectors	39 Ports
Connection Type	Ribbon Cable / Multi-pin Interconnect
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the rack chassis is powered down before attempting to install or remove any modules from the backplane.
Verify that the backplane is securely mounted to the rack frame to prevent mechanical stress on the connectors.
Use ESD-safe handling procedures when touching the board to prevent damage to sensitive electronic components.
Ensure all ribbon cables are fully seated and locked into their respective I/O connectors to maintain signal integrity.
Route external wiring away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IS200BPVCG1BR1?

The IS200BPVCG1BR1 acts as the backplane assembly for the GE Mark VI system, providing the physical and electrical interface required to interconnect multiple control modules and external I/O cables.

Can this board be used in other GE systems?

This board is specifically engineered for the Mark VI Speedtronic series. It is not intended for use in earlier or later generations of GE control systems unless explicitly specified by the manufacturer.

How should I clean the connectors if signal issues occur?

Use only approved electronic contact cleaner and a lint-free applicator. Ensure the system is powered off and the board is completely dry before re-inserting modules.
