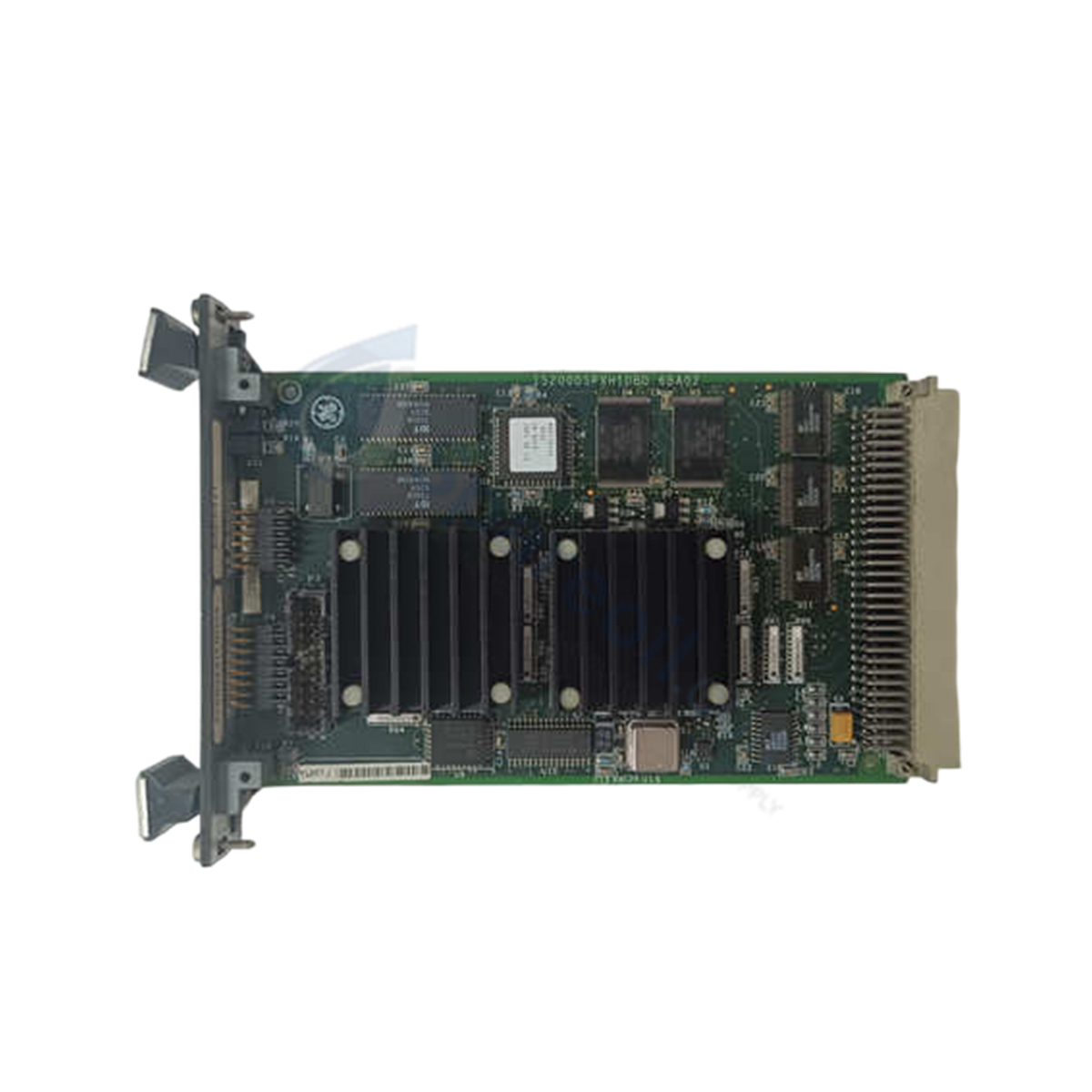

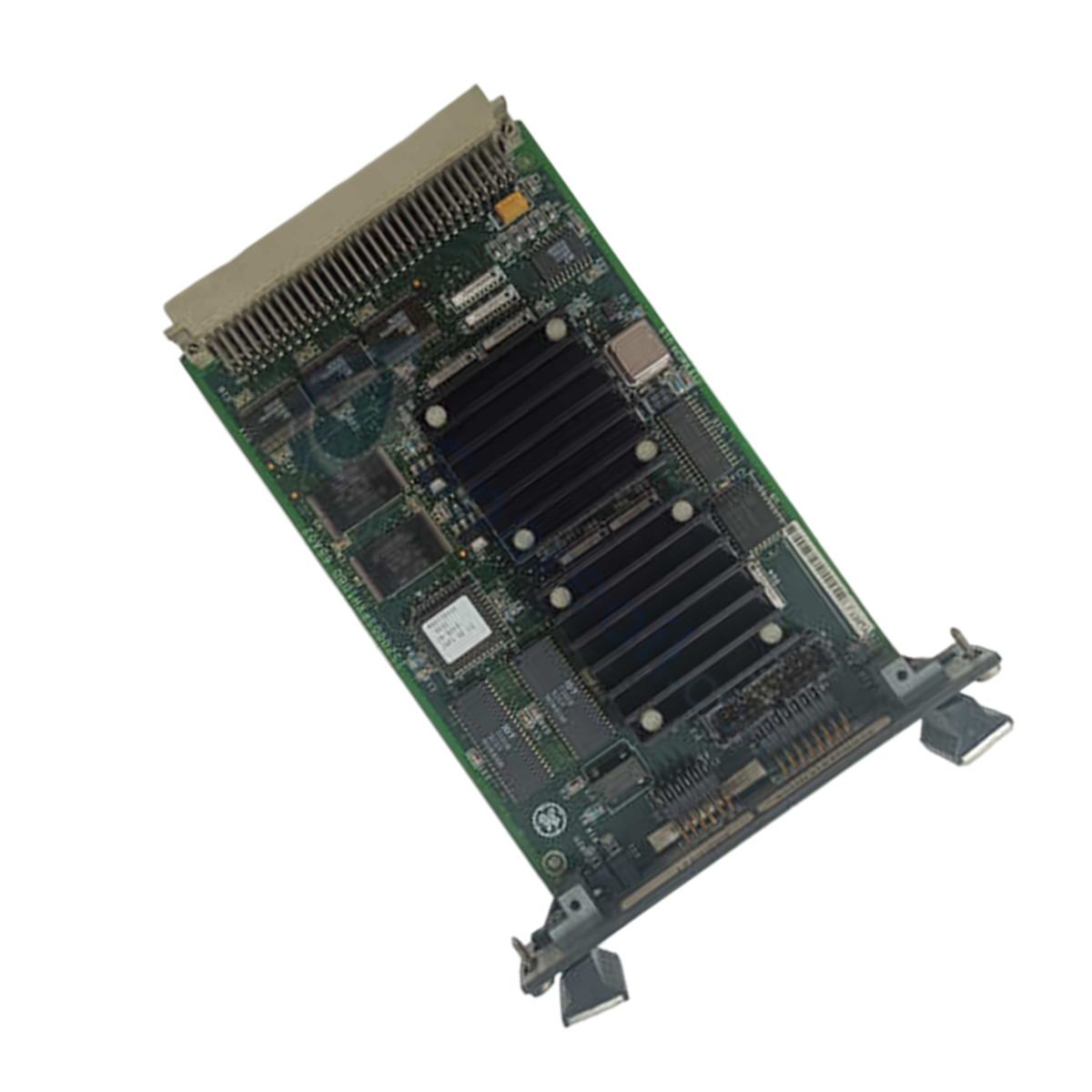

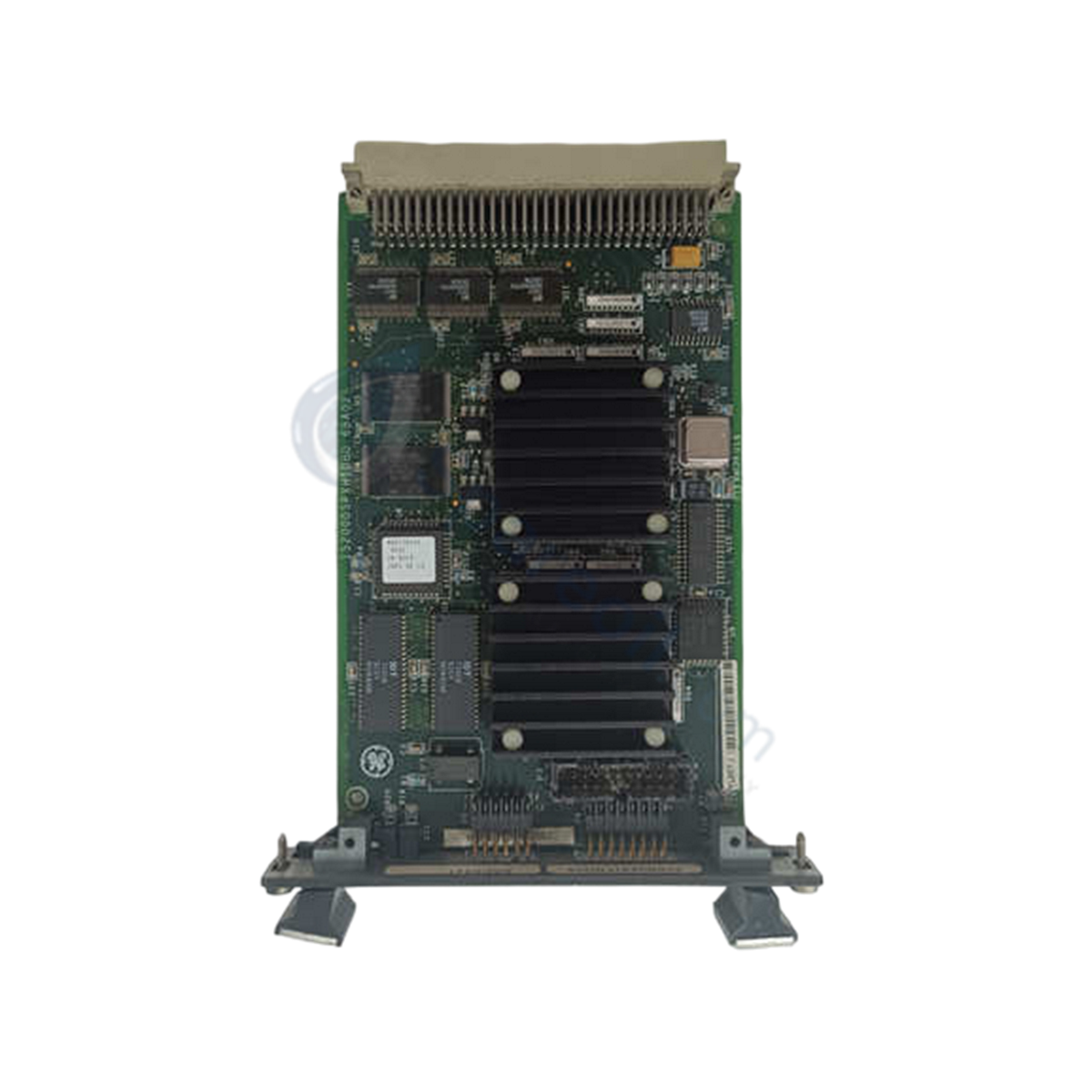

Configured for digital signal processing, gate firing control, and system logic execution in EX2100 Excitation Control systems and Innovation Series drives, the GE IS200DSPXH1DBD (DSPX DSP Control Board) provides direct physical/electrical execution. It handles bridge gate pulse timing, logic processing via embedded ASICs and FPGAs, and backplane data exchanges with engineering tools and emulators.

Hardware Specifications

Parameter Specification
Model IS200DSPXH1DBD
Brand General Electric (GE)
Origin United States of America (USA)
Series EX2100 / Innovation Series
Product Type DSP Control Board (DSPX)
Board Construction Surface Mount Technology (SMT)
Dimensions 33.0 cm high x 17.8 cm wide
Operating Temperature -30 to 65 deg C
Power Consumption Backplane bus powered
Onboard Components Digital Signal Processor, ASIC, FPGA, Standard Memory

Backplane Bus Integration and Deterministic Timing Execution

The IS200DSPXH1DBD utilizes backplane communication channels to maintain deterministic control loops between the digital signal processor and connected module racks. Firmware execution relies on onboard flash memory, while the embedded Application-Specific Integrated Circuit (ASIC) offloads custom logic tasks directly from the main DSP. Signal timing for thyristor and bridge control circuits is maintained via hardware logic inside the FPGA, minimizing gate pulse phase jitter during rapid load transitions.

Frequently Asked Questions

Q: Can the IS200DSPXH1DBD module be inserted while the rack backplane is energized?

A: No. Power to the card rack backplane must be completely de-energized prior to board insertion or removal to prevent electrical transient damage and logic fault states.

Q: What interfaces are integrated for system diagnostics and hardware debugging?

A: The board includes direct physical connection points for an external DSP emulator and engineering software tools, permitting trace analysis and parameter verification without interrupting main backplane traffic.

Field Installation Guidelines

  1. Wear a grounded electrostatic discharge (ESD) wrist strap before opening the protective packaging or handling the circuit board.
  2. Confirm that upstream power feeds to the EX2100 or Innovation Series enclosure are isolated and zero-energy verified.
  3. Align the card edge guides of the 33.0 cm x 17.8 cm board with the dedicated slot channels in the rack frame.
  4. Slide the board inward until the rear multi-pin connector seats firmly into the backplane mating socket.
  5. Tighten all front panel retention screws to secure the module mechanically and ensure ground continuity with the rack chassis.
