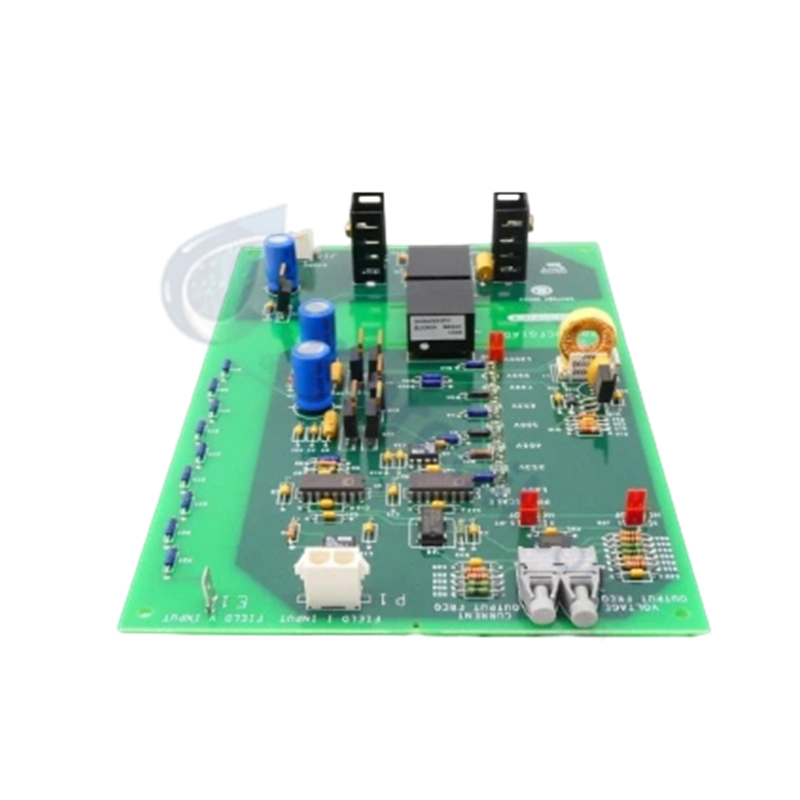

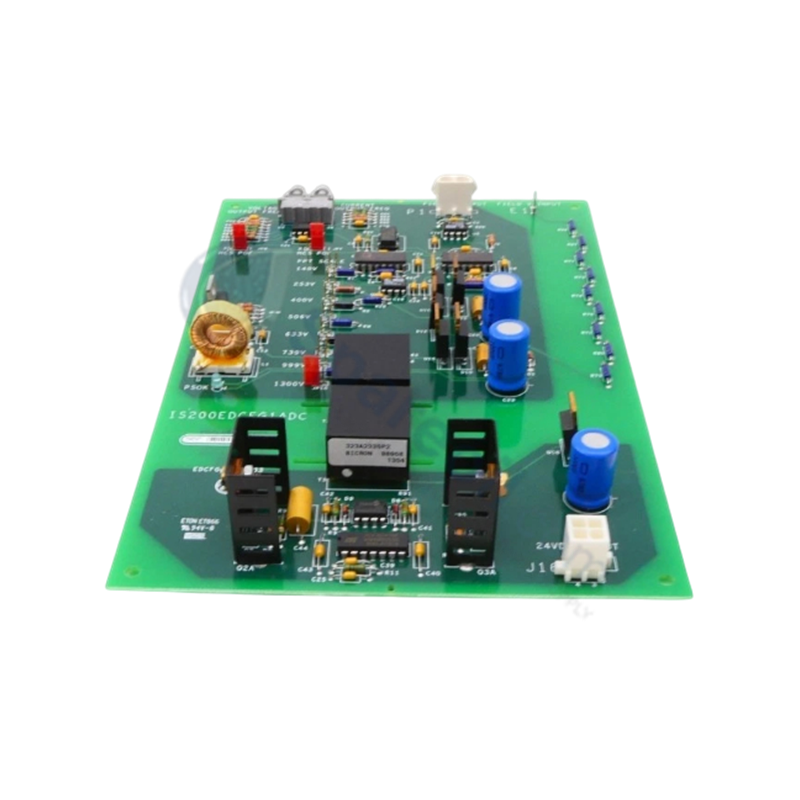

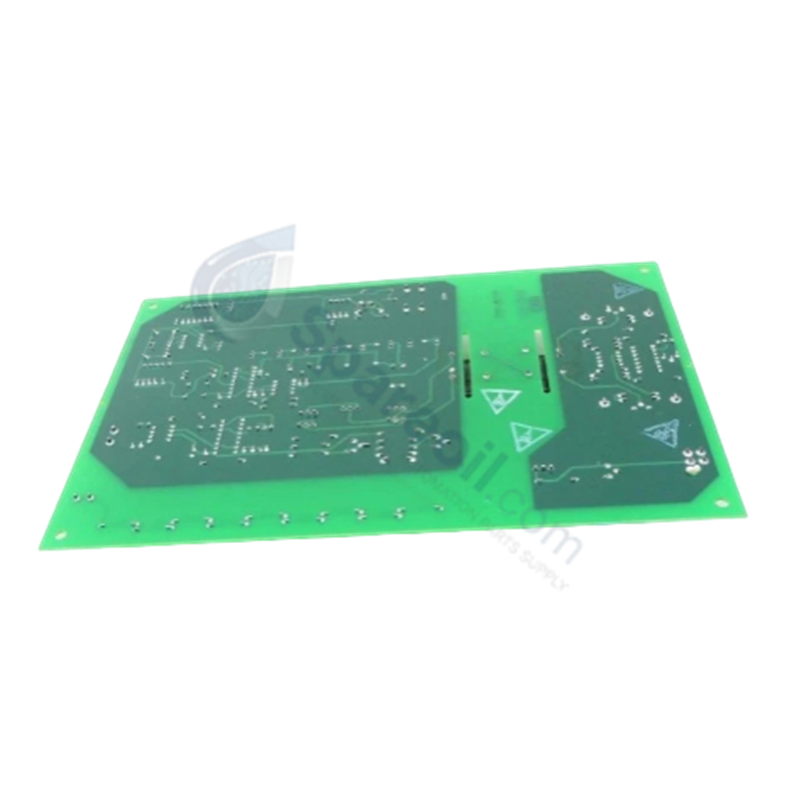

Configured for field voltage and field current measurement from silicon controlled rectifier (SCR) bridges in EX2100 systems, the GE IS200EDCFG1AED (IS200EDCFG1 Exciter DC Feedback Board) provides direct physical/electrical execution. It connects to the Exciter Interface Interface Board (EISB) via high-speed fiber-optic links to maintain galvanic isolation and noise immunity in generator excitation control panels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200EDCFG1AED |
| Brand | GE (General Electric) |
| Series | Mark VI EX2100 |
| Product Type | Exciter DC Feedback Board (EDCF) |
| Functional Acronym | EDCF |
| Fiber-Optic Media | Plastic Optical Fiber (POF) or Hard Clad Silica (HCS) |
| Diagnostic LED | 1 Green LED (PSOK) |
| Power Supply Source | External unit (+/-15 VDC output monitoring) |
| Instruction Manual | GEI-100464A / GEH-6632 |
| Operating Temp | 0 to 60 deg C |
Backplane and Deterministic Communication Performance
The IS200EDCFG1AED board utilizes dedicated high-speed fiber-optic media to interface directly with the EISB module within the excitation control panel. This optical interface bypasses copper backplane bus communication velocity limits, preventing high-voltage transients from propagating to core processing logic. By transmitting digitized feedback signals over plastic or hard clad silica fibers, the unit maintains deterministic feedback latency while eliminating common-mode voltage hazards inherent to power conversion bridges. On-board voltage detection circuits continuously evaluate the external +/-15 VDC supply, driving the green PSOK LED to signal nominal rail voltages before data conversion routines execute.
Frequently Asked Questions
Q: How is board status verified during initial power-up?
A: The board features a single green LED designated as PSOK. This indicator illuminates when the externally supplied +/-15 VDC power rails meet the required operating thresholds.
Q: What optical cables are qualified for signal transmission with the EDCF card?
A: The board accepts both standard Plastic Optical Fiber (POF) and Hard Clad Silica (HCS) fiber-optic cables for link establishment to the EISB interface card.
Field Installation Guidelines
- Fiber Optics: Ensure minimum bend radius limits are respected during routing of plastic or hard clad silica optical fibers. Inspect fiber tips for contamination before mating with transceivers.
- Power Supply Verification: Confirm external +/-15 VDC power sources meet voltage tolerance specifications prior to board insertion. Verify PSOK LED illumination upon energization.
- ESD Protection: Handle the module using anti-static wrist straps grounded to the panel frame to prevent static discharge to exposed surface-mount components.
- Cabinet Isolation: Maintain physical separation between fiber-optic signal lines and high-current SCR power cables inside the EX2100 enclosure to avoid physical insulation degradation.
