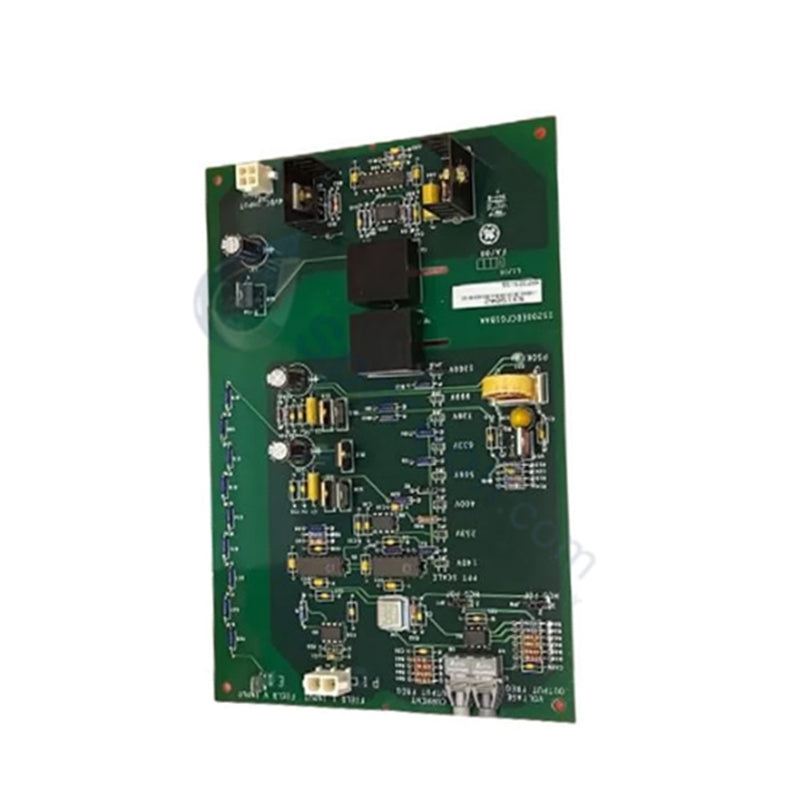

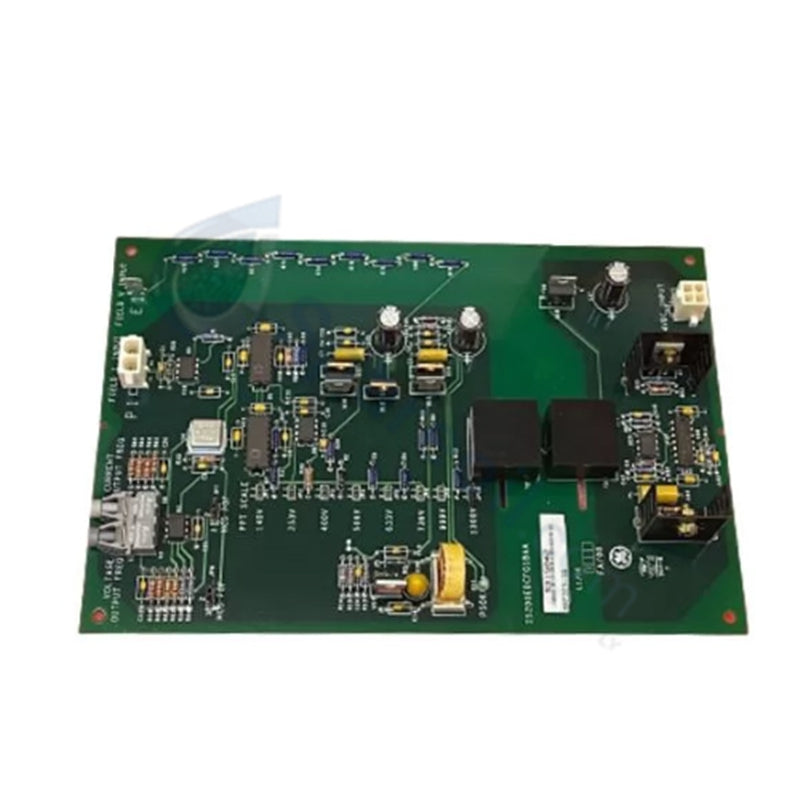

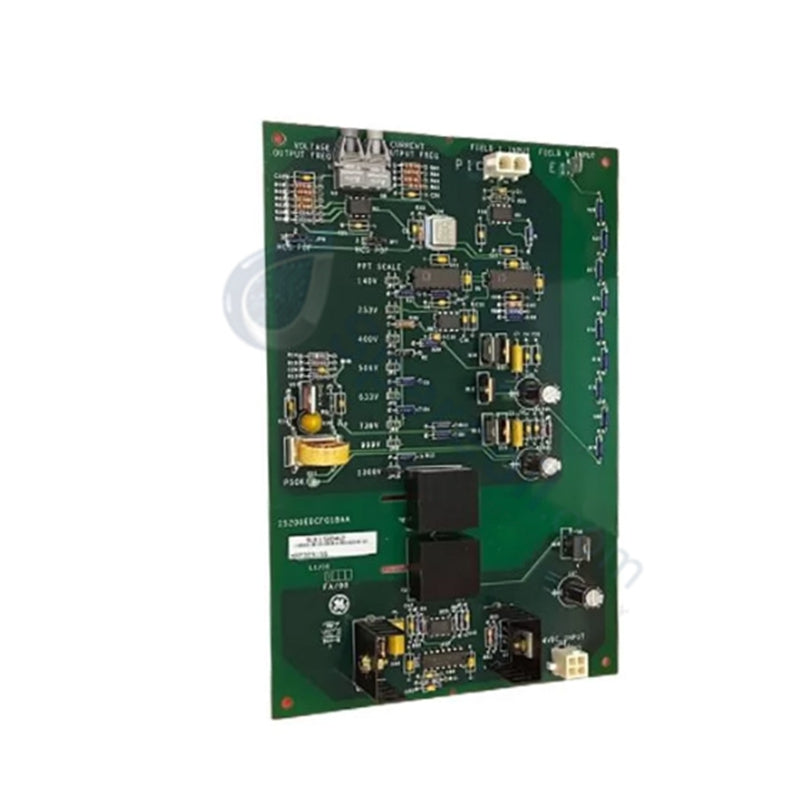

The GE IS200EDCFG1BAA, also cataloged as the IS200EDCFG1B Exciter DC Feedback Board, operates as a dedicated hardware component for real-time sensor processing and actuator feedback routing within GE EX2100 excitation control platforms.

Hardware Specifications

Parameter Specification
Model IS200EDCFG1BAA
Brand GE (General Electric)
Origin USA
Weight 1.2 kg
Dimensions 40 cm x 30 cm x 8 cm
Operating Temp -40 to 70 deg C
Power Consumption Approximately 8 W
System Series EX2100 Excitation Control System
Nominal Power Supply 24 VDC or 125 VDC (+/-10% tolerance)
Output Ratings 24 VDC output; Relay contact load capability up to 1 A
Embedded Protection Overcurrent, overvoltage, short circuit, and reverse polarity protection
Serial Interfaces Modbus RTU/ASCII (RS-232 / RS-485 / UART / I2C / USB / Ethernet)

Backplane Bus Communication Velocity & Deterministic Networks

The IS200EDCFG1BAA conditions binary digital inputs and executes relay or solid-state outputs across real-time control architectures. Communicating via industrial network protocols including Modbus RTU/ASCII and deterministic Ethernet links, the board exchanges localized telemetry data directly with main excitation processors. High-speed signal paths maintain low propagation delay to maximize backplane bus communication velocity, while onboard firmware flash compatibility ensures synchronized fault detection and continuous operational status monitoring across interconnected rack assemblies.

Frequently Asked Questions

Q: What power supply options are compatible with the IS200EDCFG1BAA circuit board?

A: The board operates from a nominal supply of either 24 VDC or 125 VDC with an operational voltage tolerance of +/-10%.

Q: What electrical protection mechanisms are implemented on the board circuitry?

A: Integrated onboard protection circuits guard against overcurrent, overvoltage, output short circuit, and reverse power supply polarity conditions.

Q: What current capacity limit applies to the output relay contacts?

A: Each output relay contact is rated to switch continuous electrical loads of up to 1 A.

Field Installation Guidelines

  1. Electrically isolate all 24 VDC and 125 VDC power supplies feeding the excitation control cabinet before touching internal hardware.
  2. Attach a grounded anti-static wrist strap to an unpainted metal chassis frame point to protect onboard logic ICs from electrostatic discharge.
  3. Align the 40 cm x 30 cm board assembly with the assigned mounting slot guide tracks inside the card rack.
  4. Insert the module fully into the backplane receiver and hand-tighten all retaining panel screws to ensure solid ground connection.
  5. Terminate all binary input and output wiring in accordance with channel schematics, verifying that relay output current draw remains below 1 A.
  6. Verify field signal cable shielding is grounded at the designated enclosure earth terminal bar before applying operational power.
