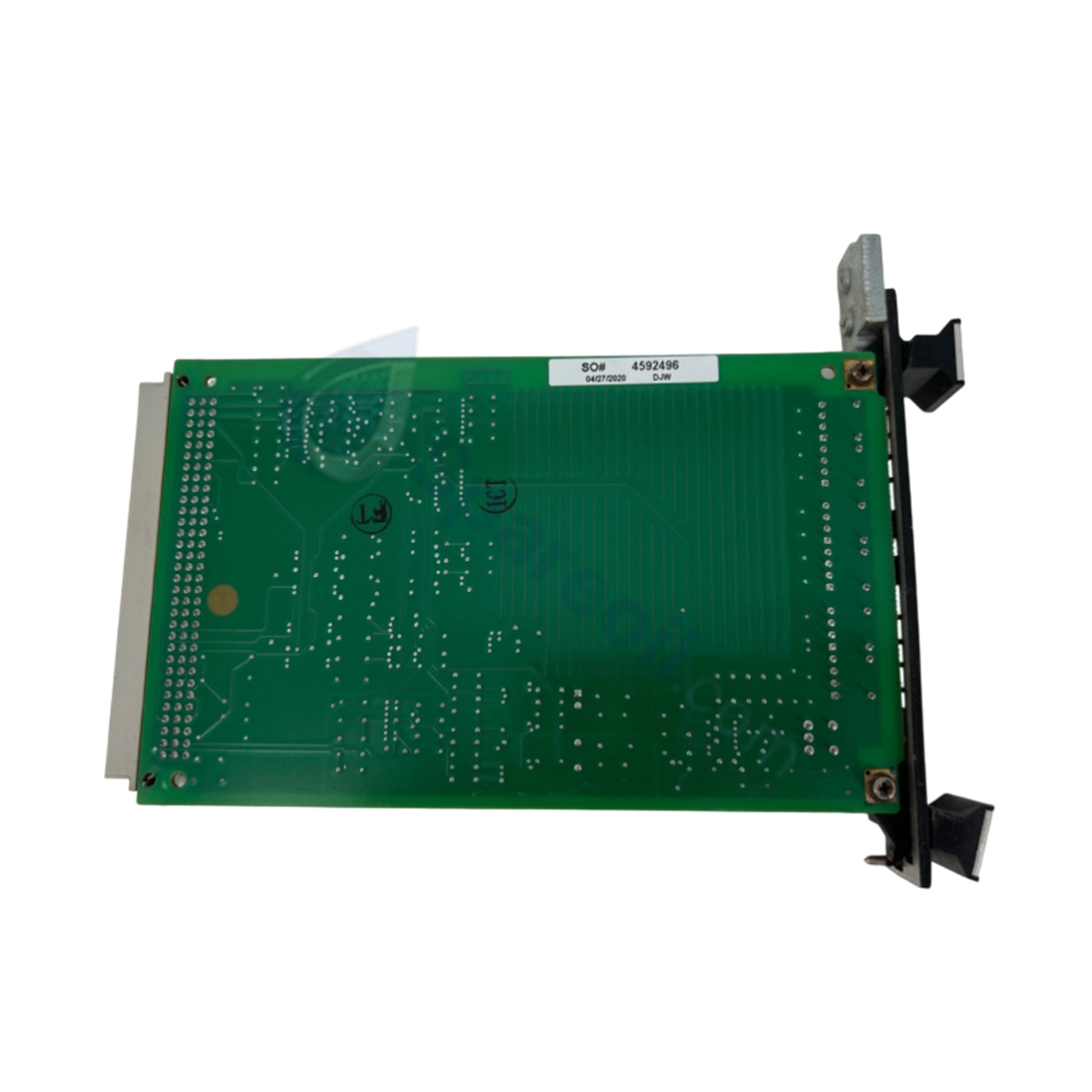

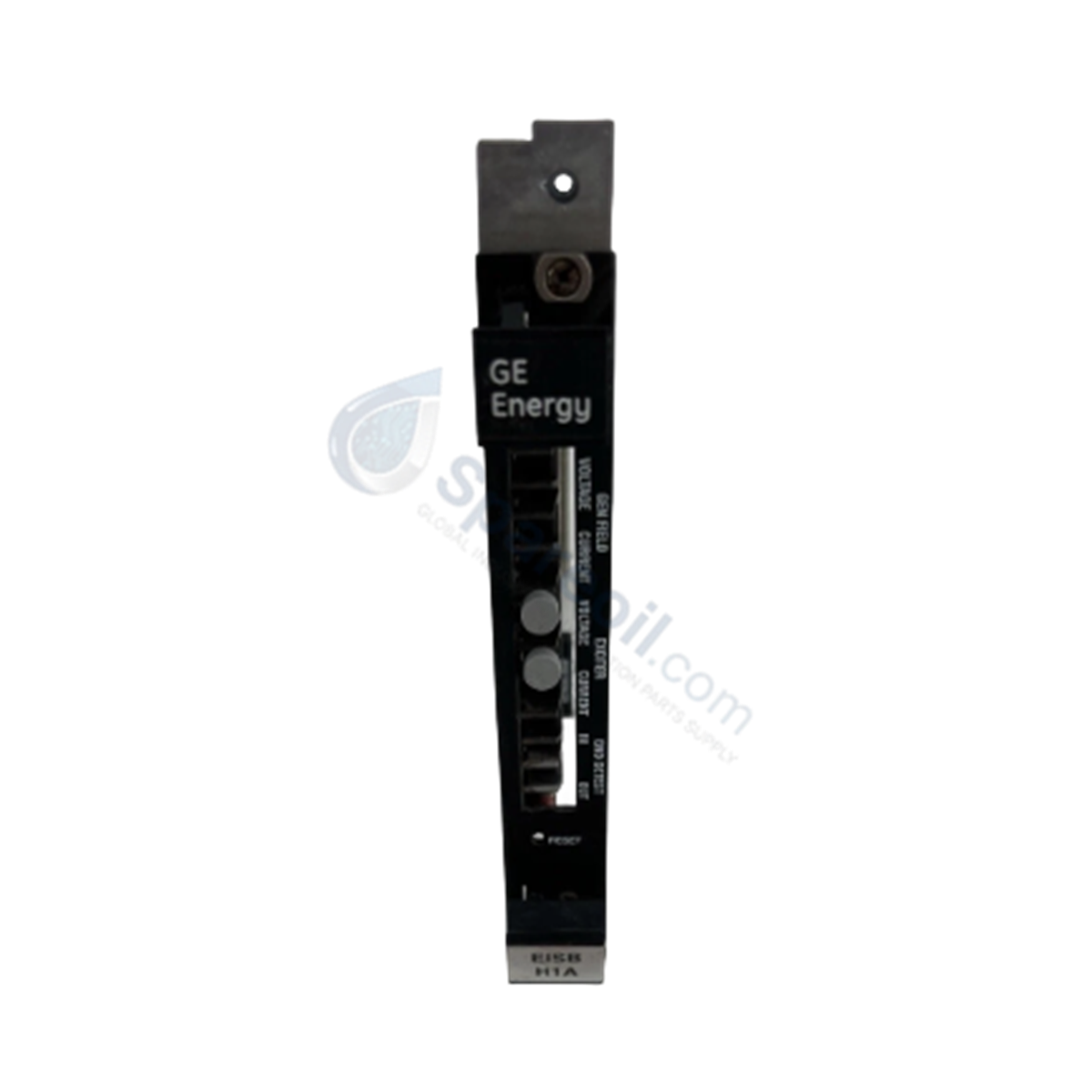

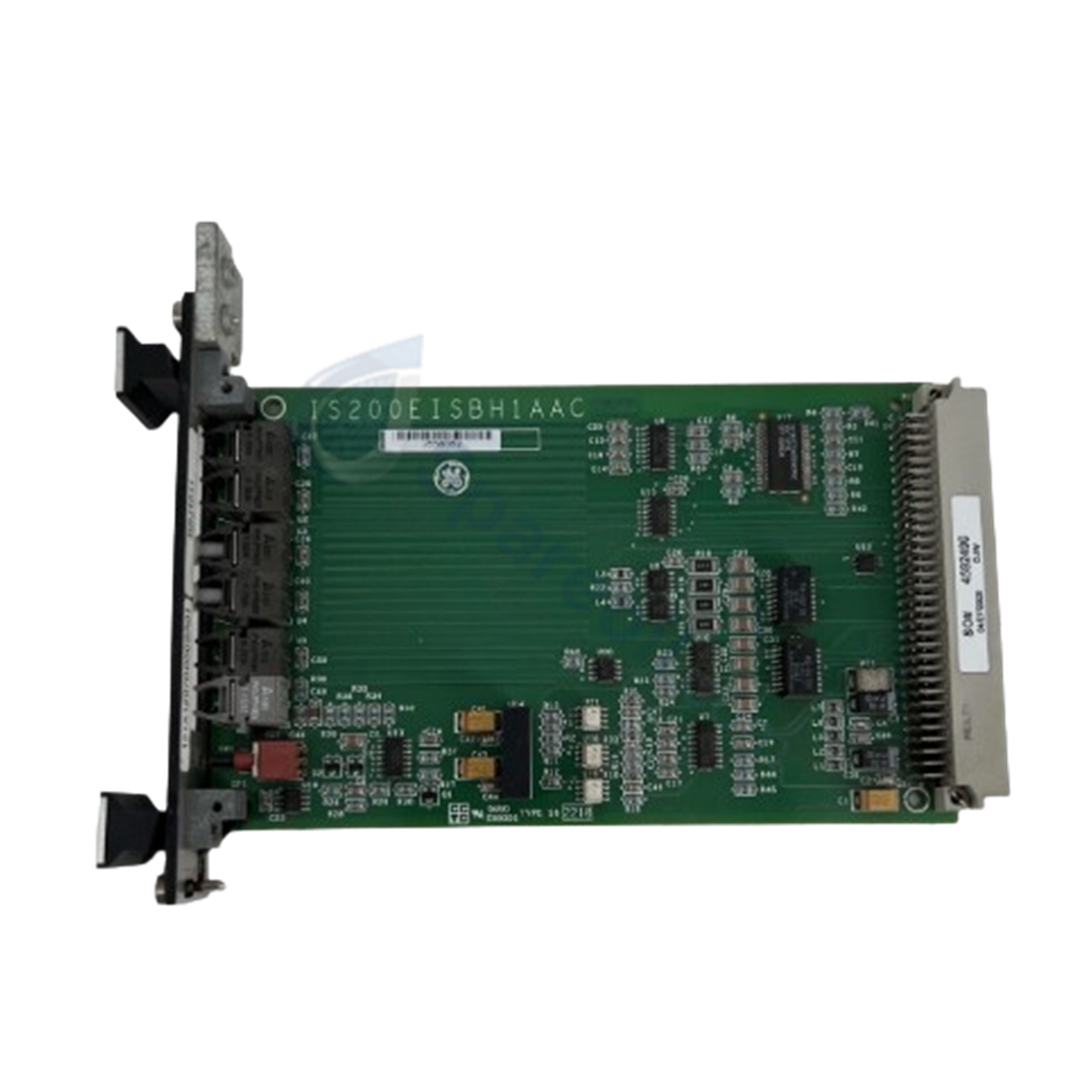

Configured for optical data transmission and internal backplane signal conversion in GE EX2100 control systems, the GE IS200EISBH1AAC (IS200EISB Exciter ISBus Board) provides direct physical/electrical execution. It serves as an integrated communication interface, receiving and routing high-speed fiber-optic feedback signals across the control backplane directly to the DSPX controller. Manufactured with surface-mount technology, the board manages deterministic real-time data loops while maintaining operational stability across ambient temperatures from -30 to 65 deg C.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200EISBH1AAC |
| Brand | General Electric (GE) |
| Origin | United States |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | Backplane powered |
| Series | EX2100 |
| Product Type | Exciter ISBus Board (EISB) |
| Circuit Assembly | Surface-mount technology |
| Communication Medium | Fiber-optic interface / ISBus backplane |
| Target Interface Controller | DSPX controller |
Firmware Flash Compatibility and Deterministic Optical Interfacing
The IS200EISBH1AAC coordinates high-speed optical signals with internal bus protocols, maintaining full firmware flash compatibility for system synchronizations managed via ControlST or EX2100 system tools. The board executes conversion of incoming fiber-optic streams into backplane bus signals, ensuring minimal transmission latency to the DSPX processor. This deterministic data pathway enables continuous parameter tracking and loop adjustments without degrading backplane communication velocity.
Frequently Asked Questions
Q: What primary signal type does the IS200EISBH1AAC handle within the EX2100 control system?
A: The board acts as a hardware interface for high-speed fiber-optic feedback signals, converting optical inputs into backplane electrical signals for the DSPX controller.
Q: What operating temperature range is specified for the IS200EISBH1AAC board?
A: The board is rated for operation across ambient temperatures from -30 to 65 deg C.
Q: How is power provided to the IS200EISBH1AAC circuit board?
A: Power is drawn directly from the EX2100 rack backplane power distribution rails upon insertion into the rack assembly.
Field Installation Guidelines
- Isolate all rack power feeds and lock out power distribution units prior to inserting or removing the IS200EISBH1AAC card.
- Put on an electrostatic discharge (ESD) grounding wrist strap connected to an unpainted panel surface before handling the circuit board.
- Inspect the fiber-optic transceivers on the board for dust or debris; keep protective dust caps installed until fiber connections are made.
- Align the module card edges with the designated EX2100 rack slot card guides and seat the backplane multi-pin connector securely.
- Connect clean fiber-optic cables to the transceiver ports, ensuring minimum bend radius limits are maintained to prevent optical signal attenuation.
