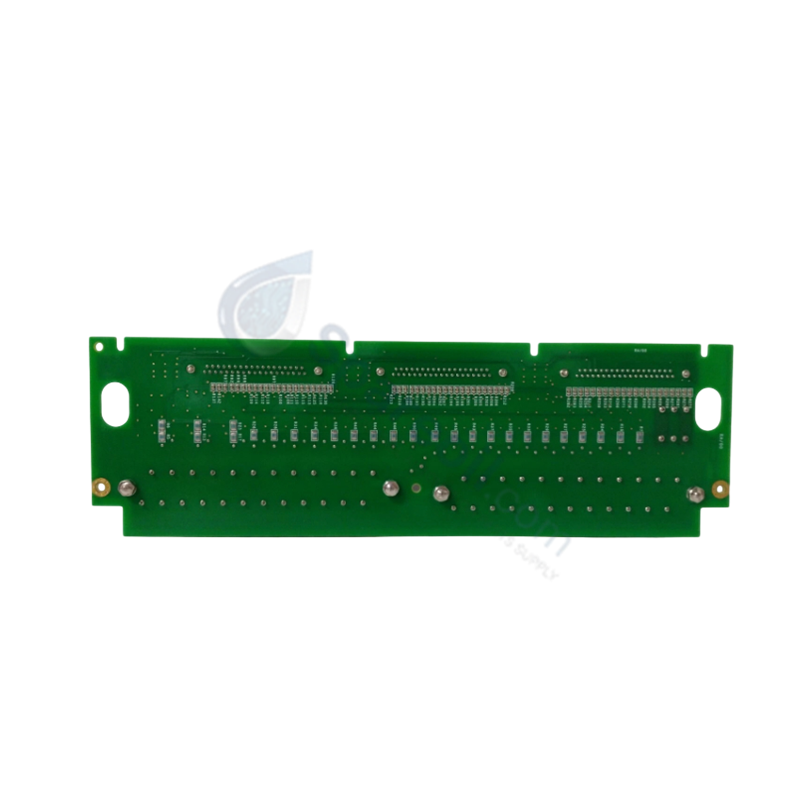

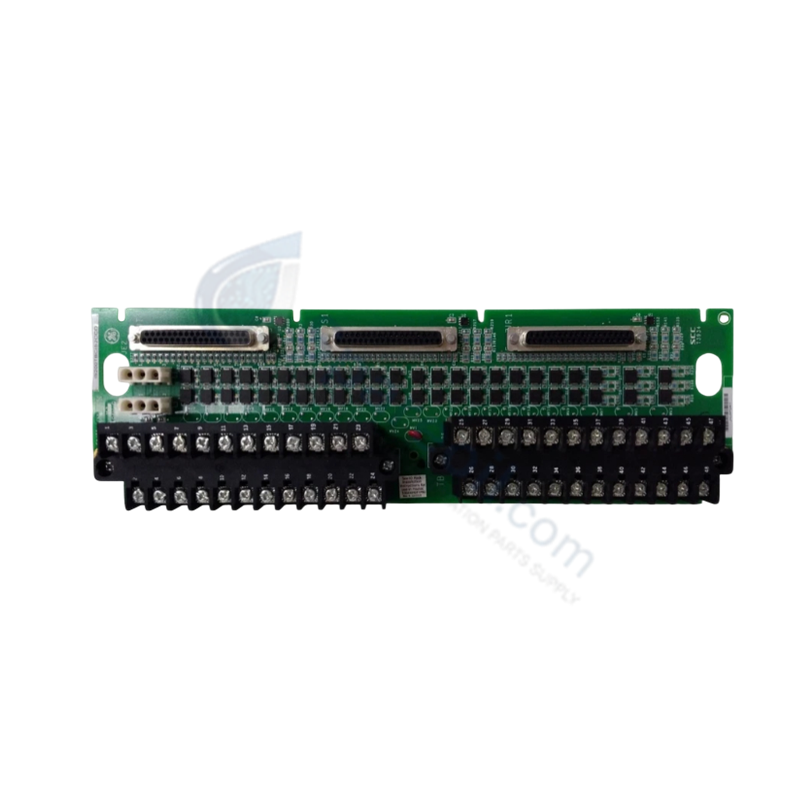

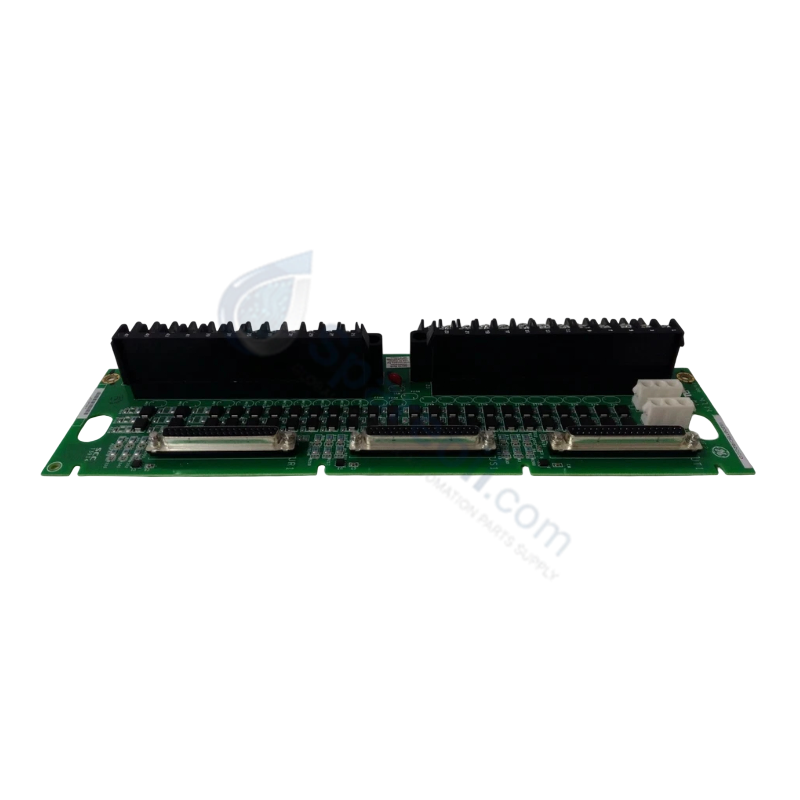

The GE IS200TBCIS2CCD, also cataloged as the IS200TBCI Control Terminal Board, operates as a dedicated hardware component for field signal termination and I/O distribution within GE Mark VI Speedtronic platforms. The board conditions discrete and analog input/output signals, connecting field transmitters and actuators directly to internal VMEbus I/O packs.

Hardware Specifications

Parameter Specification
Model IS200TBCIS2CCD (IS200TBCI)
Brand GE (General Electric)
Origin USA
Weight 2.2 lbs (1.0 kg)
Dimensions 13.39 in x 8.50 in x 2.17 in (340 mm x 216 mm x 55 mm)
Operating Temp -40 to 85 deg C
Power Consumption 10 W
Nominal Voltage 24 VDC
Input/Output Points 32 channel points
Communication Interface Ethernet, RS-232, and dedicated system bus
Humidity 5% to 95% (non-condensing)

Deterministic Network Backplane Bus Velocity and I/O Density Scaling

The IS200TBCIS2CCD handles signal concentration across 32 discrete I/O channels to optimize backplane bus communication velocity across Mark VI control racks. Onboard filter networks suppress high-frequency line noise, preserving signal integrity during real-time data frame transfers. Supporting flexible I/O density scaling architectures, the unit integrates firmware flash compatibility to match connected controller rack configurations, maintaining synchronized operational states across simplex and redundant termination configurations.

Frequently Asked Questions

Q: How are field wiring connections landed on the IS200TBCIS2CCD?

A: Field wiring terminates directly onto barrier-style screw terminal blocks located on the board surface, interfacing to control racks via standard multi-pin cable harnesses.

Q: Can the IS200TBCIS2CCD be replaced while system power is applied?

A: Power to the specific terminal board and connected field loops must be isolated prior to removal to avoid signal disruptions or physical damage to onboard filter components.

Q: What mechanisms ensure noise immunity across the 32 input/output channels?

A: Onboard passive filtering networks and galvanic isolation circuits protect signal paths from electromagnetic interference and common-mode voltage surges.

Field Installation Guidelines

  1. De-energize all primary 24 VDC power distribution feeds to the terminal board before initiating physical installation or wiring changes.
  2. Wear an ESD grounding wrist strap connected to a bare metal frame surface during unit handling.
  3. Secure the board to the panel DIN rail or mounting studs using standard mechanical fasteners to maintain structural earth ground contact.
  4. Route low-voltage analog and discrete signal cables through separate wire ducts away from high-voltage AC lines to prevent inductive coupling.
  5. Torque all terminal block screw connections to vendor specifications and ground shielded cable drain wires at the cabinet ground bus.
