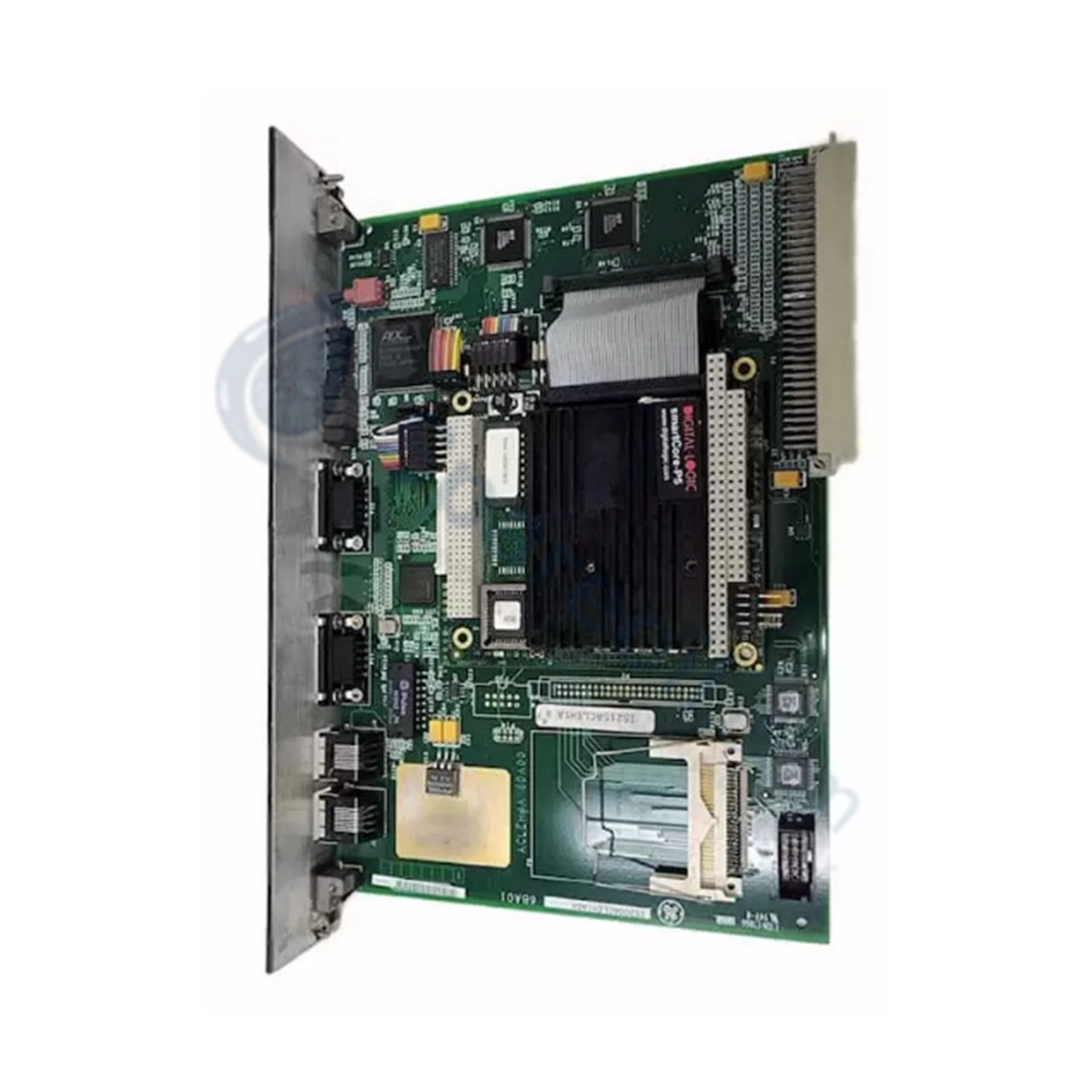

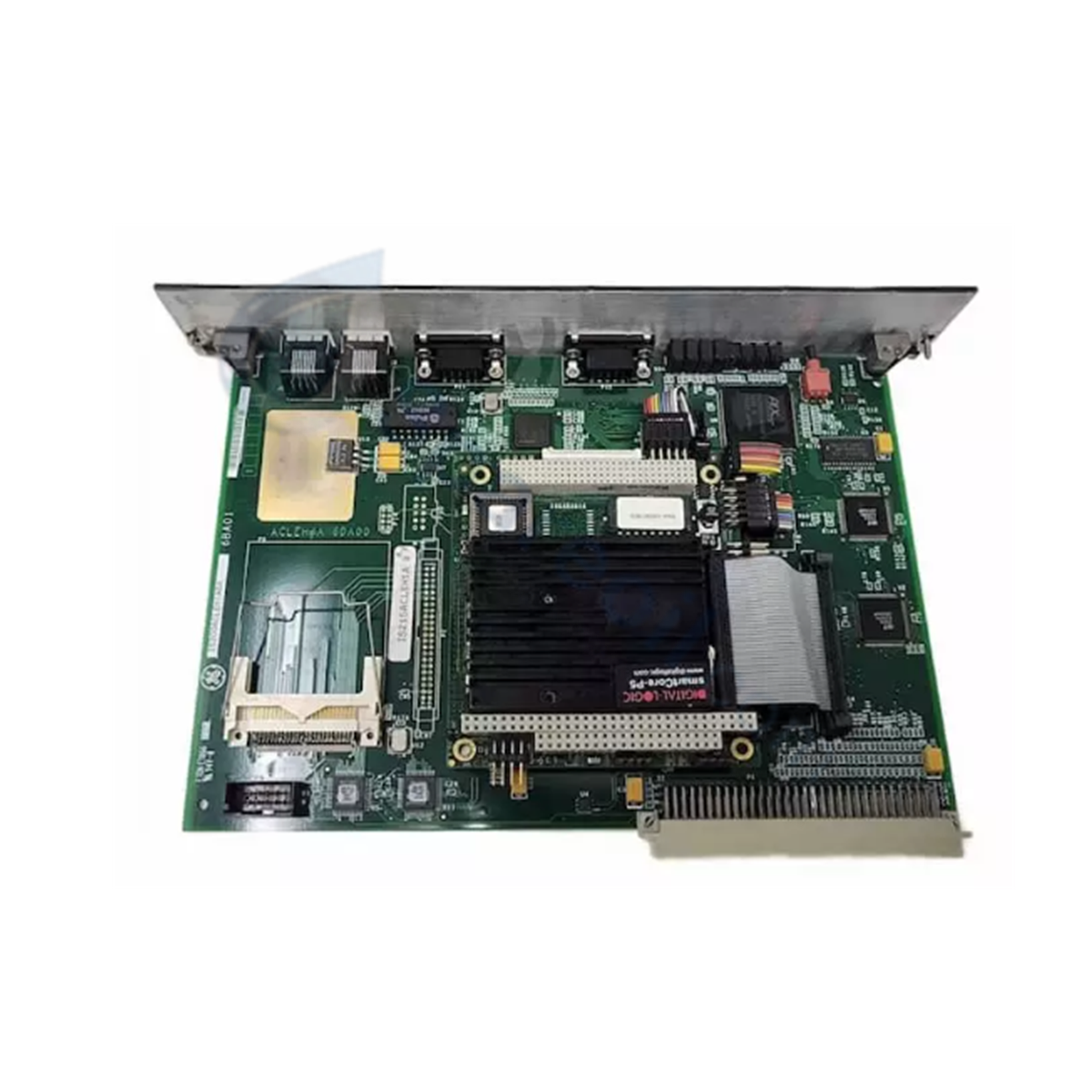

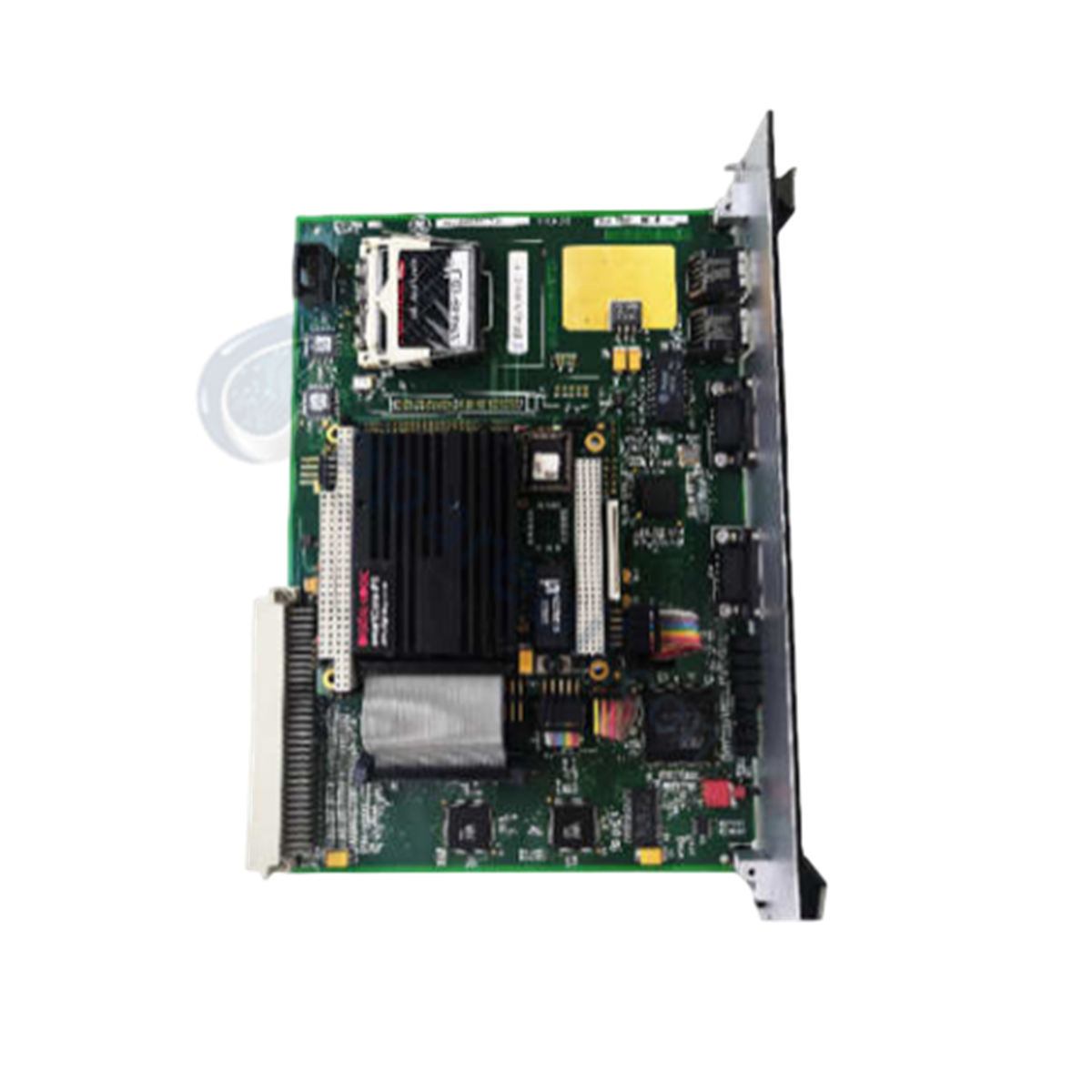

The GE IS215ACLEH1A, also cataloged as the IS215ACLE Application Control Layer Module, operates as a dedicated hardware component for application-level logic processing and communication execution within EX2100 excitation control system platforms. Driven by an onboard Intel 486 processor at 100 MHz running the QNX real-time operating system, the unit coordinates system-level control loops across 12 channels and transmits telemetry data via an integrated 10BaseT Ethernet interface.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS215ACLEH1A |
| Brand | GE (General Electric) |
| Origin | USA |
| Dimensions | 15.9 cm (H) x 10.2 cm (W) |
| Operating Temp | 0 to 45 deg C |
| Power Consumption | Backplane powered / 24 VDC output |
| Series | EX2100 |
| Product Type | Application Control Layer Modules |
| Processor | Intel 486 (100 MHz) |
| Operating System | QNX real-time OS |
| Channel Count | 12 channels |
| Ethernet Interface | 10BaseT |
| Output Voltage | 24 VDC |
Backplane Bus Communication and Real-Time Execution
The IS215ACLEH1A hosts a deterministic QNX operating system environment to achieve high backplane bus communication velocity across EX2100 control racks. By utilizing dedicated 10BaseT Ethernet ports alongside backplane interconnects, the board maintains firmware flash compatibility while processing real-time control calculations without pipeline stalls. The board scales I/O density requirements by delegating channel data handling directly through its 12 onboard channels, keeping application-layer control loops synchronized with lower-level excitation gate driver units.
Frequently Asked Questions
Q: What processor architecture and real-time operating system drive the IS215ACLEH1A module?
A: The module relies on an Intel 486 processor running at 100 MHz coupled with the QNX real-time operating system.
Q: What physical communication interface is provided on the module faceplate for network traffic?
A: The module includes a 10BaseT Ethernet interface for local area communication and control system integration.
Q: What operating temperature limits must be maintained for optimal hardware functionality?
A: Ambient temperature around the module must be maintained between 0 deg C and 45 deg C during continuous operation.
Field Installation Guidelines
- Rack Insertion Procedure: Power down the rack enclosure before inserting the IS215ACLEH1A module into its assigned VME backplane slot to prevent electrical stress to pin headers.
- Ethernet Cabling: Connect a shielded twisted-pair (STP) cable to the 10BaseT RJ-45 connector, ensuring cable shields ground properly to minimize noise interference.
- ESD Mitigation: Handle the circuit board using an anti-static wrist strap connected to cabinet frame ground to protect integrated semiconductor components.
- Thermal Management: Ensure panel ventilation slots remain unobstructed to maintain continuous airflow across the module body within the 0 to 45 deg C operating envelope.
