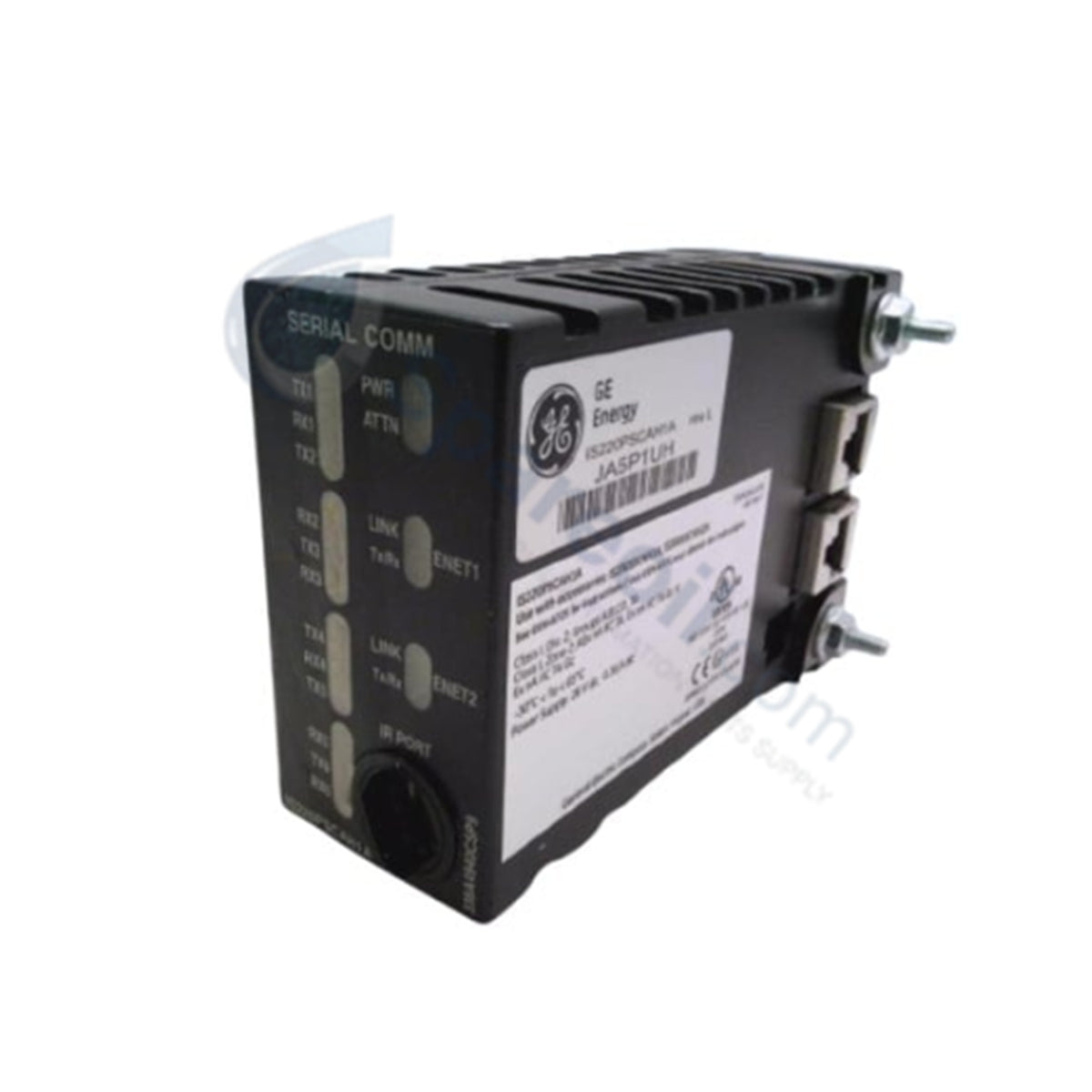

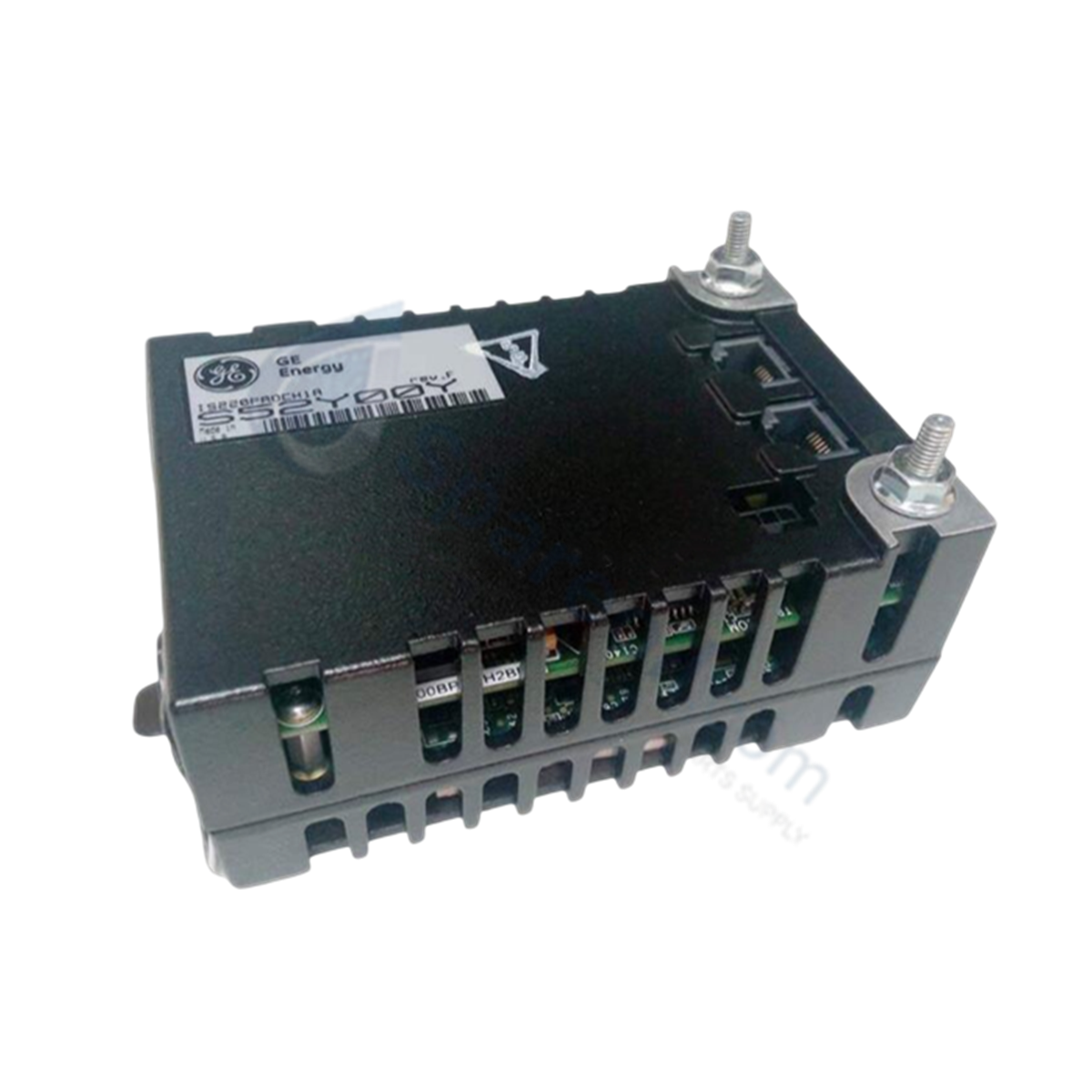

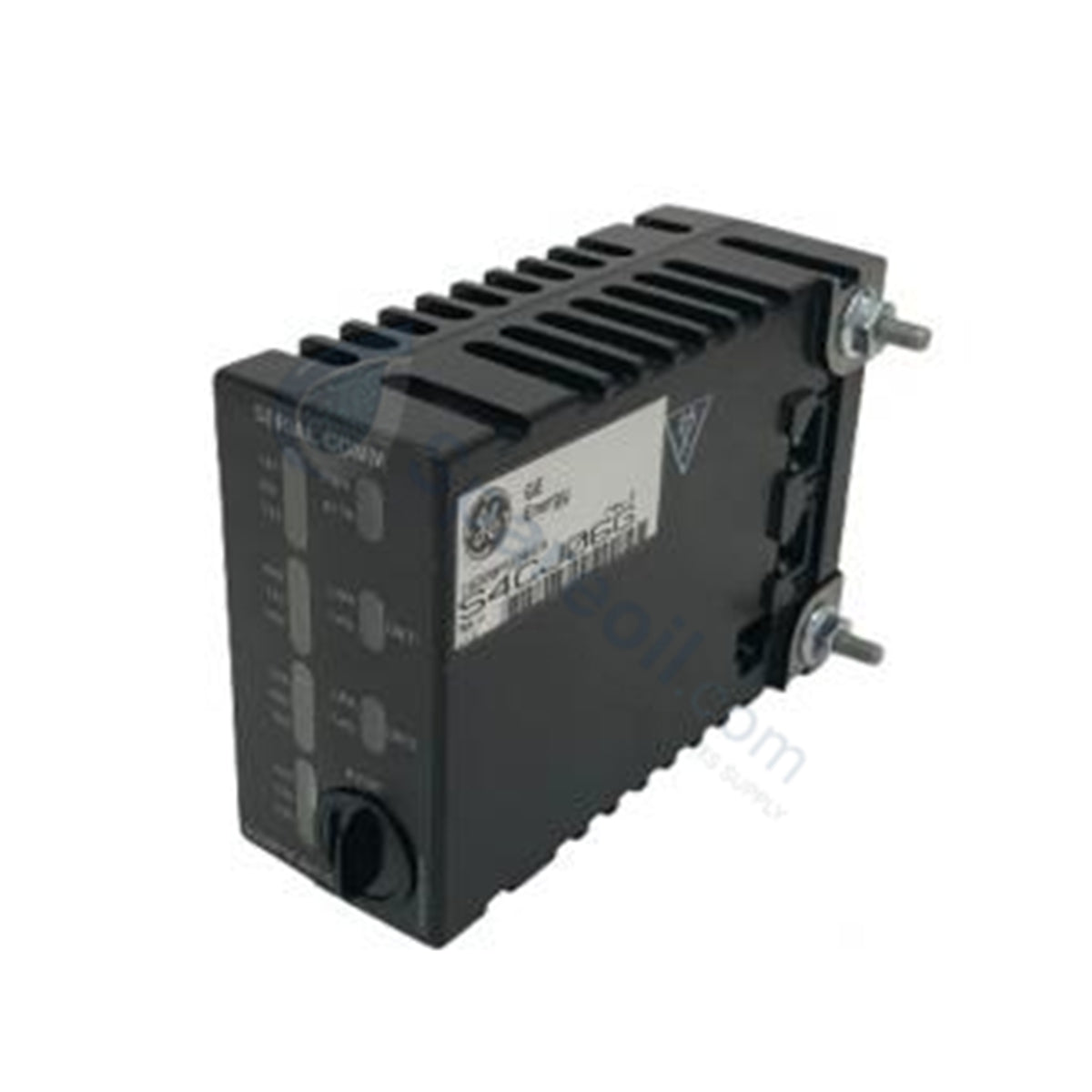

The GE IS220PSCAH1A, also cataloged as the IS220PSCA I/O Pack, operates as a dedicated hardware component for serial Modbus protocol conversion and field data routing within GE Mark VIe control networks. Operating on the QNX real-time operating system, it provides serial communication interfaces and integrates with PS Series DIN-rail mounted power modules featuring short-circuit protection and removable plug connections.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220PSCAH1A |
| Brand | General Electric (GE) |
| Origin | USA |
| Series | Mark VIe |
| Product Type | Serial Modbus Communication I/O Module |
| Operating System | QNX |
| Power Consumption | DIN-rail mounted PS Series supply powered |
| Approvals | UL/cUL 60950, UL 508, UL 1604 (Class I, Div. 2) |
Firmware Flash Compatibility and Deterministic Serial Data Transfer
The IS220PSCAH1A uses the QNX operating system to execute real-time serial Modbus communication protocols and background diagnostic tasks. Onboard logic provides firmware flash compatibility with the host Mark VIe controller network, enabling synchronized parameter updates and data frame validation. Built-in short-circuit protection limits output current during ground faults, preserving component state and bus integrity until the fault condition is cleared.
Frequently Asked Questions
Q: What operating system manages protocol execution on the IS220PSCAH1A module?
A: The module executes communication routines and serial protocol handling using the QNX real-time operating system.
Q: What power supply standards and certifications apply to the system power interfaces?
A: The system power architecture meets UL/cUL 60950, UL 508, and UL 1604 (Class I, Div. 2) standards for industrial control locations.
Q: How does the module handle short-circuit conditions on power circuits?
A: Integrated protection limits short-circuit current by reducing voltage output to prevent hardware damage, resuming standard operation once the fault is removed.
Field Installation Guidelines
- Confirm that all system DC power supplies are turned off and locked out before wiring the IS220PSCAH1A pack.
- Put on an electrostatic discharge (ESD) grounding wrist strap before handling the circuit assembly.
- Mount the module onto the DIN-rail interface or terminal board, ensuring mechanical latches engage completely.
- Plug in the removable wiring connectors and verify serial communication cable shield wires are grounded at the designated terminal point.
- Apply power and verify system health via diagnostic indicators before establishing active serial Modbus polling.
