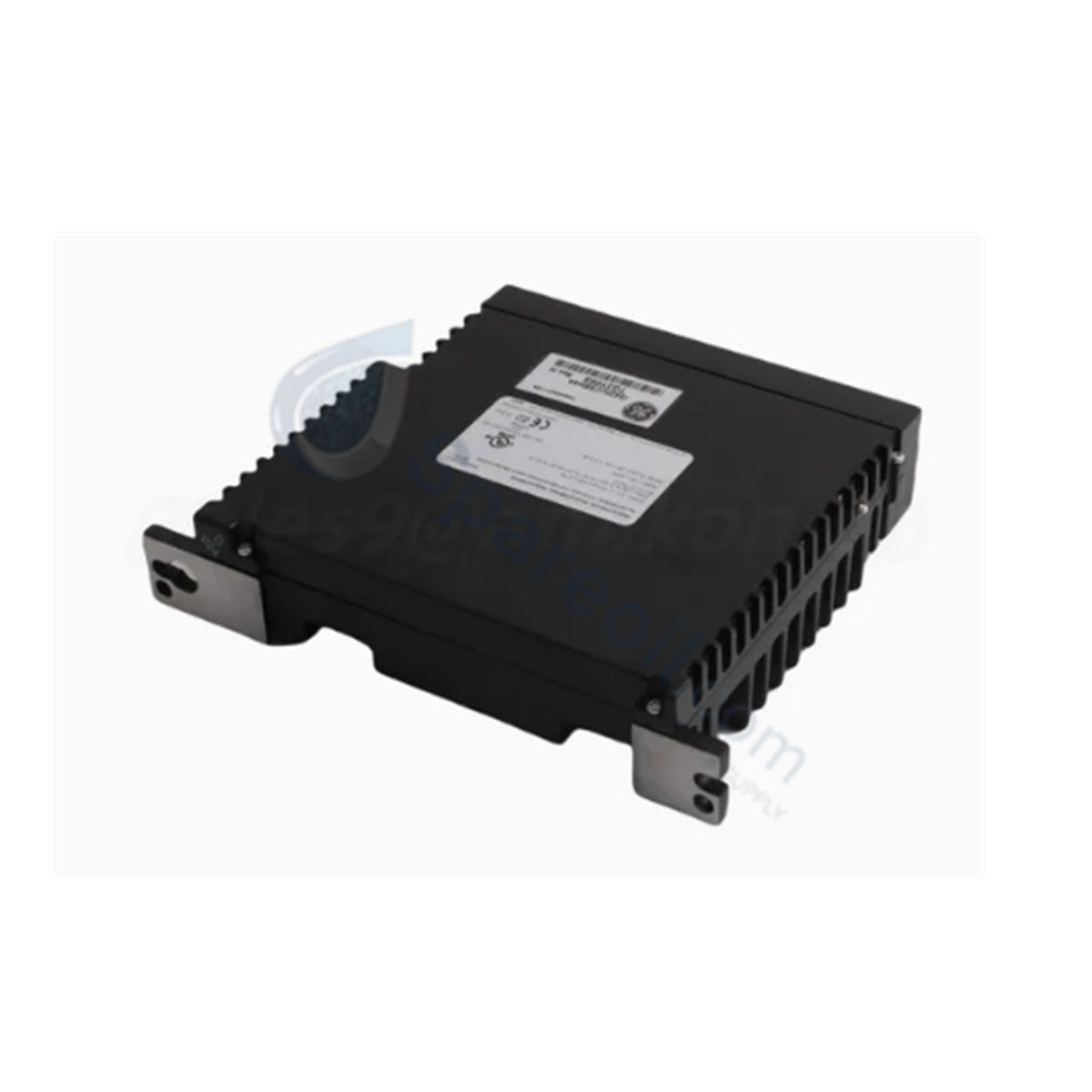

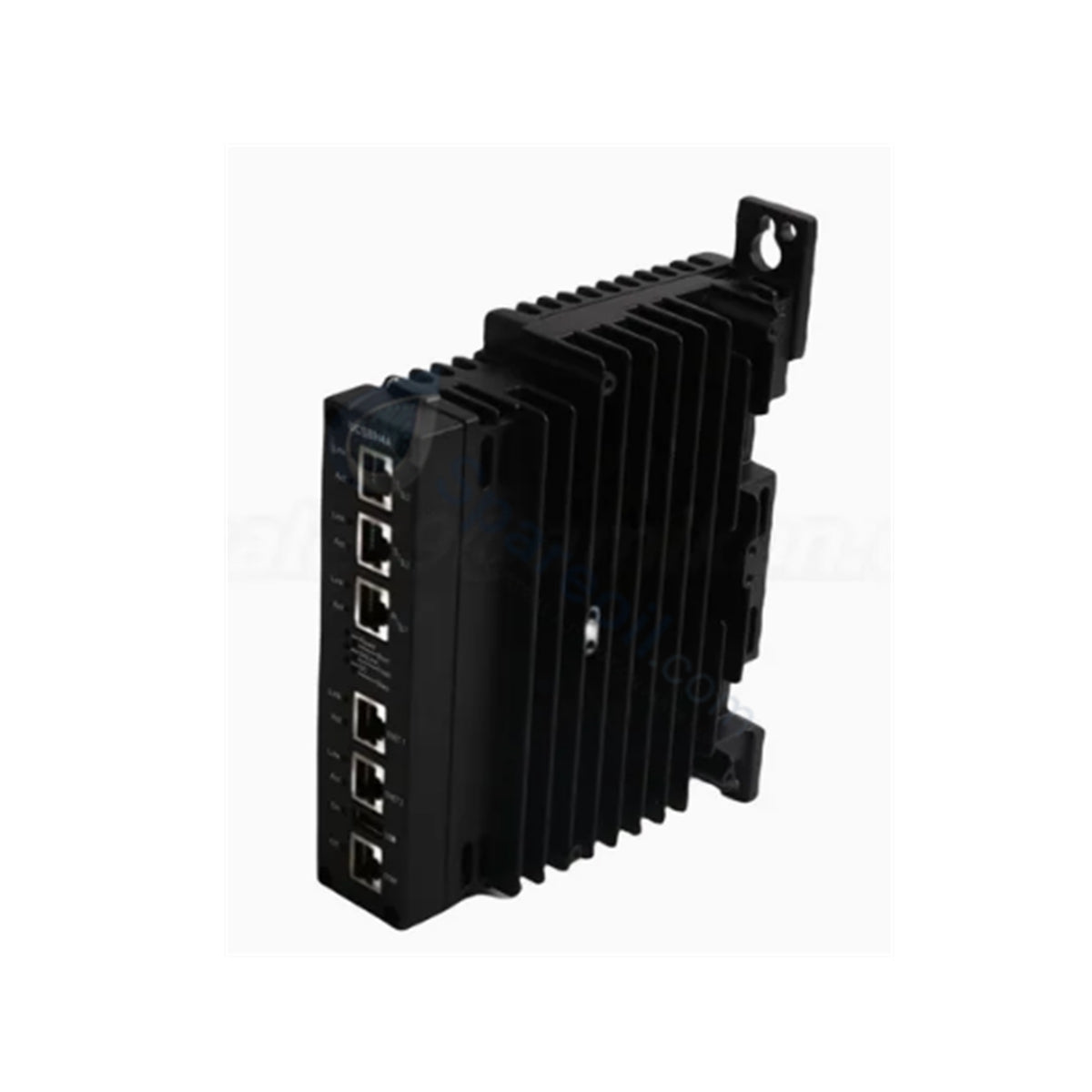

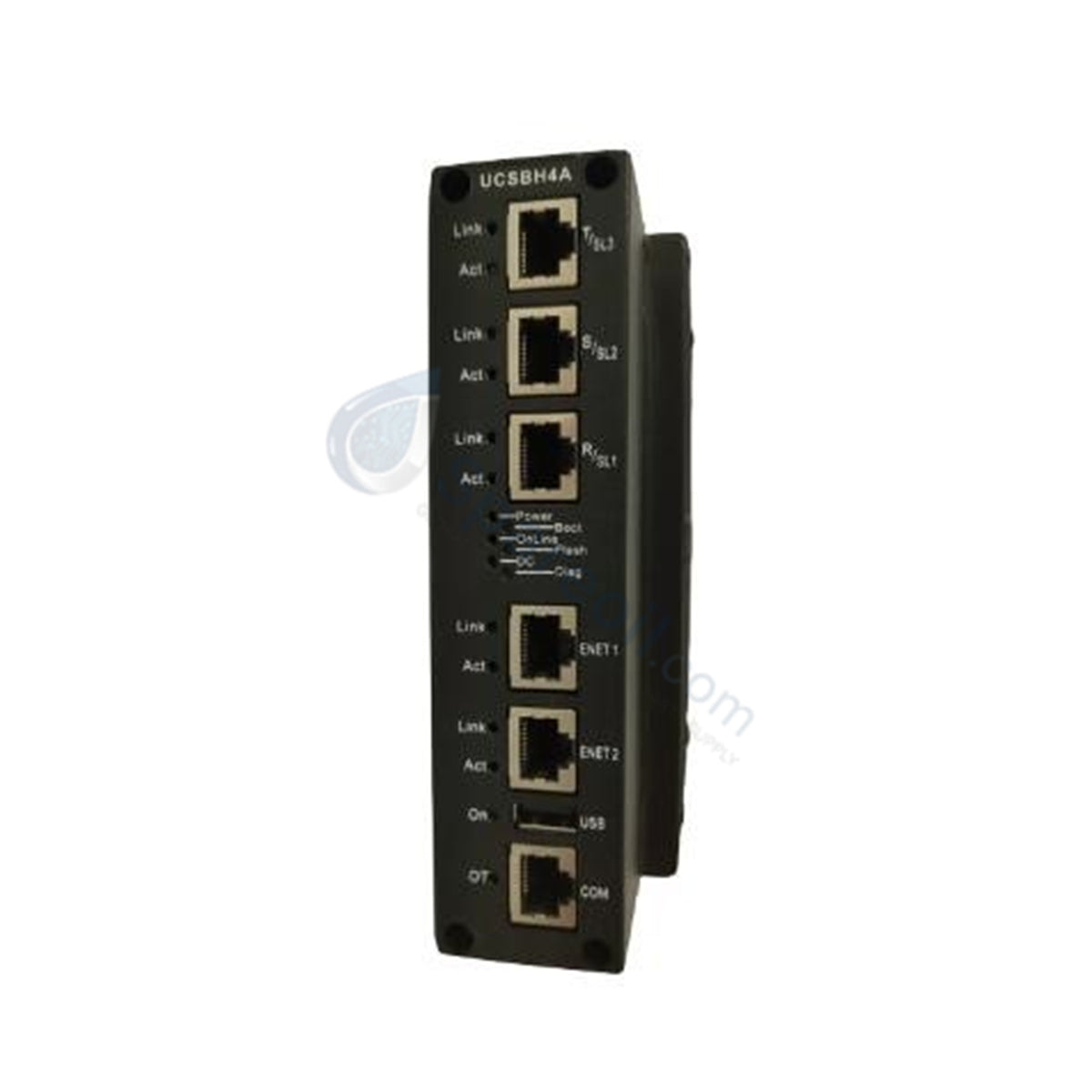

The GE IS420UCSBH4A, also cataloged as the IS420UCSB Controller Module, operates as a dedicated hardware component for application logic execution and IONet signal routing within GE Mark VIe control platforms. Powered by an onboard Intel EP80579 microprocessor running the QNX Neutrino real-time operating system, it communicates with distributed I/O packs over dedicated Ethernet IONet interfaces. Unlike backplane-bound controllers, the standalone panel-mounted unit accesses all network I/O data directly and maintains SIL 2 and SIL 3 functional safety compliance when configured within Mark VIeS safety system architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS420UCSBH4A |
| Brand | General Electric (GE) |
| Origin | United States |
| Series | Mark VIe / Mark VIeS |
| Product Type | UCSB Controller Module |
| Microprocessor | Intel EP80579 (1066 MHz) |
| Memory | 256 MB DDR2 SDRAM |
| Operating System | QNX Neutrino Real-Time OS |
| Communication Interfaces | Onboard Ethernet IONet interfaces |
| Mounting Configuration | Panel-mounted standalone unit |
| Safety Certification | IEC 61508 SIL 2 and SIL 3 capable (Mark VIeS) |
Firmware Flash Compatibility and Deterministic Network Interfacing
The IS420UCSBH4A integrates direct firmware flash compatibility for control application deployment managed via GE ControlST software, enabling system updates without physical memory component replacement. Communicating over dedicated Ethernet IONet channels, the controller executes deterministic data transfers across distributed I/O packs. Because the module operates independently of backplane I/O slots, process input data is gathered directly across redundant network channels, maintaining signal availability during single-controller maintenance cycles.
Frequently Asked Questions
Q: How does the IS420UCSBH4A receive field I/O signals without local backplane slots?
A: The panel-mounted controller connects to the private Ethernet IONet network, receiving process input broadcasts sent directly from distributed Mark VIe I/O packs.
Q: What real-time operating system drives application execution on the IS420UCSBH4A?
A: Application logic executes under the QNX Neutrino real-time multitasking operating system, managed by the onboard Intel EP80579 microprocessor and 256 MB DDR2 SDRAM.
Q: Can the IS420UCSBH4A be utilized in Safety Instrumented System (SIS) architectures?
A: Yes, when integrated within Mark VIeS safety control platforms, the controller hardware and software configuration complies with IEC 61508 standards for SIL 2 and SIL 3 functional safety loops.
Field Installation Guidelines
- Disconnect and isolate all incoming power feeds to the panel enclosure prior to controller installation.
- Wear an electrostatic discharge (ESD) grounding wrist strap connected to an unpainted metal surface before handling the module.
- Mount the module securely onto the panel enclosure bracket using appropriate mechanical fasteners.
- Connect double-shielded Ethernet network cables to the dedicated IONet ports, verifying cable shield termination to cabinet ground.
- Apply power to the cabinet and verify system startup status using ControlST diagnostic utilities.
