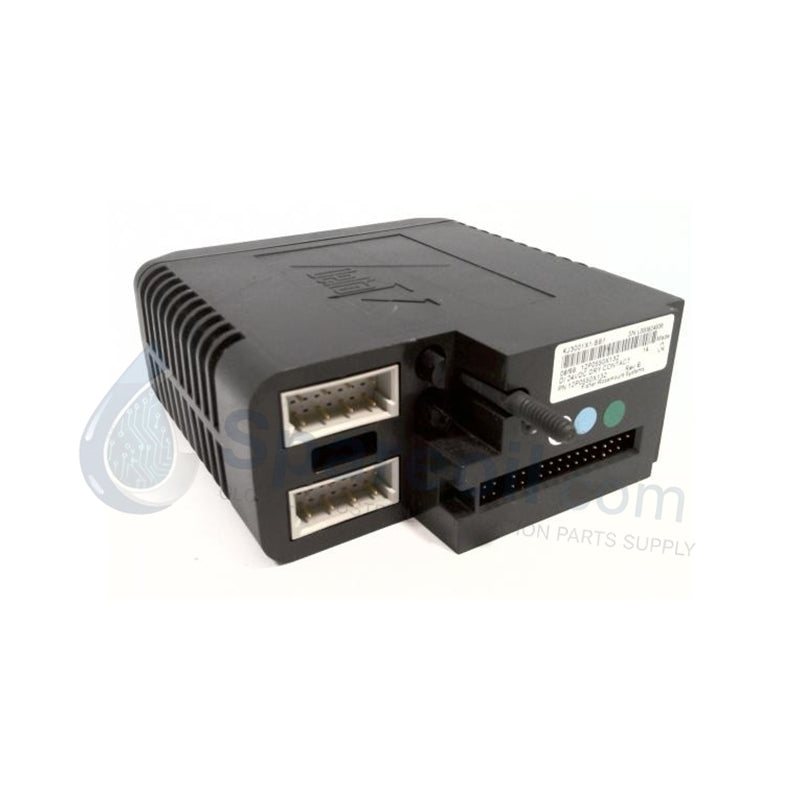

Emerson KJ3001X1-BB1 DeltaV Series Discrete Input Card

The Emerson 12P0683X082, also cataloged as the KJ3001X1-BB1 Discrete Input Card, operates as a dedicated hardware component for high-integrity discrete signal acquisition and multiplexing within Emerson DeltaV Distributed Control System platforms. This hardware component interfaces 8 independent field-side dry contact switches directly with the core rack subsystem via internal backplane logic buses, converting binary contact states into digital logic without requiring external loop power or auxiliary excitation modules.

Hardware Specifications

Parameter	Specification
Model	KJ3001X1-BB1
Brand	Emerson Automation Solutions (DeltaV)
Origin	United States
Weight	0.32 kg
Dimensions	10.7 cm x 4.1 cm x 10.5 cm
Operating Temp	0 to 55 deg C
Power Consumption	100 mA at 12 VDC (Local Bus Power)
Channel Density	8 Channels
Input Signal Type	24 VDC (Internal excitation for dry contact sensing)
Detection Current	5 mA typical per channel
Isolation Protection	Galvanic isolation between field side and system backplane

Process Control & DCS Instrumentation Features

The module integrates a dedicated 4-20 mA HART loop protocol layer enabling seamless pass-through communication between field instruments and the DeltaV engineering workstation. Internal measurement nodes feature individual channel-to-channel isolation parameters to mitigate ground loop currents and prevent common-mode voltage differentials from corrupting adjacent channels. For thermal safety and accuracy across varying installation conditions, electronic temperature sensors provide automated cold junction compensation (CJC) calculation routines when processing external thermocouple signals via matching terminal boards, ensuring deterministic A/D converter scaling.

Frequently Asked Questions

Q: Does the KJ3001X1-BB1 module support hot-swap insertion while the DeltaV controller is actively executing runtime code?

A: Yes, technicians can hot-swap this discrete input module online within a live carriers slot; the hardware automatically buffers local bus communications to eliminate data drops or signal distortion on adjacent slots.

Q: How should a system engineer address external power routing since this card is designated for dry contacts?

A: Do not apply external voltage to the field loops; the card provides internal 24 VDC excitation logic through the terminal block to sense contact closures, and applying external power will cause overcurrent hardware damage.

Field Installation Guidelines

Insert the KJ3001X1-BB1 card vertically into the designated slot of the DeltaV 2-wide or 8-wide carrier, pressing down until the integrated latch locks into position.
Align the matching terminal block with the front interface header and tighten the retention screw to establish solid electrical paths.
Wire the external discrete switches using twisted-pair cables, routing field conductors away from high-power inductive motor leads to limit electromagnetic noise induction.
Verify all cable shield drains terminate exclusively at the cabinet common instrumentation grounding bar rather than grounding at both ends of the run.
Inspect the module LEDs post-initialization; a solid status indicator verifies correct backplane addressing and active communication loops with the controller.
