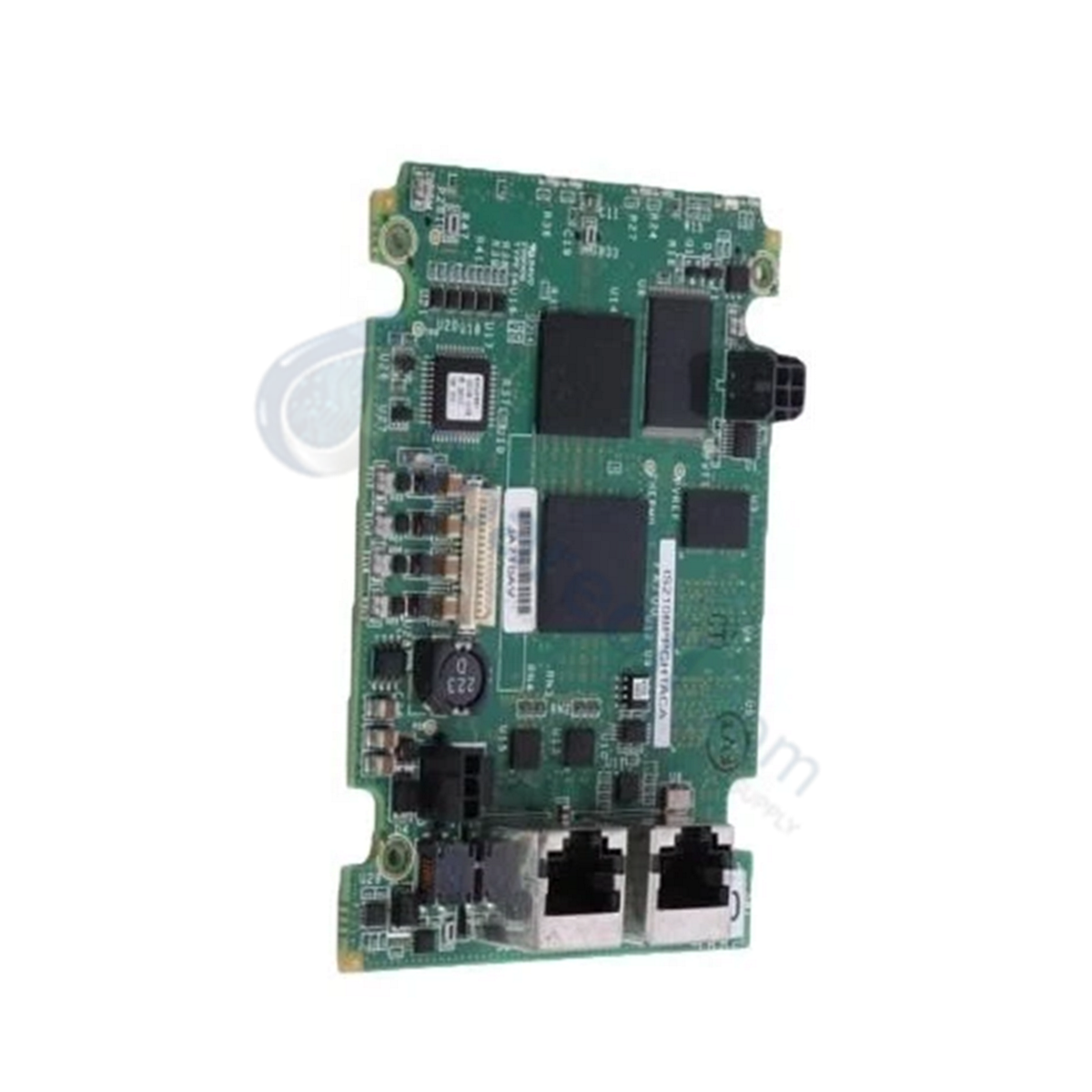

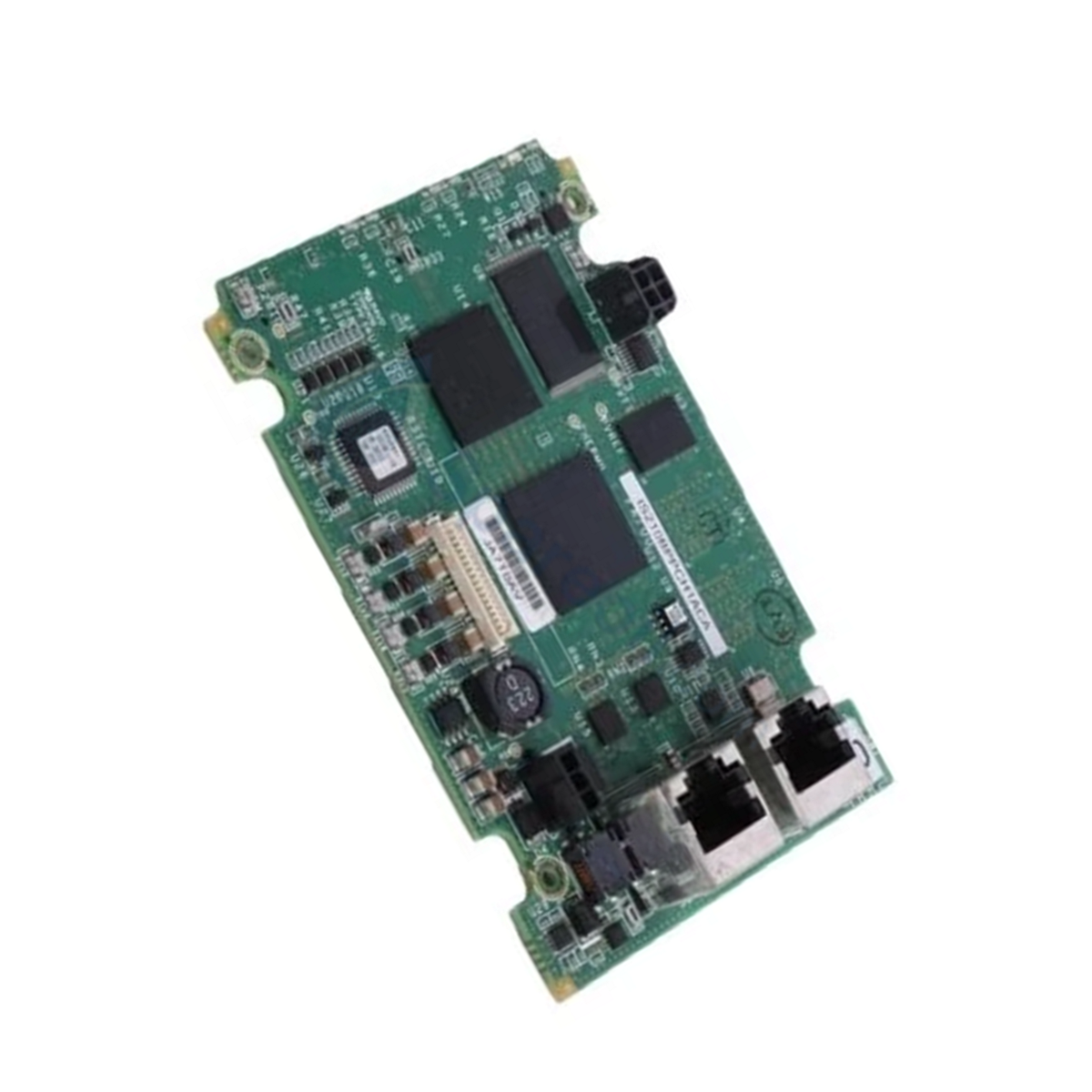

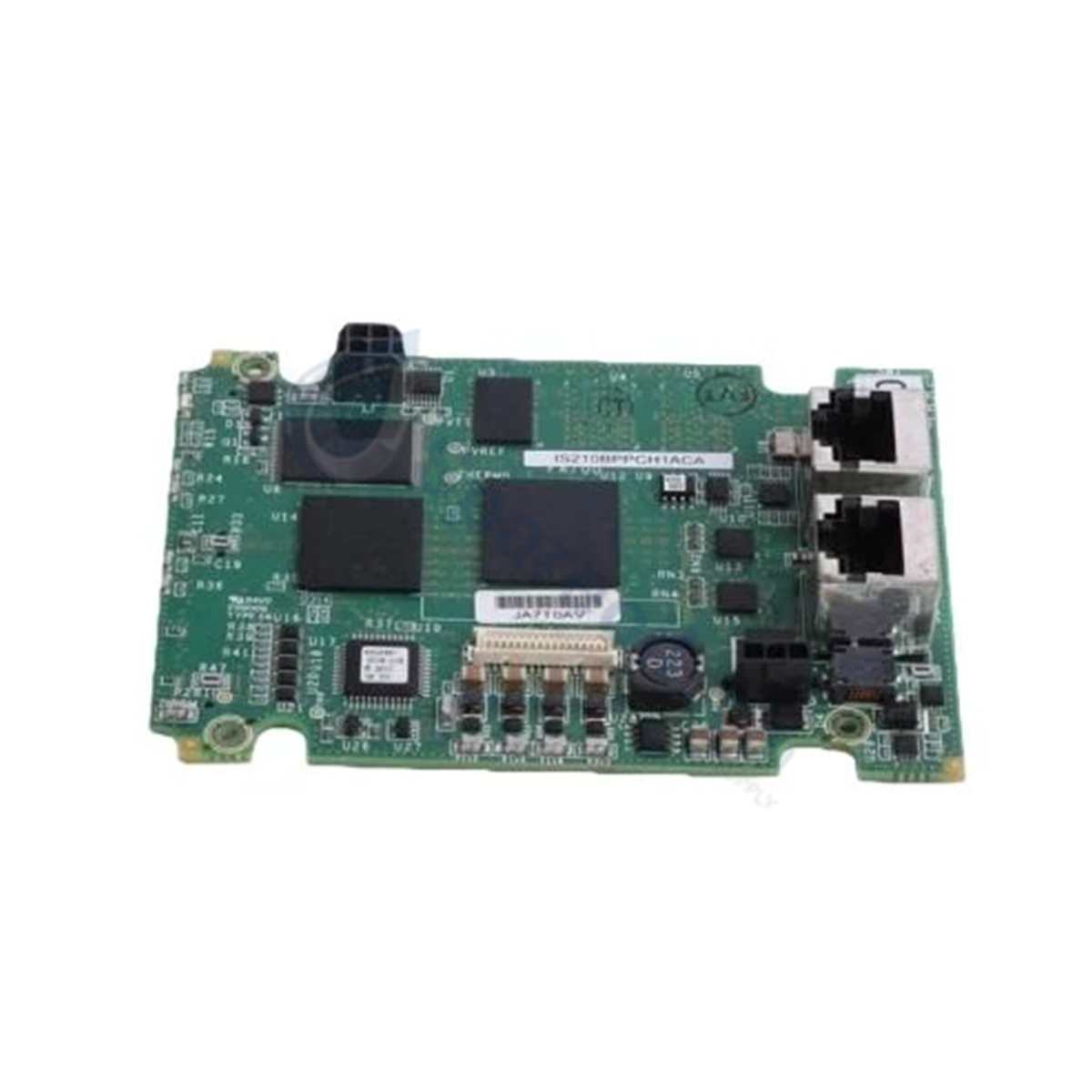

The GE IS210BPPCH1AC, also cataloged as the IS210BPPC Processor Control Board, operates as a dedicated hardware component for internal UCPA processing and I/O signal routing within GE Mark VIe Speedtronic control systems. Configured as an upgraded UCPA I/O pack processor, it handles real-time instruction execution and diagnostic feedback across Simplex, Dual, and Triple Modular Redundant (TMR) architectures. The unit operates from a nominal 12 VDC supply (9 to 16 VDC range) and integrates directly with terminal boards including YAICS1B, YDIAS1B, YDOAS1B, PVIBH1B, and YVIBS1B.

Hardware Specifications

Parameter Specification
Model IS210BPPCH1AC
Brand General Electric (GE)
Series Mark VIe Speedtronic
Product Type Processor Control Board
Power Consumption Nominal 12 VDC (9 to 16 VDC input range)
Model Type Internal UCPA Processor
Operating Architectures Simplex, Dual, Triple Modular Redundant (TMR)
Diagnostic Signals ATTN signal (7 Red patterns, 4 Green patterns)
Hardware Watchdog Reset circuits with hardware watchdog timer
Board Compatibility YAICS1B, YDIAS1B, YDOAS1B, PVIBH1B, YVIBS1B
Software Suite ToolboxST / ControlST Software Suite
Reference Manual GEH-6721 (Volumes I, II, and III)

Firmware Flash Compatibility and Auto Reconfiguration Logic

The IS210BPPCH1AC provides firmware flash compatibility across GE Mark VIe control platforms, supporting direct integration with ToolboxST for code branding and parameter validation. The onboard hardware reset circuitry incorporates a dedicated watchdog timer that continuously monitors CPU instruction execution cycles. Upon detecting execution anomalies, the watchdog forces a hardware reset to preserve system integrity. Furthermore, the module supports automatic reconfiguration from legacy BPPB hardware to BPPC standards, maintaining deterministic communications and execution continuity without requiring manual firmware reconfiguration.

Frequently Asked Questions

Q: How does the IS210BPPCH1AC indicate internal fault states and diagnostic attention?

A: Diagnostic status is communicated via onboard red and green ATTN LEDs, which display 7 specific red flashing patterns and 4 green flashing patterns to identify distinct fault conditions and system states.

Q: Can the IS210BPPCH1AC replace legacy BPPB processor packs in existing systems?

A: Yes, the board supports automatic reconfiguration from BPPB to BPPC standards in most applications, maintaining backward compatibility within Dual and TMR Mark VIe configurations.

Q: What input voltage range is required to power the internal CPU logic on this pack?

A: The pack operates on a nominal supply voltage of 12 VDC and accepts an input range between 9 VDC and 16 VDC.

Field Installation Guidelines

  1. De-energize the local rack or terminal board power supply before installing or removing the IS210BPPCH1AC module.
  2. Wear an electrostatic discharge (ESD) grounding wrist strap connected to bare metal before handling the circuit card.
  3. Align the pack mounting interface with the mating connectors on the designated terminal board (e.g., YAICS1B, YDIAS1B, YDOAS1B).
  4. Press the module evenly onto the terminal board headers until fully seated, then hand-tighten all captive mounting screws.
  5. Apply 12 VDC power and verify system health using ToolboxST diagnostic utilities and the front-panel ATTN LED indicators.
