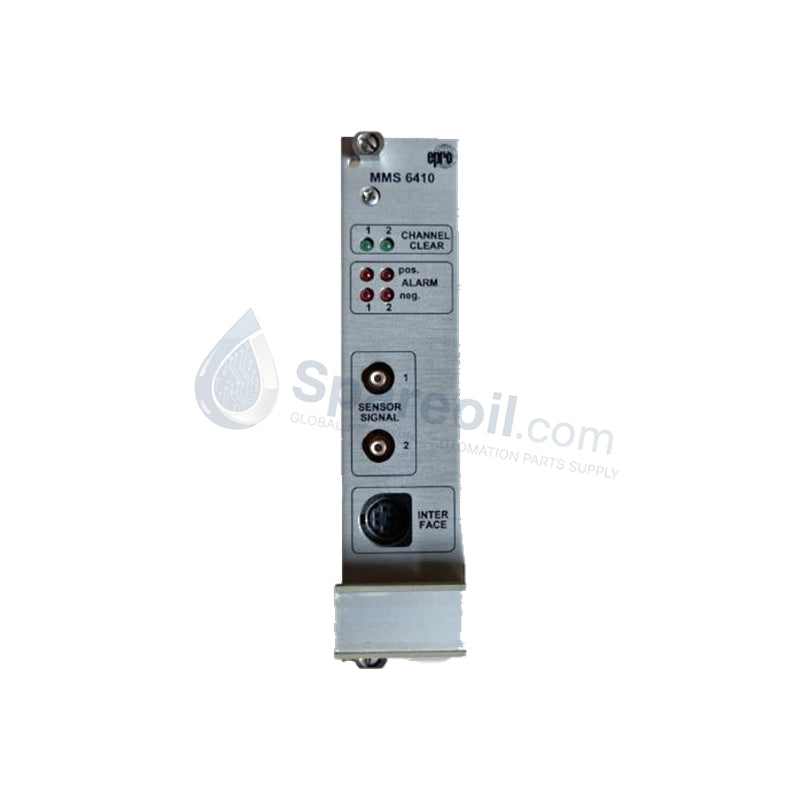

EPRO MMS6410 MMS6000 Displacement Measuring Board

The EPRO MMS6410, also cataloged as the MMS6410 Displacement Measuring Board, operates as a dedicated hardware component for non-contact displacement signal processing within MMS6000 machinery protection platforms.

Hardware Specifications

Parameter Specification
Model MMS6410 (Type: 9100-00005)
Brand EPRO (Emerson)
Origin Germany
Weight 0.6 kg
Dimensions Standard MMS6000 single-slot rack module footprint
Operating Temp -20 to +70 deg C
Power Consumption 24 V DC Nominal
Input Channels 2 Independent Channels (Single or Dual configuration)
Sensor Compatibility PR6422, PR6423, PR6424, PR6425 eddy current probes
Measurement Modes Absolute/Relative shaft vibration, radial displacement
Communication RS-485 Standard / Optional Profibus DP-V1
Analog Output 0 to 10 V DC (Conditioned)

Mechanical Monitoring & TSI Integration

The MMS6410 manages internal eddy-current probe scaling configurations to translate high-frequency proximity metrics into standardized voltage values. Commissioning verification requires strict gap voltage validation (-10 VDC targets) across both channels to anchor the zero-point reference baseline for active rotor dynamics calculation. Built-in cross-talk suppression paths isolate adjacent X and Y probe fields, ensuring uncorrupted vector data streams for orbit plot generation when executing concurrent multi-probe monitoring over the RS-485 network array.

Frequently Asked Questions

Q: What process risk must be managed prior to performing a hot-swap replacement of the MMS6410 module?

A: The target monitoring loops must be placed into manual or bypass mode at the supervisory controller level before physical extraction. Removing an active card under power causes a signal break that downstream trip logic may interpret as a mechanical fault, executing an unwanted shutdown.

Q: What is the technical function of the specific type code 9100-00005 designation?

A: The 9100-00005 type code determines the precise factory internal configuration and hardware architecture layout. Interchanging this module with other sub-models on the MMS6000 backplane layout will result in firmware interface faults or incorrect signal conversion logic.

Field Installation Guidelines

  • Subrack Alignment and Seating: Isolate system logic links before mounting. Position the MMS6410 parallel within the card guides of the target MMS6000 chassis slot, sliding the unit backward until the rear multi-pin male connector mates fully with the backplane board.
  • Transducer Lead Shield Configuration: Connect the coaxial transmission lines from the PR642x sensor probes to the designated terminal inputs. Maintain complete copper shield coverage up to the connection block to block high-frequency noise from nearby variable frequency drives (VFDs).
  • Reference Ground Path Maintenance: Ensure the subrack frame is bonded directly to the main copper instrumentation ground network. A low-impedance grounding circuit is required to stabilize the probe DC bias voltages and eliminate coordinate drift during high-speed shaft operation.
