PLC Analog I/O Module Original Stock

PLC Analog I/O Module Original Stock | IC200ALG432

Availability: 10 left in stock

Product Overview The IC200ALG432 provides a versatile, cost-effective solution for applications requiring both analog input and output capabilities in a single slot....

SKU: IC200ALG432

Manufacturer: GE Fanuc
Product No.: IC200ALG432
Product Type: 12-Bit Resolution
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

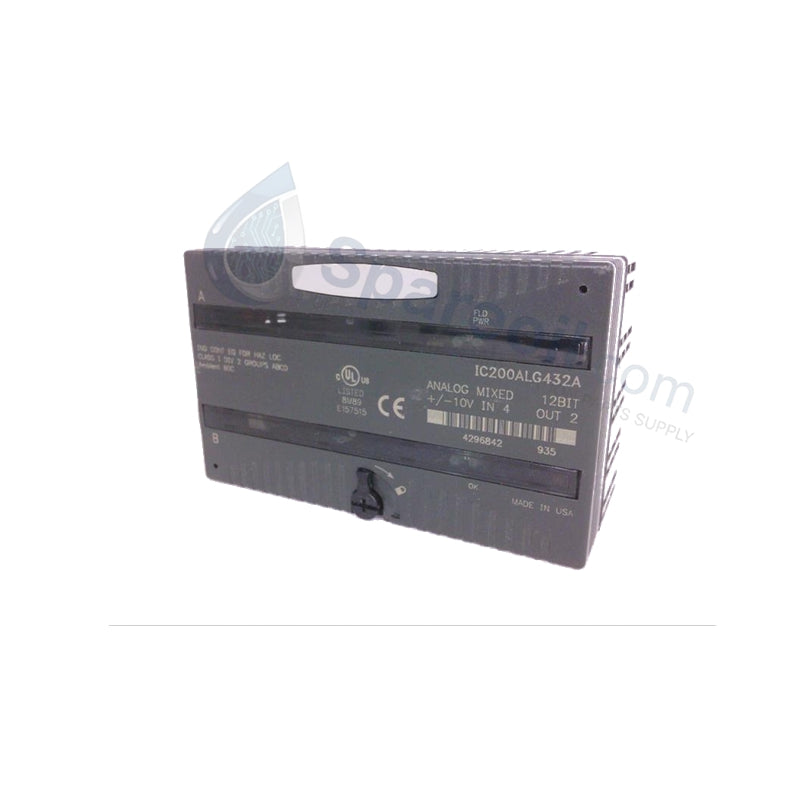

The IC200ALG432 provides a versatile, cost-effective solution for applications requiring both analog input and output capabilities in a single slot. This VersaMax mixed module features 4 analog input channels and 2 analog output channels, primarily supporting ±10VDC voltage signals. By consolidating mixed I/O into one unit, it significantly reduces hardware costs and backplane footprint. We supply this module as 100% Brand New and Original, ensuring high-precision signal processing for your OEM machinery and distributed control systems.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Line	VersaMax
Module Type	Analog Mixed Module (Input/Output)
I/O Count	6 Total Points (4 Inputs / 2 Outputs)
Signal Range	±10 VDC (Input and Output)
Resolution	12-Bit
Accuracy (25°C)	± 0.3% of Full Scale
Update Rate	0.4 milliseconds
Response Time	5 milliseconds
Power Consumption	160 mA @ 5V DC (from backplane)
Isolation	Channel-to-Backplane Isolation
Weight	0.38 lbs (0.17 kg)

Engineering Advantages

High-Density Mixed I/O: The IC200ALG432 eliminates the need for separate input and output modules in small-scale applications. This integration saves valuable DIN rail space and reduces the number of I/O carriers required in the control cabinet.
Rapid Signal Processing: An update rate of 0.4ms ensures the PLC receives and transmits analog data with minimal latency. This speed allows for high-performance closed-loop control of fast-acting proportional valves and variable frequency drives (VFDs).
Precise 12-Bit Resolution: The 12-bit conversion delivers the granularity needed for accurate process monitoring and control. It translates ±10V signals into precise digital increments, ensuring the CPU detects subtle changes in pressure, flow, or temperature.
Enhanced Noise Immunity: Robust channel-to-backplane isolation protects the PLC’s sensitive logic circuitry from electrical noise and ground loops common in industrial environments. This shielding ensures signal stability even when the module shares a rack with high-voltage discrete I/O.
Modular Versatility: Like all VersaMax components, the IC200ALG432 snaps into a standard I/O carrier. This modular design permits "hot-swapping" (in supported configurations), allowing maintenance teams to replace hardware without disturbing field wiring, thereby reducing Mean Time to Repair (MTTR).

FAQs

Can I configure the IC200ALG432 for 4-20mA current signals?

The IC200ALG432 is primarily designed for ±10VDC voltage signals. While some mixed modules support multiple ranges, always check your specific hardware revision. If your sensors utilize 4-20mA, you may require external precision resistors or a dedicated current module like the IC200ALG430.
Does this module require an external power supply?

The module draws its 5VDC logic power (160mA) from the VersaMax backplane. However, the analog field devices (actuators or sensors) usually require their own 24VDC external power source to drive the signal loop.
Is the IC200ALG432 compatible with all VersaMax CPUs?

Yes, it integrates with all VersaMax modular CPUs and Network Interface Units (NIUs). It requires a standard VersaMax I/O carrier (such as IC200CHS001 or IC200CHS002) for proper installation.
How does temperature affect the module's accuracy?

The module maintains high accuracy (±0.3% of full scale) at 25°C. In extreme industrial conditions up to 60°C, the accuracy rating shifts to a maximum of ±1%, which remains within the acceptable range for most factory automation tasks.
