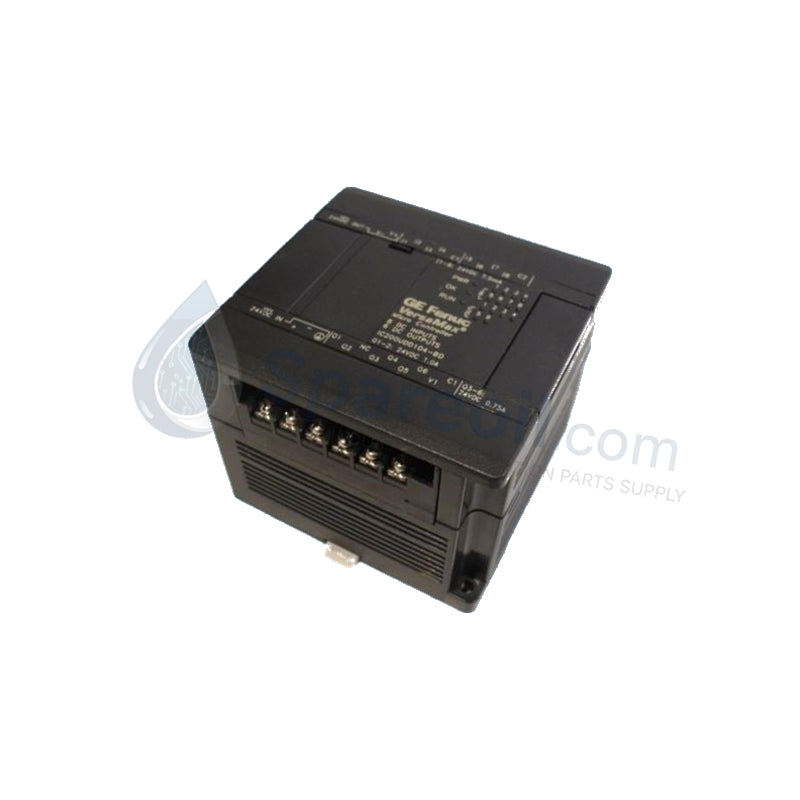

PLC I/O Expansion 24VDC Transistor Module

PLC I/O Expansion 24VDC Transistor Module | IC200UEX122

Availability: 10 left in stock

Product Overview The IC200UEX122 serves as a high-density discrete expansion module for the VersaMax Micro PLC series. It provides an additional 28...

SKU: IC200UEX122

Manufacturer: GE Fanuc
Product No.: IC200UEX122
Product Type: PLC Expansion Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200UEX122 serves as a high-density discrete expansion module for the VersaMax Micro PLC series. It provides an additional 28 I/O points—comprised of 16 digital inputs and 12 transistor outputs—to extend the control reach of a base CPU unit. Operating on a standard 24 VDC power supply, this module integrates seamlessly into compact automation architectures where cabinet space remains limited. We supply this unit as 100% Brand New and Original, ensuring factory-level performance and long-term field stability for your OEM machinery or factory process lines.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Product Type	Micro PLC Expansion Unit
Total I/O Points	28 Points
Input Configuration	16 Inputs (24 VDC, Sink/Source Configurable)
Output Configuration	12 Outputs (24 VDC Transistor)
Power Requirement	24 VDC
Input Current	7.5 mA per input
Response Time	High-speed execution for real-time control
Mounting	35mm DIN Rail or Panel Mount
Compatibility	VersaMax Micro PLC Base Controllers

Engineering Advantages

High-Density Scaling: The IC200UEX122 adds significant I/O capacity without requiring a migration to a larger PLC platform. This compact design allows engineers to scale control systems for complex machinery while maintaining a small enclosure footprint.
Dual-Logic Input Flexibility: The 16 digital inputs support both positive (Source) and negative (Sink) logic. This versatility allows the module to interface with a diverse array of field sensors, including NPN or PNP proximity switches and limit switches, without requiring interposing relays.
Reliable Solid-State Switching: The 12 transistor outputs provide fast, bounce-free switching. Unlike mechanical relays, these solid-state outputs offer virtually unlimited switching cycles, making them ideal for high-frequency applications like solenoid valve control or rapid status indication.
Optimized for 24VDC Environments: The module operates entirely on 24 VDC, matching standard industrial power distribution. This simplifies the wiring architecture and ensures compatibility with most modern sensors and actuators used in factory automation.
Modular Integration: The expansion unit connects directly to the VersaMax Micro base controller via the built-in expansion port. This modular approach supports rapid assembly and simplifies maintenance, as users can replace or add modules without redesigning the entire system.

FAQs

Can the IC200UEX122 operate as a standalone PLC?

No. The IC200UEX122 is an expansion unit, not a standalone controller. It requires a connection to a VersaMax Micro PLC base unit (which contains the CPU) to function and execute logic.
What type of wiring is required for the transistor outputs?

The transistor outputs can be wired for either sink or source configurations depending on your specific load and power supply wiring. Always refer to the wiring diagram to ensure the common terminals match your field device requirements.
How many expansion units can I add to a single Micro PLC?

The total number of expansion modules depends on the specific VersaMax Micro base model you are using. Most Micro controllers support up to 4 expansion units, but you must verify the total power consumption does not exceed the base unit's capacity.
Is external protection necessary for the outputs?

Yes. While the module is robust, we strongly recommend external fusing for all transistor outputs. This protects the internal solid-state components from irreversible damage caused by short circuits or accidental overcurrent in the field wiring.
