Description

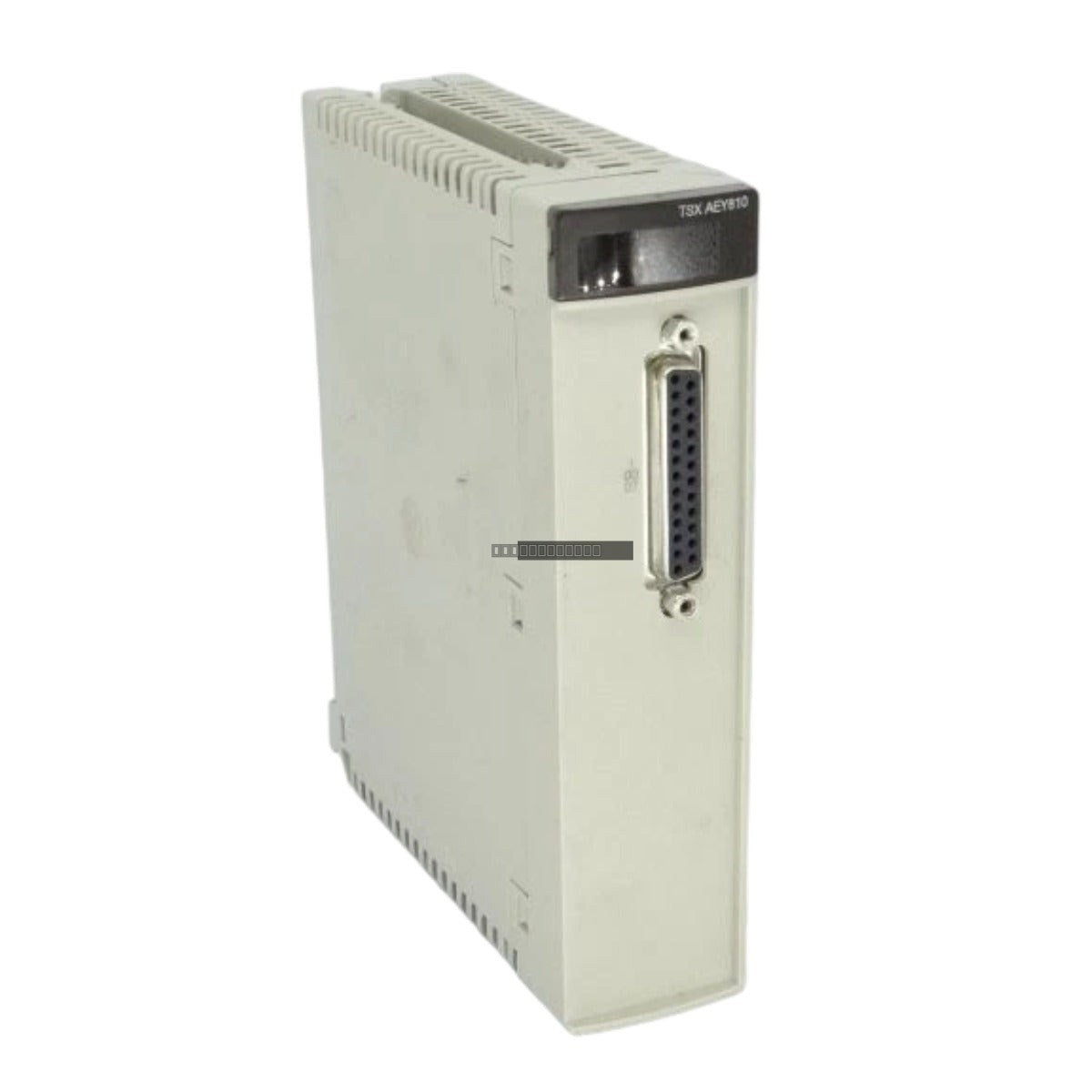

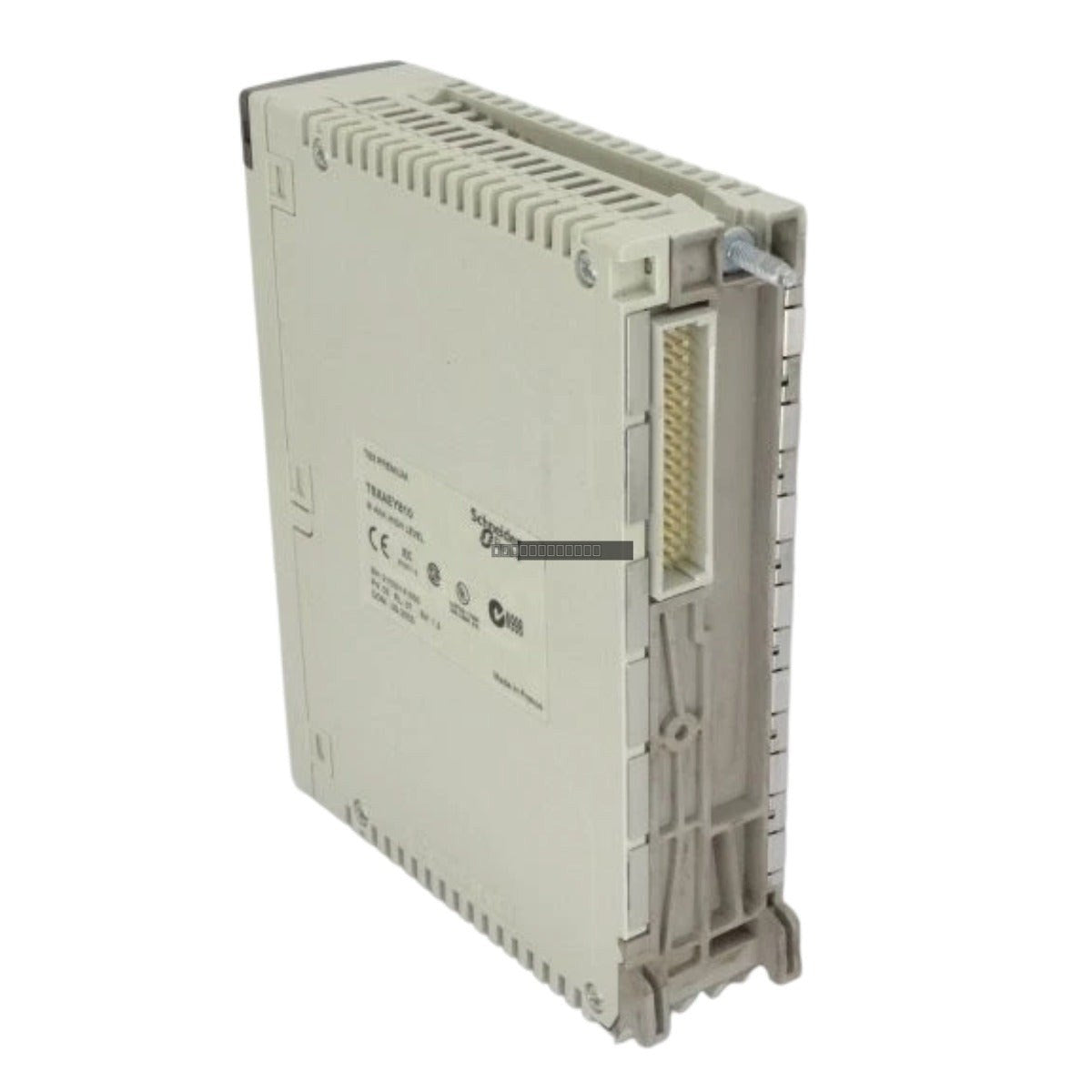

The Schneider Electric TSXAEY810 is an analog input module designed for the Modicon Premium automation platform. This module provides 8 isolated low-level analog inputs, offering high-precision signal acquisition with 16-bit resolution. It is engineered for demanding industrial environments where signal isolation and accurate data conversion are critical for process control and monitoring.
Features
- 8 low-level isolated analog input channels
- 16-bit analog-to-digital conversion resolution
- Channel-to-channel isolation rated at +/- 200 V
- Nominal read cycle time of 29.7 ms
- Optimized for integration within the Modicon Premium PLC architecture
Technical Specifications
| Product Model | TSXAEY810 |
| Input Channels | 8 (Low Level, Isolated) |
| Resolution | 16 bits |
| Current Consumption | 475 mA at 5 V DC |
| Isolation | +/- 200 V between channels |
| Common Mode | +/- 200 V |
| Nominal Read Cycle Time | 29.7 ms |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module.
- Handle the module by its housing to prevent electrostatic discharge (ESD) damage to internal components.
- Verify that the module is fully seated in the rack slot and the locking mechanism is engaged.
- Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the Modicon Premium rack system to maintain signal integrity and safety.
- Maintain adequate ventilation around the rack to prevent overheating during operation.
FAQ
What is the primary function of the TSXAEY810?
The TSXAEY810 is an analog input module used to interface low-level analog signals with the Modicon Premium PLC system, converting them into digital data for processing.
Does this module require external power?
The module consumes 475 mA at 5 V DC, which is typically supplied directly through the Modicon Premium backplane once installed in the rack.
What is the isolation rating for this module?
The TSXAEY810 features an isolation rating of +/- 200 V between channels, providing protection against common-mode noise and potential ground loops in industrial instrumentation loops.
